Mazda Training manual - part 203

TC001-18-01H

INTRODUCTION TO M-MDS
07 - Reprogramming/Updating a PCM










Activity 07- Page 17

Activity 07
(Continued)

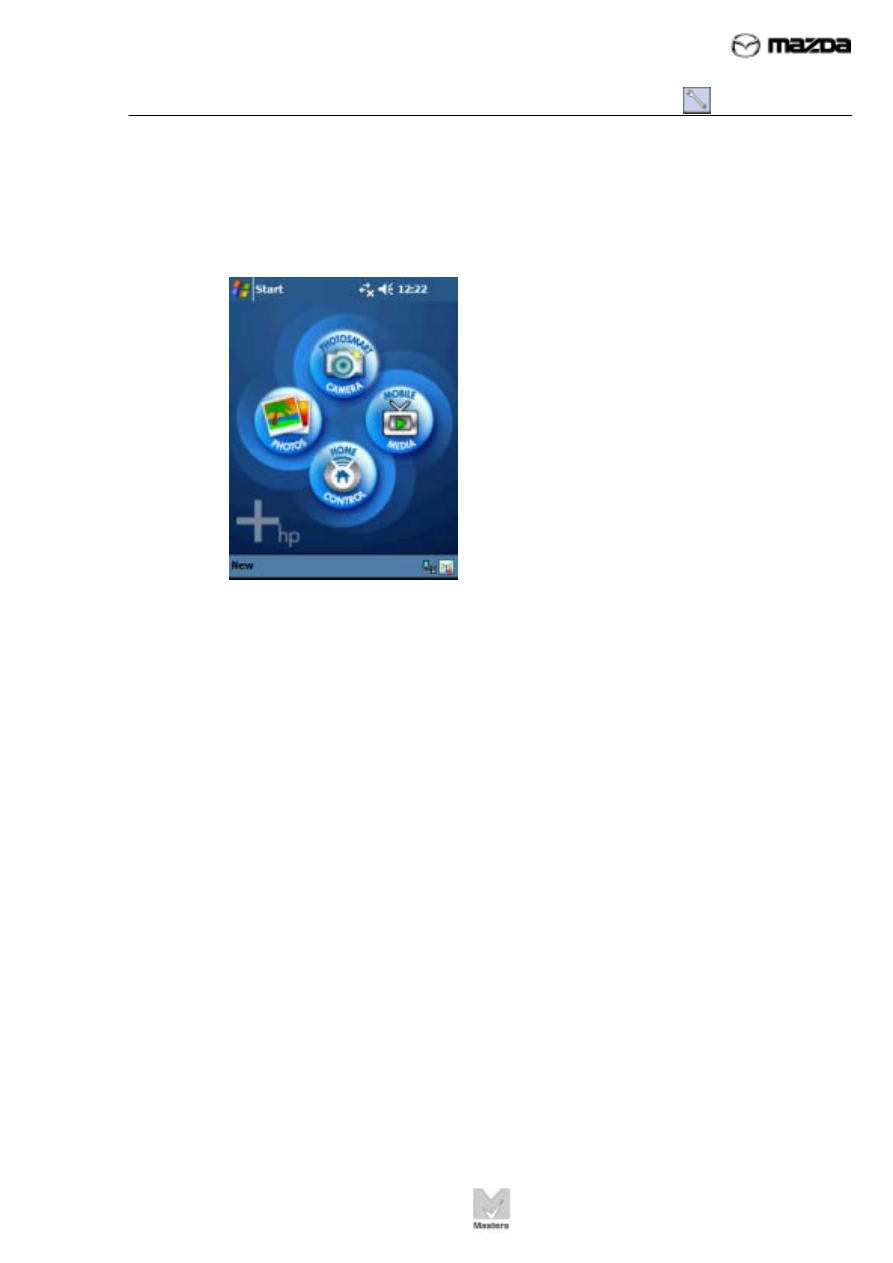

The main screen displays:



















46.  Turn the ignition key OFF.



47.  Disconnect PDS from the vehicle.



48.  Turn OFF the PDA.



Conclusion:



In this activity, you used M-MDS to reprogram or update a PCM.



Instructor Sign-off: ____________________________________




Your PDA’s main screen
may look slightly
different than this
example.

TC001-18-01H

INTRODUCTION TO M-MDS
08 - Verify/Change Programmable Parameters










Activity 08- Page1

Activity 08:  Verify/Change Programmable Parameters

Upon completing this activity you will be able to View/Change Programmable
Parameters on a current Mazda using M-MDS.

What you will need to complete this activity:

•  A Current Tribute or B Series Mazda

•  PDS

Connect the M-MDS data cable to DLC number 2 under the dash.
The PDA will turn on automatically.




Important!

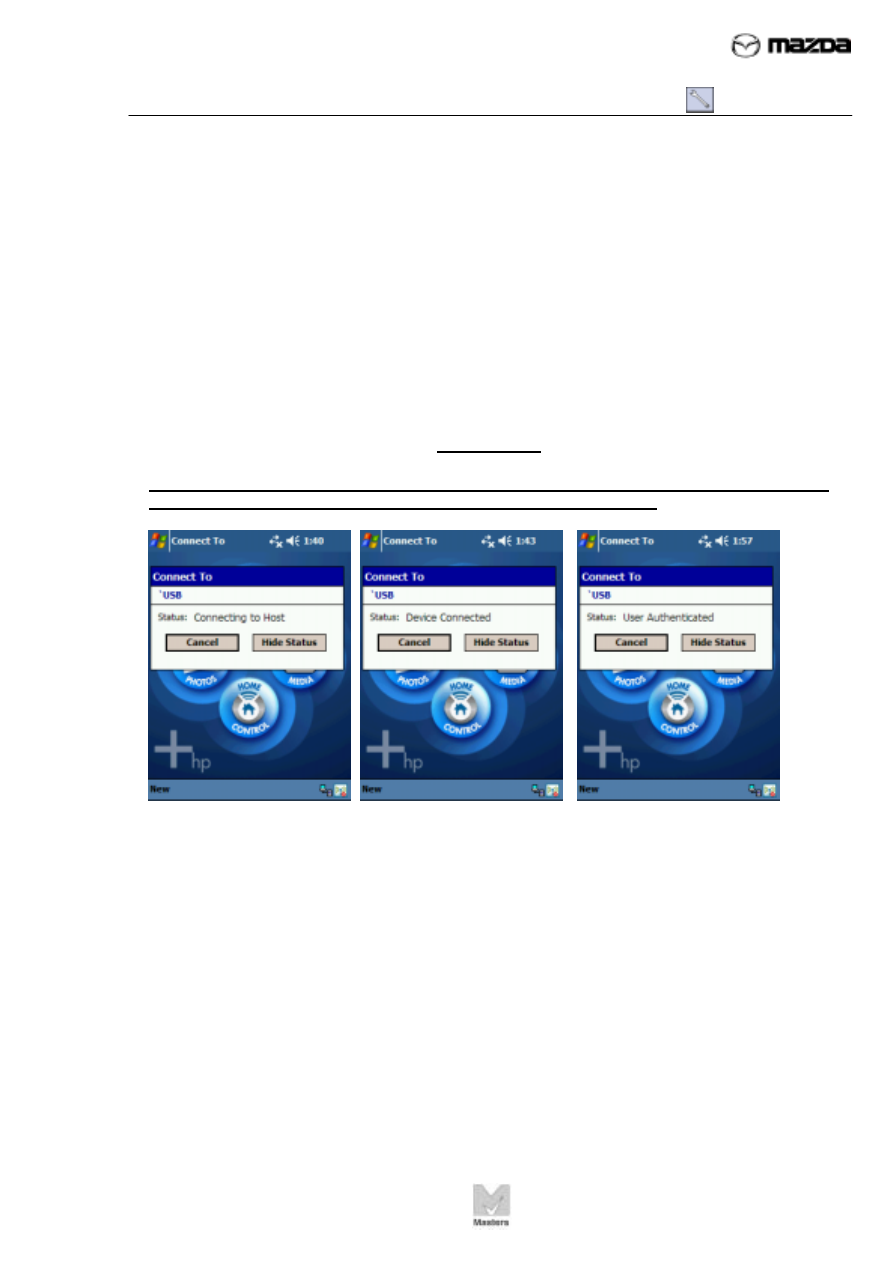

You should see all 3 of the following USB pop up boxes.  However they may “flash by” to
quick to see. The most important is the 3

rd

 one “user authenticated”

























TC001-18-01H

INTRODUCTION TO M-MDS
08 - Verify/Change Programmable Parameters










Activity 08- Page2

Activity 08
(Continued)

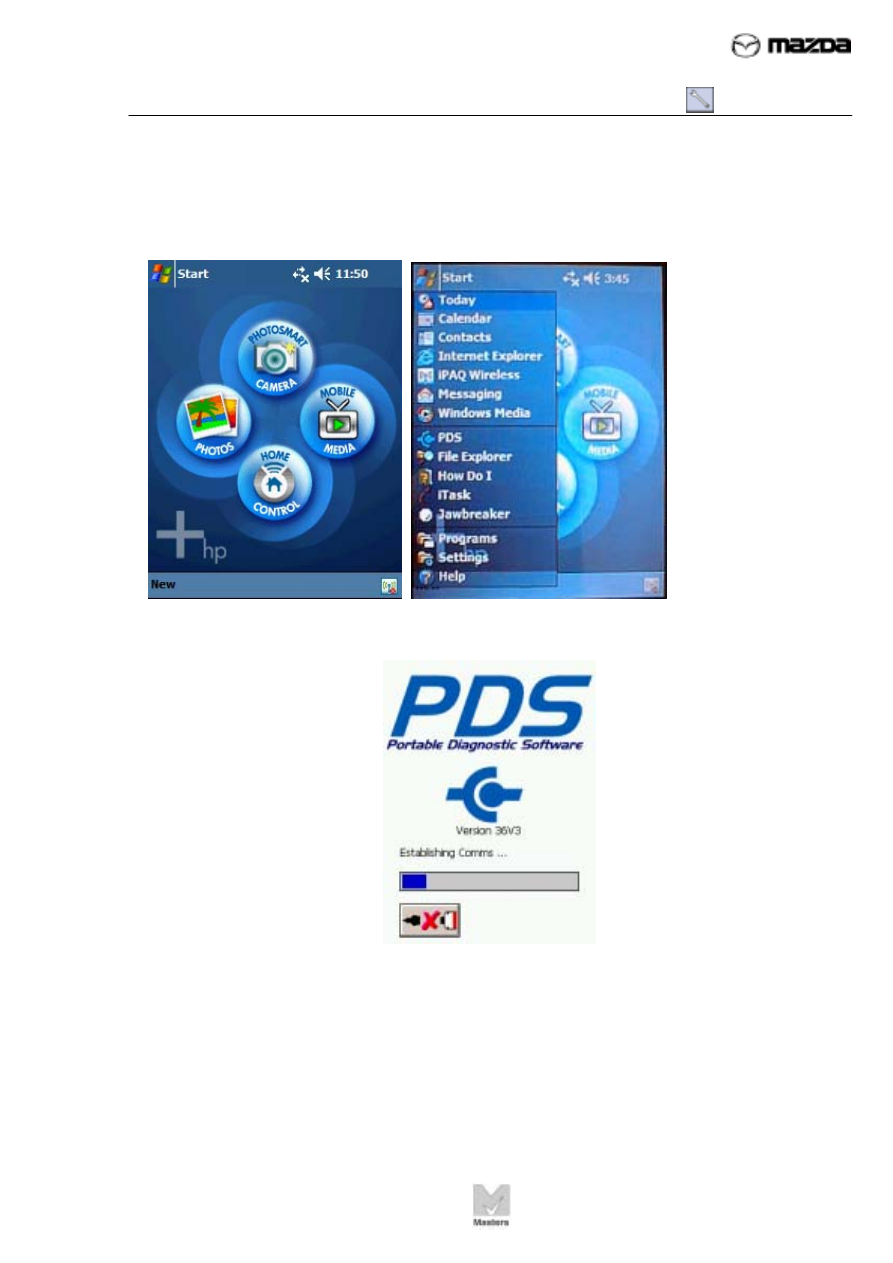

             Tap Start                                           Tap PDS







Establishing Communications






Note:
The screen above is the PDA connecting to the VCM via the USB network.









TC001-18-01H

INTRODUCTION TO M-MDS
08 - Verify/Change Programmable Parameters










Activity 08- Page3

Activity 08
(Continued)

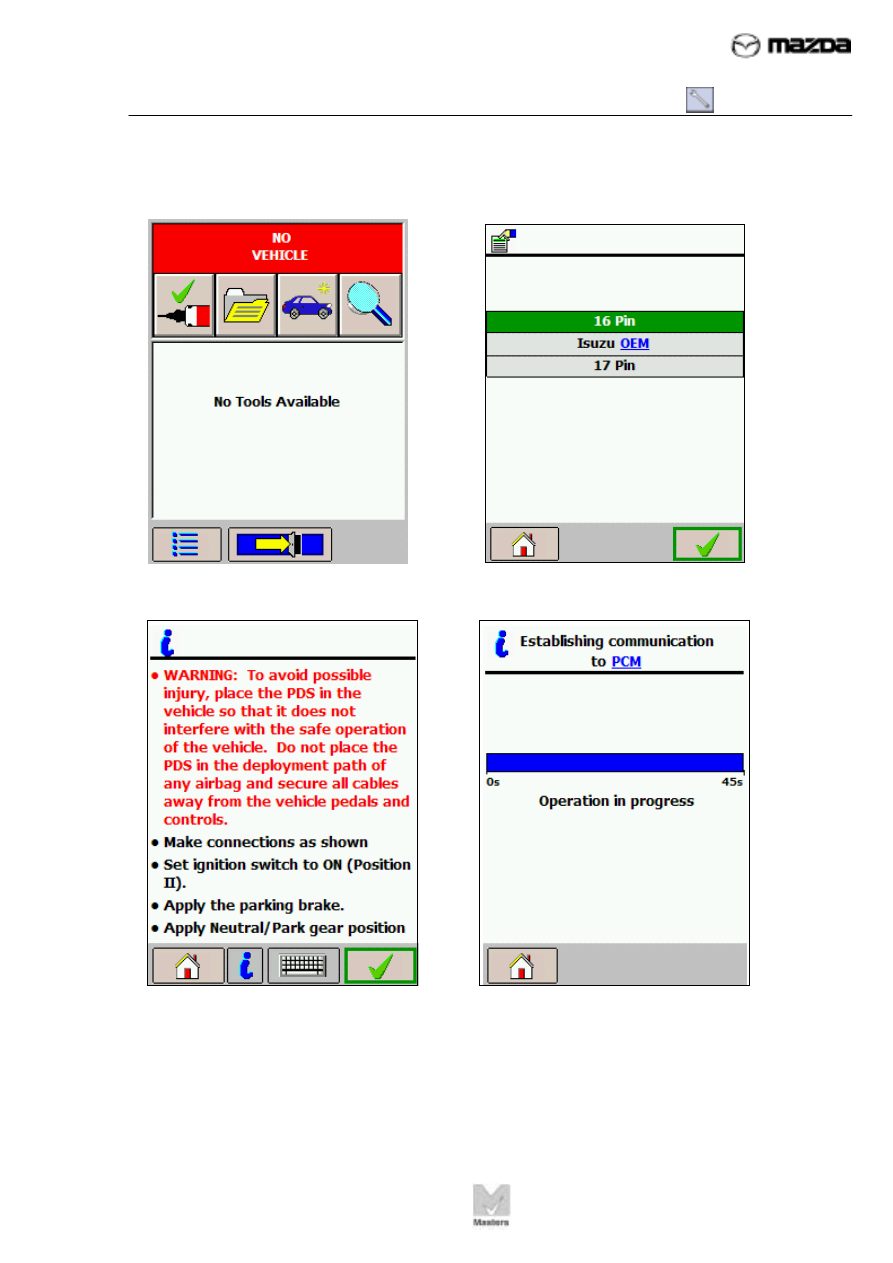

1.  Tap the blue car                                   2.  Tap Tick








3.  Tap Tick                                                4. Establishing Communication
