Mazda Training manual - part 202





TC001-18-01H

INTRODUCTION TO M-MDS
07 - Reprogramming/Updating a PCM











Activity 07- Page 13

Activity 07
(Continued)

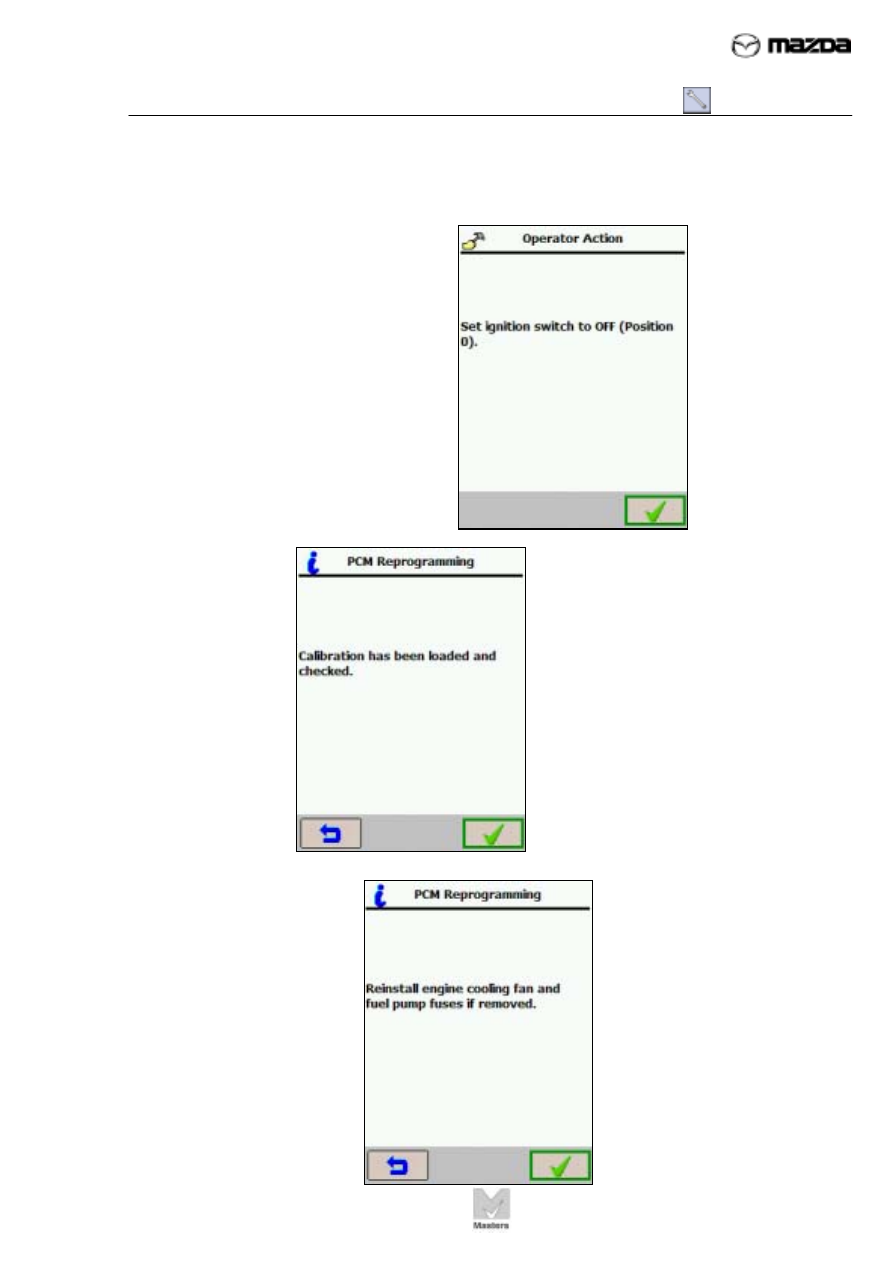

34.  Turn the ignition key OFF, then

tap tick.















35. Tap

tick.
















36.  Tap tick again.














TC001-18-01H

INTRODUCTION TO M-MDS
07 - Reprogramming/Updating a PCM











Activity 07- Page 14

Activity 07
(Continued)

37.  Follow the screen instructions to

complete the PCM update label.
If you are not sure where to place
the label, ask your instructor.


 Tap

tick.












38. Start

the

engine, then tap tick.



















39.  Turn the ignition key OFF, then
tap tick.











TC001-18-01H

INTRODUCTION TO M-MDS
07 - Reprogramming/Updating a PCM











Activity 07- Page 15

Activity 07
(Continued)

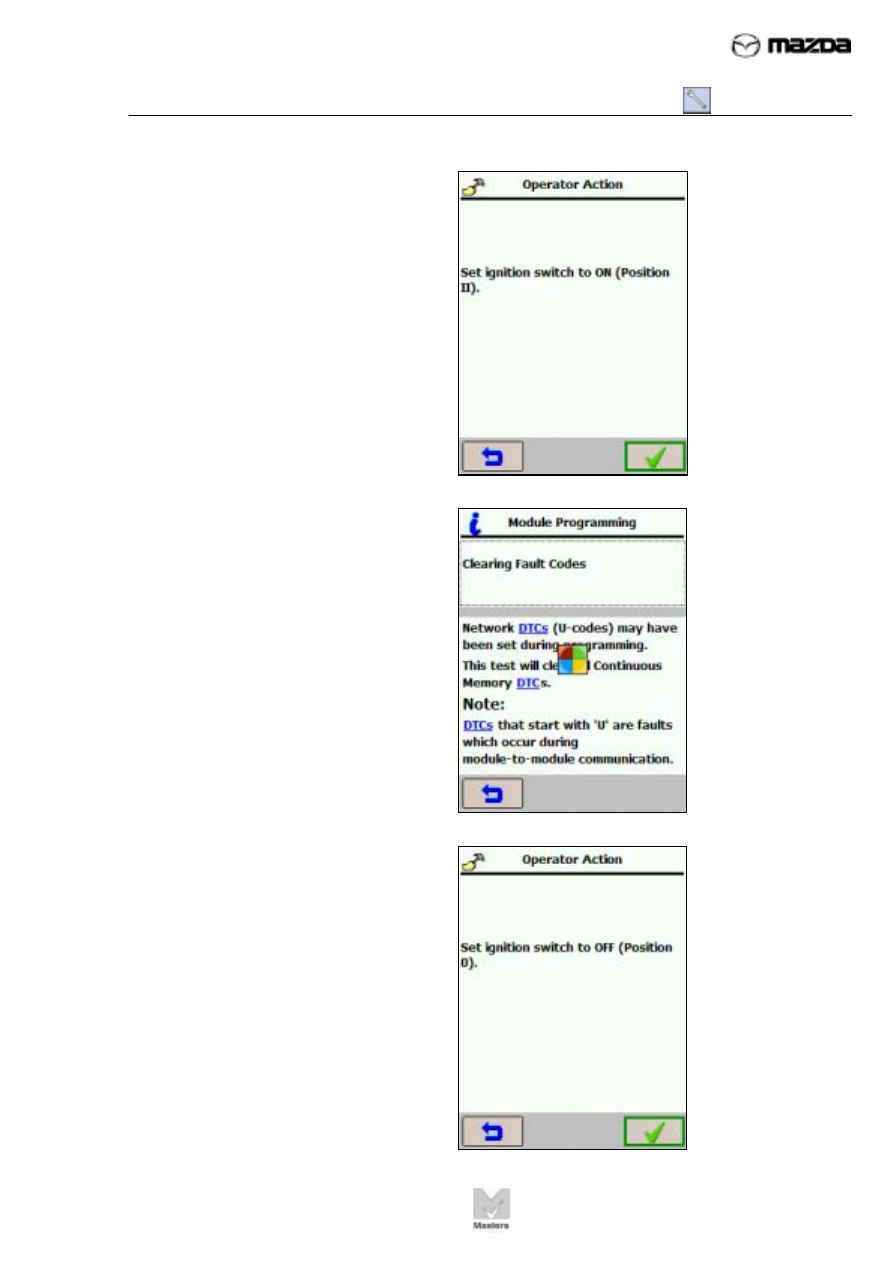

40.  Turn the ignition key ON, then
tap tick.















41.  This screen flashes on then off.















42.  Turn the ignition key OFF, then
tap tick.












TC001-18-01H

INTRODUCTION TO M-MDS
07 - Reprogramming/Updating a PCM











Activity 07- Page 16

Activity 07
(Continued)

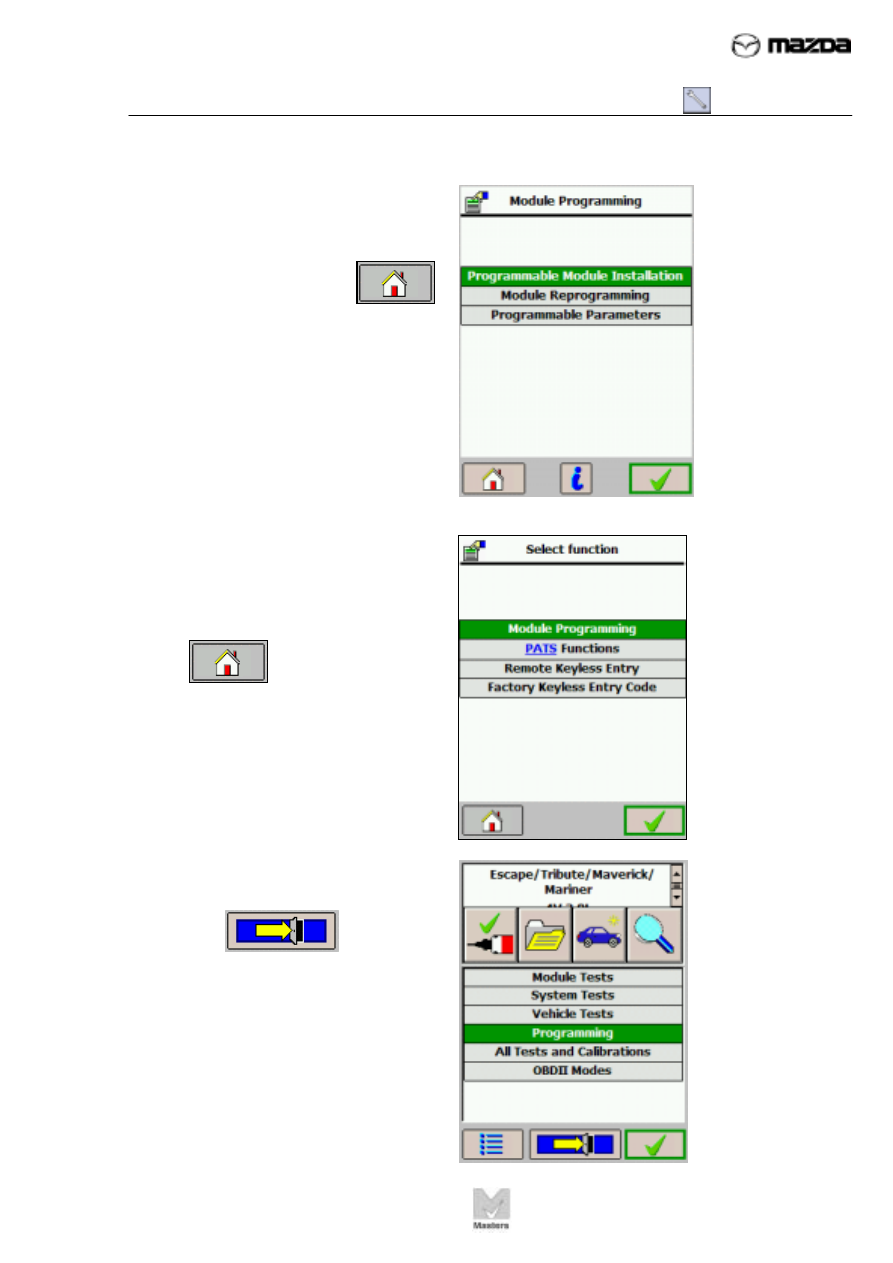

43. Tap

Programmable Module

Installation, if it is not

highlighted, then tap



Go to Previous Screen














44. Tap

Module Programming, if it

is not highlighted, then tap



Go to Previous Screen












45. Tap

 Exit PDS
