TC001-18-01H

INTRODUCTION TO M-MDS
07 - Reprogramming/Updating a PCM










Activity 07- Page 1

Activity 07:  Reprogramming



/



Updating a PCM


Upon completing this activity you will be able to use M-MDS to reprogram or update
a PCM.


What you need to complete this activity:


•

A current Mazda vehicle prepped by your instructor

•

Mazda-approved PDA with PDS installed

•

Mazda-approved laptop with ActiveSync installed

•

High-speed internet access



Procedure:

1.  Connect the M-MDS data cable to DLC 2 under the dash. The PDA will turn on

automatically.



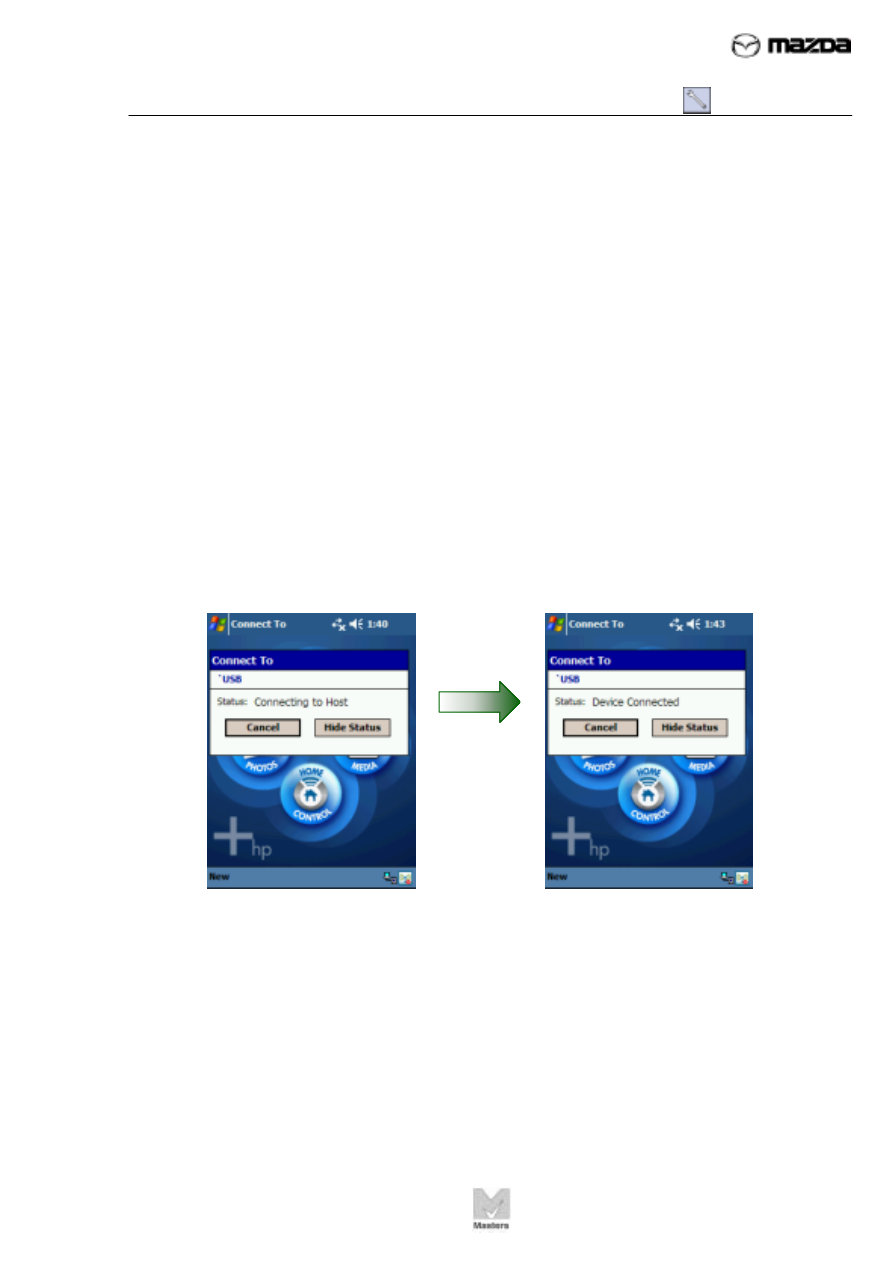

Three USB pop-up messages quickly flash on and off the PDA. You may
not see the first two messages:











USB message 2

USB message 1

TC001-18-01H

INTRODUCTION TO M-MDS
07 - Reprogramming/Updating a PCM










Activity 07- Page 2

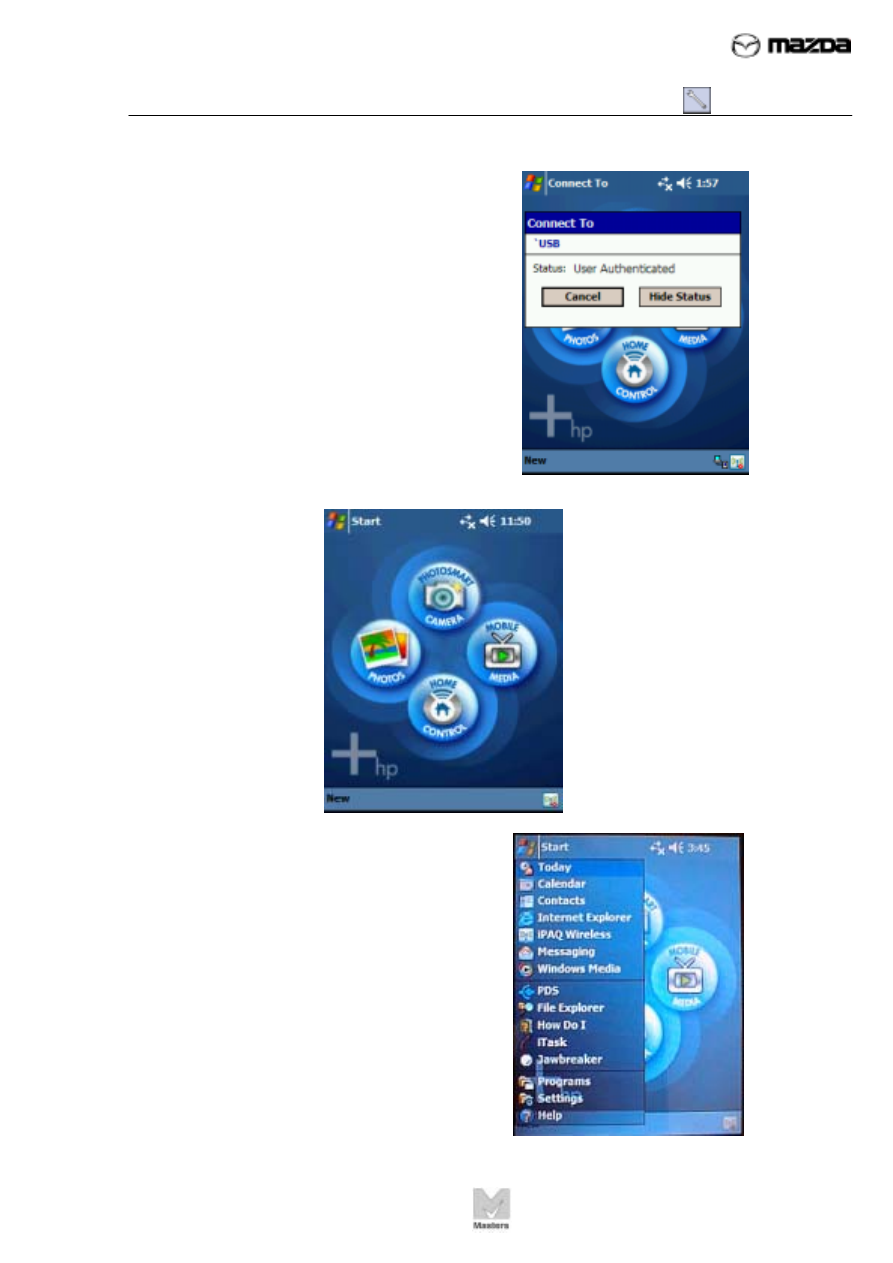

USB message 3

Activity 07
(Continued)


The third message, “Status: User
Authenticated,” is the most important
message.















2. Tap Start on the

main screen.
















3. Tap PDS from the drop-down menu.












Your PDA’s main screen
may look slightly different
than this example.

TC001-18-01H

INTRODUCTION TO M-MDS
07 - Reprogramming/Updating a PCM










Activity 07- Page 3

Activity 07
(Continued)

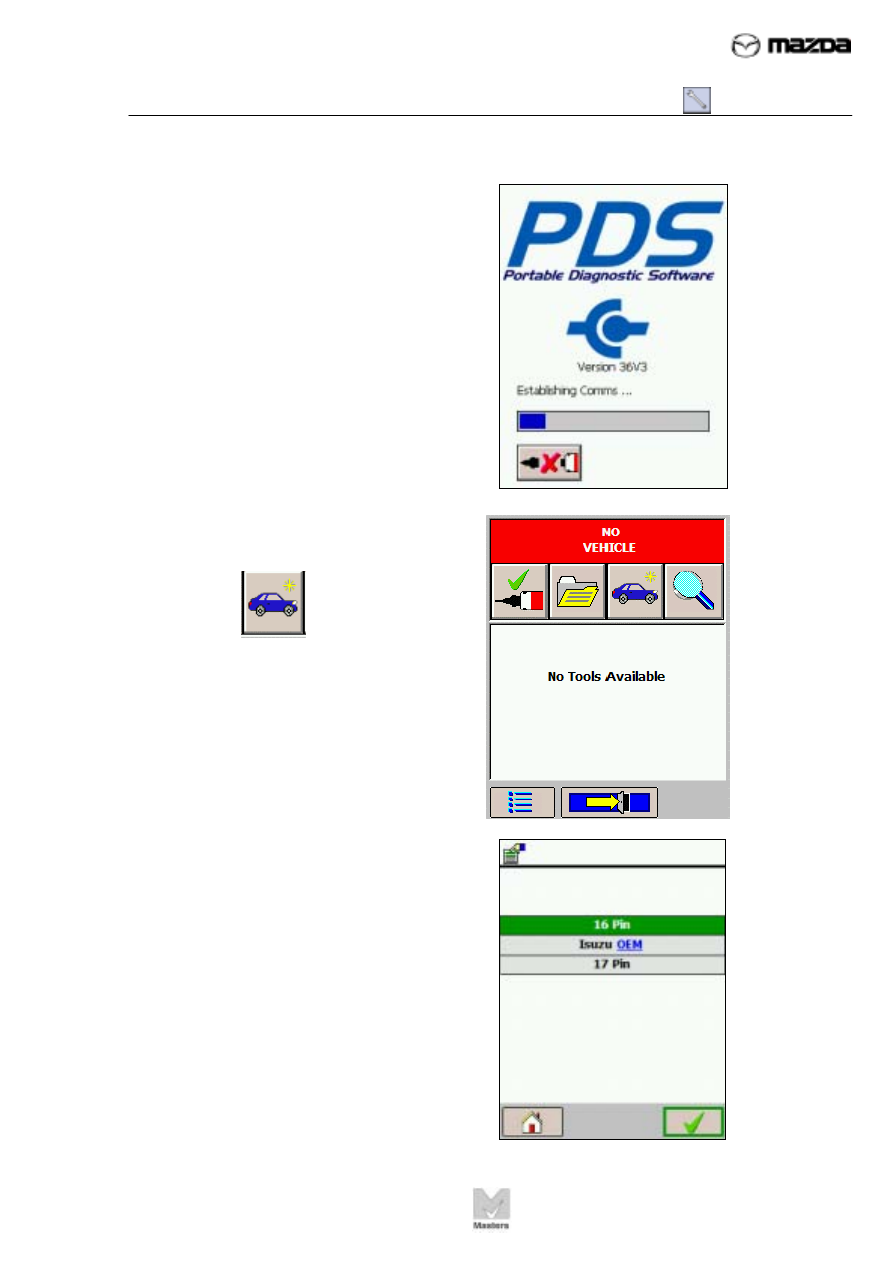

4.  The PDS Establishing Communications

screen flashes on then off. This screen
indicates the PDA is connecting to the
VCM via the USB network.















5. Tap the

 New Vehicle icon.















6. Select 16 pin, then tap tick.











TC001-18-01H

INTRODUCTION TO M-MDS
07 - Reprogramming/Updating a PCM










Activity 07- Page 4

Activity 07
(Continued)

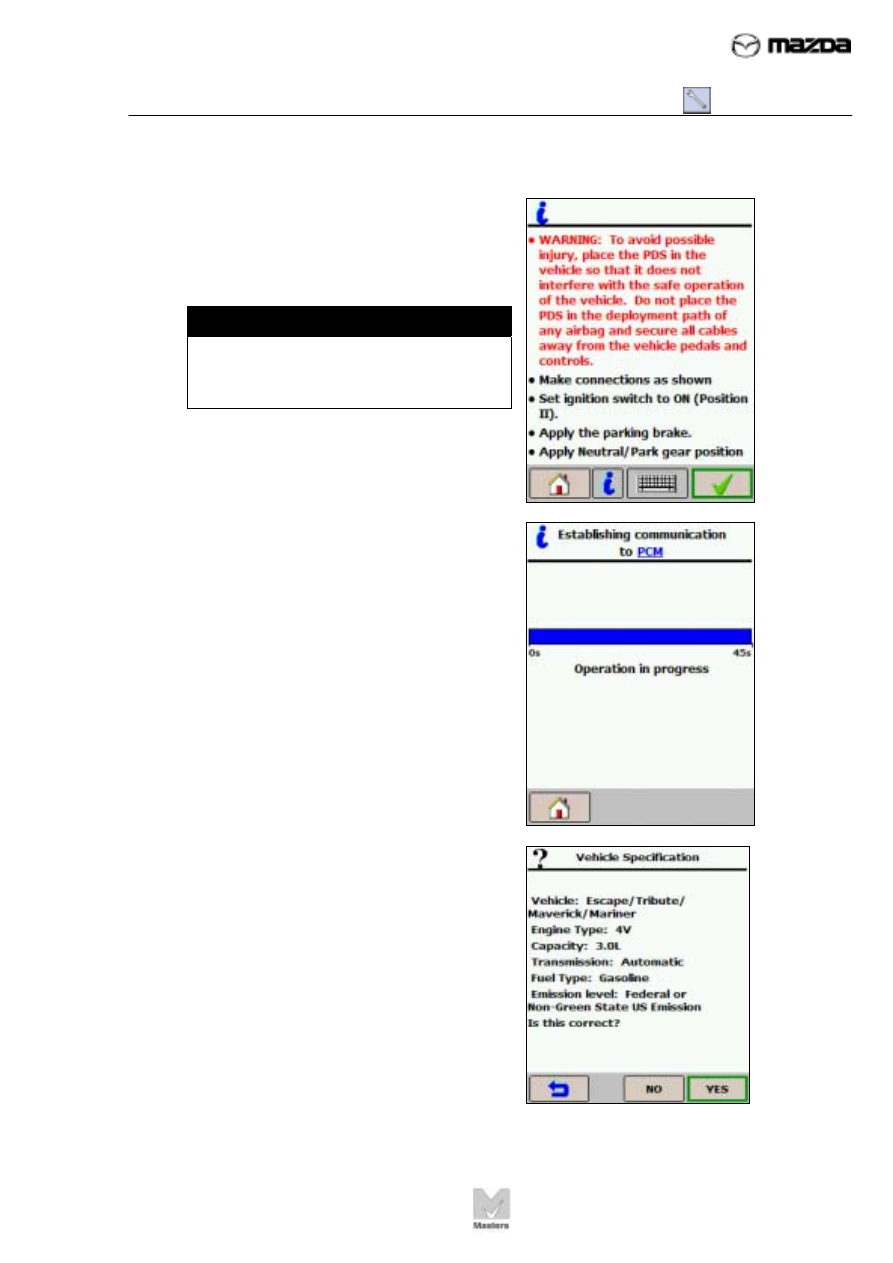

7.  Turn the ignition key to KOEO, and then
tap tick.
















8. Watch the following Establishing

Communication screen flash on then off.
















9.  Verify the vehicle information is correct,

and then tap YES.










CAUTION

If you do not turn the ignition key ON,
you will need to perform a soft reset
on your PDA and reboot the VCM.
