TC001-18-01H
INTRODUCTION TO M-MDS

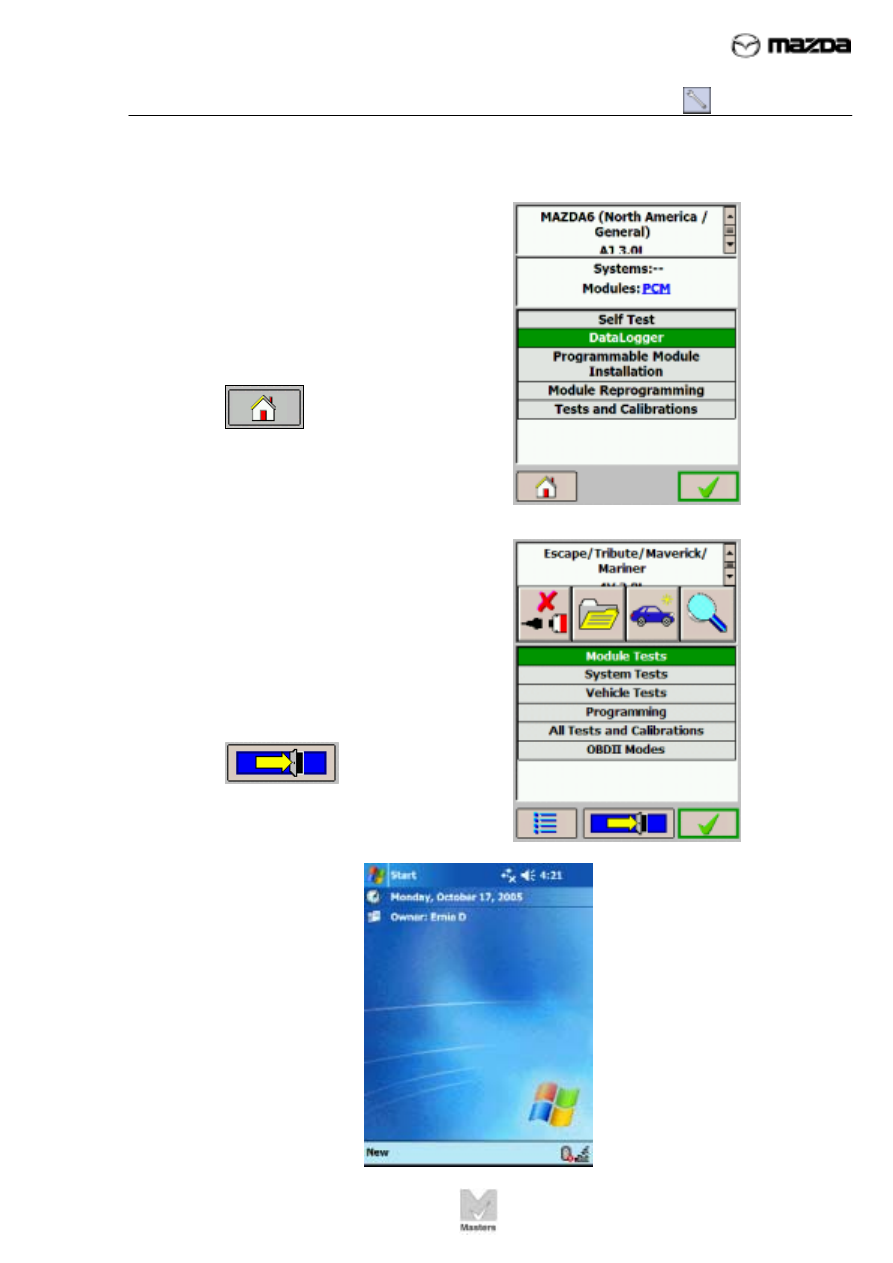

06 - Making DataLogger Recordings
Activity 06- Page 9
A
C
B
Activity 06
(Continued)

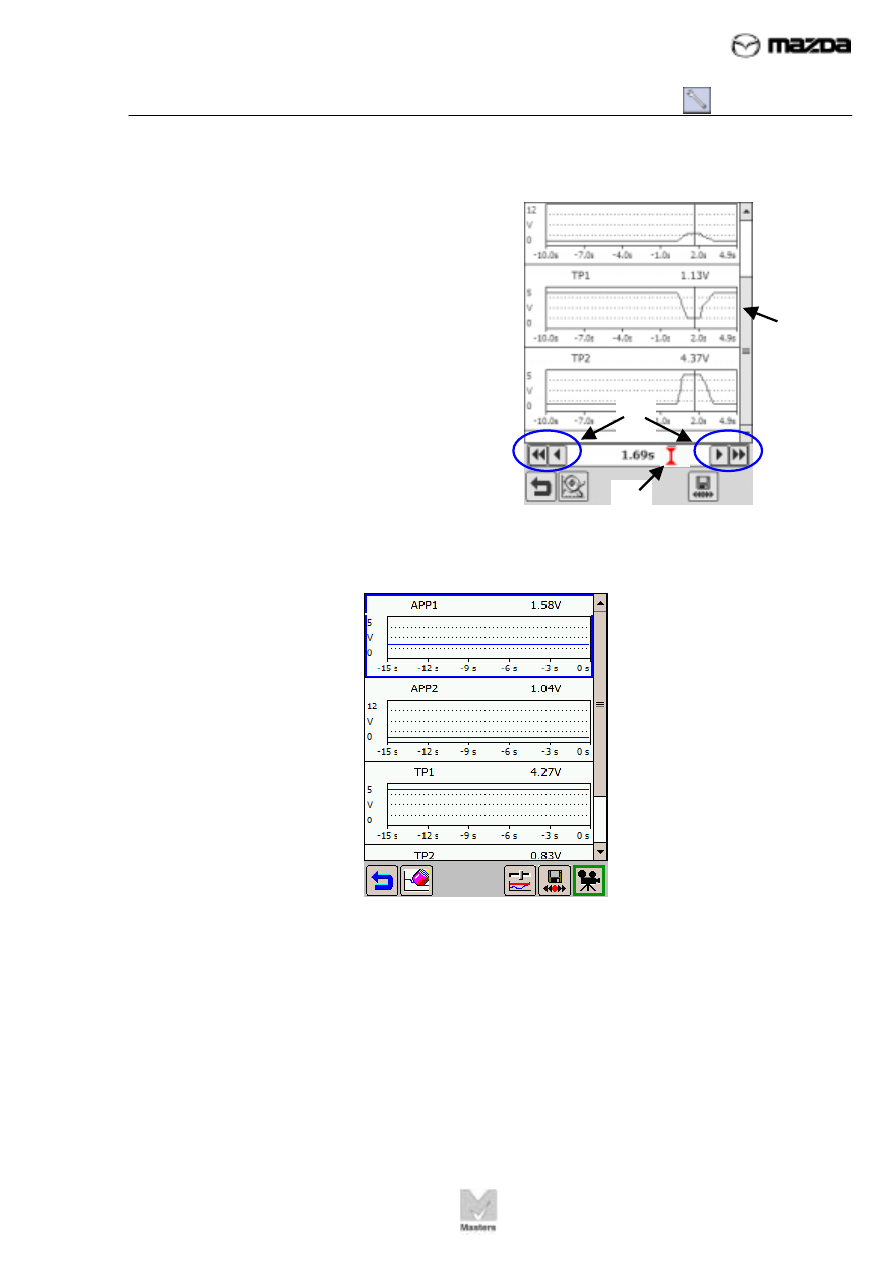

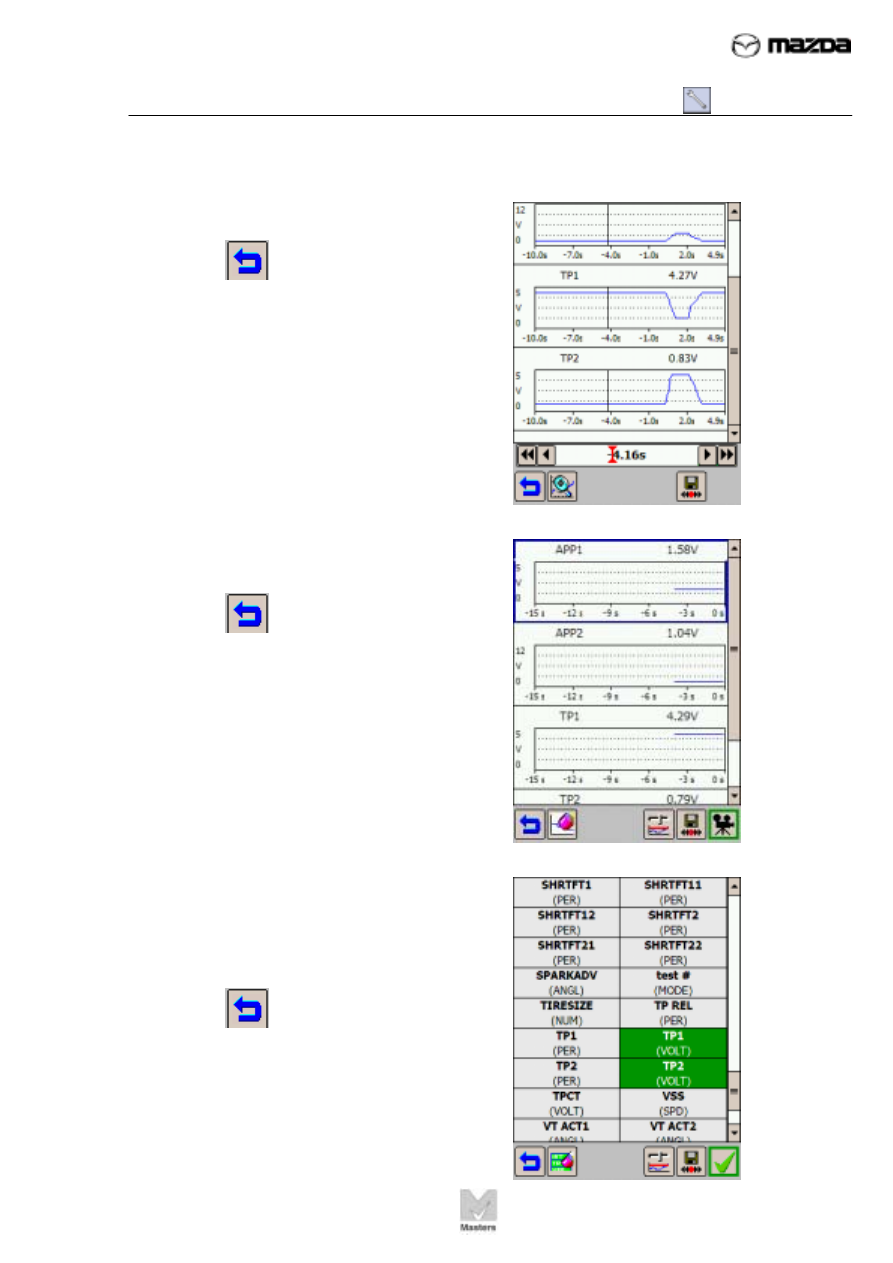

21. Your recording should look similar to
this screen.
You can scroll through the recording to
view the PIDs, as needed, using any of
the following three methods:
•
Tap the left and right arrows at the
bottom of the recording. (A)
•
Tap the stylus on the red vertical
bar at the bottom of the recording,
then drag the bar right or left with
the stylus. (B)
•
Tap the scroll bar on the right, then
drag the bar up or down with the stylus. (C)
Answer the following questions from the recording you just made:
What was the APP1 voltage at idle? __________________________________
What was the APP2 voltage at wide open throttle? ______________________
What was the TP1 voltage at idle? ___________________________________
What was the TP2 voltage at wide open throttle? ________________________
What was the total recording length? _________________________________
