T008/03

14 of 14

SUMMARY OF NEWLY DEVELOPED SST:

No.

TOOL No.

DESCRIPTION

WEIGHT (kg)

PRIORITY

1 49 B011 105

ADAPTER

0.15

A

49 B015 0A0

ADAPTER SET

0.36

A

(49 B015 001)

ADAPTER

0.18

A

2

(49 B015 002)

ADAPTER

0.18

A

49 B033 1A0

SUPPORT PLATE SET

7.30

A

(49 B033 101)

SUPPORT PLATE

1.20

A

(49 B033 102)

SUPPORT PLATE

1.60

A

3

(49 B033 103)

SUPPORT BLOCK

4.50

A

4 49 B033 001

INSTALLER

0.44

A

5 49 B026 301

INSTALLER

0.25

A

6 49 B066 004

ADAPTER HARNESS

0.04

C

7 49 B061 015

HOLDER

0.35

C

ORDERING:

Please place your order with:

WERNER WEITNER

Kfz. –Spezialwerkzeuge

Maschinenbau, Sollnau 12

8078 Eichstatt

F. R. Germany

Attention: Mr. R Strasser

Telephone: (49) 8421-981-612

Telefax:   (49) 8421-981-698

roland.strasser@werner-weitner.com

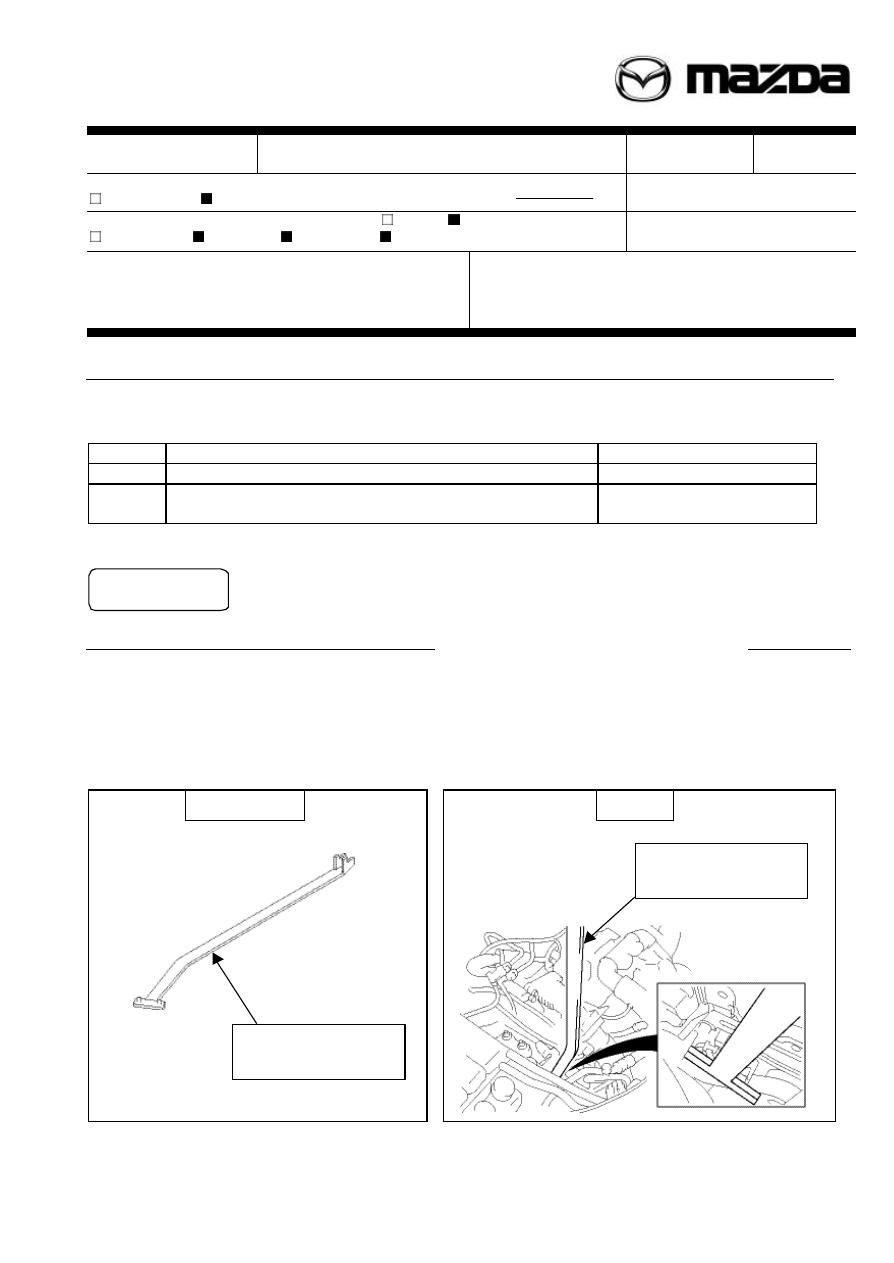

Service Information

Category No.

Tool Equipment

Ref. No.

T019/03

Page

1 of 8

Coverage

 Distributor only

 Please inform your dealers

Date issued

November 8, 2003

Please convey this information to your

 Director

 General Manager

 Warranty Dept.

 Parts Dept.

 Training Dept.

Field Rep

Date Revised

Applicable Model

Mazda3 with diesel engine

Applicable Country or Specification

Europe, UK

Mazda Motor Corporation
P.O.Box 18, Hiroshima
730-8670 Japan

Subject: Special Service Tools Developed for Mazda3 with diesel engine

Legend:

Priority

Usage

Purchase recommendation

A

Normal Services

For all dealers

C

Overhauls, less frequent operations
or specialized operations at distributor

Option for dealers

1. RELEASE TOOL (49 UN30 3676)



PRIORITY:A

Normal Services

[ APPLICABLE MODEL  ]

Mazda3 with diesel engine

[     APPLICATION     ]

To release tension in the drive belt tensioner.

[REASON ESTABLISHED]

A new drive belt tensioner has been adopted.

OVERVIEW

USAGE

Engine

49 UN30 3676

RELEASE TOOL

49 UN30 3676

RELEASE TOOL

T019/03

2 of 8

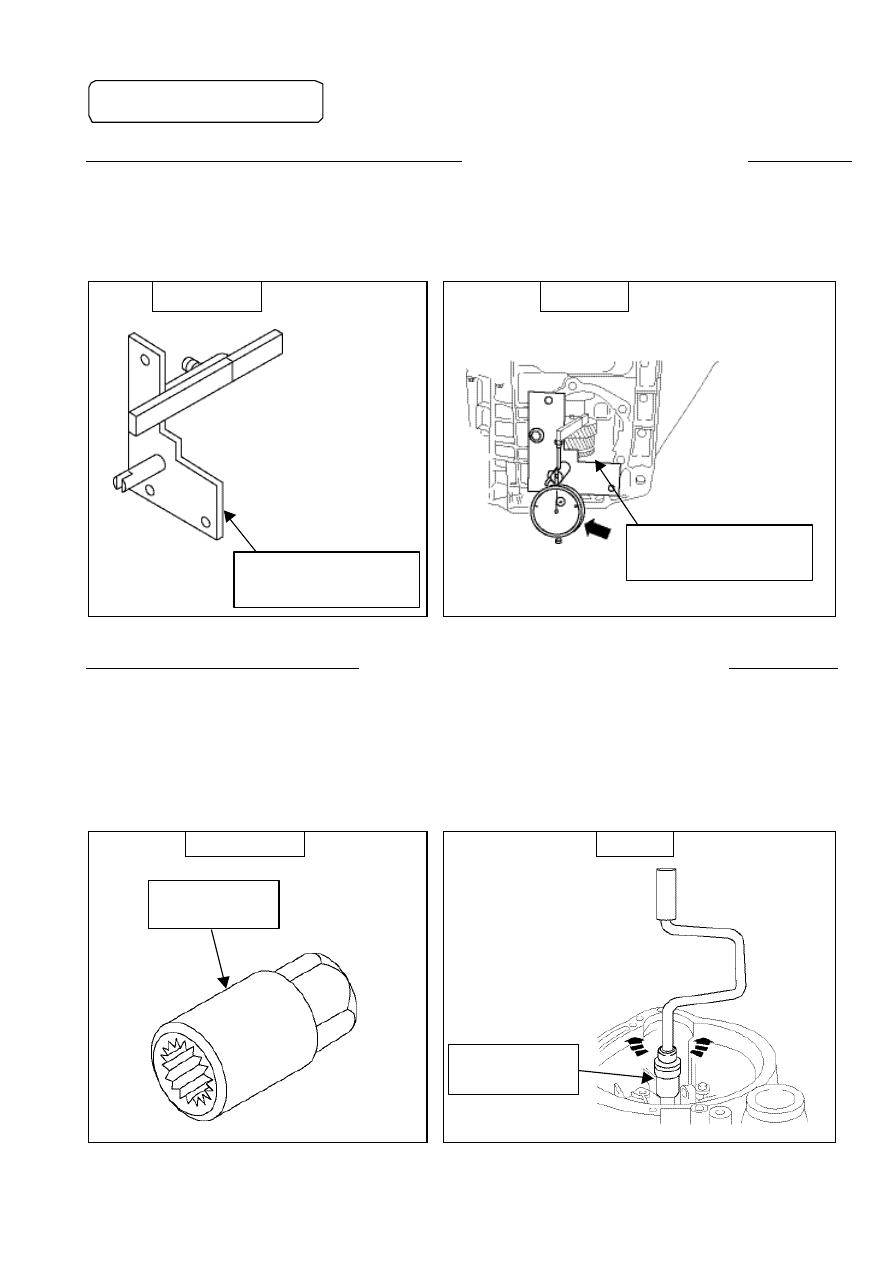

2. HOLDING FIXTURE (49 UN30 8194)



PRIORITY:C

Overhauling

[ APPLICABLE MODEL  ]

Mazda3 with diesel engine

[     APPLICATION     ]

To measure the thrust clearance of the transmission gear side bearings.

[REASON ESTABLISHED]

A new manual transaxle has been adopted.

OVERVIEW

USAGE

3. SOCKET (49 UN20 5175)



PRIORITY:C

Overhauling

[ APPLICABLE MODEL  ]

Mazda3 with diesel engine

[     APPLICATION     ]

To rotate the input shaft.

[REASON ESTABLISHED]

 A new manual transaxle has been adopted.

OVERVIEW

USAGE

Manual Transaxle

49 UN20 5175

SOCKET

49 UN30 8194

HOLDING FIXTURE

49 UN30 8194

HOLDING FIXTURE

49 UN20 5175

SOCKET

T019/03

3 of 8

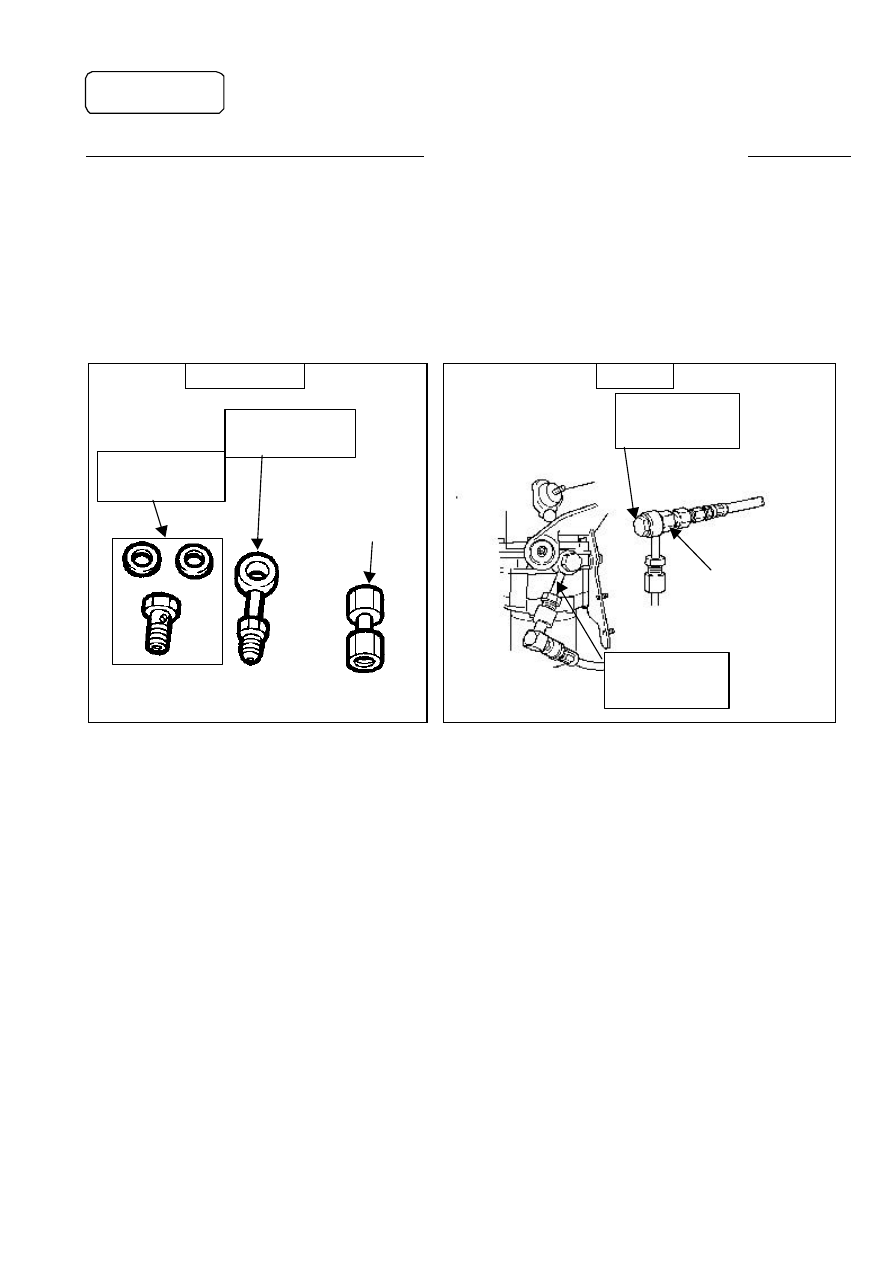

3. ADAPTER SET (49 G032 3A4A)

PRIORITY:A

Normal Services

[ APPLICABLE MODEL  ]

Mazda3 with diesel engine

[     APPLICATION     ]

To measure the oil pressure in the power steering pump.

[REASON ESTABLISHED]

An existing SST (49 G032 3A4) is no longer usable due to restrictions
imposed by the vehicle component layout.  Therefore, the new SST set (49
G032 3A4A) has been established.  The new SST set can be also be used
for existing vehicles.  And the existing (old) SSTs, such as 49 G032 3A4, 49
G032 352, 49G032 353 have been discontinued.

OVERVIEW

USAGE





49 G032 353A

BOLT

49 G032 352A

ADAPTER

49 G032 351

ADAPTER

(Already established)

49 G032 353A

BOLT

49 G032 352A

ADAPTER

49 G032 351

ADAPTER

(Already established)

Steering
