T008/03

2 of 14

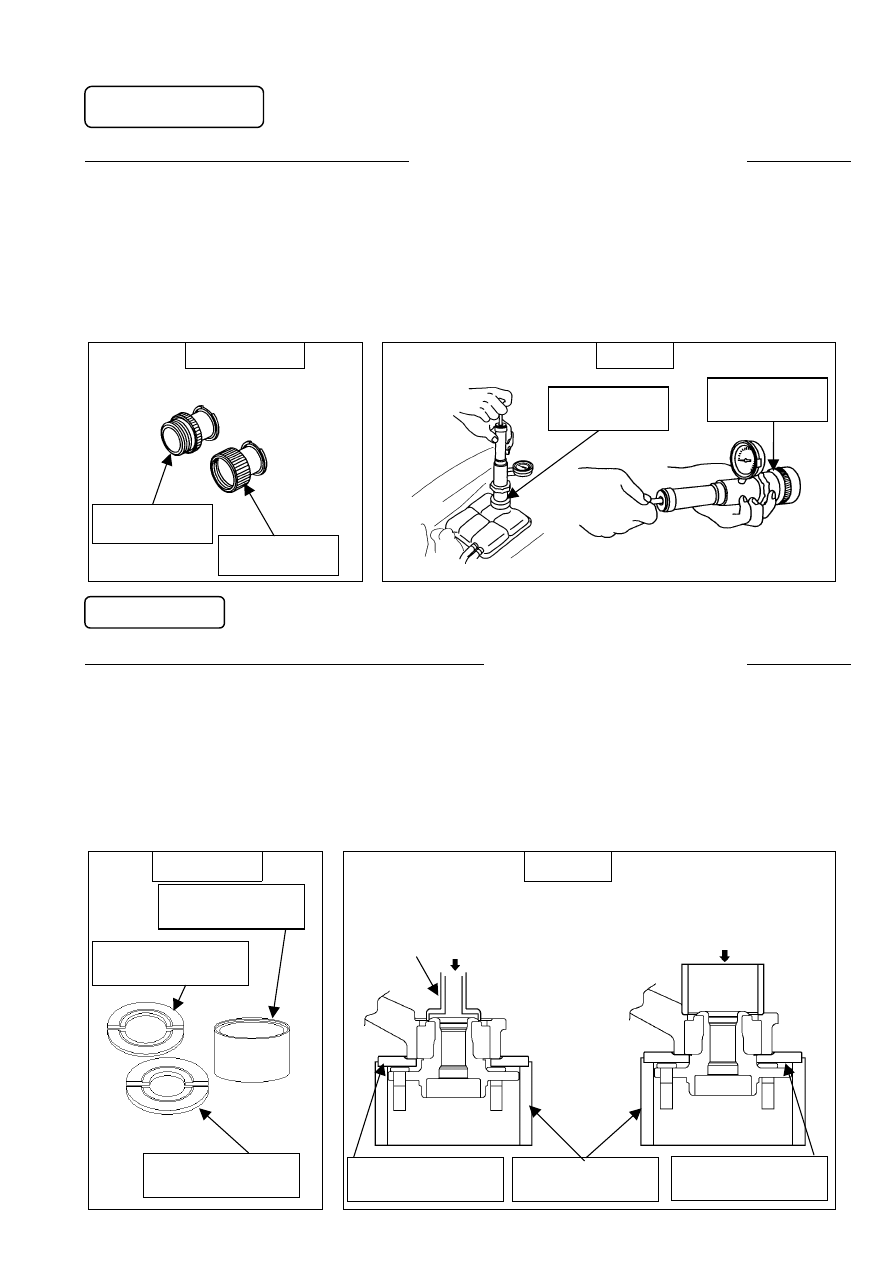

2.

ADAPTER SET (49 B015 0A0)



PRIORITY:A

Normal service

[ APPLICABLE MODEL  ]

Mazda3

[     APPLICATION     ]

Inspection of coolant leakage in the cooling system cap, coolant

reservoir tank and the radiator.

                                                   (Cooling system cap use : 49 B015 001)

                                                   (Coolant reservoir tank use : 49 B015 002)

[REASON ESTABLISHED]

For the new size of the coolant reservoir tank component.

OVERVIEW

USAGE

3.

SUPPORT PLATE SET (49 B033 1A0)



PRIORITY:A

Normal Services

[ APPLICABLE MODEL  ]

Mazda3

[     APPLICATION     ]

Removing/installing the hub bearing of the front knuckle component.

(Removal use : 49 B033 101)

              

(Installation use : 49 B033 102)

                                                  (Removal /installation use : 49 B033 103)

[REASON ESTABLISHED]

For the new structure of the hub.

OVERVIEW

USAGE

REMOVAL                                   INSTALLATION

49 G030 795

OIL SEAL INSTALLER SET

(ALREADY ESTABLISHED)

49 B015 001

ADAPTER

49 B015 002

ADAPTER

Cooling System

Axle

49 B033 101

SUPPORT PLATE

49 B033 103

SUPPORT BLOCK

49 B033 102

SUPPORT PLATE

49 B033 101

SUPPORT PLATE

49 B033 103

SUPPORT BLOCK

49 B033 102

SUPPORT PLATE

49 B015 001

ADAPTER

49 B015 002

ADAPTER

49 H034 201

SUPPORT BLOCK

(ALREADY ESTABLISHED)

T008/03

3 of 14

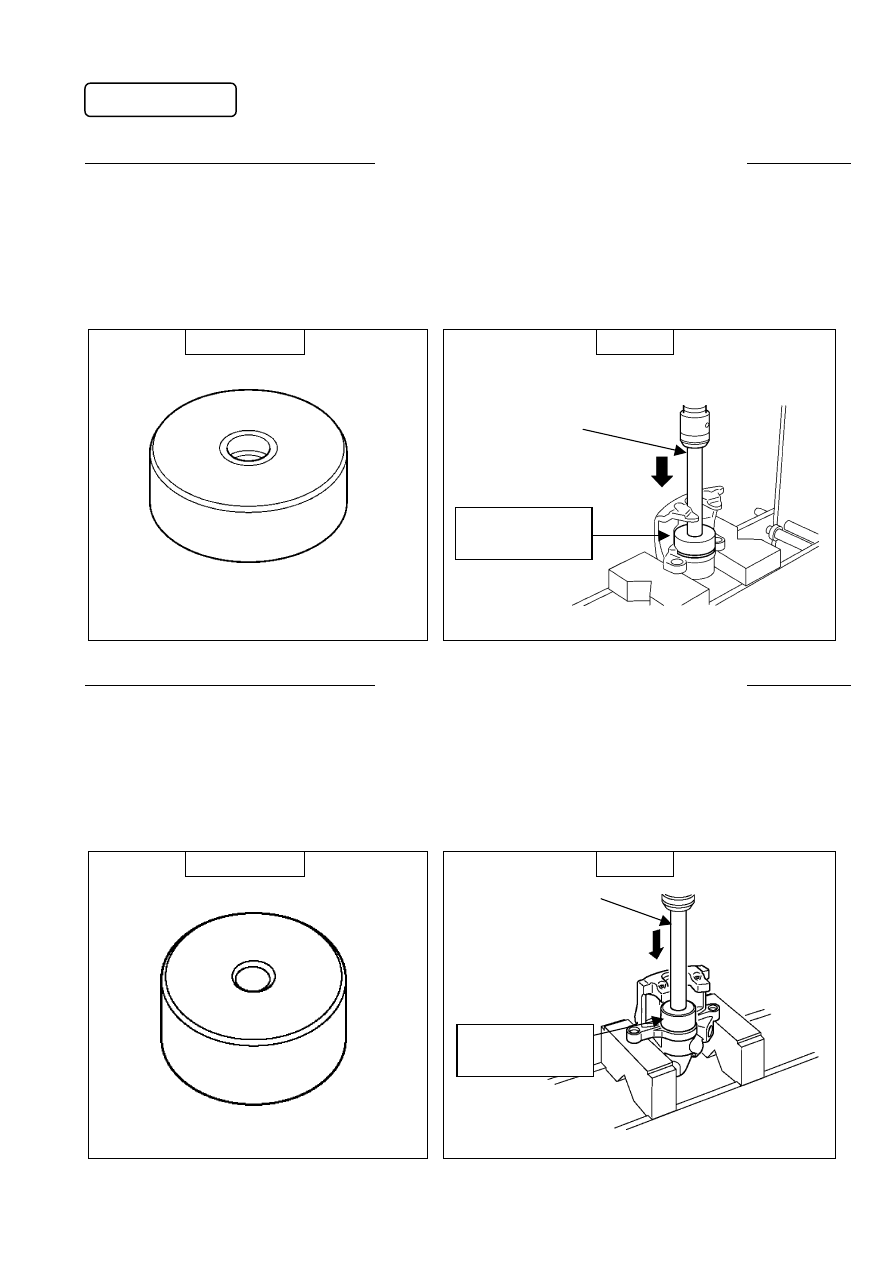

4.

INSTALLER (49 B033 001)



PRIORITY:A

Normal service

[ APPLICABLE MODEL  ]

Mazda3

[     APPLICATION     ]

Installation of the dust boot to the front caliper.

[REASON ESTABLISHED]

Since the dust boots have a retainer ring, they cannot be installed

                                                   by hand.

OVERVIEW

USAGE

5.

INSTALLER (49 B026 301)



PRIORITY:A

Normal service

[ APPLICABLE MODEL  ]

Mazda3

[     APPLICATION     ]

Installation of the dust boot to the rear caliper.

[REASON ESTABLISHED]

Since the dust boots have a retainer ring, they cannot be installed

                                                   by hand.

OVERVIEW

USAGE

Brake

49 G033 102

HANDLE

(ALREADY ESTABLISHED)

49 G033 102

HANDLE

(ALREADY ESTABLISHED)

49 B033 001

INSTALLER

49 B026 301

INSTALLER

T008/03

4 of 14

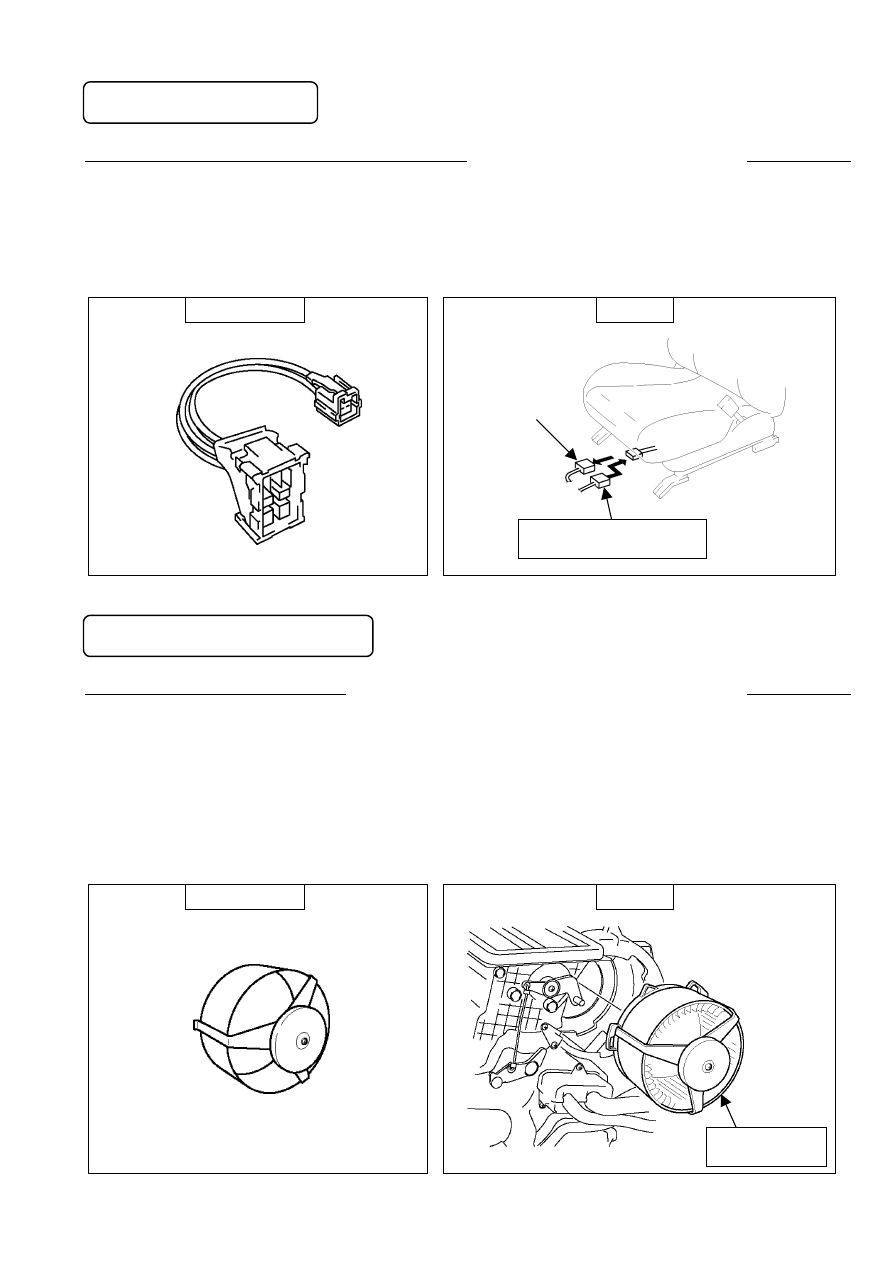

6.

ADAPTER HARNESS (49 B066 004)



PRIORITY:C

Overhauling

[ APPLICABLE MODEL  ]

Mazda3

[     APPLICATION     ]

Deployment of a side air bag or pre-tensioner seat belt.

[REASON ESTABLISHED]

For the new connector shape.

OVERVIEW

USAGE

7.

HOLDER (49 B061 015)



PRIORITY:C

Overhauling

[ APPLICABLE MODEL  ]

Mazda3

[     APPLICATION     ]

Removal/installation of the blower motor component.

[REASON ESTABLISHED]

This SST enables on-vehicle removal/installation of



the blower motor

without removing/installing the dashboard ASSY. By using the SST, the

removing/installing time for the blower motor ASSY can be reduced from

3 hours to 1 hour.

OVERVIEW

USAGE

Body & Accessories

Heater & Air Conditioning

49 B061 015

HOLDER

49 B066 004

ADAPTER HARNESS

FRONT SEAT

CONNECTOR

T008/03

5 of 14

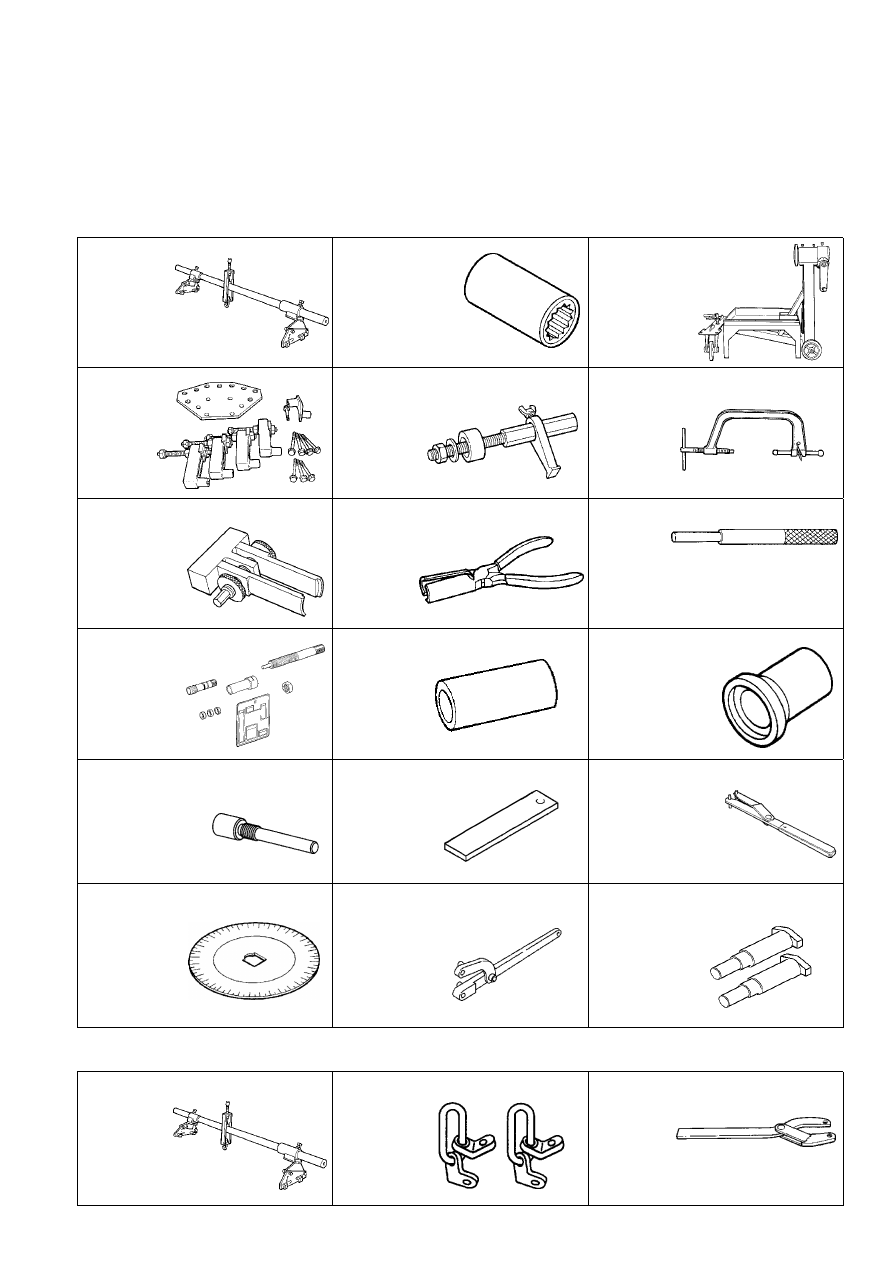

Mazda3 Special Tool(s):

This reference chart, which includes items indicated in the Mazda3, presents all of the former and new Mazda SSTs used for the
Mazda3.

1: Mazda SST number

2: Global SST number

Engine (LF Engine)

49 E017 5A0

Engine

support

49 D015 001

Box wrench

49 0107 680A

Engine stand

49 L010 1A0

Engine

hanger

set

49 E011 1A0

Ring gear

brake set

49 0636 100B

Valve

spring

lifter arm

49 B012 0A2

Pivot

49 S102 170

Valve seal

remover

49 B012 015

Valve guide

installer

49 L012 0A0B

Valve seal

and valve

guide installer

set

49 T032 302

Bearing

installer

49 H010 401

Oil seal installer

1: 49 JE01 061

2: 303-507

Crankshaft TDC

setting pin

49 JE01 054

Camshaft

alignment

timing tool

49 G032 354

Adjusting wrench

49 D032 316

Protractor

1: 49 UN20 5072

2: 205-072

Holder

49 B011 105

Adapter

Engine (Z6 Engine)

49 E017 5A0

Engine

support

1: 49 UN30 3050

2: 303-050

Engine

lifting

bracket

49 S120 710

Coupling

flange holder
