E012/03

Page 3 of 5

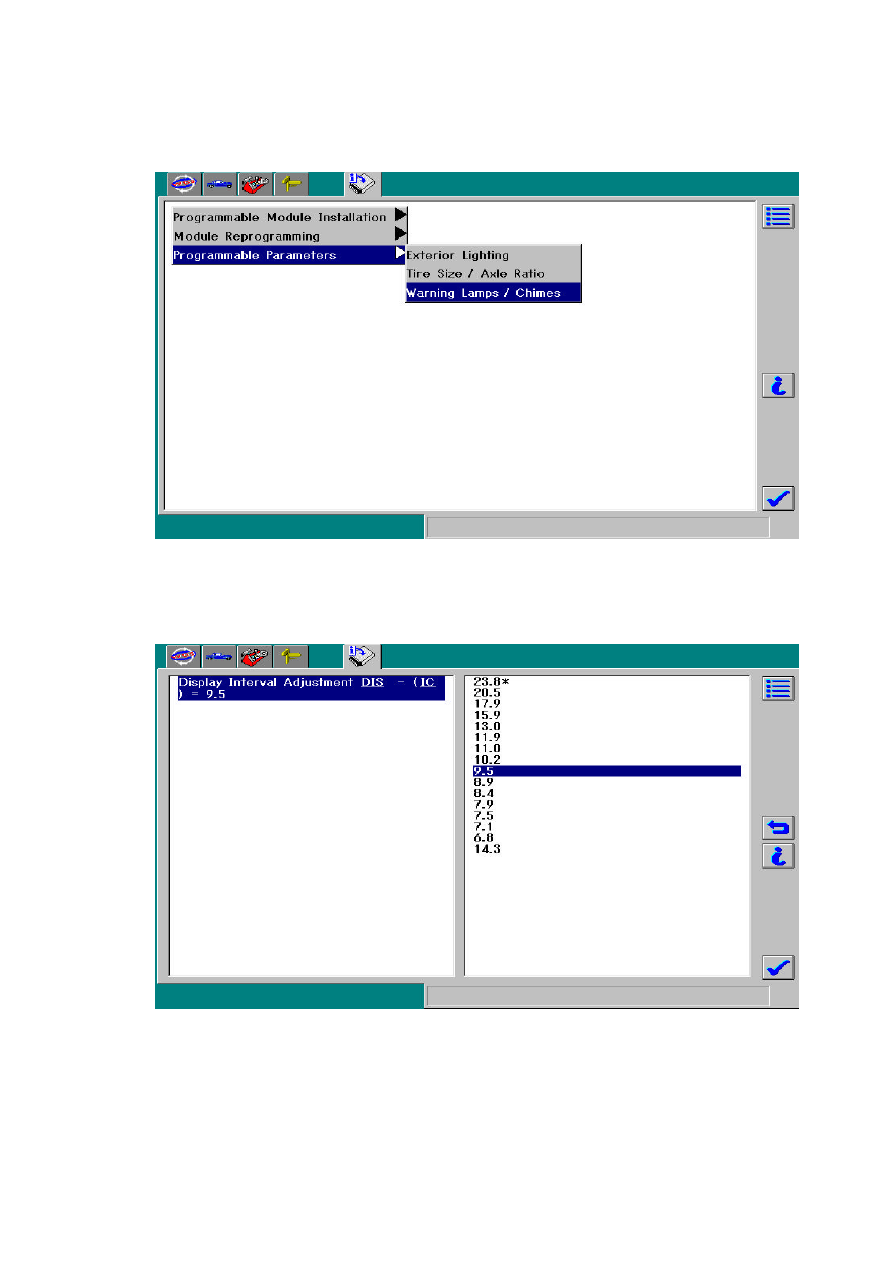

3.  Select “Programmable Parameters”, then “Warning Lamps / Chimes ”.





4.  Select a display interval time that you would like to change to.

Note: The current setting is indicated with “*”.



E012/03

Page 4 of 5

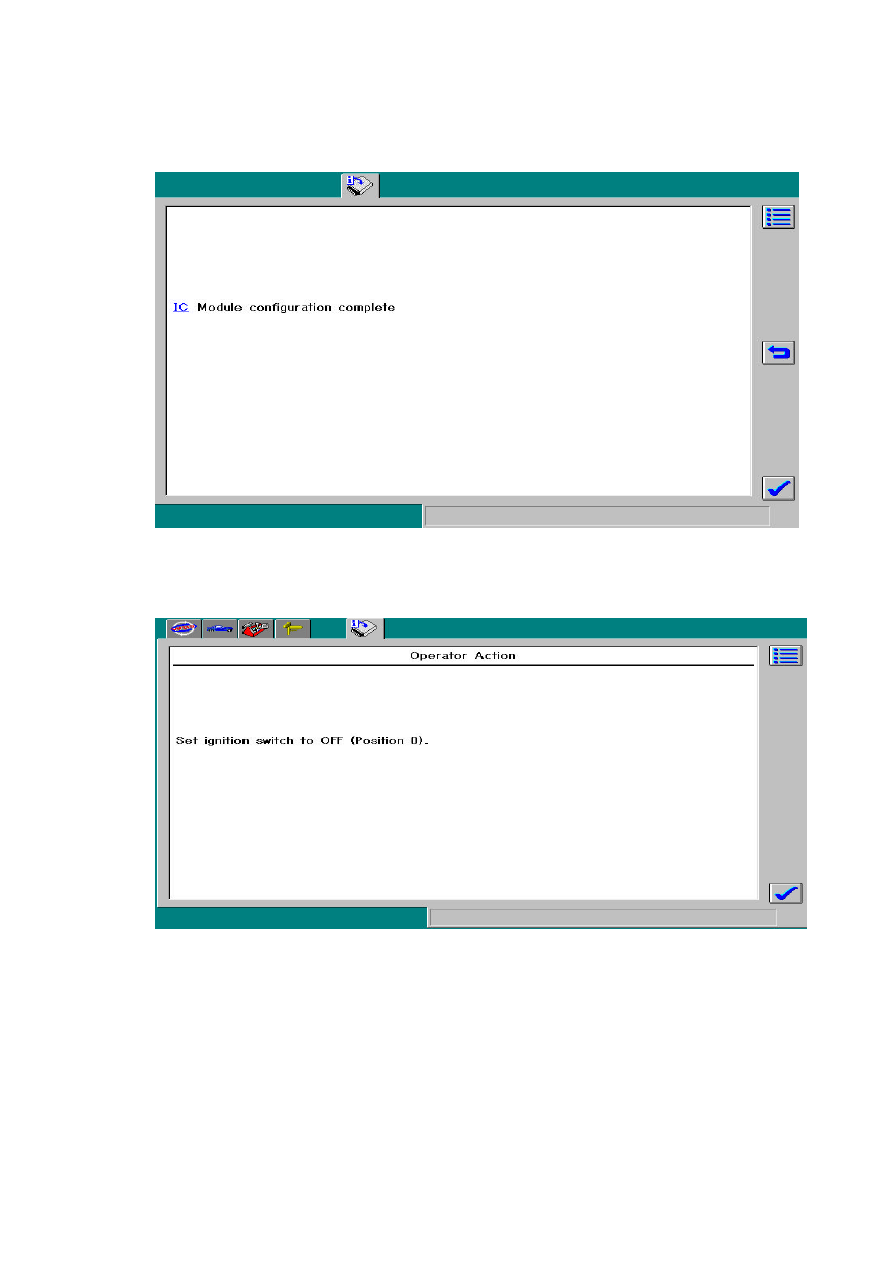

5.  Confirm that “Module configuration complete” is on the screen, then go to next step.





6.  As per the instruction on the screen, set the ignition switch to OFF (Position 0).




E012/03

Page 5 of 5

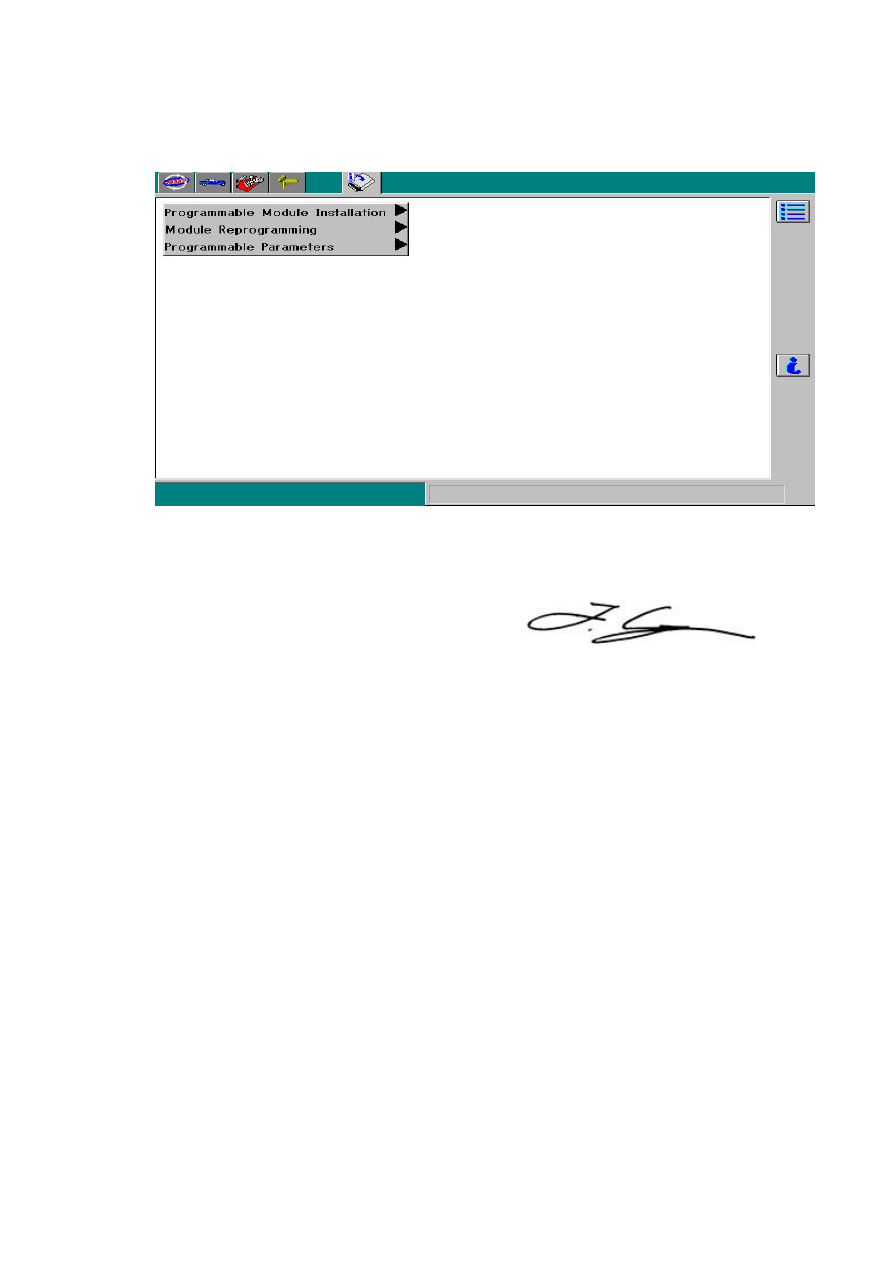

7.  This is the end of the adjustment procedure.










Fumihiko Aoyama
General Manager
Technical Service Dept.
Mazda Motor Corporation

Service Information

Category No.

Tool Equipment

Ref. No.

T008/03

Page

1 of 14

Coverage

 Distributor only

 Please inform your dealers

Date issued

May 23, 2003

Please convey this information to your

 Director

 General Manager

 Warranty Dept.

 Parts Dept.

 Training Dept.

 Field Rep

Date Revised

Applicable Model

 Mazda3

Applicable Country or Specification

Europe, UK

Mazda Motor Corporation

P.O.Box 18, Hiroshima

730-8670 Japan

Subject:  SPECIAL SERVICE TOOLS DEVELOPED FOR Mazda3

Thank you for your ongoing cooperation.

We would like to introduce the following new SSTs for the Mazda3.

Legend:

Priority

Usage

Purchase recommendation

A

Normal Services

For all dealers

C

Overhauling, less frequent operations

or specialized operations at distributor

Option for dealers

1.

ADAPTER (49 B011 105)



PRIORITY:A

Normal Services

[ APPLICABLE MODEL  ]

Mazda3 (LF Engine)

[     APPLICATION     ]

Holding the crank pulley.

[REASON ESTABLISHED]

For the change in the size of the crank pulley.

OVERVIEW

USAGE

Engine

49 B011 105

ADAPTER

49 UN20 5072

HOLDER

(ALREADY ESTABLISHED)
