Using IDS



Curriculum Training

02-37



L1001.2_035

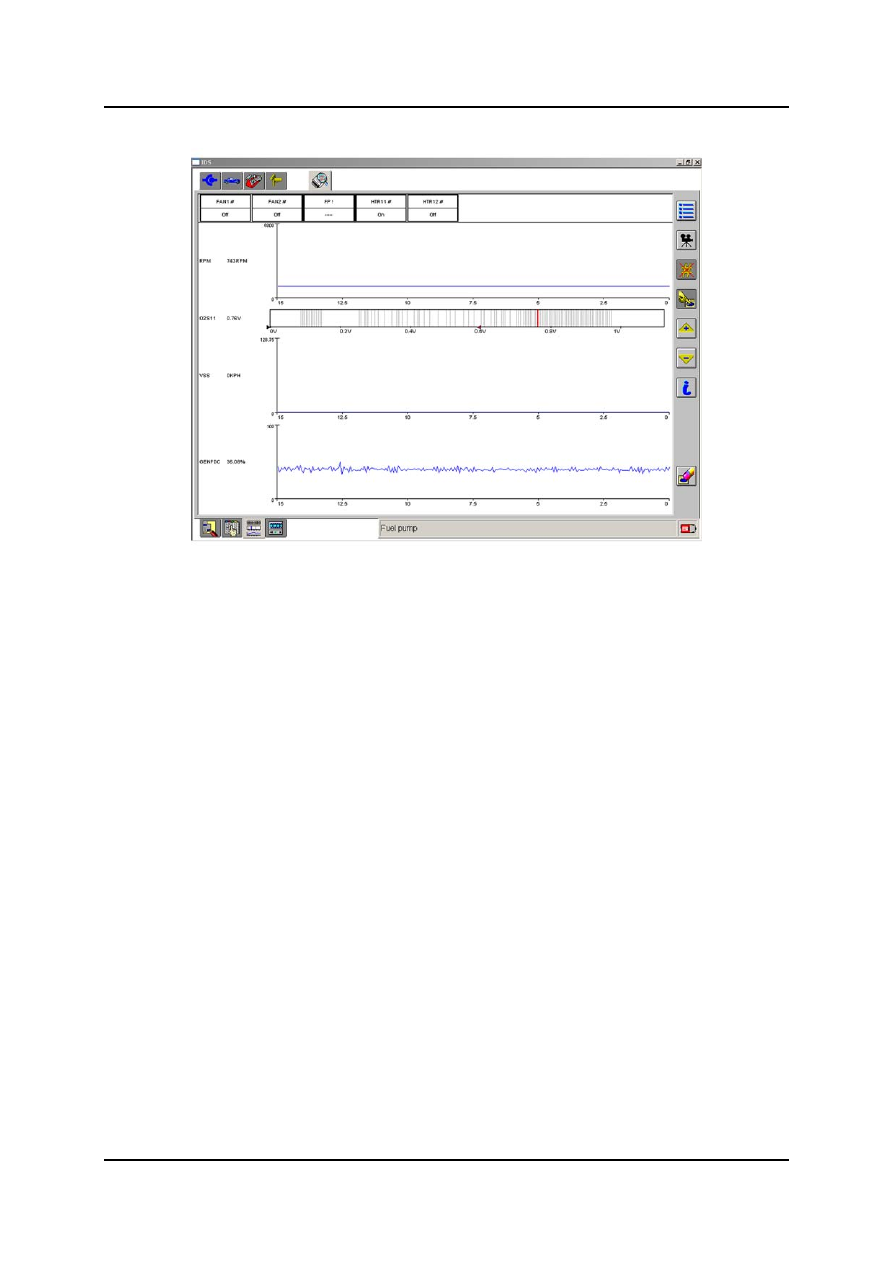

OSC Mode Screen



 Using

IDS

02-38 Curriculum

Training

Playback



•

The Playback menu serves to view the recorded data. It can be entered by clicking the
playback button in the sub-menu (bottom tab row).

•

The scroll button at the bottom of the screen allows the user to move the cursor in the

recording as required. With the single arrow buttons



 the cursor can be

moved step by step in the scanning mode, while the double arrow buttons





serve to move the cursor automatically to the start or end of the recording. In addition,
the cursor can be moved back and forth in the recording by clicking and pulling the scroll
button.

•

When the Parameter selection button

 is clicked, a list of all the recorded signals

appears. These can then be deselected individually for clarity. This does not delete the
signals, they are simply no longer visible.

•

If more than one recording has been made, the individual recordings can be selected

with the arrow buttons



 . The recording concerned is shown in the status

indicator.

•

Clicking the Select system options button

 makes it possible to store the recording

permanently.

•

Stored recordings can be called up again using the “Load data” button

 .



NOTE:  The stored recordings only remain in the memory of the IDS if the session is ended

with the option “Hold (saves recordings)”.



Using IDS



Curriculum Training

02-39



L1001.2_036

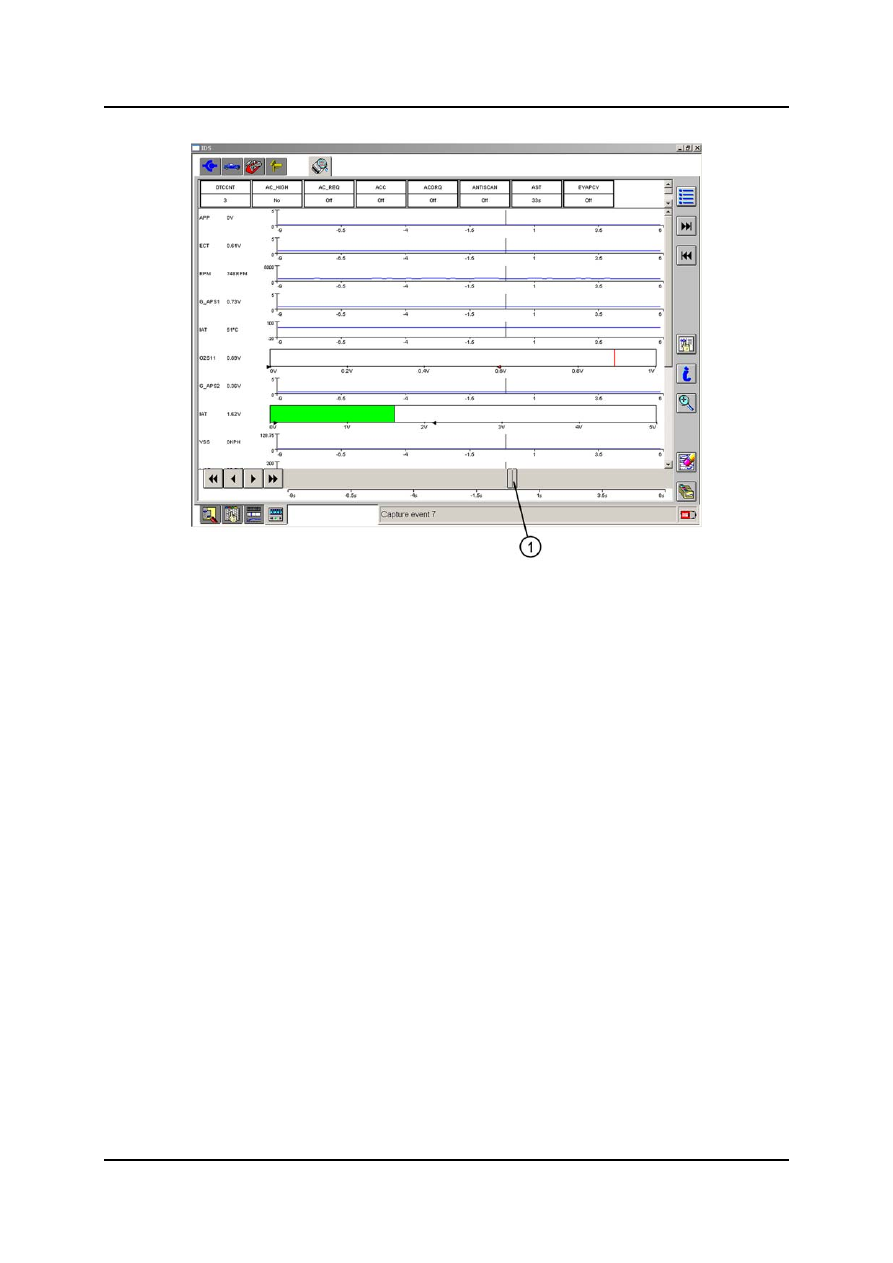

Datalogger Playback Screen



1 Scroll

button





 Using

IDS

02-40 Curriculum

Training

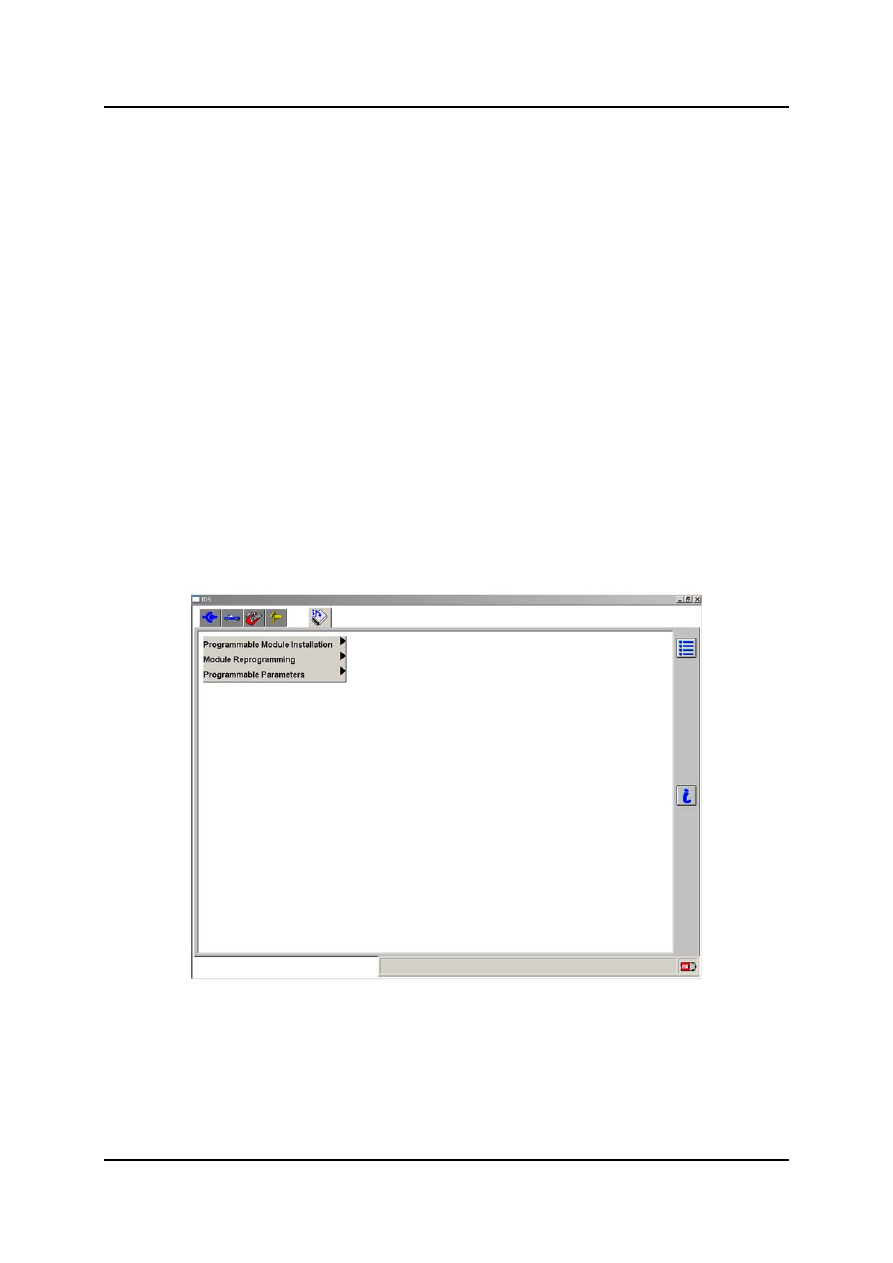

Module Programming

•

The module programming function is a vehicle-specific tool, i.e. it can only be accessed
after identifying the vehicle. It allows the user to program electronic control modules.

•

After selection of the module programming function from the toolbox menu the
corresponding icon appears in the top tab row and the module programming function is
ready for use. This menu offers the following functions:

–

Programmable Module Installation

–

Module Reprogramming

–

Programmable Parameters



NOTE:  Information obtained during vehicle identification is critical to obtaining correct results

with this tool. IDS automatically retrieves configuration data from all the vehicle’s
configurable modules during vehicle identification. Whatever configuration data was
retrieved during the opening of a session is later used to configure any new or
existing modules, even if the session was Held or Completed and then reactivated.



NOTE:  The module programming function is inoperable, when communication to the vehicle

is established via the option “Manual Vehicle Entry”.



L1001.2_037
