Mazda Training manual - part 70





Using IDS



Curriculum Training

02-33

•

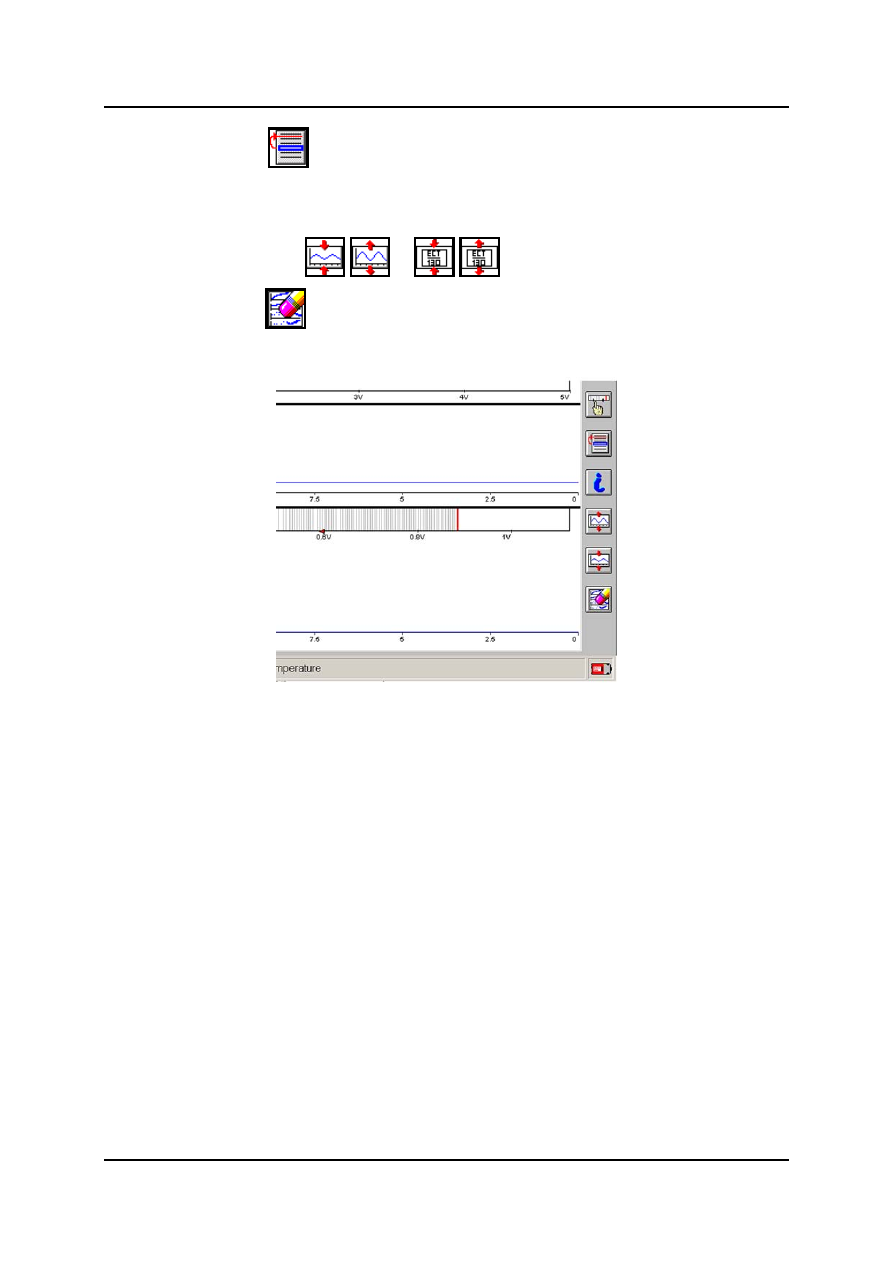

The Order button

 is used to move a signal to a different position. To do this, the

required signal must be selected, then the Order button is pressed followed by selection
of the point on the screen at which the signal is to appear.

•

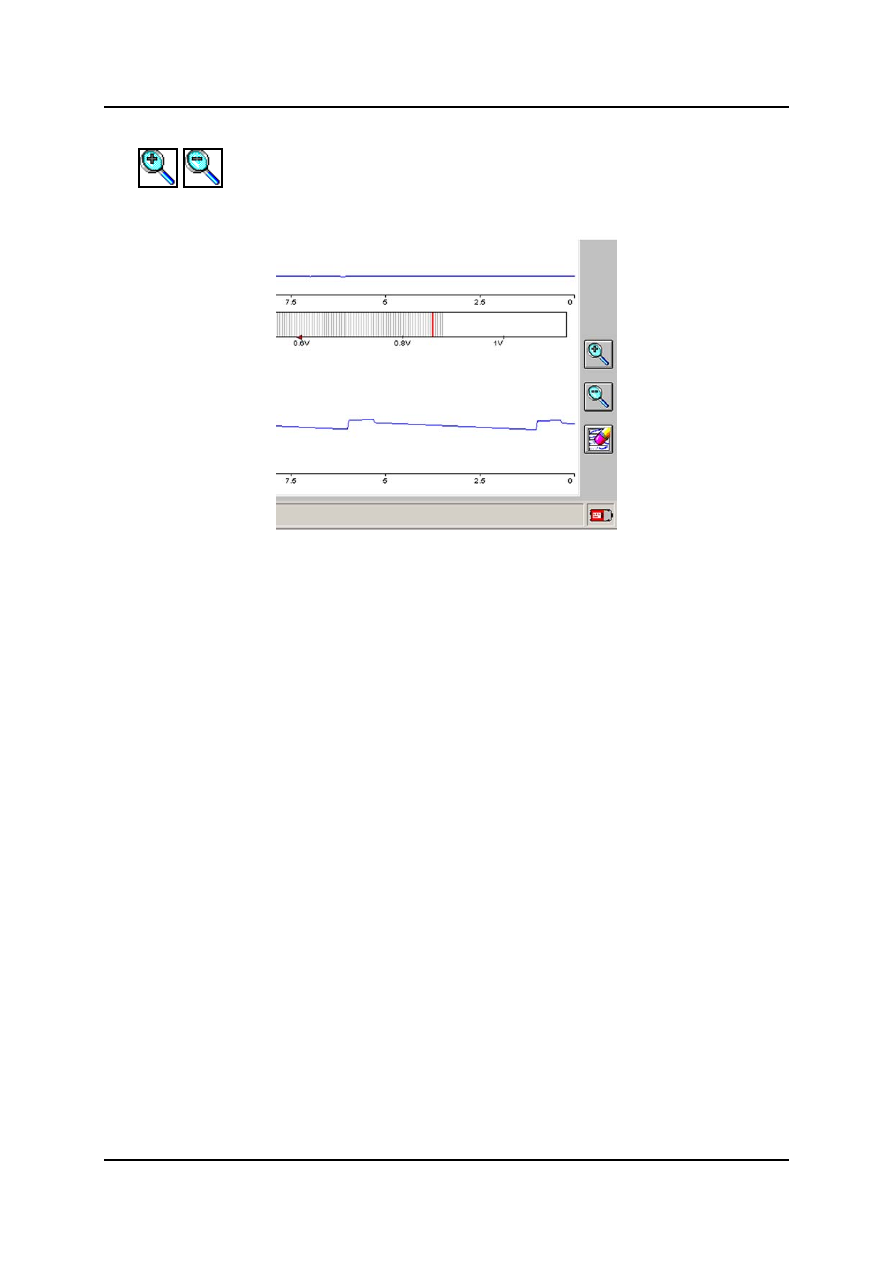

The size with which selected signals are displayed on the vertical axis can be changed

with the Zoom buttons



 or



.

•

The Clear button

 is used to delete the grey lines which appear on the left and

right-hand sides next to the blue lines, when the line-type display is selected.



L1001.2_032



 Using

IDS

02-34 Curriculum

Training

•

If no signal is selected (click the selected item once more to deselect), the Zoom buttons



 appear for the horizontal axis. Clicking these buttons changes the timescale

for all the signals in the range of 1…120 s.



L1001.2_033

Using IDS



Curriculum Training

02-35

•

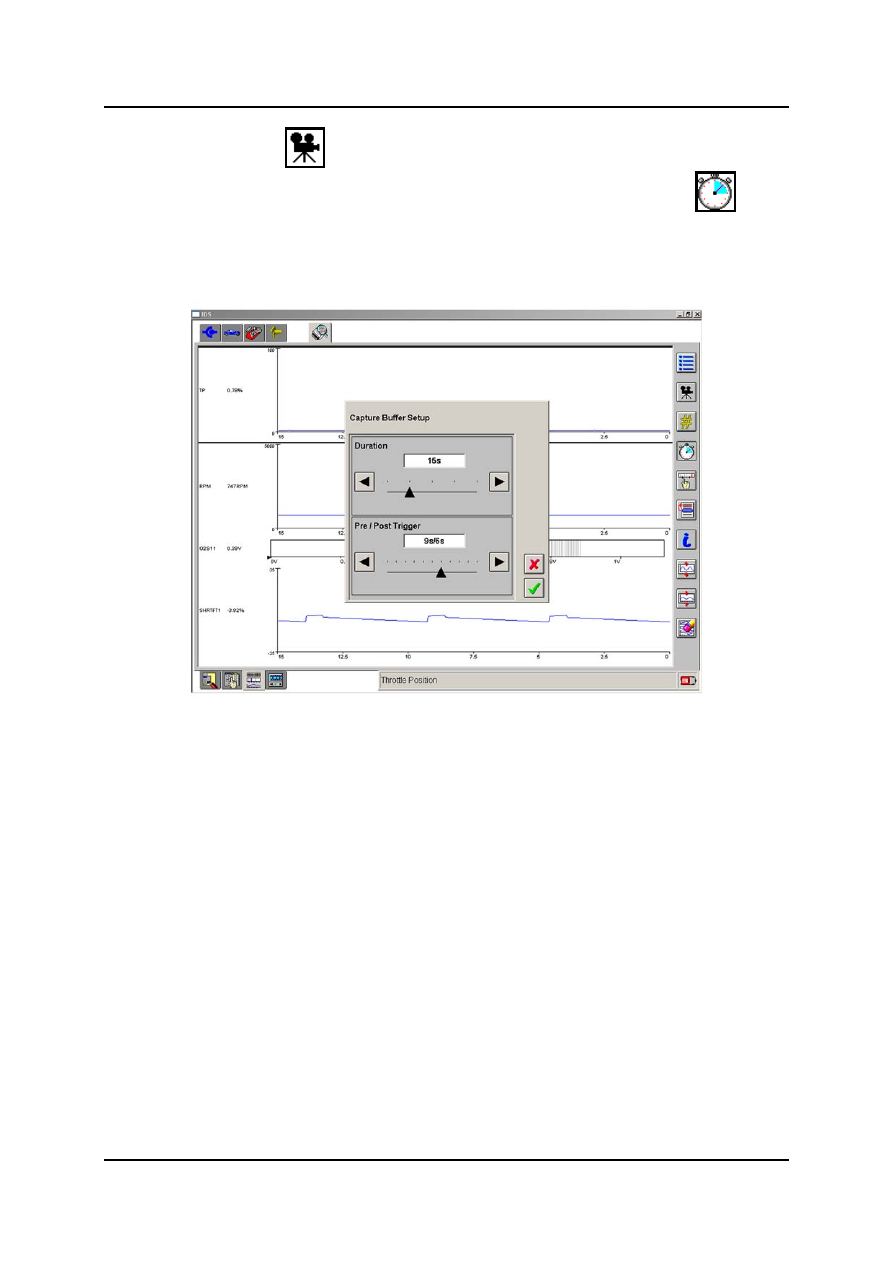

The Camera button

 serves to record data, i.e. clicking it starts a recording. The

recording time can be preset with the aid of the Capture Buffer Setup button

 in the

range of 8…120 s (default setting 15 s). Here, the pre- and post-trigger times can also be
changed depending on the recording time.

•

The recorded data can be viewed in the Playback menu (refer to the section “Playback”).



L1001.2_034

Capture Buffer Setup Screen

 Using

IDS

02-36 Curriculum

Training

•

The OSC (Output State Control) mode button

 is used to change certain output

signals. The output signals which can be changed by means of the IDS are marked with
a “#” symbol. After selection of the desired PID and pressing the OSC mode button,
further buttons appear in the side button control bar.

When the Activate Control Position button

 is pressed, it is possible to change or

overwrite the values using the Plus

 or Minus

 buttons (e.g. increase or

reduce the idle speed).

•

When the PID has been activated in the OSC mode, various characters can appear
behind the signal name instead of the “#” symbol:

–

The “=” indicates that the signal is in the OSC mode with feedback from the module.

–

The “@” means that the signal is in the OSC mode without feedback from the
module.

–

The “!” indicates that controlling the PID in question is currently not possible because
of incorrect conditions.

•

When several signals are changed, these can be deleted simultaneously with the

Clear button

 . All the values return to “normal” when the user exits from the OSC

mode or from the Datalogger.
