Using IDS



Curriculum Training

02-1

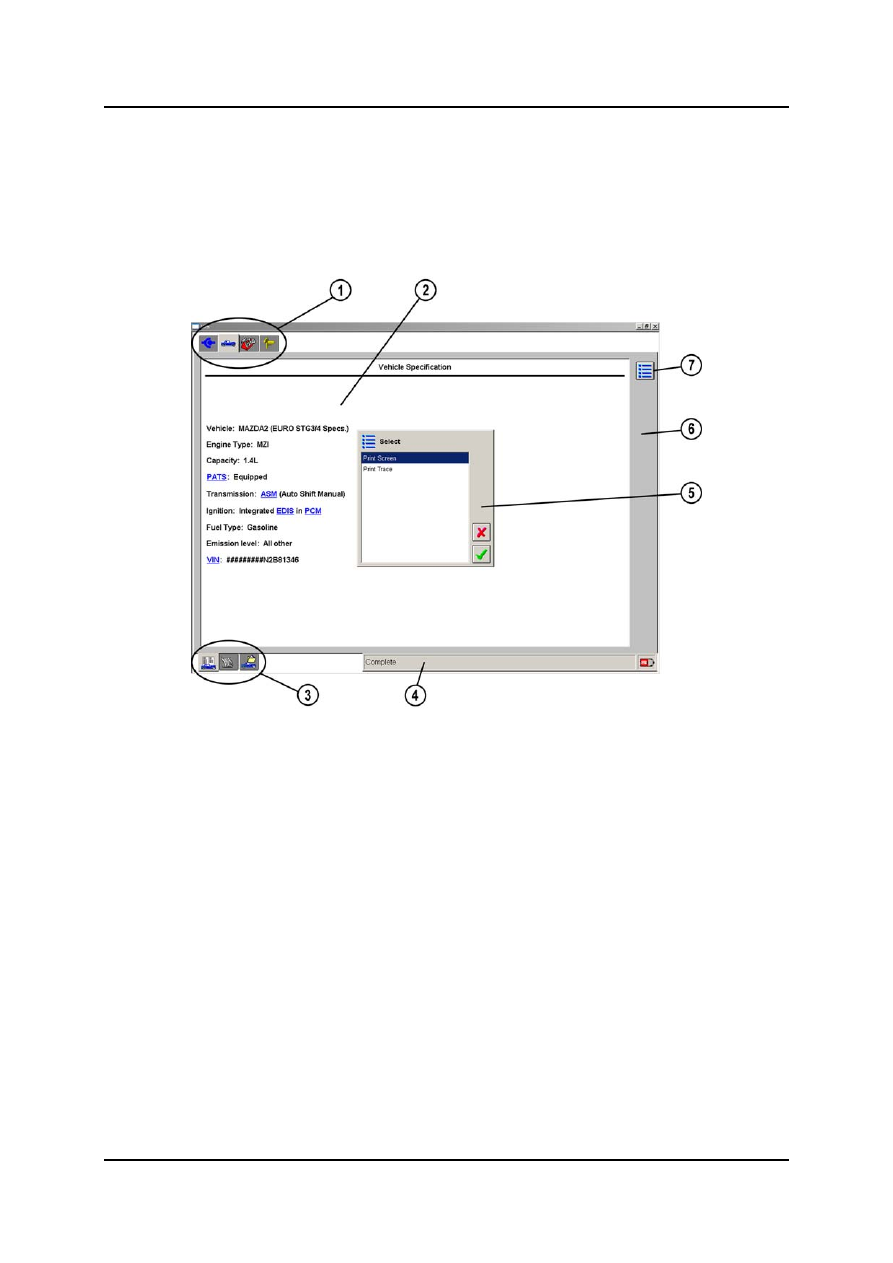

Screen Layout

•

The IDS makes extensive use of on-screen buttons and tabs to allow all selections and
navigation to be done by clicking on the items on the screen. Each button or tab is
represented with a unique icon to make identification easier. The individual items are
described in detail in the following pages.



L1001.2_010



1

Top tab row

5

Pop-up window

2

Screen display

6

Side button control bar

3

Bottom tab row

7

Select system options

4 Status

indicator





 Using

IDS

02-2 Curriculum

Training

Top Tab Row

•

In addition to the three basic icons for controlling the system, the top tab row contains
the icons for the different diagnostic tools.



Screen Display

•

All the information in connection with the diagnostic checks and the different tools is
shown on the screen display.



Bottom Tab Row

•

Depending on the icon selected in the top tab row, further selection icons appear in the
bottom tab row in which the tools concerned can be specified further.



Status Indicator

•

The status indicator indicates which tool is currently being used. If an icon is pressed for
a longer time, the function of the icon is explained in the status indicator. In addition, the
running of the self-test and the collection of data are indicated by a blue bar.

Select System Options Button



•

The Select System Options button allows the diagnostic check to be aborted at any time.
Depending on the application, further options may appear under this button (e.g. print
screen, log data).



Side Button Control Bar

•

In addition to the Select System Options button the side button control bar can show
further buttons which serve to change the screen display (e.g. step-back button,
information button).



Using IDS



Curriculum Training

02-3

Lock Icon



•

The lock icon in the status indicator bar indicates that the laptop is currently busy
performing a task and that other operations cannot be carried out at present.



Information Button



•

The information button provides additional information on the particular screen.



Step-Back Button



•

The Step-back button allows the user to return to the previous screen.



Pop-Up Windows

•

In addition, various pop-up windows (acknowledgement, warning or information
windows) can appear on the screen display. In the case of the warning and information
windows, only the button to acknowledge the warning or information is available. In the
acknowledgement window an abort button is also present.

•

If the text in a pop-up window is larger than the window, a scroll bar appears on the right
or at the bottom of the window. Then the lower or right-hand part of the screen display
can be shown with the aid of this scroll bar.



NOTE:  When a pop-up window appears on the screen display, the IDS only carries on

working when one of the buttons offered in the window is pressed.



 Using

IDS

02-4 Curriculum

Training

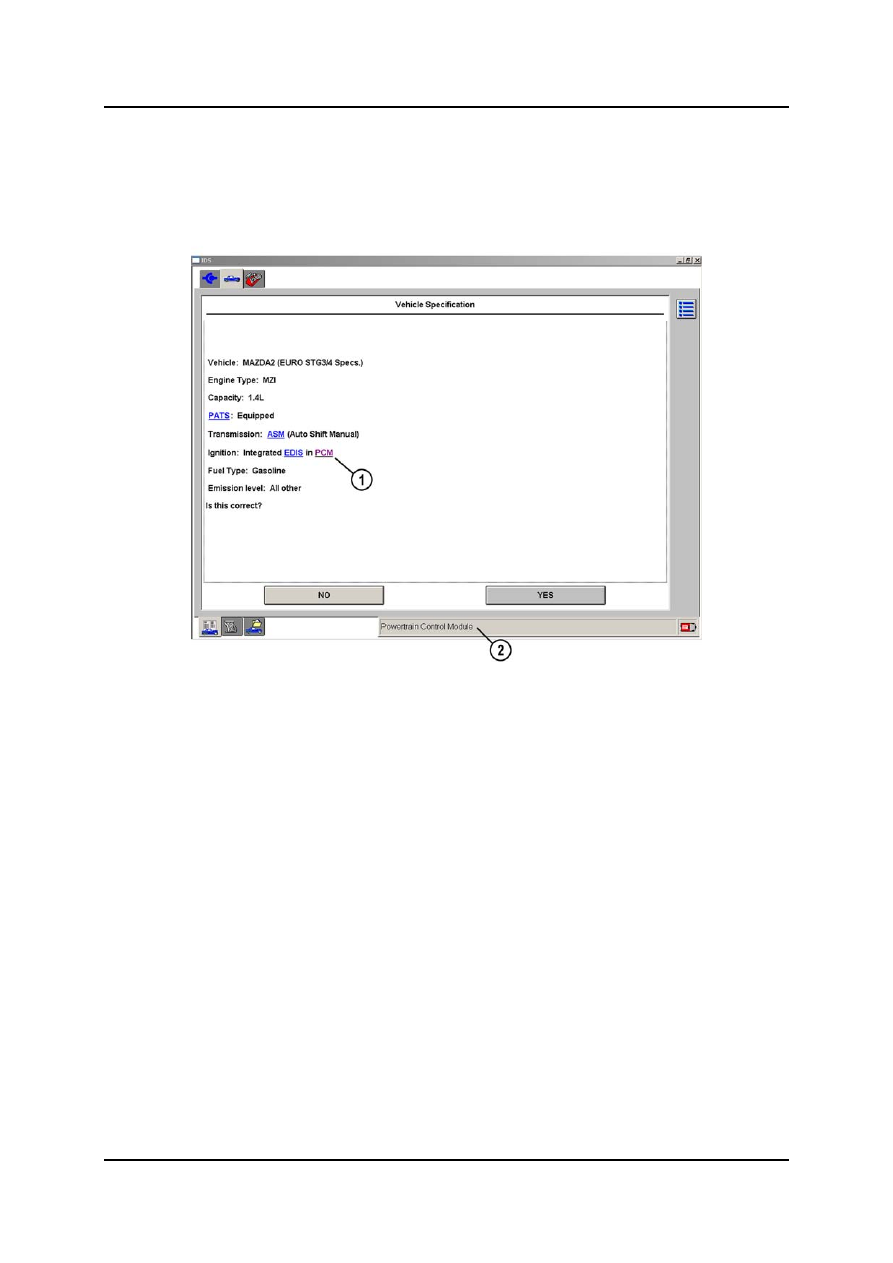

Hot Spots

•

Hot spots are “software switches” in the form of coloured underlined text within the
screen display. When a hot spot is left-clicked with the mouse, an explanation for it
appears in the status indicator.



L1001.2_011



1

Clicked hot spot

2

Explanation for hot spot
