Mazda Training manual - part 54

Using IDS



Curriculum Training

02-53

Module Programming Tips

•

The tips below should be followed when using any of the programming functions:

1.  Make sure that the latest diagnostic application and calibration files are loaded on

IDS.

2.  To ensure that the vehicle being serviced maintains required battery voltage to

perform a module programming function, a battery charger should be connected to
the vehicle battery and operated on low charge rate (max. 20 A).

3.  Save a session of the vehicle before using any of the programming functions.

Therefore establish communication to the PCM and end the session with the option
“Hold (saves recordings)”. Then establish communication again without reactivating
the held session and conduct the desired programming function. If the upload
process fails and a module is left blank, the held session can be used to program this
module.

4.

If accidentally the ignition is turned off or the 16-pin DLC cable is disconnected
during the upload process, an error message asking “Do you wish to retry?” will
appear. Press YES as this will allow IDS to recover the error, that was encountered
during the programming function. Pressing NO may result in the module being left
blank.





 Using

IDS

02-54 Curriculum

Training

Network Test



•

The Network Test is a vehicle-specific tool, i.e. it can only be accessed after identifying
the vehicle. It allows the user to check the network of the vehicle.

•

After selection of the network test function from the toolbox menu the corresponding icon
appears in the top tab row and the network test is carried out. The IDS sends a “ping” to
the network, which prompts all the modules to respond again. Then the IDS indicates the
modules which can be fitted as standard or as options, and whether they have passed
the test or not.

•

The modules and the corresponding DTCs are displayed on the left-hand side of the
screen. After highlighting a certain item the corresponding description and possible
causes for the fault appear on the right-hand side of the screen.

NOTE:  The IDS attempts to communicate with all known modules that are available on the

particular vehicle either as standard or as optional equipment. Therefore it may
indicate a failed status for a module that is not installed on the vehicle (e.g. TCM
(Transmission Control Module)). If a module fails the network test, first verify that the
vehicle is equipped with the module in question at all before attempting to perform
any further diagnostics.

•

When a question mark appears behind a module which has not responded, the IDS

offers a pinpoint routine

 in the sub-menu (bottom tab row) to guide the user to the

fault (not applicable for Mazda dealers; requires VMM).

•

With the aid of the Repeat button

 the test can be repeated any number of times.



Using IDS



Curriculum Training

02-55





L1001.2_049

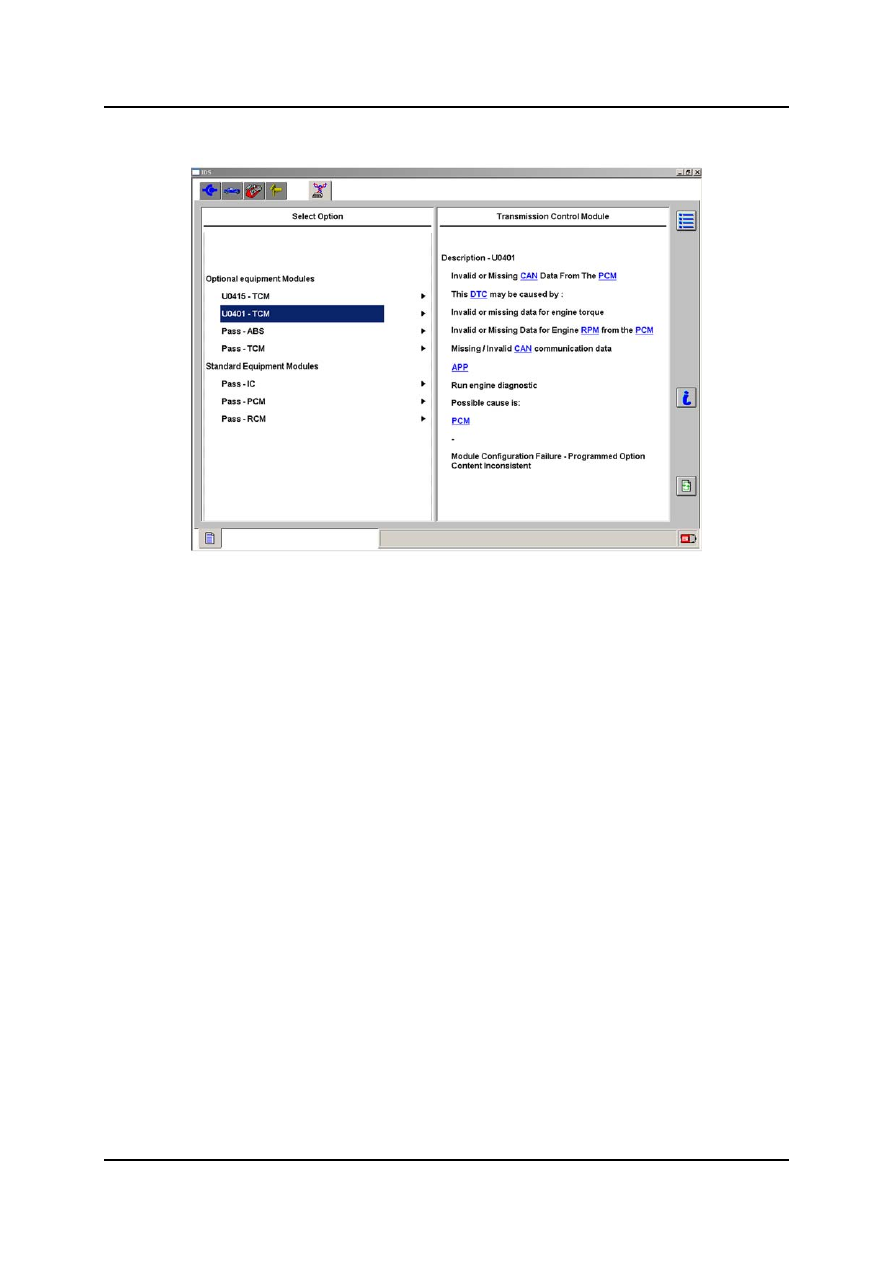

Network Test Screen



 Using

IDS

02-56 Curriculum

Training

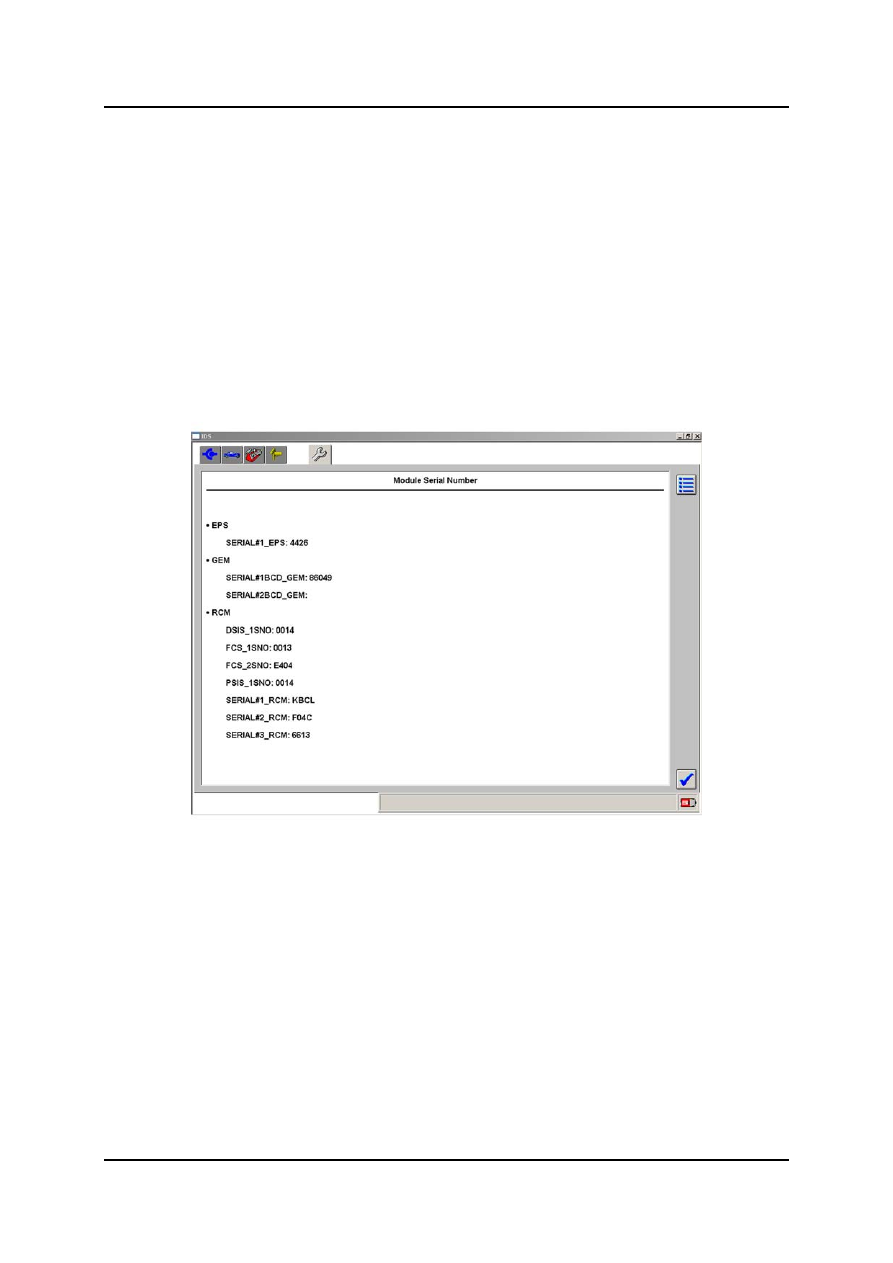

Module Serial Number

•

The function “Module Serial Number” is vehicle-specific, i.e. it can only be accessed after
identifying the vehicle. It allows the user to call up the serial numbers of the modules
connected to the communications network.

•

After selection of the Module Serial Number function from the Toolbox menu the
corresponding icon appears in the top tab row and the serial numbers of the modules are
called up via the communications network. Then IDS displays the modules and their
serial numbers.

NOTE:  The IDS attempts to read out the serial numbers of all known modules that are

available for the particular vehicle either as standard or as optional equipment.
Therefore it may indicate “Module not hooked up” for a module that is not installed on
the vehicle (e.g. TCM).



L1001.2_050
