Using IDS



Curriculum Training

02-13

Start New Session

•

This option allows the user to establish communication with vehicles with 16-pin DLC.

17 Pin

•

This option allows the user to establish communication with vehicles with 17-pin DLC.

Titan

•

This option allows the user to establish communication with Titan commercial vehicles
(not for European markets).

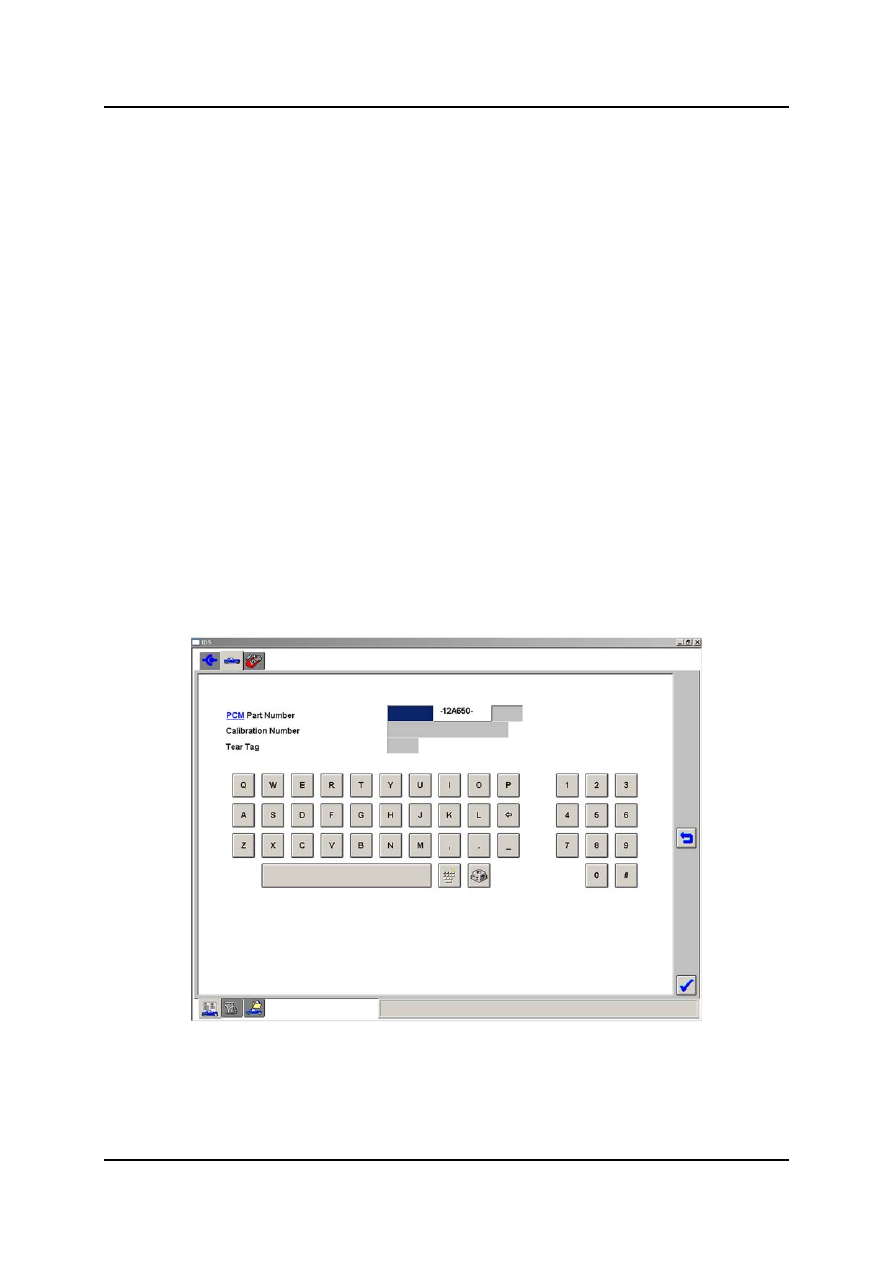

Manual Vehicle Entry

•

This option allows the user to establish communication in case the IDS does not
recognize the vehicle. Then it can be selected from a list showing several Mazda and
Ford vehicles. If the vehicle in question cannot be found in the list, it is possible to
establish communication by entering the PCM part number, calibration number or tear
tag (= label on the PCM) number.

NOTE:  The Mazda PCM part number has to be modified :

18-881 of Mazda part number will be replaced with 12A650,
e.g. “L813-18-881-D” is converted to “L813-12A650-D”

NOTE:  When communication is established via the manual vehicle entry function, the option

“Module Programming” in the Toolbox menu is inoperable.



L1001.2_016

 Using

IDS

02-14 Curriculum

Training

VDR (Vehicle Data Recorder) Upload

•

This option allows the user to upload data from the VDR (not applicable for Mazda
dealers).

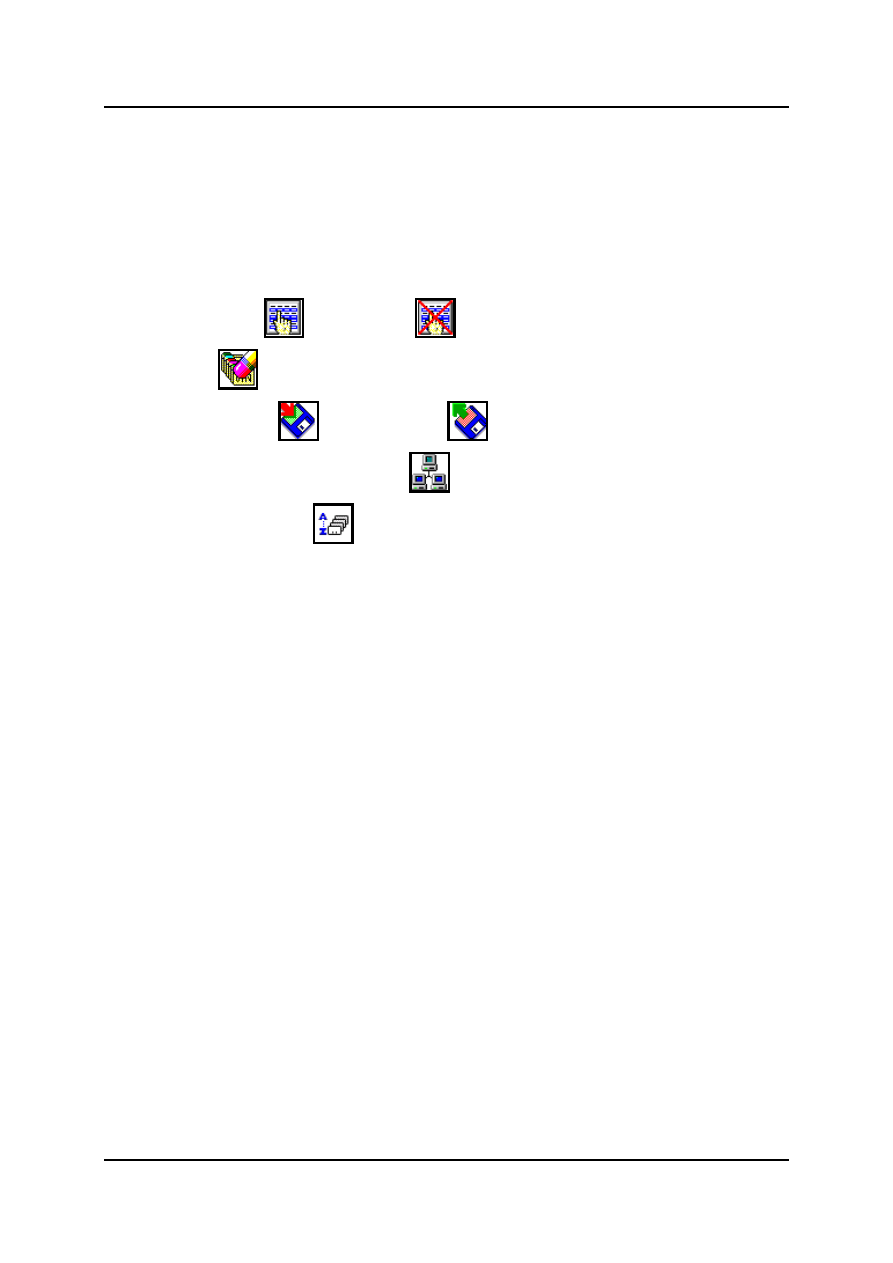

Previous Sessions

•

When this option is selected, a list is displayed showing the last diagnostic sessions held
or completed. The following options are available:

–

Single select

 or multi select

 completed or held sessions

–

Delete

 one or more sessions at the same time

–

Store sessions

 or load sessions



–

Send selected session to Hotline



–

Sort the session list

 according to user, model, date, VIN (Vehicle Identification

Number) or repair order number



Using IDS



Curriculum Training

02-15

•

In order to store data from individual sessions, select the vehicle concerned and press
the Archive session button. For held sessions a further screen appears with the selection
of recordings made.



L1001.2_017

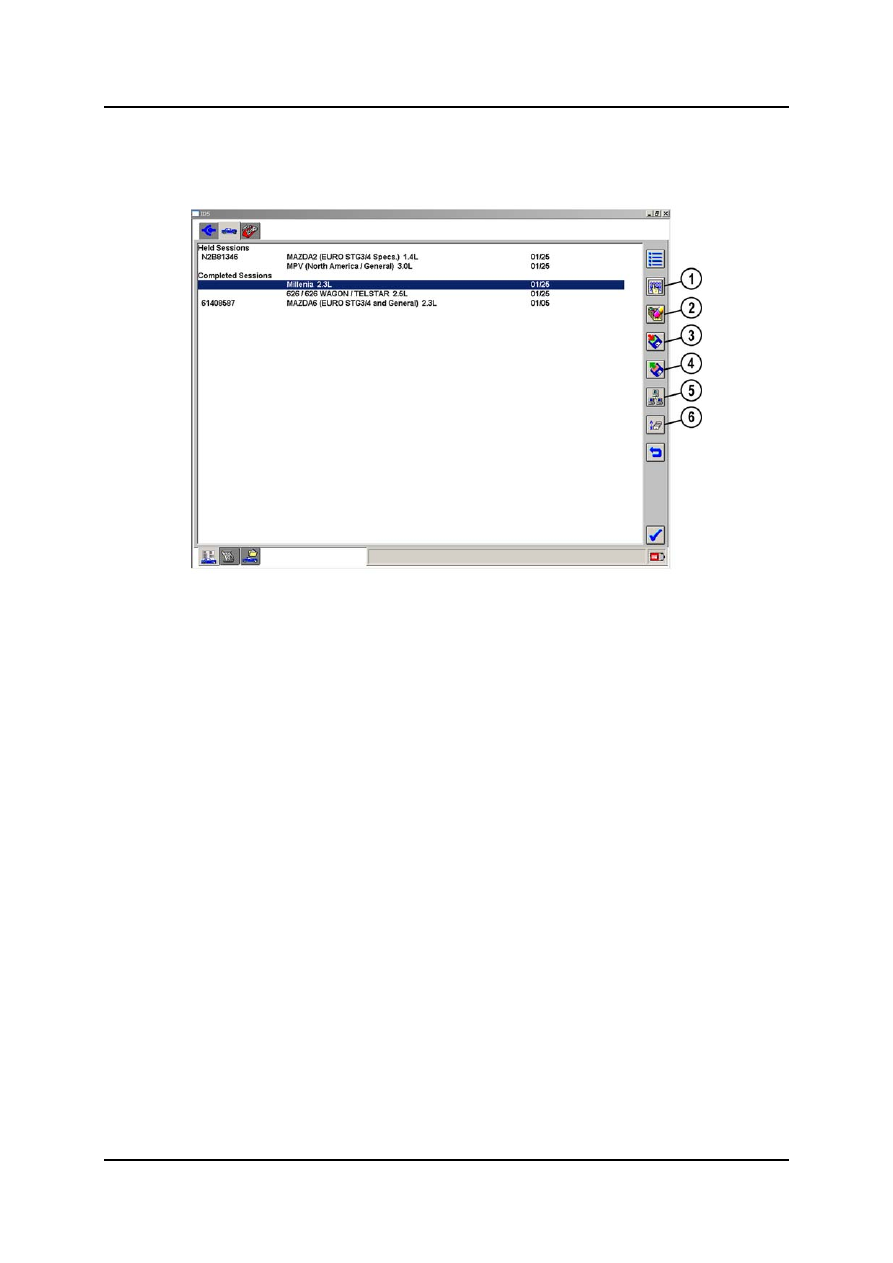

Previous Sessions Screen



1

Menu to delete sessions

4

Retrieve session (load)

2

Delete session

5

Send to Hotline

3

Archive session (store)

6

Sort session list

 Using

IDS

02-16 Curriculum

Training

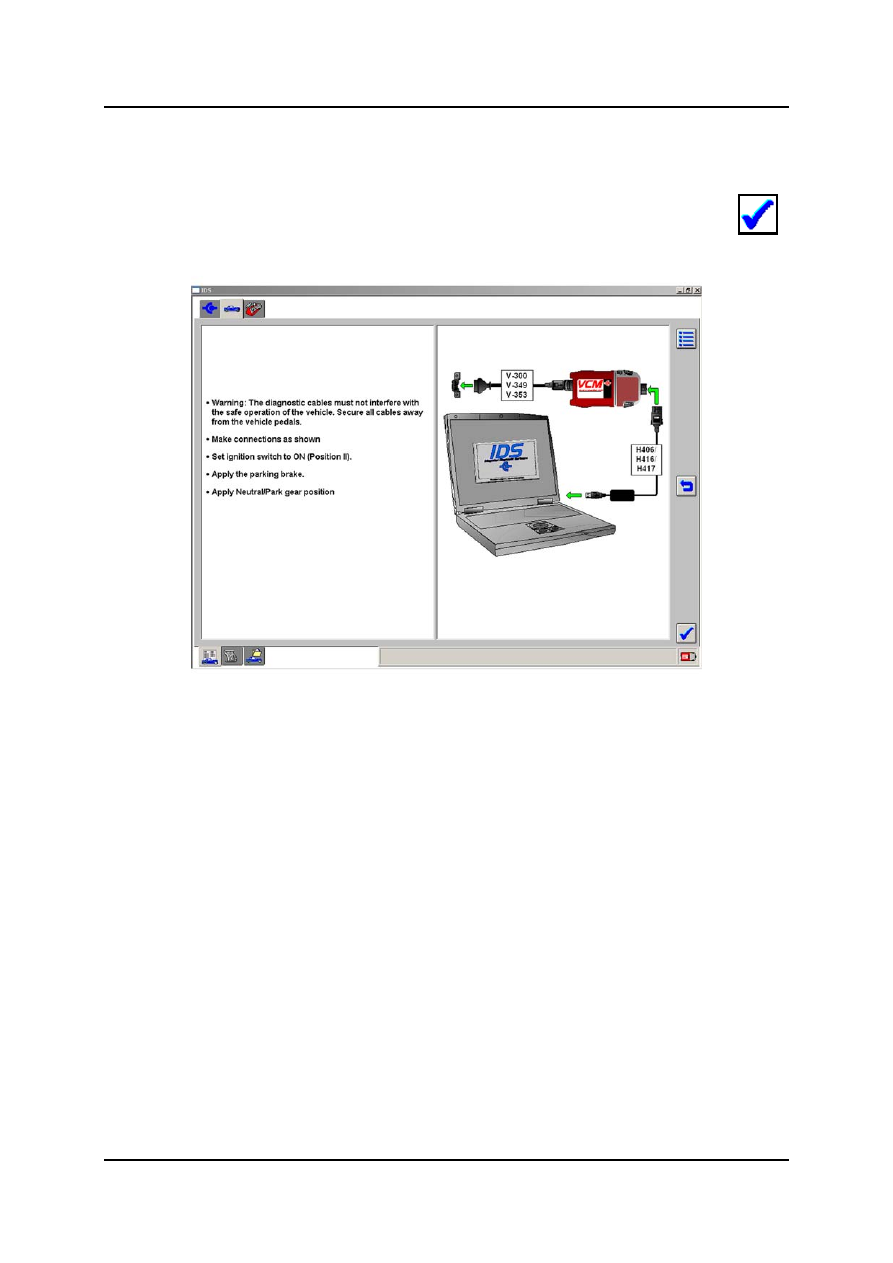

Starting a New Session

•

After selecting Start New Session or the appropriate DLC, the IDS shows an

information screen. Follow the instructions on the screen and click the tick symbol



on the lower right corner of the screen to continue.



L1001.2_018
