Using IDS



Curriculum Training

02-5

 IDS Settings



•

The IDS settings menu contains all the basic setup settings to be checked and adjusted.
It consists of the sub-menus “User Preferences”, “System Information” and “System
Utilities”.

User Preferences



•

The sub-menu “User Preferences” serves to enter different users. This allows each user
to select their own settings. The buttons in the side button control bar allow users to be
added, deleted or activated and parameters to be changed.

•

After highlighting a particular user on the left-hand side of the screen, a series of options
appears on the right-hand side of the screen. The settings for a default user are
employed as base settings, i.e. certain settings which can be used by most users are
preset. When all the parameters have been set, these are active as soon as the user is
active, namely when the little green man icon appears in front of the user name.

•

The individual parameters are described in detail in the following page.



L1001.2_012



1

Little green man icon

4

Adjust user parameters

2

Add user

5

Activate user

3 Delete

user








 Using

IDS

02-6 Curriculum

Training

Language

•

This option allows a choice of different languages.

Test Override

•

This option makes it possible to override faults which are indicated during a pinpoint test,
i.e. it allows the user to continue with the pinpoint test without the need to rectify the fault
first. The menu offers the choices Yes, No and Fault Only.

Temperature

•

This option allows the user to choose degrees Celsius or Fahrenheit.

Pressure

•

This option allows the user to choose kPa, bar, psi or inches of water.

Distance

•

This option allows the user to choose km or miles.

Vacuum

•

This option allows the user to choose kPa, inches of mercury, bar or inches of water.

Mass

•

This option allows the user to choose between kg or lb.

Repair Order

•

This option allows to enable or disable the repair order screen.



Using IDS



Curriculum Training

02-7

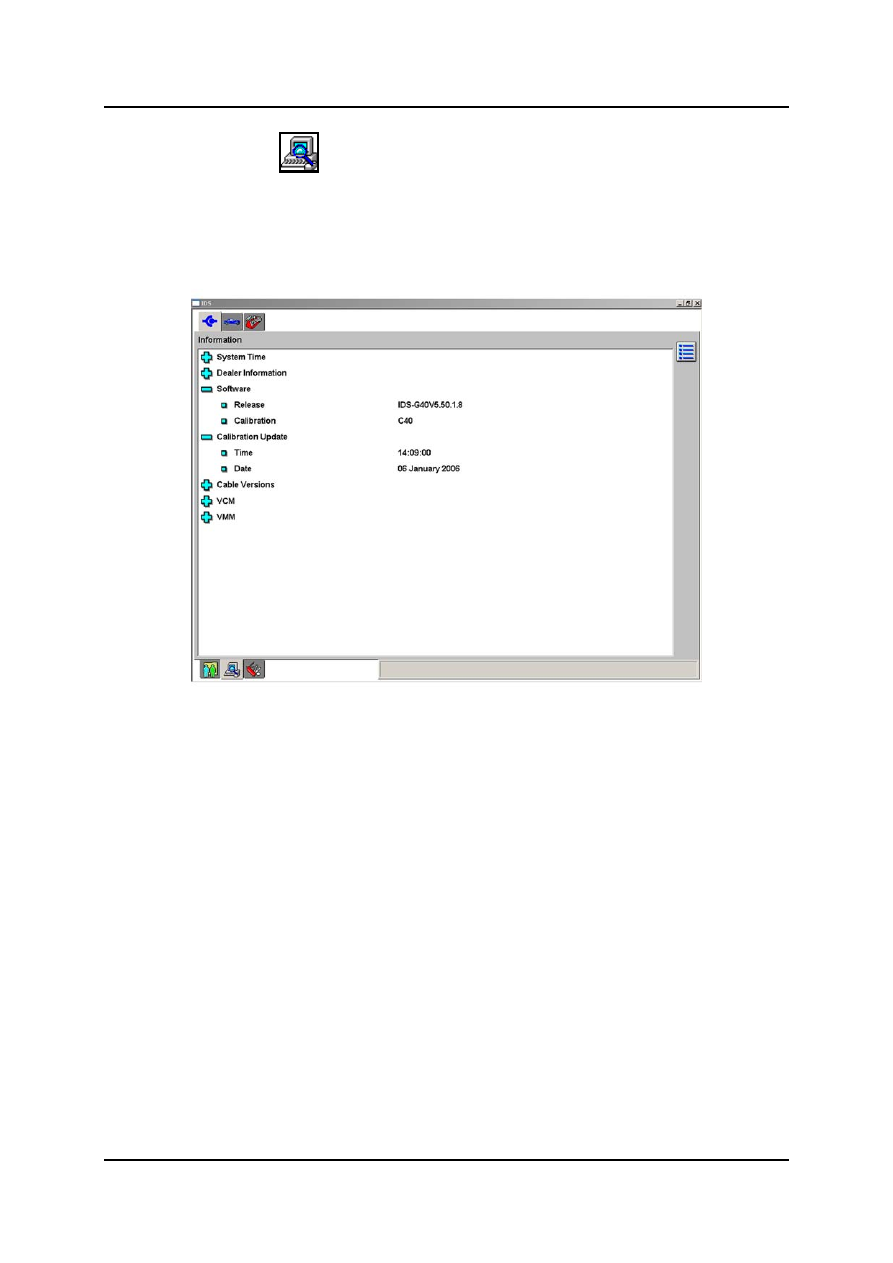

System Information



•

The sub-menu “System Information” reveals information about the system settings
(system time, dealer information, software, calibration update, cable versions, VCM,
VMM (Vehicle Measuring Module) (not applicable for Mazda dealers)). The time and the
dealer information can be set in the System Utilities menu.



L1001.2_013



 Using

IDS

02-8 Curriculum

Training

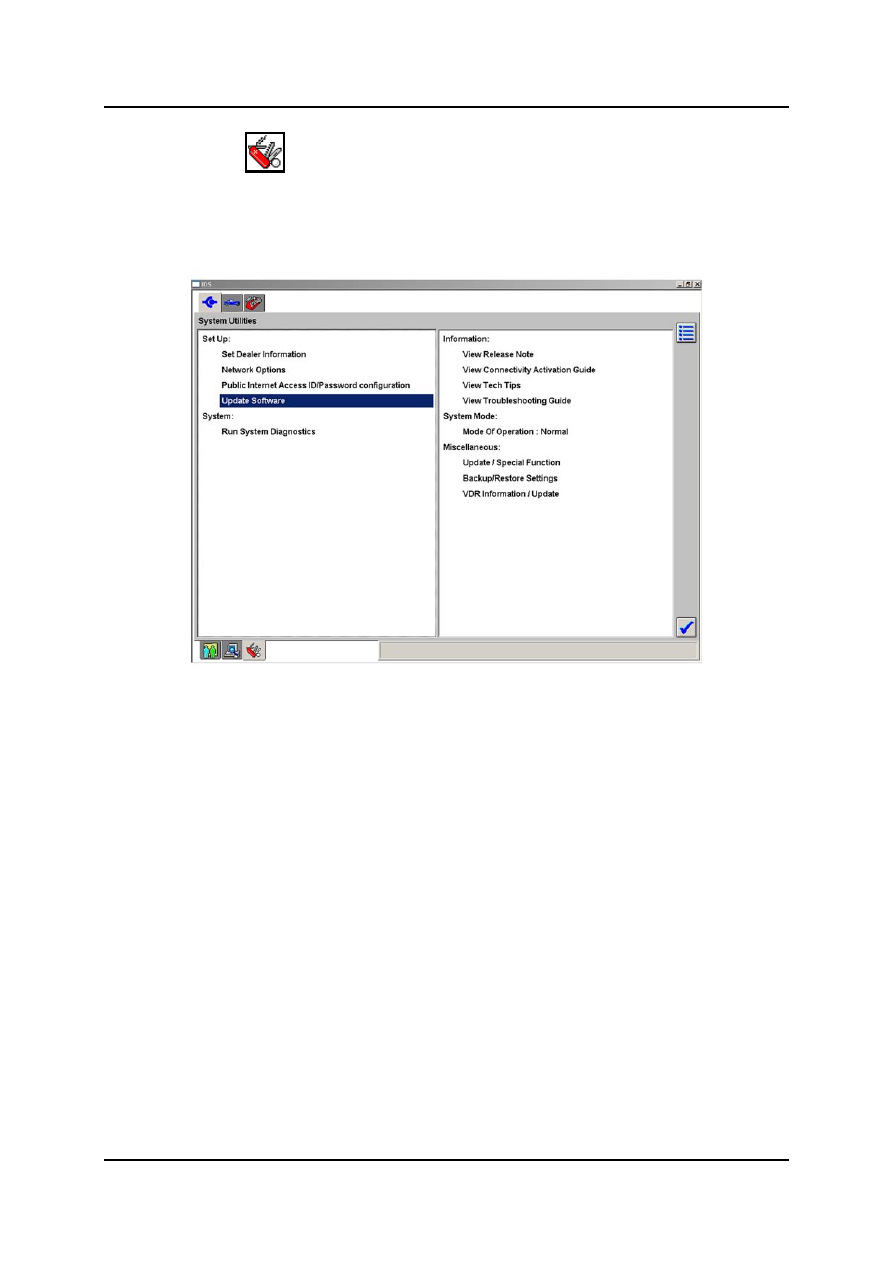

System Utilities



•

The sub-menu “System Utilities” allows adjustment and selection of a series of system-
specific parameters and functions. The individual items are described in detail in the
following pages.



L1001.2_014
