Mazda Training manual - part 38





M-MDS Introduction

Comparison of M-MDS to WDS



WDS M-MDS

Function

 IDS

PDS

Self-Test, Data Logger

Power Balance Test

Relative Compression Test

N/A

Diagnostic
Function

Function Test

X *1

Module Reprogramming

Module Configuration

PATS Reprogramming

Programmable Parameter

Part Initialization, Data Reset, &
Learning

X X  X

Service
Function

ABS (Antilock Brake System) Service
Air Bleed

X X  X

DMM (Digital Multi-Meter) &
Oscilloscope

X N/A N/A

Pressure (Fuel, Hydraulic)

N/A

N/A

Secondary Ignition

N/A

N/A

Instrumentation

Rotary Engine Compression Test

N/A

N/A

Service Information Display

N/A

N/A

Other Function

Vehicle Health Check *2

N/A

N/A




(*1)

Limited functionality

(*2)

To be established



Curriculum Training

00-3

Introduction M-MDS

Mazda VCM Kit Contents

•

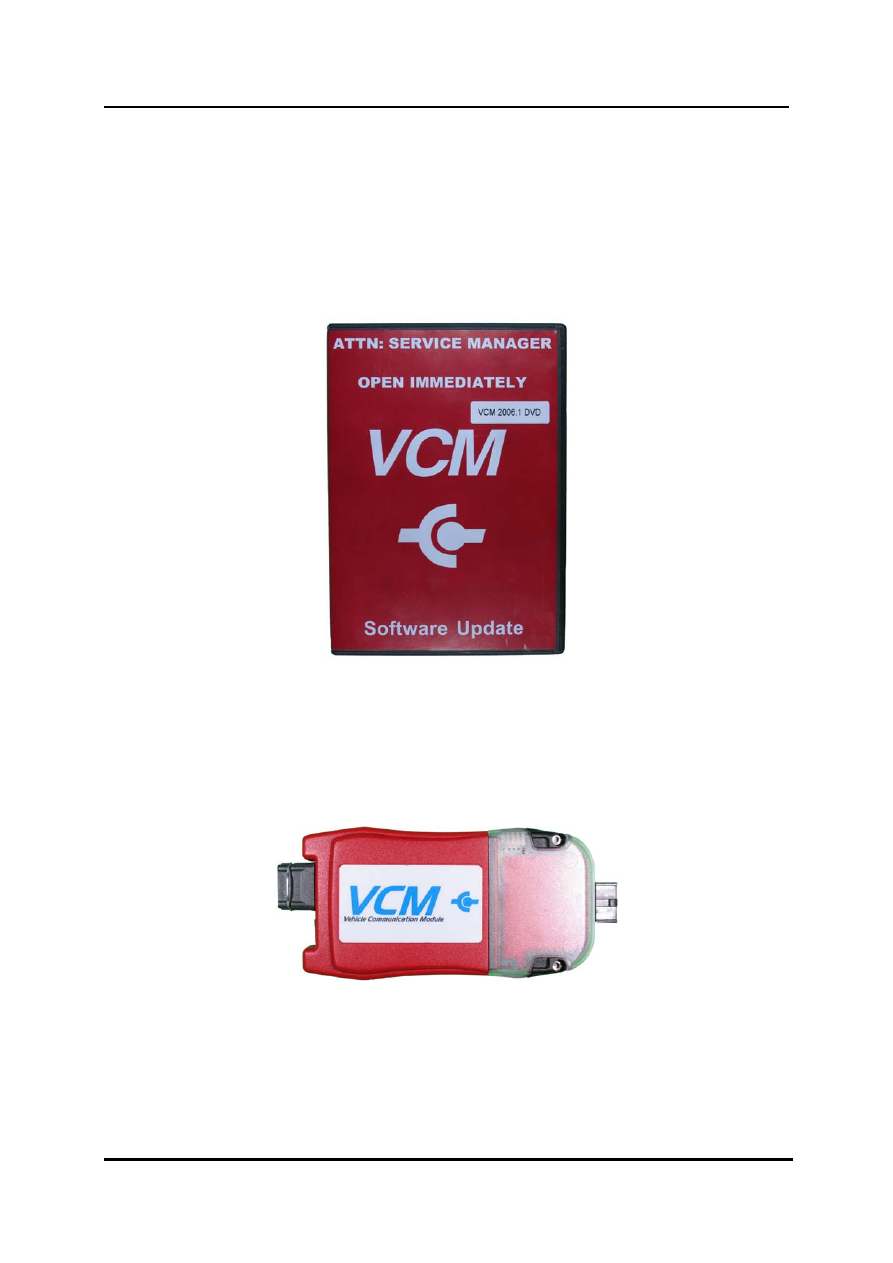

VCM DVD

–

This DVD contains all the software necessary for setting up IDS and PDS. In addition
to that it includes manuals for installation and operation of IDS, PDS, PFM and VCM.

–

The Menu and manuals appear in the preset language (Windows settings) of the
Laptop computer.





L1001.2_001



•

Vehicle Communication Module



(VCM)



–

This is a high-performance and long-lasting vehicle serial communication gateway
equipped with multiple vehicle serial communications interface and LEDs (Light
Emitting Diode) that indicate vehicle communication status. For details refer to the
VCM manual on the VCM DVD.





L1001.2_002



00-4 Curriculum

Training

M-MDS Introduction

•

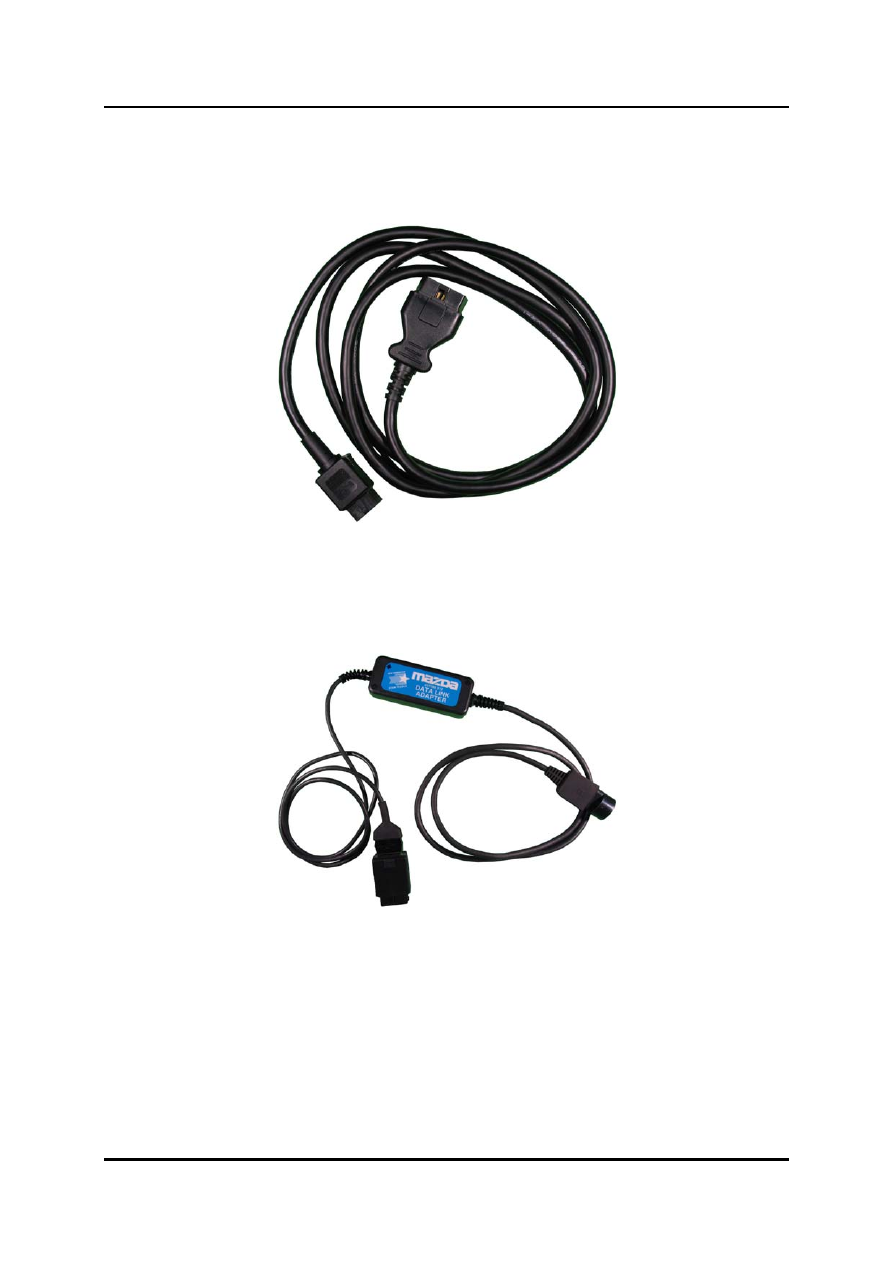

16-Pin DLC (Data Link Connector) Cable

–

This is a cable that connects the VCM to the 16-pin DLC connector on the vehicle
(length: 4.5 meter; for 12V vehicles only).





L1001.2_003


•

VCM 17-Pin DLC Kit

–

This is a cable that connects the VCM to the 17-pin DLC connector on older Mazda
vehicles. (The product can vary from the illustration)





L1001.2_004



Curriculum Training

00-5

Introduction M-MDS

•

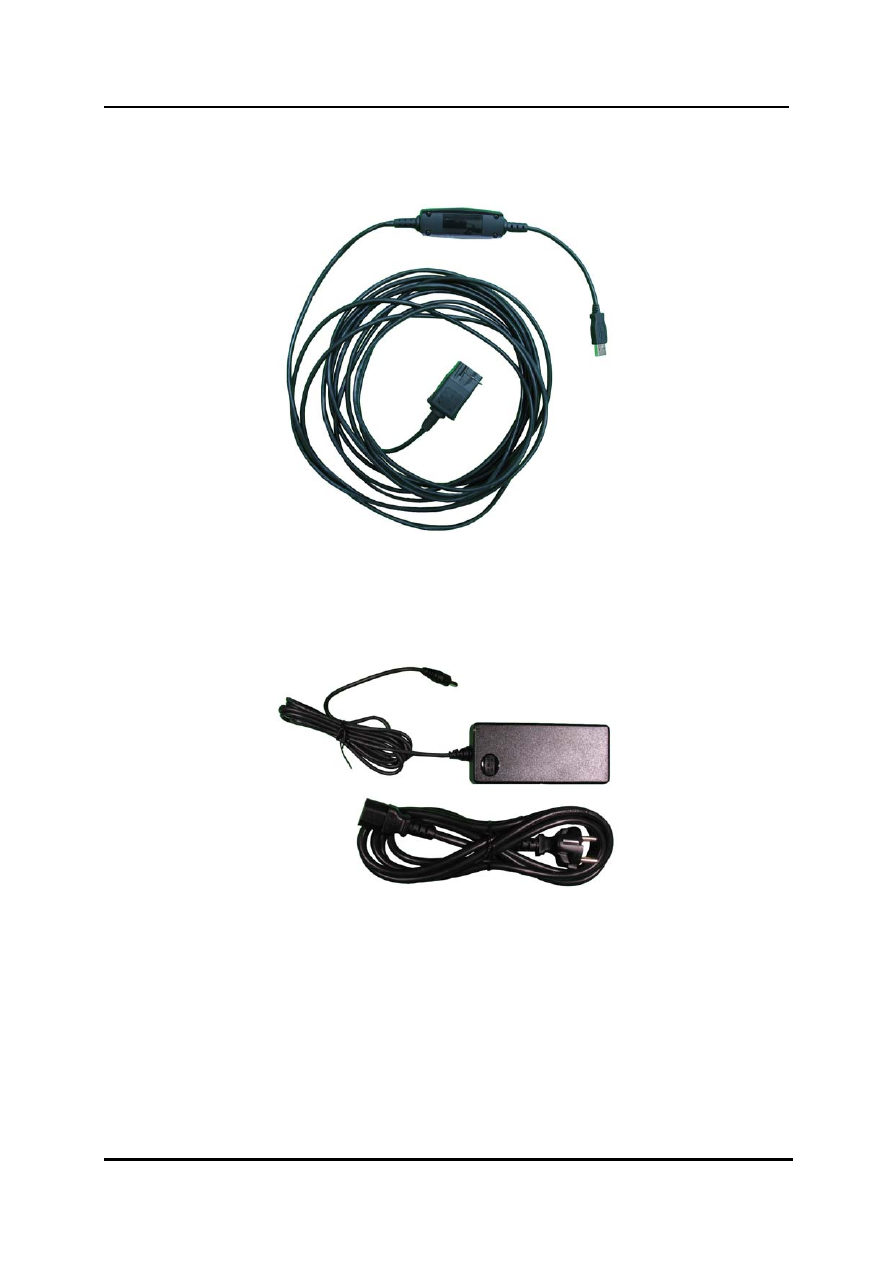

PC Ethernet – USB (Universal Serial Bus) Host Cable

–

This is a cable that connects the VCM to the designated laptop PC.





L1001.2_005


•

AC/DC (Alternating Current/Direct Current) Adapter for VCM

–

This is an AC adapter for the VCM. This is used when you need to use the VCM
without connecting to a vehicle.





L1001.2_006



00-6 Curriculum

Training
