Mazda Training manual - part 17

Powertrain Engines

Lubrication

Features

•

The lubrication system of the 13B-MSP engine has the following features:

–

Chain driven trochoid gear type oil pump

–

Air-cooled type oil cooler

–

Spin-on type oil filter

–

Metering oil pump with oil nozzles

–

Mazda Dexelia Ultra engine oil



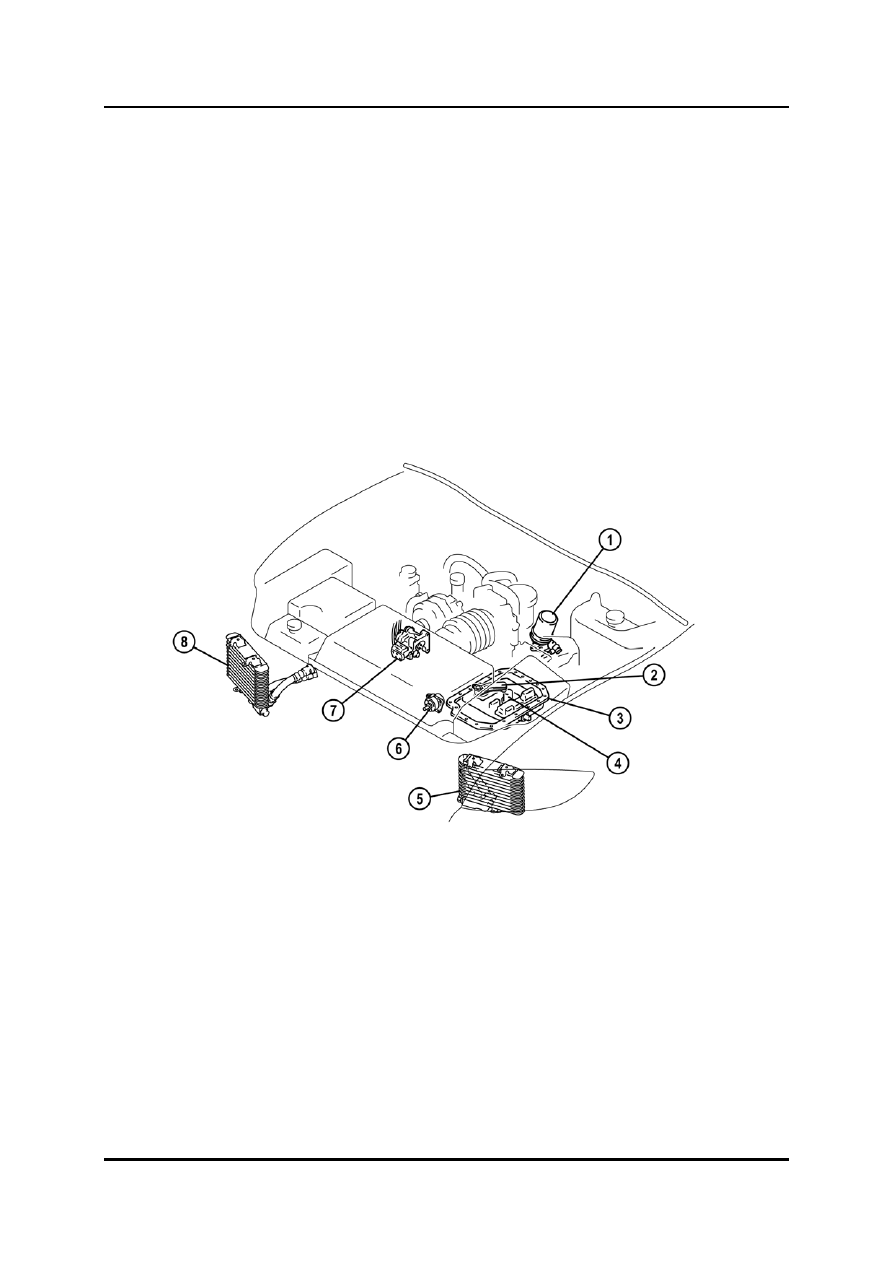

Parts Location



L1001.4_01138



1

Oil filter

5

Oil cooler

2

Oil strainer

6

Oil pump

3

Oil pan

7

Metering oil pump

4

Oil level switch

8

Additional oil cooler (with twin oil cooler)





Curriculum Training

01-55

Engines Powertrain

Engine Oil

•

For the rotary engine, Mazda specifies the use of mineral engine oil. If synthetic or semi-
synthetic engine oil is used for the rotary engine, carbon deposits may get accumulated
in the intake ports and in the combustion chamber. This can cause misfire, knocking
and/or power loss as a long-term effect.

•

The only semi-synthetic oil released by Mazda for use in rotary engines is ‘Mazda
Dexelia Ultra’ engine oil with the specification ACEA A5/B5 (refer to the respective
service information for details).



NOTE:  Using other than the specified oil (especially synthetic or semi-synthetic oil) could

result in engine damage.



01-56 Curriculum

Training

Powertrain Engines

Cooling System

Features

•

The cooling system of the 13B-MSP engine has the following features:

–

Water pump driven by the accessory drive belt

–

Pressurized type coolant reserve tank

–

FL22 longlife engine coolant

–

Cooling fan controlled by relays



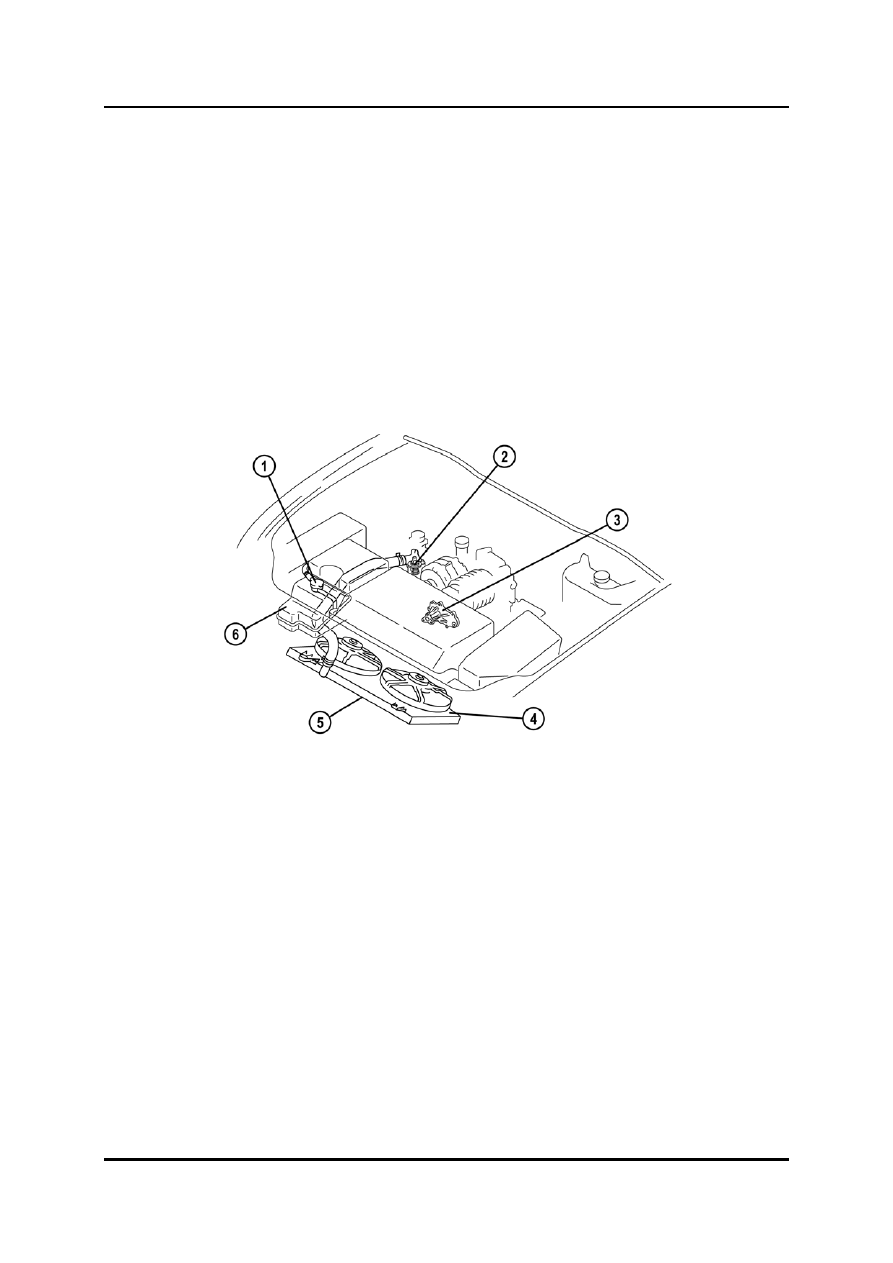

Parts Location



L1001.4_01139



1

Cooling system cap

4

Cooling fan component

2 Thermostat

5 Radiator

3

Water pump

6

Coolant reserve tank





Curriculum Training

01-57

Engines Powertrain

Service Procedures

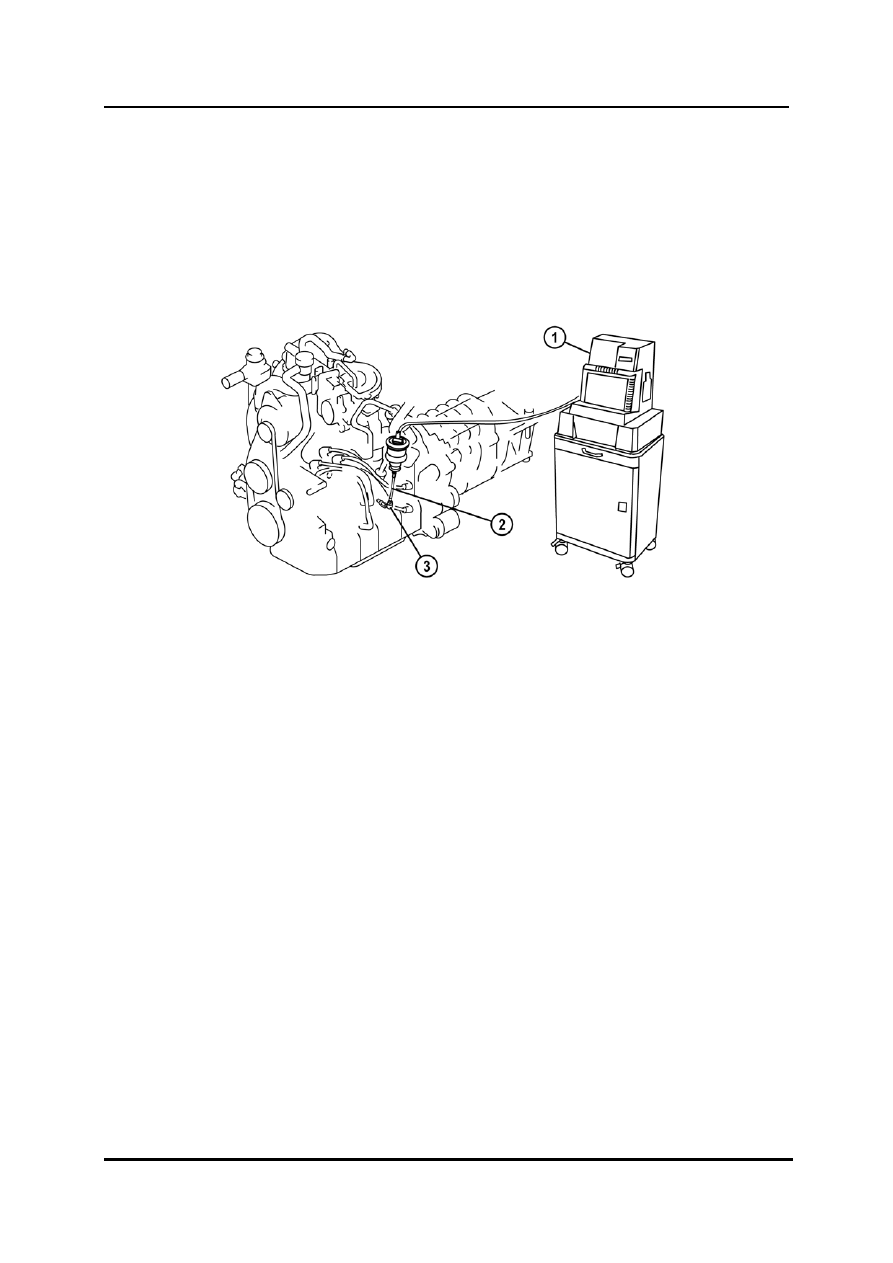

Compression Test

•

Since the operation of the rotary engine is different to that of a reciprocating engine, a
compression test cannot be performed using a conventional compression tester. For this
reason, WDS (Worldwide Diagnostic System) or a special rotary engine compression
tester (SST) in conjunction with an adapter (SST) must be used (refer to the workshop
manual for details).





L1001.4_01136



1 WDS

3 Adapter

(SST)

2

Adapter hose (SST)







01-58 Curriculum

Training
