Mazda Training manual - part 10





Powertrain Engines

Lubrication

Features

•

The lubrication system of the L-type engines has the following features:

–

Chain driven trochoid gear type oil pump



–

Water-cooled type oil cooler (L8 engine only if equipped)



–

Spin-on type or cartridge type oil filter

–

Oil jet valves



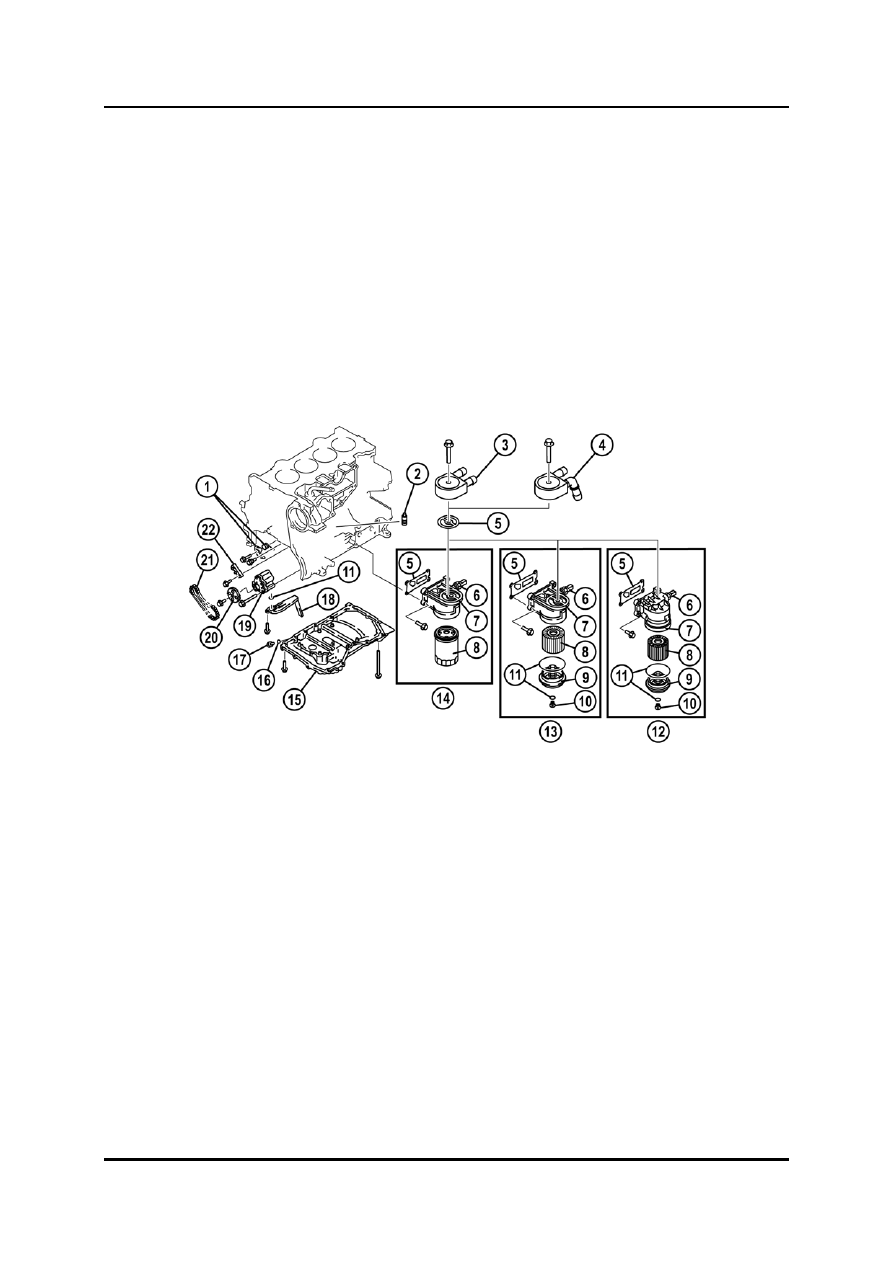

Parts Location



L1001.4_01024

Mazda6 GG/GY



Oil pump chain tensioner

12

Cartridge type oil filter without oil cooler
(only L8 engine)

Oil jet valve

13

Cartridge type oil filter with oil cooler

Oil cooler (L8, LF and L3 engine)

14

Spin-on type oil filter

Oil cooler (L3-T engine)

15

Oil pan

5 Gasket

16 Washer

Oil pressure switch

17

Oil pan drain plug

Oil filter adapter

18

Oil strainer

Oil filter

19

Oil pump

Oil filter cover

20

Oil pump sprocket

10

Oil filter drain plug

21

Oil pump chain

11

O-ring

22

Oil pump chain guide



Curriculum Training

01-27

Engines Powertrain

Cooling System

Features

•

The cooling system of the L-type engines has the following features:

–

Water pump driven by the accessory drive belt



–

Unpressurized or pressurized type coolant reserve tank (depending on model)



–

FL22 longlife engine coolant

–

Cooling fan controlled by relays or by a fan control module (depending on model)



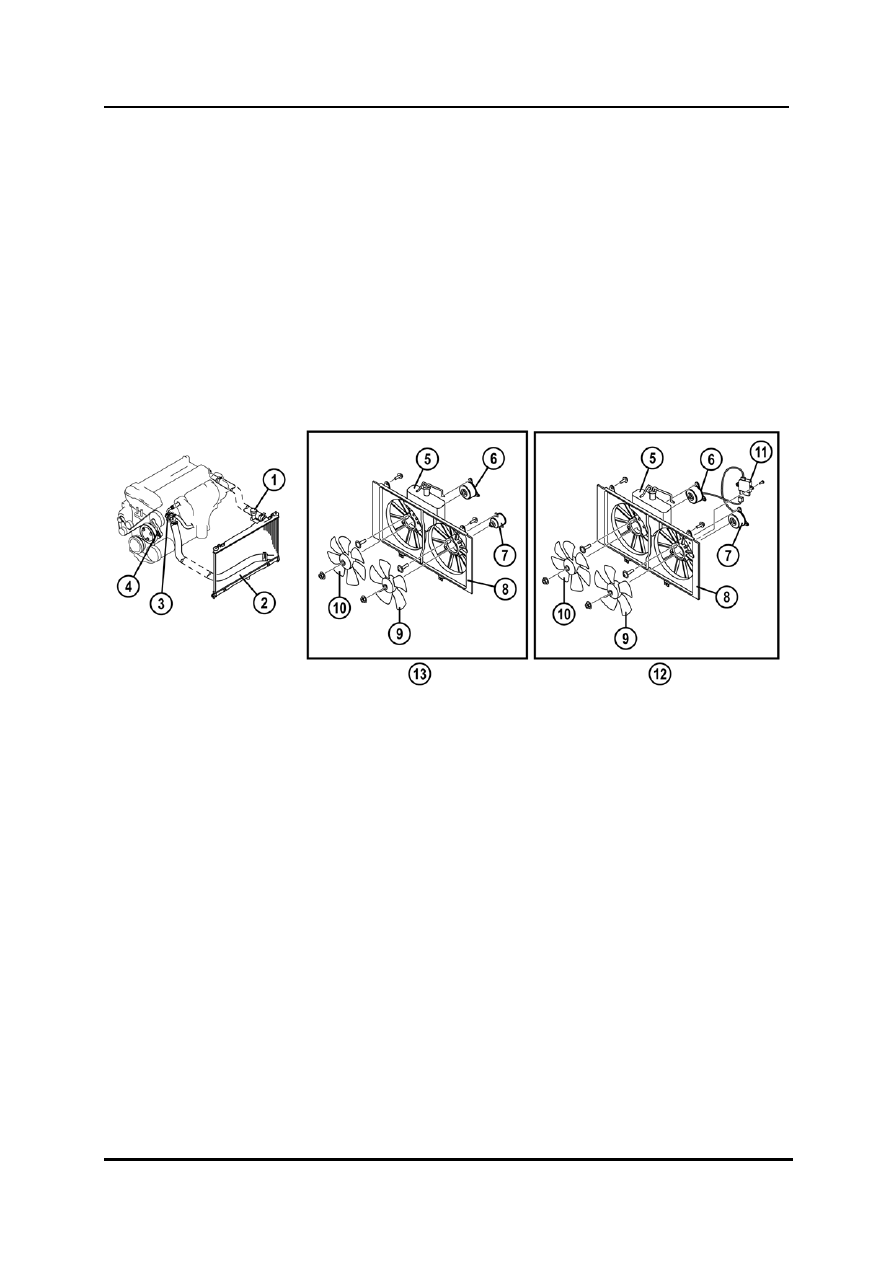

Parts Location



L1001.4_01025

Mazda6 GG/GY



Cooling system cap

Radiator cowling

Radiator

Cooling fan no.1

Thermostat

10

Cooling fan no.2

Water pump

11

Fan control module

Coolant reserve tank

12

Cooling fan component (L3-T engine)

Cooling fan motor no.2

13

Cooling fan component (L8, LF, L3
engine)

Cooling fan motor no.1







01-28 Curriculum

Training

Powertrain Engines

Engine Coolant

•

For all current Mazda vehicles except for Mazda2 (DY) Mazda has developed a special
engine coolant called ‘FL22’. This coolant has a significantly longer replacement interval
than conventional coolant. Whereas conventional coolant must replaced at first every
100,000 km or 4 years (whichever occurs first) and after that every 2 years, FL22 coolant
must be replaced every 200,000 km or 11 years (whichever occurs first). The only
exception are models with L3-T engine (Mazda3 MPS, Mazda6 MPS and Mazda CX-7),
which have a coolant replacement interval of 195,000 km or 11 years (whichever occurs
first).

•

FL22 coolant and conventional coolant are both ethylene glycol-based and can be
mixed. They are both green, making them impossible to distinguish visually. For this
reason, vehicles designated for use with FL22 coolant have a corresponding label on the
radiator cap itself or on the surrounding area.

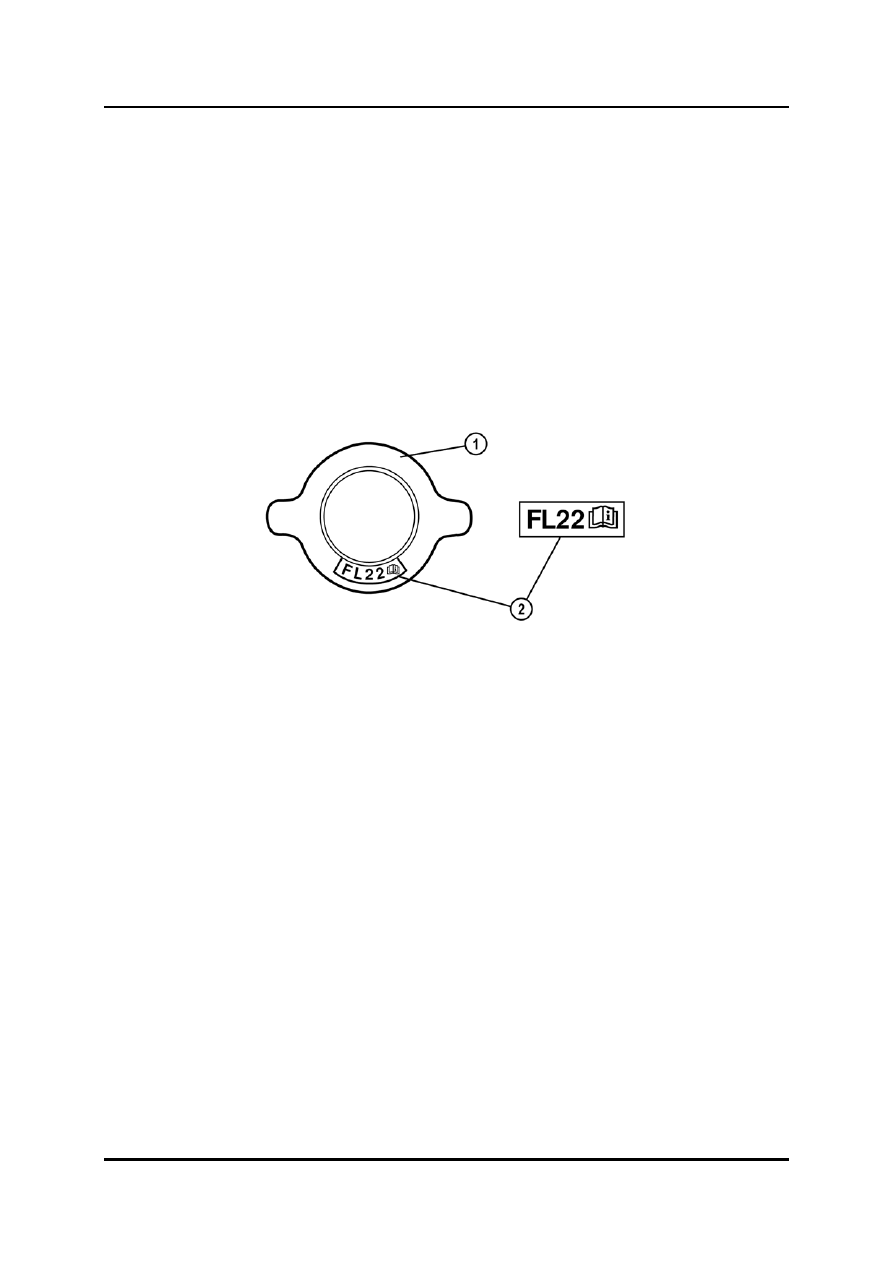

L1001.4_01142



Radiator cap

Label


•

If the engine coolant on a vehicle designated for use with conventional coolant is
replaced by FL22 coolant, the replacement interval changes to 100,000 km or 5 years
(whichever occurs first). In order to indicate the new replacement interval, a sticker has
to be applied next to the coolant reserve tank (refer to the respective service information
for details).



NOTE:  When replacing the coolant, the cooling system has to be flushed (refer to the

workshop manual for details).



Curriculum Training

01-29

Engines Powertrain

Z-type Engines

•

In the Z-type engine line-up the following engines are available:

–

ZJ engine with 1.3 L displacement (also termed as 1.3 MZR engine)

–

Z6 engine with 1.6 L displacement (also termed as 1.6 MZR engine)


•

Both engines are fitted in the Mazda3 models. They are equipped with a multipoint
manifold injection system and a distributorless ignition system (direct ignition coils).



Mechanical

Features

•

The mechanical system of the Z-type engines has the following features:

–

Chain driven 16 valve DOHC engine

–

Valve train with automatic timing chain tensioner and mechanical bucket tappets

–

Variable valve timing system for the intake camshaft

–

V-ribbed belt drive with automatic tensioner



01-30 Curriculum
