Mazda engine L8, LF, L3. Manual - part 4





ELECTRICAL SYSTEM

GI–11

GI

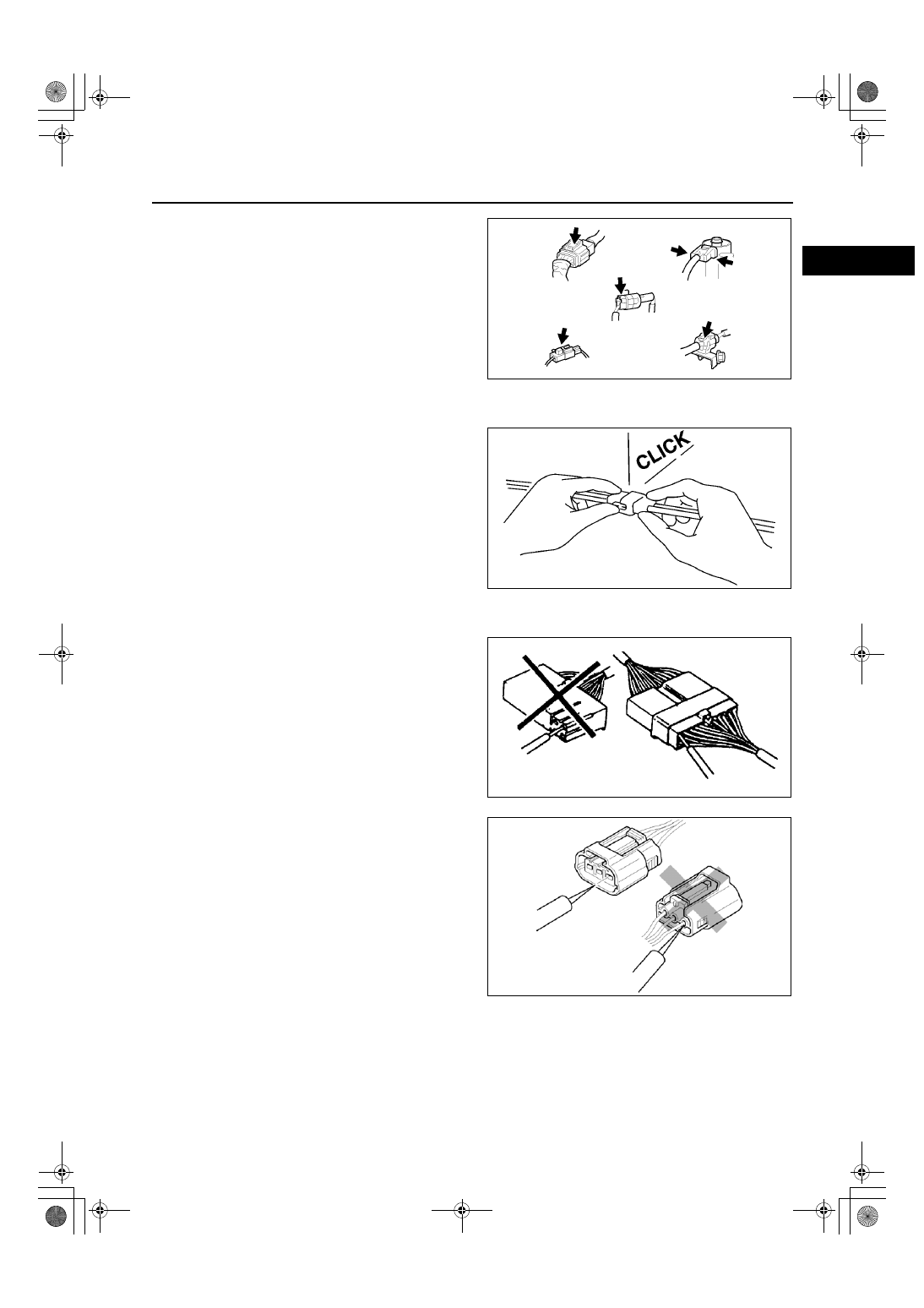

Connectors can be disconnected by pressing or
pulling the lock lever as shown.

Locking connector

When locking connectors, listen for a click
indicating they are securely locked.

Inspection

When a tester is used to inspect for continuity or
measuring voltage, insert the tester probe from
the wiring harness side.

Inspect the terminals of waterproof connectors
from the connector side since they cannot be
accessed from the wiring harness side.

Caution

••••

To prevent damage to the terminal, wrap
a thin wire around the tester probe before
inserting into terminal.

WGIWXX0042E

X3U000WB1

X3U000WB2

WGIWXX0045E

GI–12

ELECTRICAL SYSTEM

Terminals
Inspection

Pull lightly on individual wires to verify that they
are secured in the terminal.

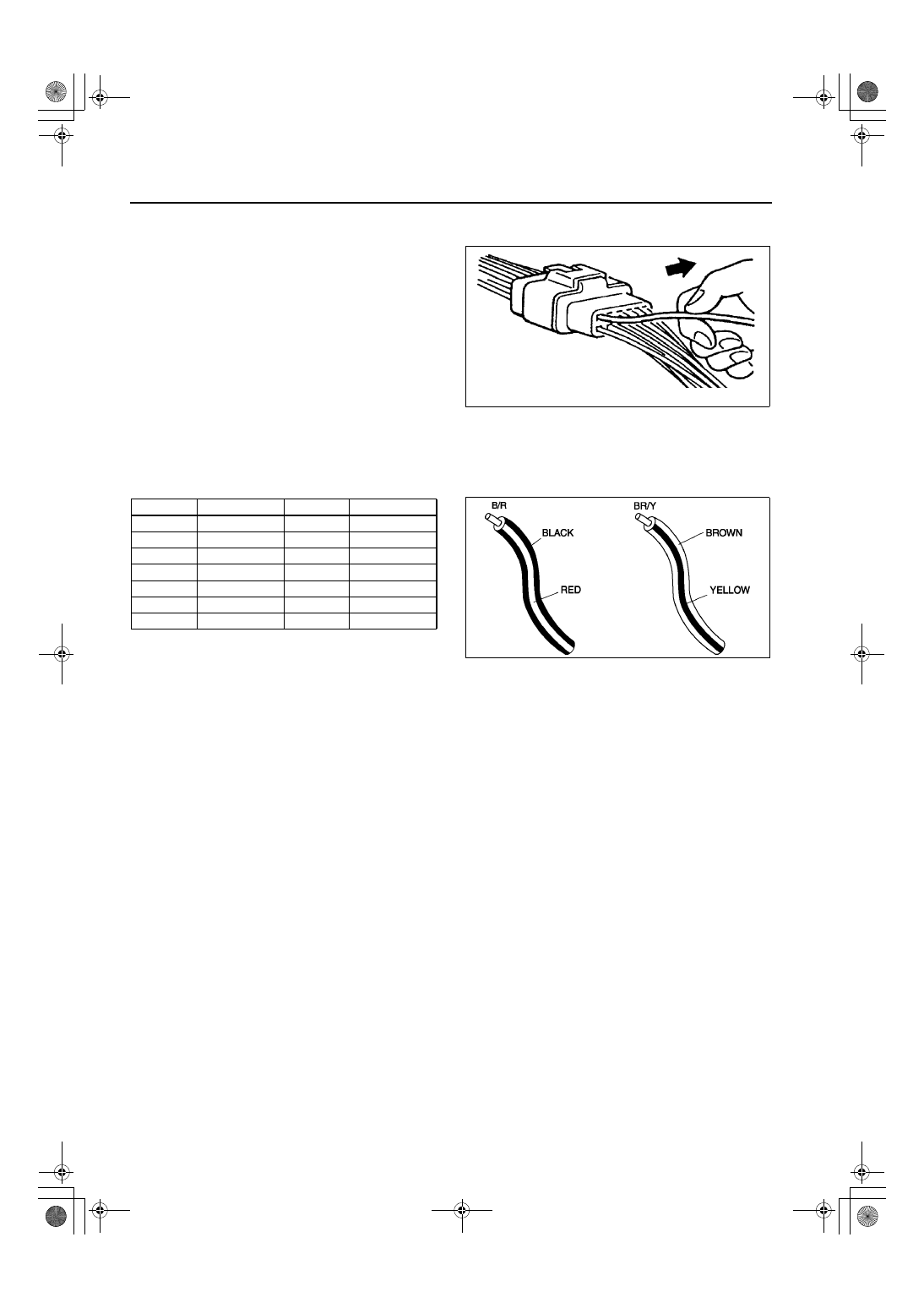

Wiring Harness
Wiring color codes

Two-color wires are indicated by a two-color code symbol.

The first letter indicates the base color of the wire and the second the color of the stripe.

End Of Sie

X3U000WB4

CODE

COLOR

CODE

COLOR

B

Black

O

Orange

BR

Brown

P

Pink

G

Green

R

Red

GY

Gray

V

Violet

L

Blue

W

White

LB

Light Blue

Y

Yellow

LG

Light Green

X3U000WB7

NEW STANDARDS

GI–13

GI

NEW STANDARDS

A6E202800020E01

Following is a comparison of the previous standard and the new standard.

NEW STANDARDS

New Standard

Previous Standard

Remark

Abbrevi-

ation

Name

Abbrevi-
ation

Name

AP

Accelerator Pedal

Accelerator Pedal

ACL

Air Cleaner

Air Cleaner

A/C

Air Conditioning

Air Conditioning

BARO

Barometric Pressure

Atmospheric Pressure

B+

Battery Positive Voltage

Vb

Battery Voltage

Brake Switch

Stoplight Switch

Calibration Resistor

Corrected Resistance

#6

CMP sensor Camshaft Position Sensor

Crank Angle Sensor

CAC

Charge Air Cooler

Intercooler

CLS

Closed Loop System

Feedback System

CTP

Closed Throttle Position

Fully Closed

CPP

Clutch Pedal Position

Idle Switch

CIS

Continuous Fuel Injection System

Clutch Position

CS sensor

Control Sleeve Sensor

CSP  sensor Control Sleeve Position Sensor

#6

CKP sensor Crankshaft Position Sensor

Crank Angle Sensor 2

DLC

Data Link Connector

Diagnosis Connector

DTM

Diagnostic Test Mode

Test Mode

#1

DTC

Diagnostic Trouble Code(s)

Service Code(s)

DI

Distributor Ignition

Spark Ignition

DLI

Distributorless Ignition

Direct Ignition

EI

Electronic Ignition

Electronic Spark Ignition

#2

ECT

Engine Coolant Temperature

Water Thermo

EM

Engine Modification

Engine Modification

Engine Speed Input Signal

Engine RPM Signal

EVAP

Evaporative Emission

Evaporative Emission

EGR

Exhaust Gas Recirculation

Exhaust Gas Recirculation

FC

Fan Control

Fan Control

FF

Flexible Fuel

Flexible Fuel

4GR

Fourth Gear

Overdrive

Fuel Pump Relay

Circuit Opening Relay

#3

FSO

solenoid

Fuel Shut Off Solenoid

FCV

Fuel Cut Valve

#6

GEN

Generator

Alternator

GND

Ground

Ground/Earth

HO2S

Heated Oxygen Sensor

Oxygen Sensor

With heater

IAC

Idle Air control

Idle Speed Control

IDM Relay

Spill Valve Relay

#6

Incorrect Gear Ratio

Injection Pump

FIP

Fuel Injection Pump

#6

Input/Turbine Speed Sensor

Pulse Generator

IAT

Intake Air Temperature

Intake Air Thermo

KS

Knock Sensor

Knock Sensor

MIL

Malfunction Indicator Lamp

Malfunction Indicator Light

MAP

Manifold Absolute Pressure

Intake Air Pressure

MAF sensor Mass Air Flow Sensor

Airflow Sensor

MFL

Multiport Fuel Injection

Multiport Fuel Injection

OBD

On-Board Diagnostic

Diagnosis/SelfDiagnosis

OL

Open Loop

Open Loop

GI–14

NEW STANDARDS

#1 : Diagnostic trouble codes depend on the diagnostic test mode
#2 : Controlled by the PCM
#3 : In some models, there is a fuel pump relay that controls pump speed.  That relay is now called the fuel pump

relay (speed).

#4 : Device that controls engine and powertrain
#5 : Directly connected to exhaust manifold
#6 : Part name of diesel engine

End Of Sie

Output Speed Sensor

Vehicle Speed Sensor 1

OC

Oxidation Catalytic Converter

Catalytic Converter

O2S

Oxygen Sensor

Oxygen Sensor

PNP

Park/Neutral Position

Park/Neutral Range

PCM Control Relay

Main Relay

#6

PSP

Power Steering Pressure

Power Steering Pressure

PCM

Powertrain Control Module

ECU

Engine Control Unit

#4

Pressure Control Solenoid

Line Pressure Solenoid Valve

PAIR

Pulsed Secondary Air Injection

Secondary Air Injection System

Pulsed
injection

Pump Speed Sensor

NE Sensor

#6

AIR

Secondary Air Injection

Secondary Air Injection System

Injection
with air
pump

SAPV

Secondary Air Pulse Valve

Reed Valve

SFI

Sequential Multipoint Fuel Injection

Sequential Fuel Injection

Shift Solenoid A

1–2 Shift Solenoid Valve

Shift A Solenoid Valve

Shift Solenoid B

2–3 Shift Solenoid Valve

Shift B Solenoid Valve

Shift Solenoid C

3–4 Shift Solenoid Valve

3GR

Third Gear

3rd Gear

TWC

Three Way Catalytic Converter

Catalytic Converter

TB

Throttle Body

Throttle Body

TP sensor

Throttle Position Sensor

Throttle Sensor

TCV

Timer Control Valve

TCV

Timing Control Valve

#6

TCC

Torque Converter Clutch

Lockup Position

TCM

Transmission (Transaxle) Control
Module

ECAT Control Unit

Transmission (Transaxle) Fluid
Temperature Sensor

ATF Thermosensor

TR

Transmission (Transaxle) Range

Inhibitor Position

TC

Turbocharger

Turbocharger

VSS

Vehicle Speed Sensor

Vehicle Speed Sensor

VR

Voltage Regulator

IC Regulator

VAF sensor Volume Air Flow Sensor

Air flow Sensor

WUTWC

Warm Up Three Way Catalytic
Converter

Catalytic Converter

#5

WOT

Wide Open Throttle
