Mazda engine L8, LF, L3. Manual - part 3

FUNDAMENTAL PROCEDURES

GI–7

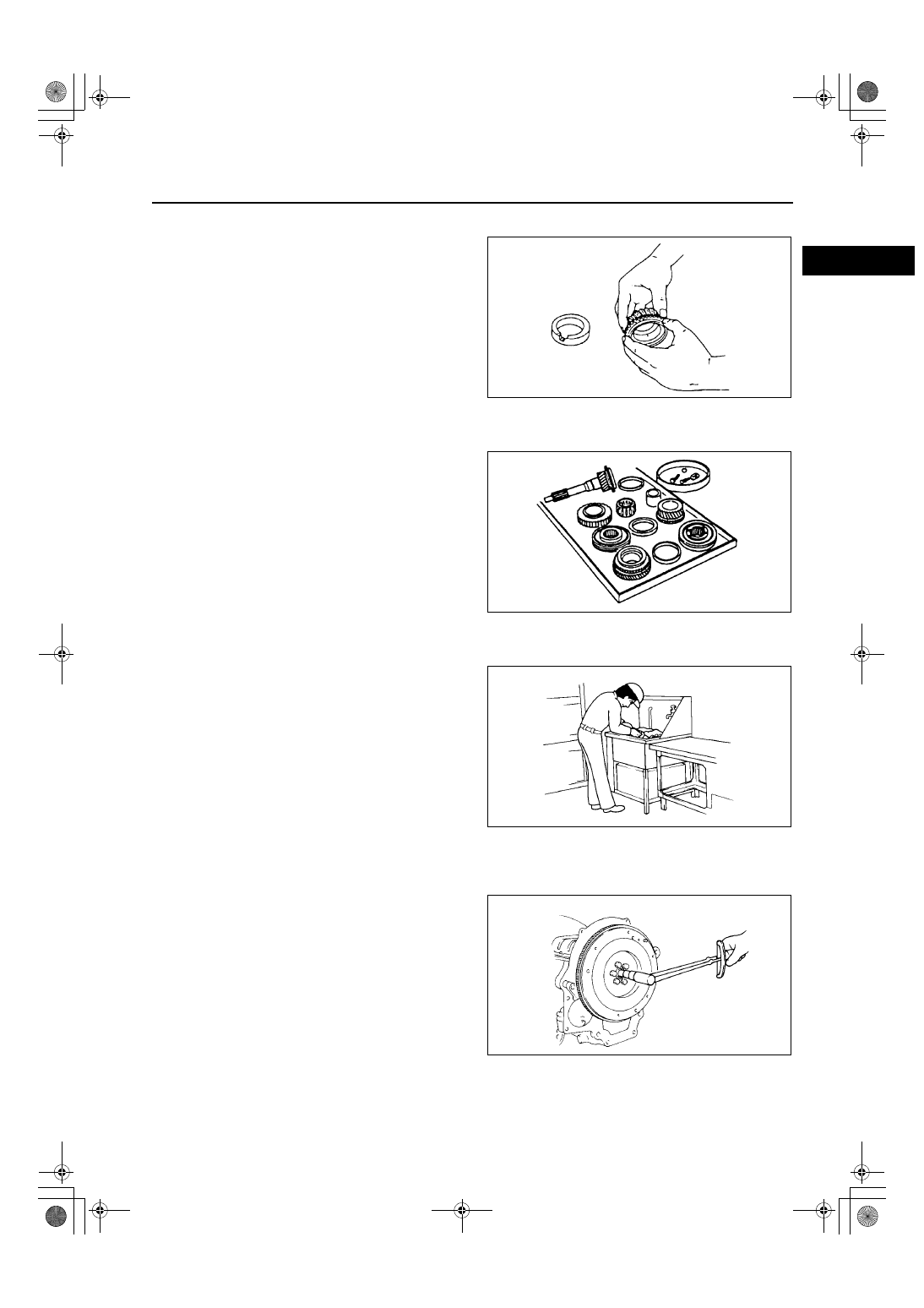

INSPECTION DURING REMOVAL, DISASSEMBLY

A6E201400004E08

•

When removed, each part should be carefully
inspected for malfunction, deformation, damage,
and other problems.

End Of Sie

ARRANGEMENT OF PARTS

A6E201400004E09

•

All disassembled parts should be carefully
arranged for reassembly.

•

Be sure to separate or otherwise identify the parts
to be replaced from those that will be reused.

End Of Sie

CLEANING OF PARTS

A6E201400004E10

•

All parts to be reused should be carefully and
thoroughly cleaned in the appropriate method.

Warning

••••

Using compressed air can cause dirt and
other particles to fly out causing injury to
the eyes. Wear protective eye wear
whenever using compressed air.

End Of Sie

REASSEMBLY

A6E201400004E11

•

Standard values, such as torques and certain
adjustments, must be strictly observed in the
reassembly of all parts.

•

If removed, these parts should be replaced with
new ones:
— Oil seals
— Gaskets
— O-rings
— Lockwashers
— Cotter pins
— Nylon nuts

X3U000WAM

X3U000WAN

WGIWXX0030J

WGIWXX0031J

GI–8

FUNDAMENTAL PROCEDURES

•

Depending on location:
— Sealant and gaskets, or both, should be

applied to specified locations. When sealant
is applied, parts should be installed before
sealant hardens to prevent leakage.

— Oil should be applied to the moving

components of parts.

— Specified oil or grease should be applied at

the prescribed locations (such as oil seals)
before reassembly.

End Of Sie

ADJUSTMENT

A6E201400004E12

•

Use suitable gauges and/or testers when making
adjustments.

End Of Sie

RUBBER PARTS AND TUBING

A6E201400004E13

•

Prevent gasoline or oil from getting on rubber
parts or tubing.

End Of Sie

HOSE CLAMPS

A6E201400004E14

•

When reinstalling, position the hose clamp in the
original location on the hose and squeeze the
clamp lightly with large pliers to ensure a good fit.

End Of Sie

WGIWXX0032J

X3U000WAS

WGIWXX0034E

WGIWXX0035J

FUNDAMENTAL PROCEDURES

GI–9

TORQUE FORMULAS

A6E201400004E15

•

When using a torque wrench-SST or equivalent
combination, the written torque must be
recalculated due to the extra length that the SST
or equivalent adds to the torque wrench.
Recalculate the torque using the following
formulas. Choose the formula that applies to you.

A : The length of the SST past the torque wrench drive
L : The length of the torque wrench

End Of Sie

VISE

A6E201400004E16

•

When using a vise, put protective plates in the
jaws of the vise to prevent damage to parts.

End Of Sie

SST

A6E201400004E18

•

Some Ford SST or equivalent are used as SSTs necessary for engine repair. Note that these SSTs are
marked with Ford SST numbers.

•

Note that a Ford SST number is written together with a corresponding Mazda SST number as shown below.

Example (section ST)

Example (except section ST)

End Of Sie

Torque Unit

Formula

N·m

[L/(L+A)]

kgf·m

[L/(L+A)]

kgf·cm

[L/(L+A)]

ft·lbf

[L/(L+A)]

in·lbf

[L/(L+A)]

WGIWXX0036E

X3U000WAW

XME2014002

XME2014001

GI–10

ELECTRICAL SYSTEM

ELECTRICAL PARTS

A6E201700006E01

Battery cable

•

Before disconnecting connectors or removing
electrical parts, disconnect the negative battery
cable.

Wiring Harness

•

To remove the wiring harness from the clip in the
engine room, pry up the hook of the clip using a
flathead screwdriver.

End Of Sie

CONNECTORS

A6E201700006E02

Data link connector

•

Insert the probe into the terminal when
connecting a jumper wire to the data link
connector.

Caution

••••

Inserting a jumper wire probe into the
data link connector terminal may damage
the terminal.

Disconnecting connectors

•

When disconnecting connector, grasp the
connectors, not the wires.

ELECTRICAL SYSTEM

WGIWXX0007E

X3U000WBU

X3U000WAY

WGIWXX0041E
