AUTOMATIC TRANSAXLE

K–57

K

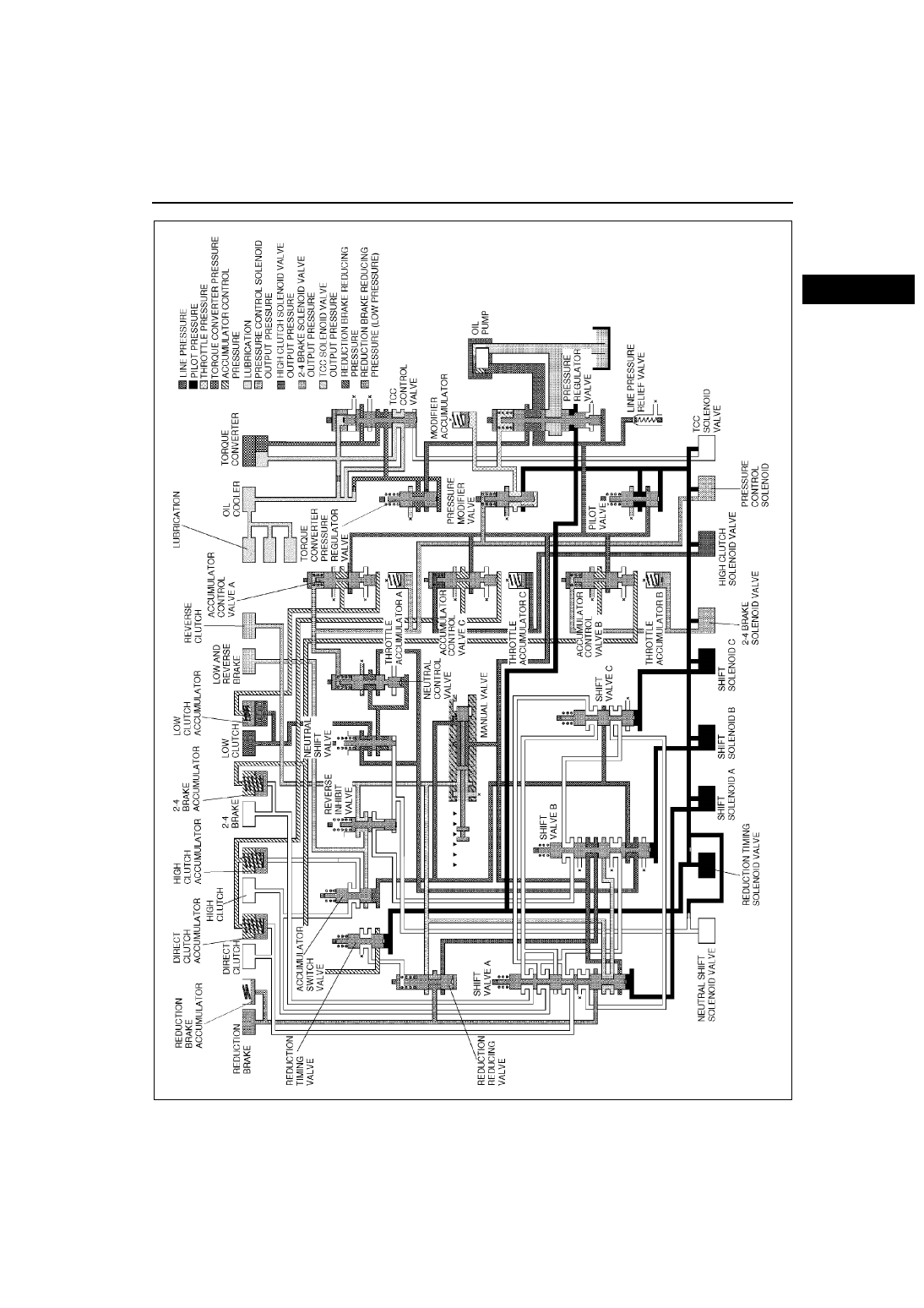

AMU0517A562

K–58

AUTOMATIC TRANSAXLE

Second Gear (D, S, L range)

Outline

• Since only shift solenoid C turns OFF when shifting from first gear, the hydraulic circuit for the 2-4 brake opens

to engage the low clutch and 2-4 brake.

• In second gear, as in first, the rear sun gear is the input of driving force transmission and the rear carrier is the

output.

• The difference between first and second gear is that the rear internal gear, fixed in first gear, starts to rotate

counterclockwise as the front sun gear rotating freely and clockwise in first gear is fixed by engagement of the

2-4 brake.

AMU0517A563

AUTOMATIC TRANSAXLE

K–59

K

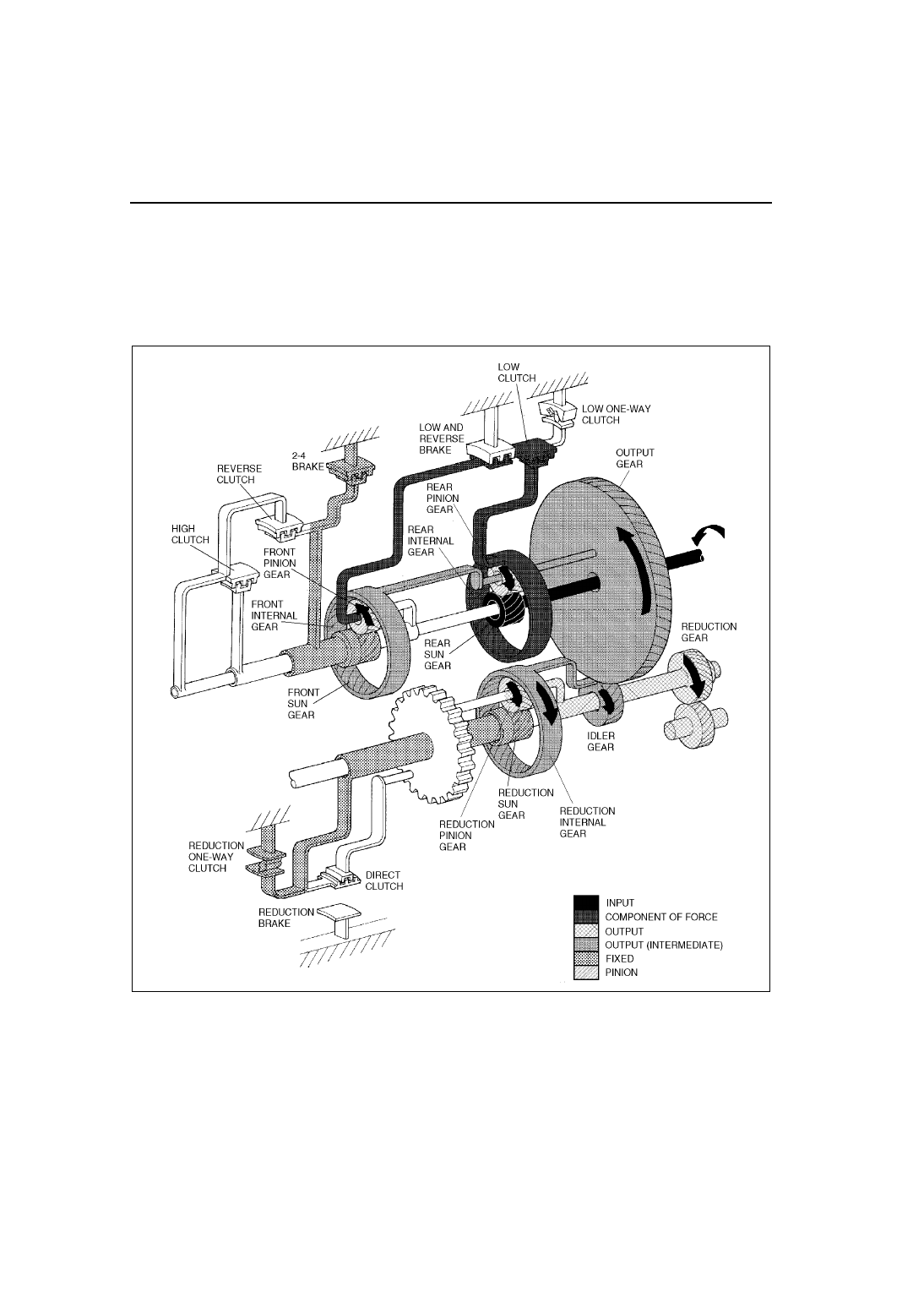

Operation

• When in first gear, the front internal gear integrated with rear planetary carrier rotates counterclockwise, and

the front planetary carrier is fixed by the force of the low one-way clutch via low clutch drum.

• In this condition, the front sun gear was rotates clockwise with no load. When the 2-4 brake is engaged in

second gear, the front sun gear is fixed and the front pinion starts to revolve counterclockwise while rotating

counterclockwise due to the movement of the front internal gear.

• Therefore, the front planetary carrier starts to rotate counterclockwise. At this time, the low and one-way clutch

(low clutch drum) is unlocked to rotate counterclockwise.

• The rear internal gear, integrated with the front planetary carrier, also starts to rotate counterclockwise. Due to

this, the counterclockwise revolving speed of the rear pinion increases and the force is transmitted to the rear

planetary carrier.

• The increased speed amount of the rear planetary carrier is the amount of gear ratio change between the first

and second gear.

• The driving force transmission to the reduction gear is the same as that in first gear. As the operation of the

reduction gear during deceleration is also the same as that in first gear and engine braking is not applied, the

description is omitted.

K–60

AUTOMATIC TRANSAXLE

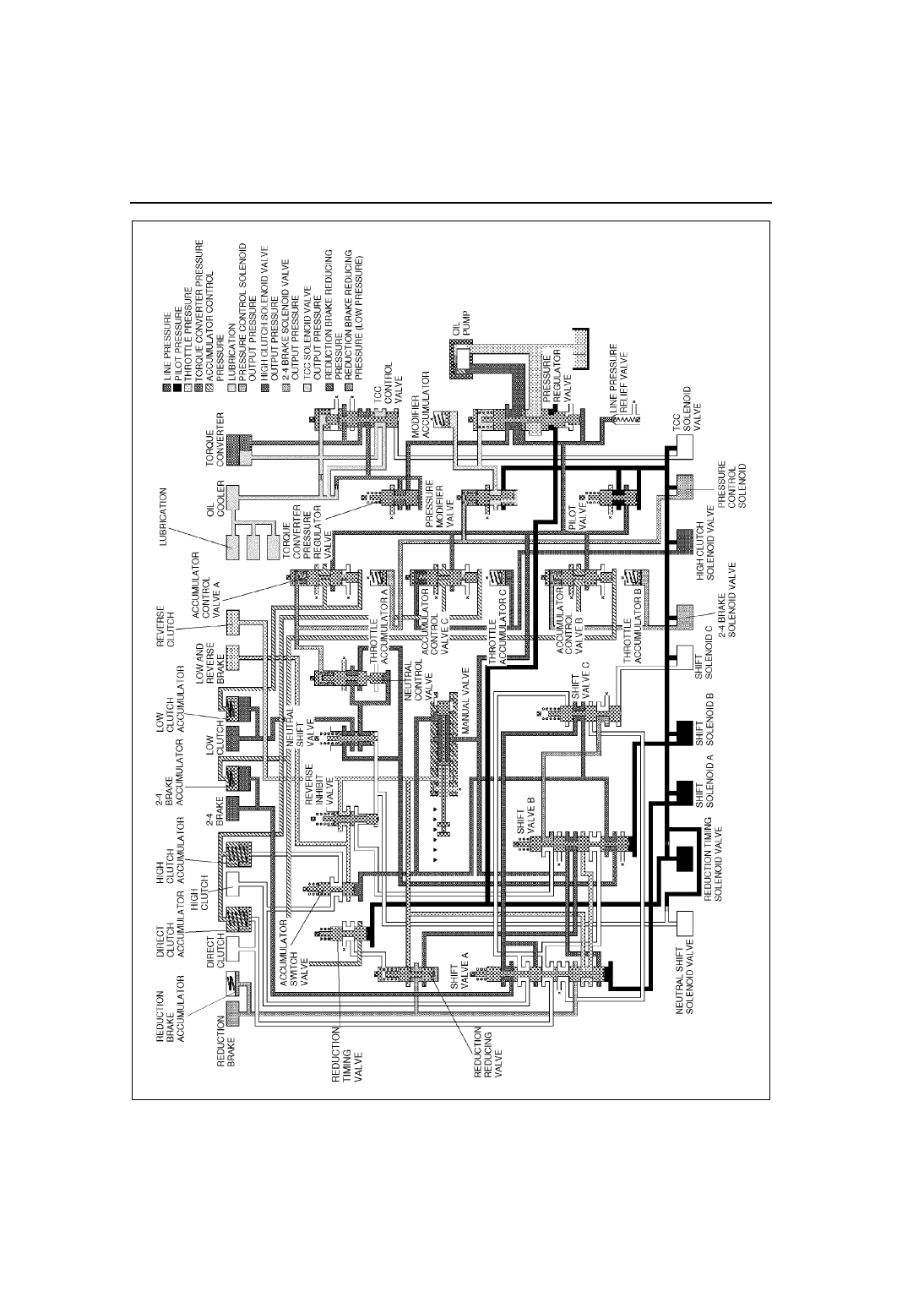

AMU0517A564
