Suspension

Front and Rear Suspension

Service Training

17

Front and Rear Suspension

Features

New front and rear dampers with multi-layer valves have been adopted (Karakuri seat
version only)

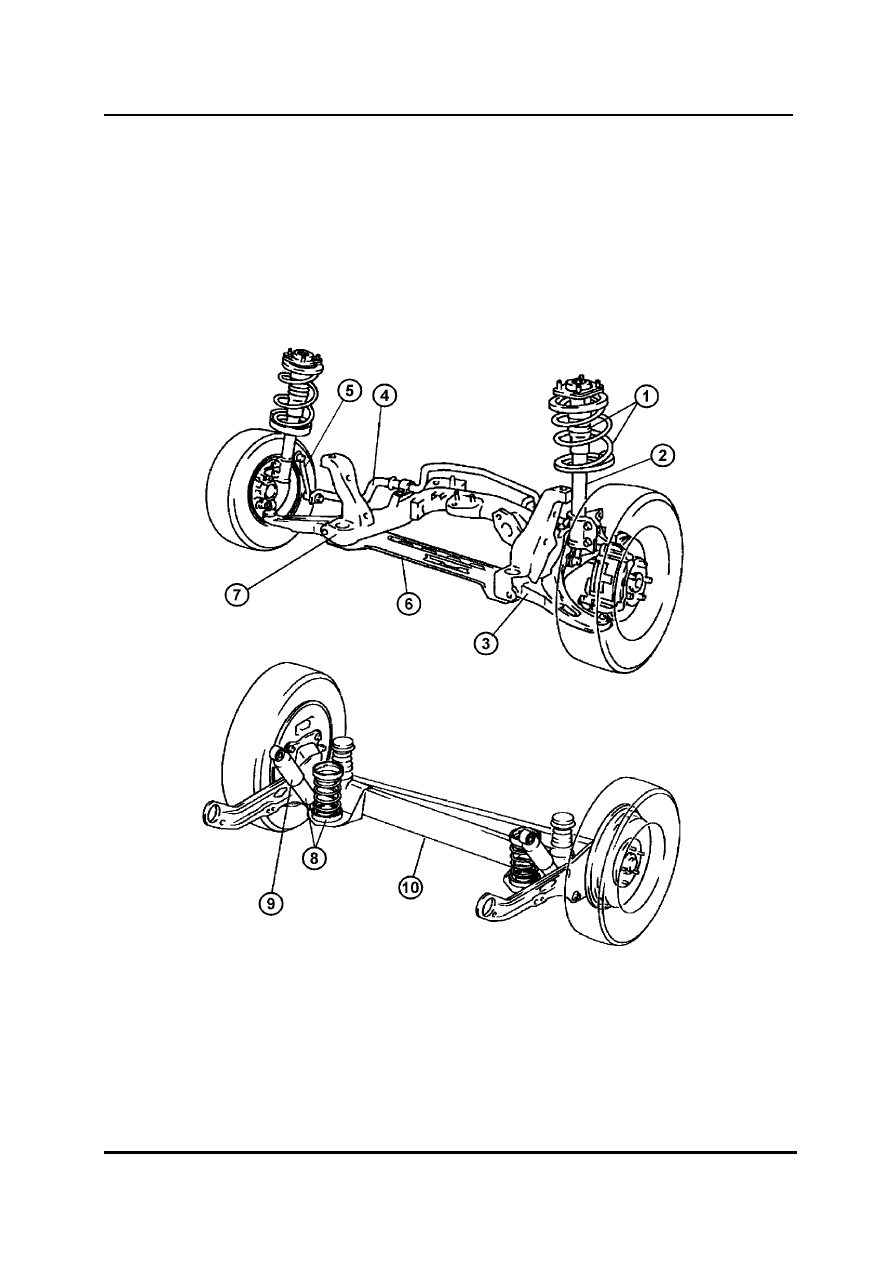

Parts Location

ZMU0214W120

1

Front shock absorber and spring

Transverse member

2

Front shock absorber

Front crossmember

3

Front lower arm

Rear shock absorber and spring

4

Front stabilizer

Rear shock absorber

5

Stabilizer control link

10

Torsion beam axle



Conventional Brake System

Brakes

18 Service

Training

Conventional Brake System

Features

The brake system on the F/L MPV has undergone the following changes:

Ventilated rear disc brakes have been adopted

Larger bore master cylinder has been adopted

A tandem diaphragm power brake unit has been adopted

Replacement procedure for master cylinder has been changed



Specifications



L3 RF-T

Type Tandem

Master cylinder

Cylinder diameter        (mm {in})

25.4 {1.0}

Power brake unit

Diameter                     (mm {in})

213.4 + 240.2 {8.40 + 9.43}

Type Ventilated

Front disc brake

Disc plate dimensions
(outer diameter x thickness)

(mm {in})

274 x 28 {10.8 x 1.1}

296 x 28 {11.7 x 1.1}

Type Ventilated

Rear disc brake

Disc plate dimensions
(outer diameter x thickness)

(mm {in})

286 x 18 {11.3 x 0.7}

Brakes

Conventional Brake System

Service Training

19

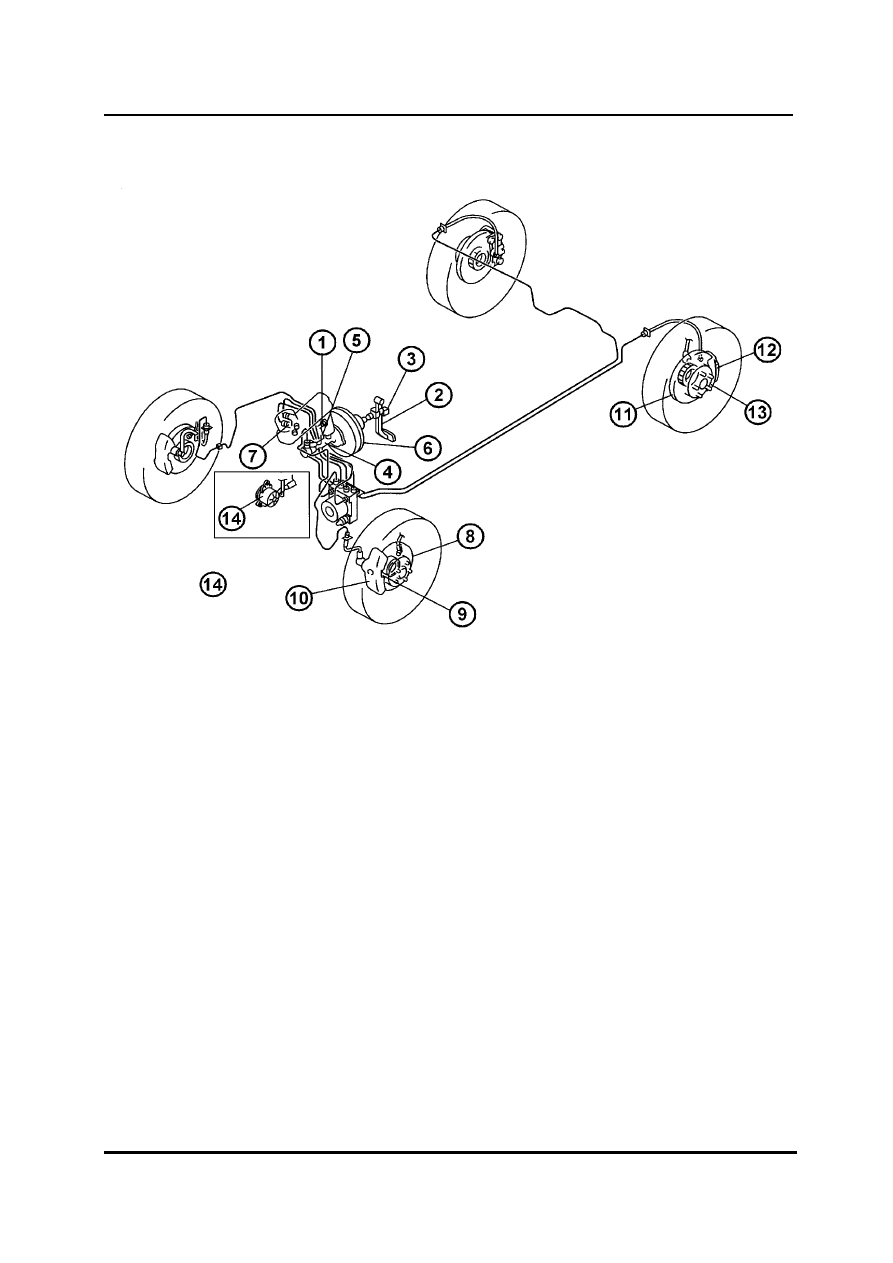

Parts location



BME0411W506



1

Vacuum hose check valve

Front brake (disc)

2

Brake pedal

Disc pad (front)

3

Brake switch

10

Caliper (front)

4

Master cylinder

11

Rear brake (disc)

5

Fluid level sensor

12

Disc pad (rear)

6

Power brake unit

13

Caliper (rear)

7

Brake pipe joint

14

Vacuum pump (MZR-CD (RF Turbo))



TCS (RF-T)

Brakes

20 Service

Training

Traction Control System (RF-T)

Features

TCS (Traction Control System) has been adopted for RF-T engine models.

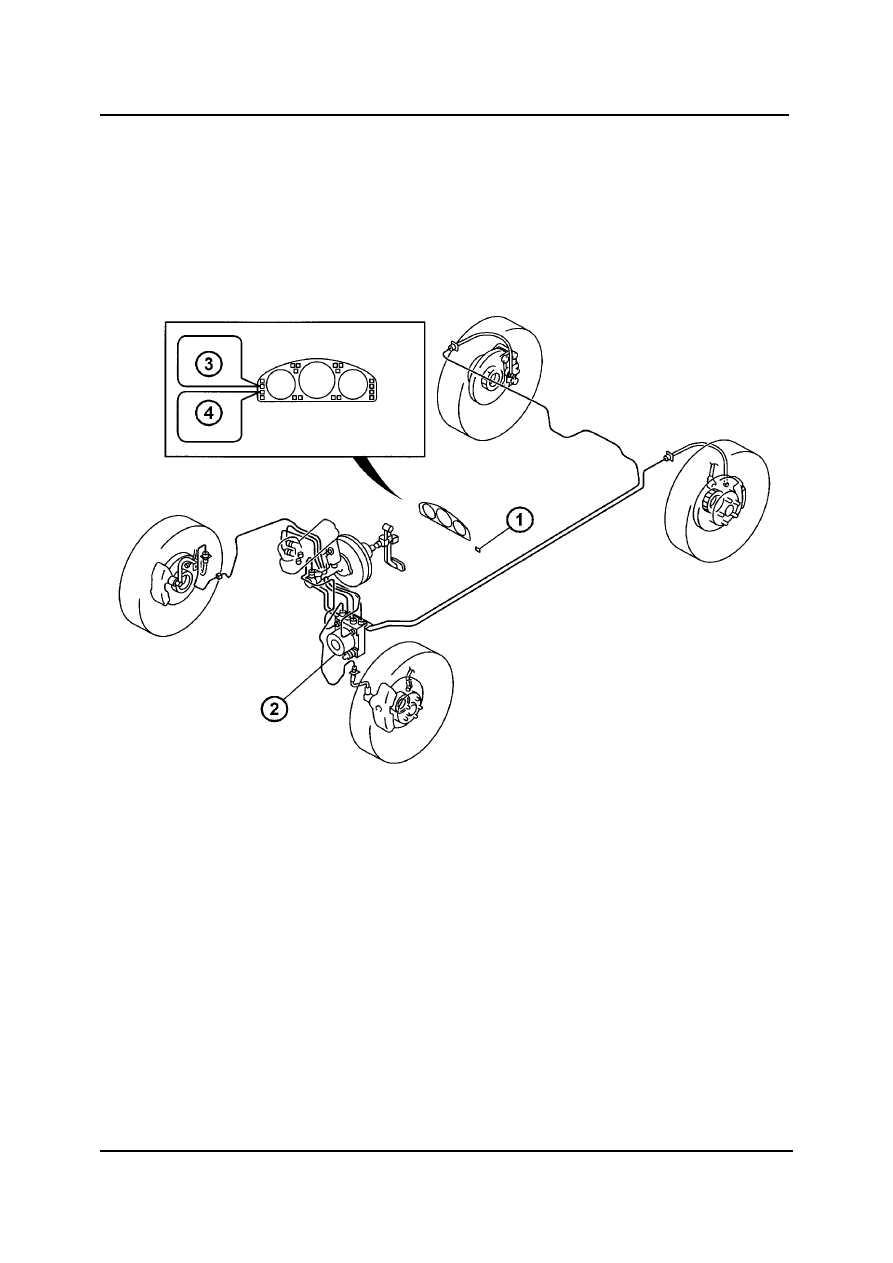

Parts location

BME0414W501



1

TCS off switch

TCS OFF

2

ABS/TCS HU/CM

TCS
