Fig. 50: Rear Seat Entertainment Circuit

SHIFT INTERLOCK



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:32 AM

Page 101

© 2005 Mitchell Repair Information Company, LLC.



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:32 AM

Page 102

© 2005 Mitchell Repair Information Company, LLC.

Fig. 51: Shift Interlock Circuit

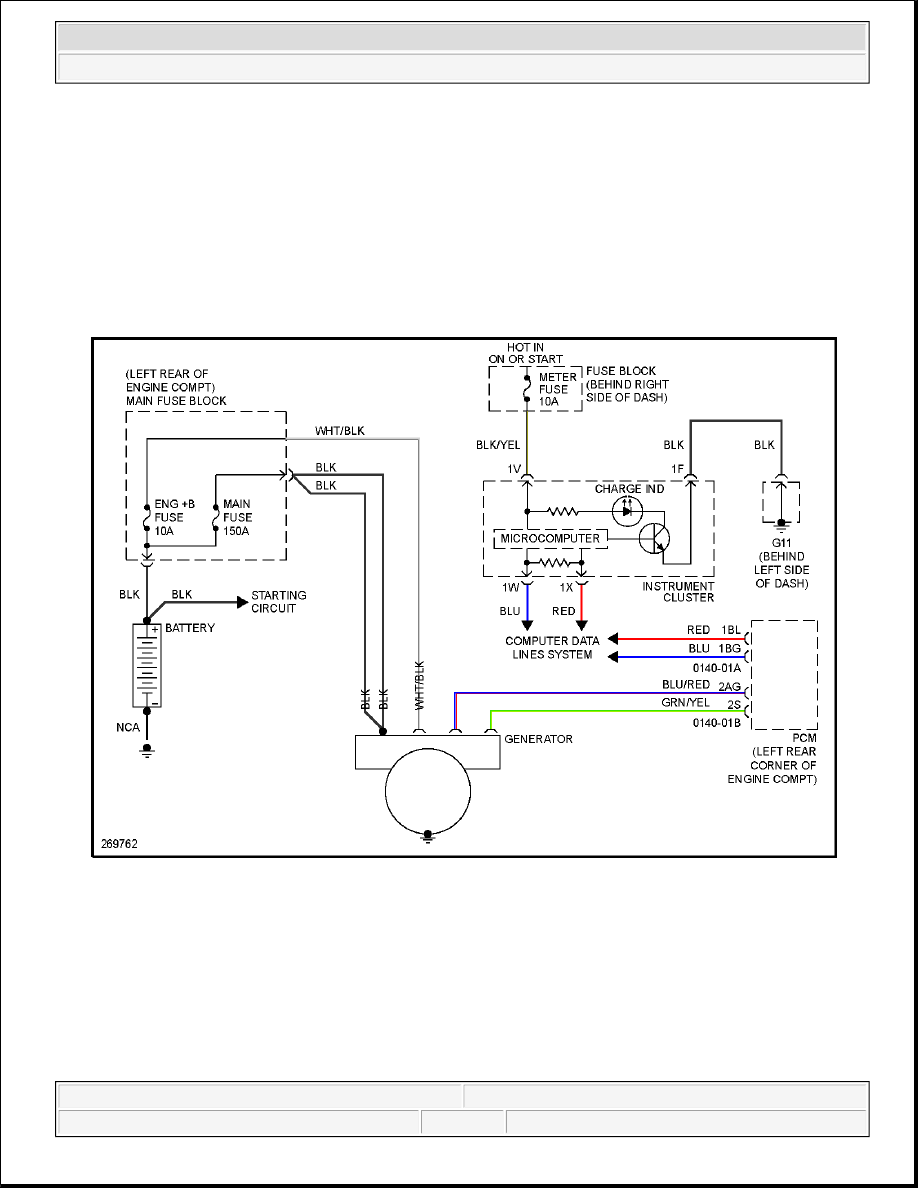

STARTING/CHARGING



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:32 AM

Page 103

© 2005 Mitchell Repair Information Company, LLC.



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:32 AM

Page 104

© 2005 Mitchell Repair Information Company, LLC.
