Fig. 38: Keyless Entry Circuit (2 of 2)

POWER MIRRORS



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:31 AM

Page 77

© 2005 Mitchell Repair Information Company, LLC.



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:31 AM

Page 78

© 2005 Mitchell Repair Information Company, LLC.

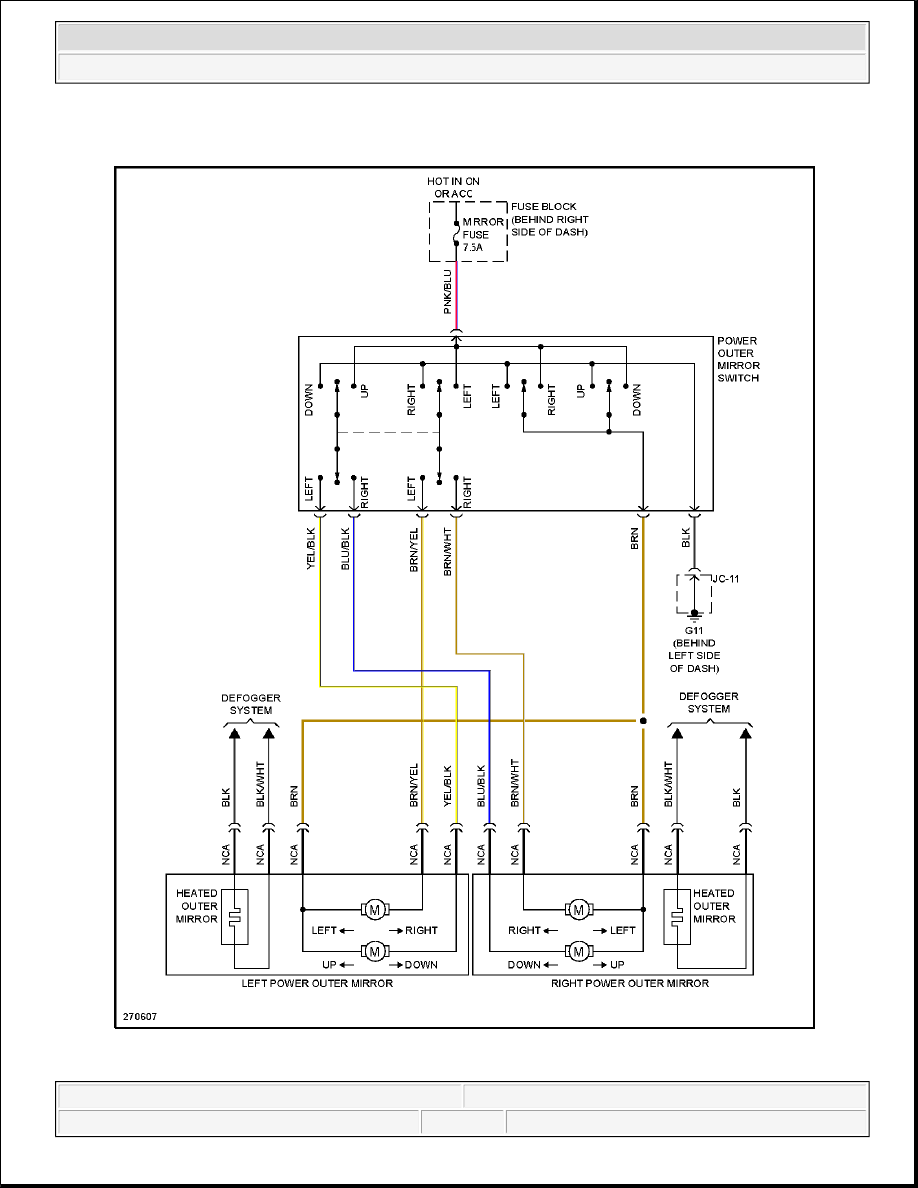

Fig. 39: Power Mirrors Circuit

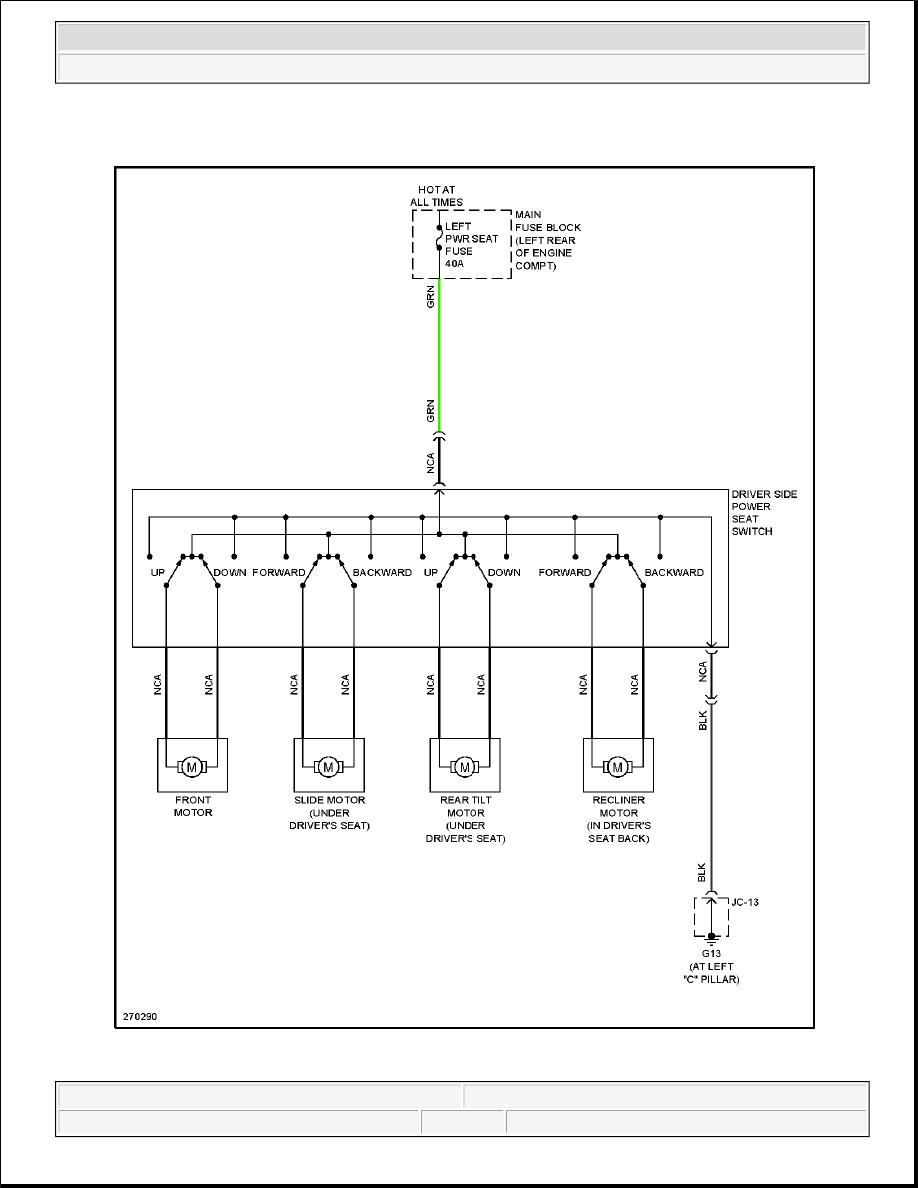

POWER SEATS



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:31 AM

Page 79

© 2005 Mitchell Repair Information Company, LLC.



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:31 AM

Page 80

© 2005 Mitchell Repair Information Company, LLC.
