Fig. 30: Instrument Illumination Circuit

MEMORY SYSTEMS



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:31 AM

Page 61

© 2005 Mitchell Repair Information Company, LLC.



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:31 AM

Page 62

© 2005 Mitchell Repair Information Company, LLC.

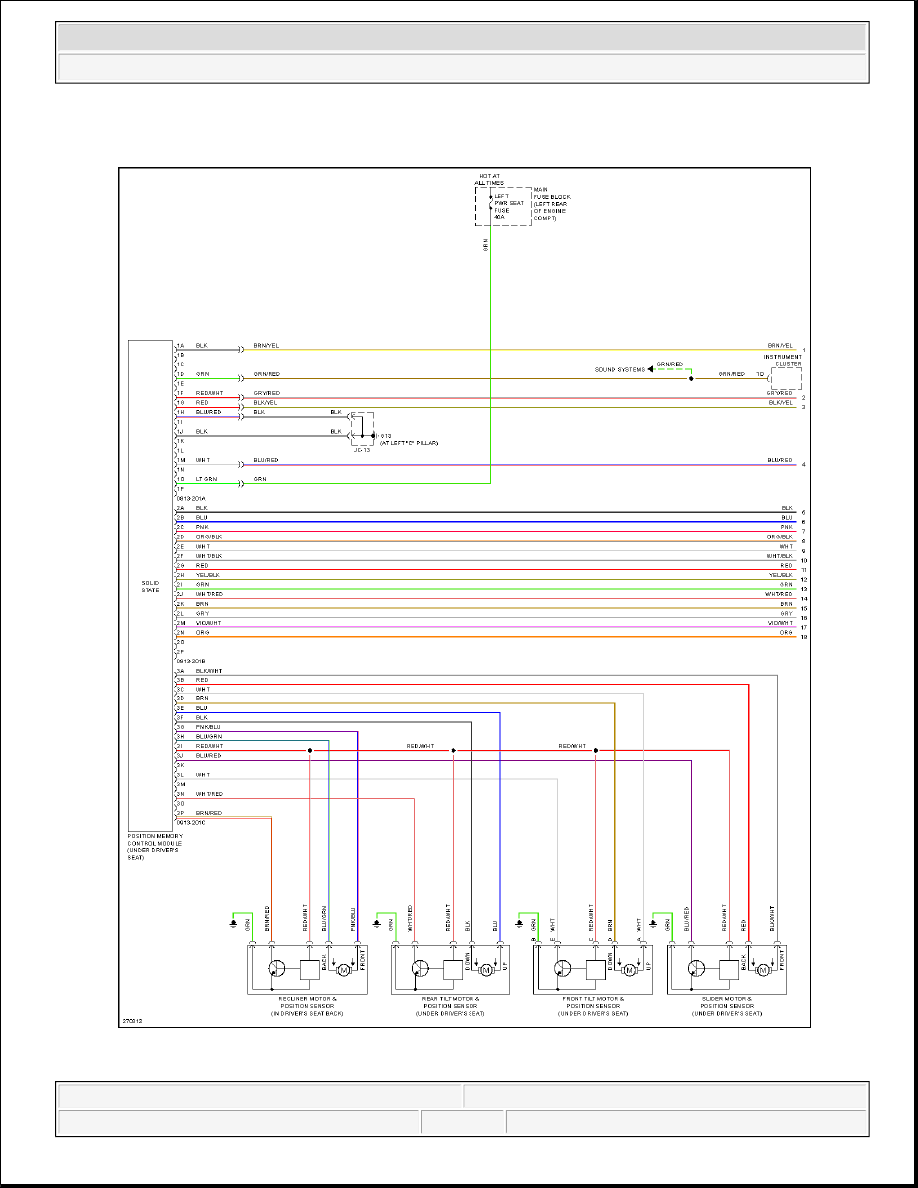

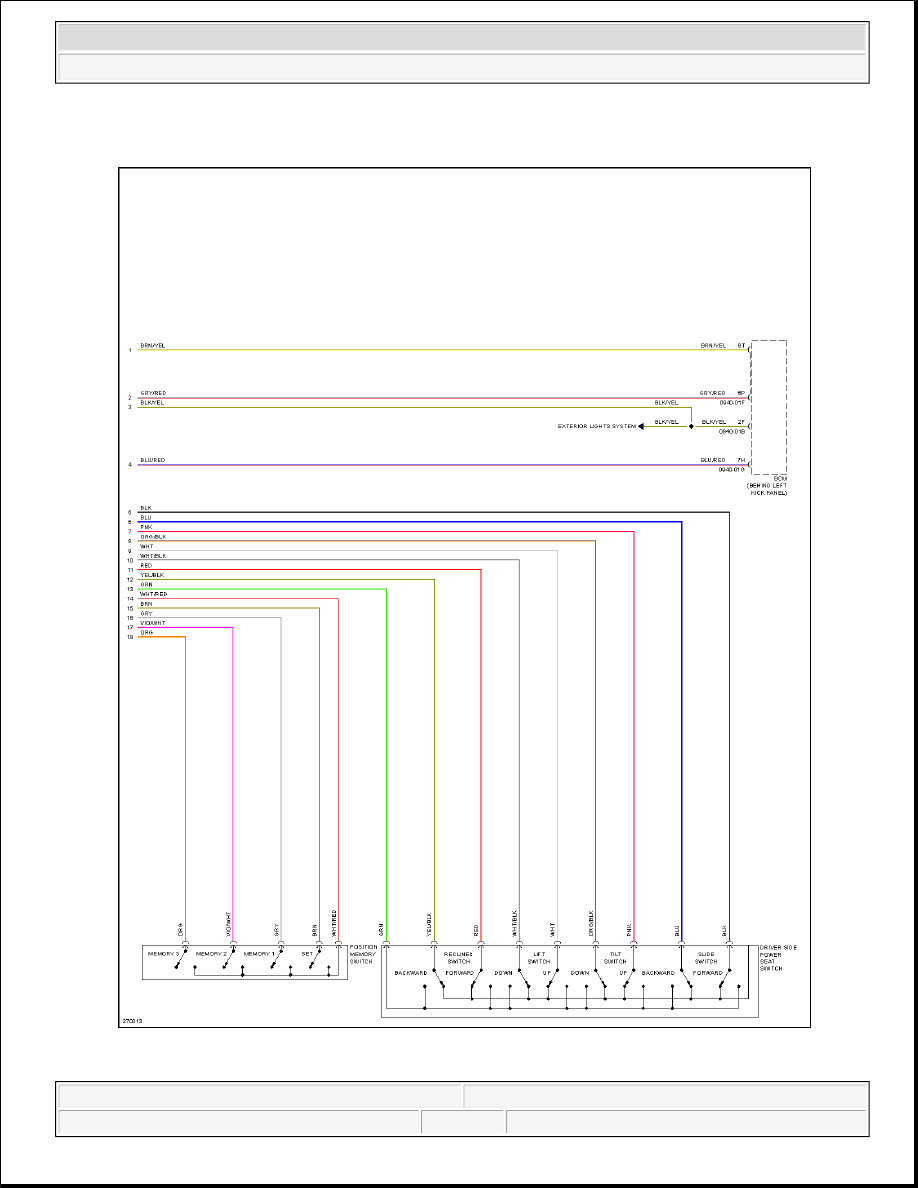

Fig. 31: Driver"s Memory Seat Circuit (1 of 2)



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:31 AM

Page 63

© 2005 Mitchell Repair Information Company, LLC.



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:31 AM

Page 64

© 2005 Mitchell Repair Information Company, LLC.
