Mazda CX-9 Grand Touring. Manual - part 629





Fig. 24: Headlights Circuit, W/O Auto Lights Off

HORN



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:31 AM

Page 49

© 2005 Mitchell Repair Information Company, LLC.



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:31 AM

Page 50

© 2005 Mitchell Repair Information Company, LLC.

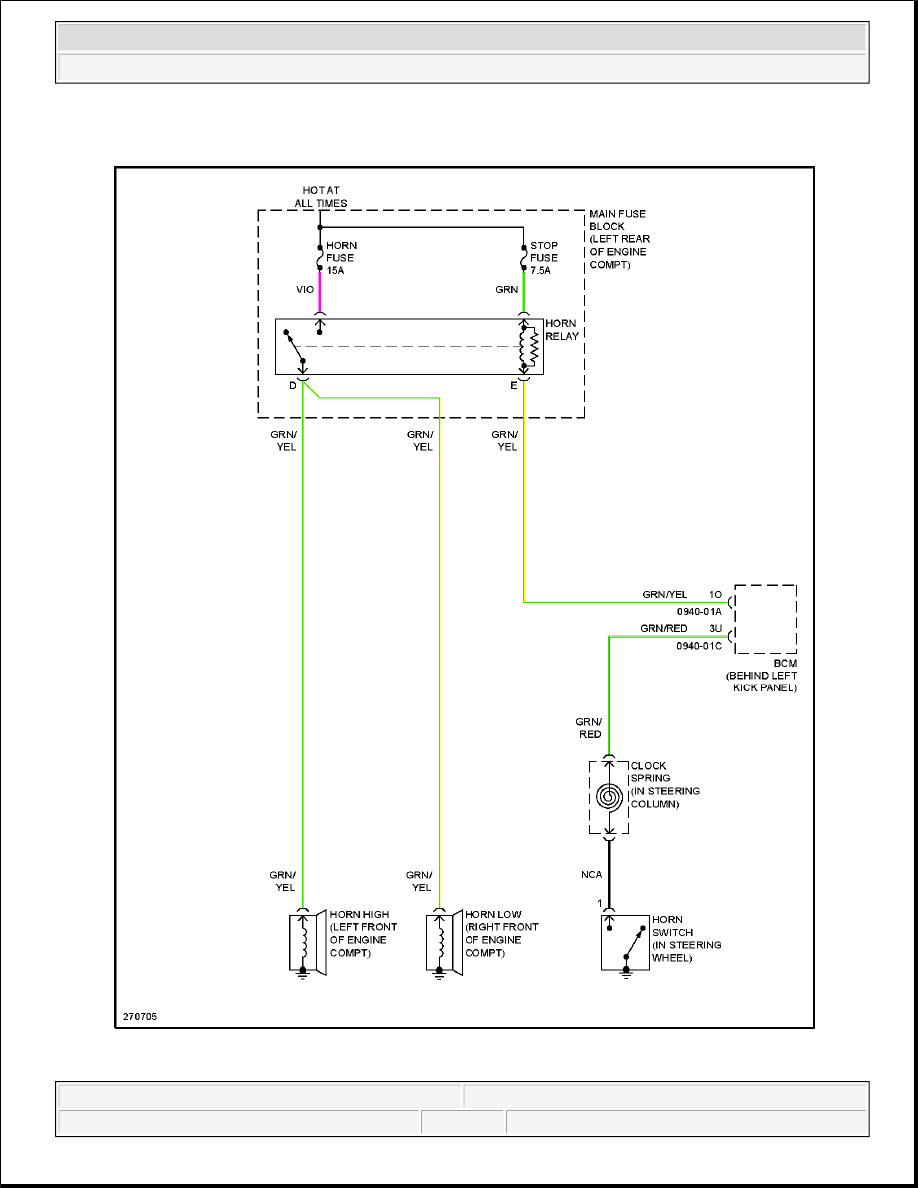

Fig. 25: Horn Circuit

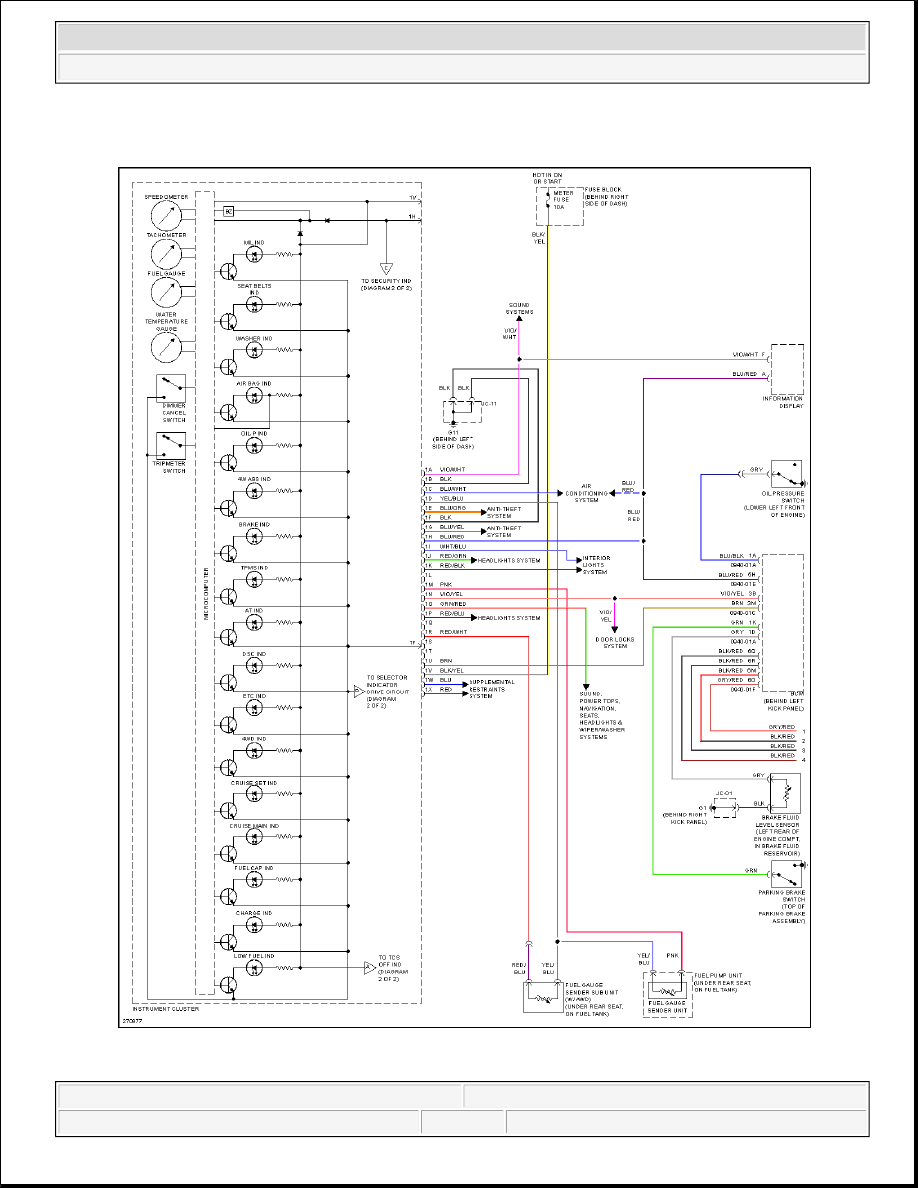

INSTRUMENT CLUSTER



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:31 AM

Page 51

© 2005 Mitchell Repair Information Company, LLC.



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:31 AM

Page 52

© 2005 Mitchell Repair Information Company, LLC.
