Fig. 14: Cruise Control Circuit

DEFOGGERS



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:30 AM

Page 29

© 2005 Mitchell Repair Information Company, LLC.



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:30 AM

Page 30

© 2005 Mitchell Repair Information Company, LLC.

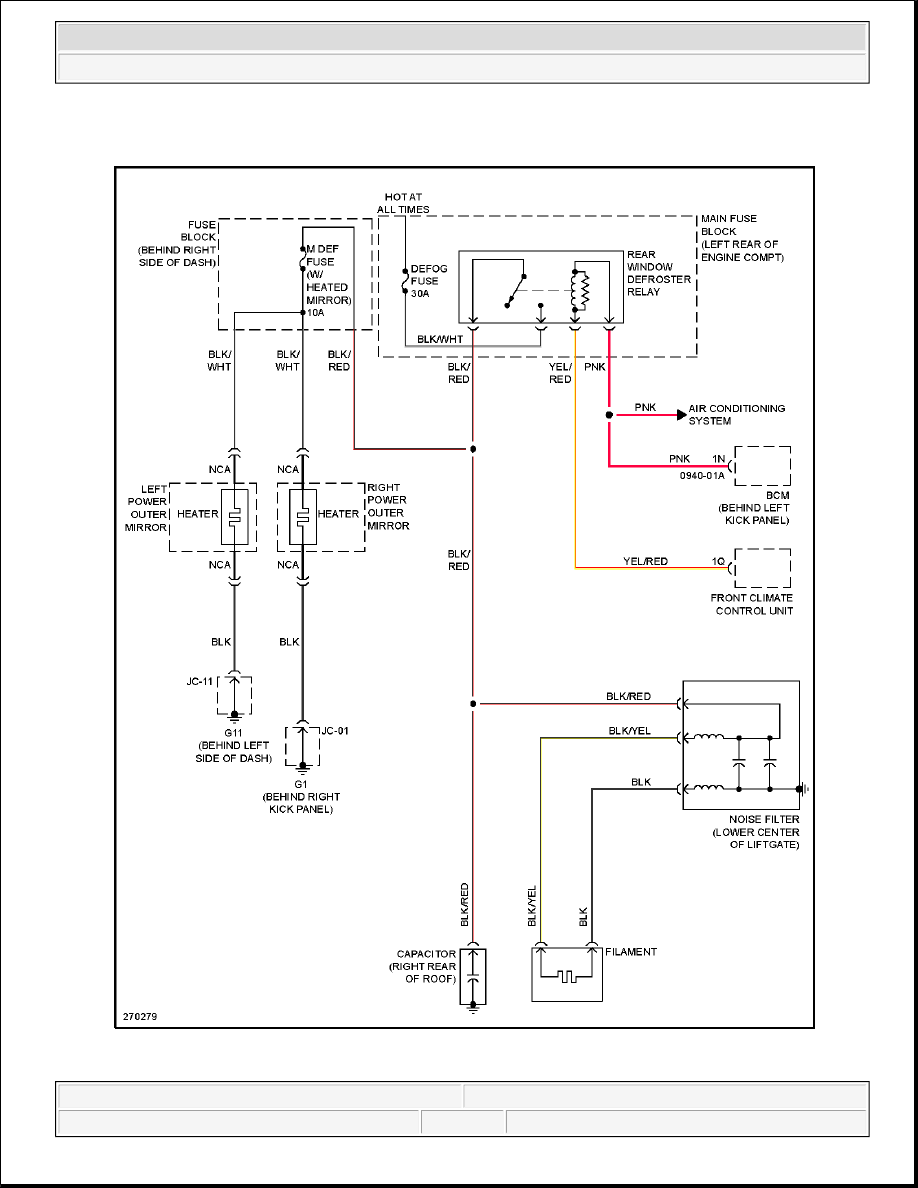

Fig. 15: Defoggers Circuit

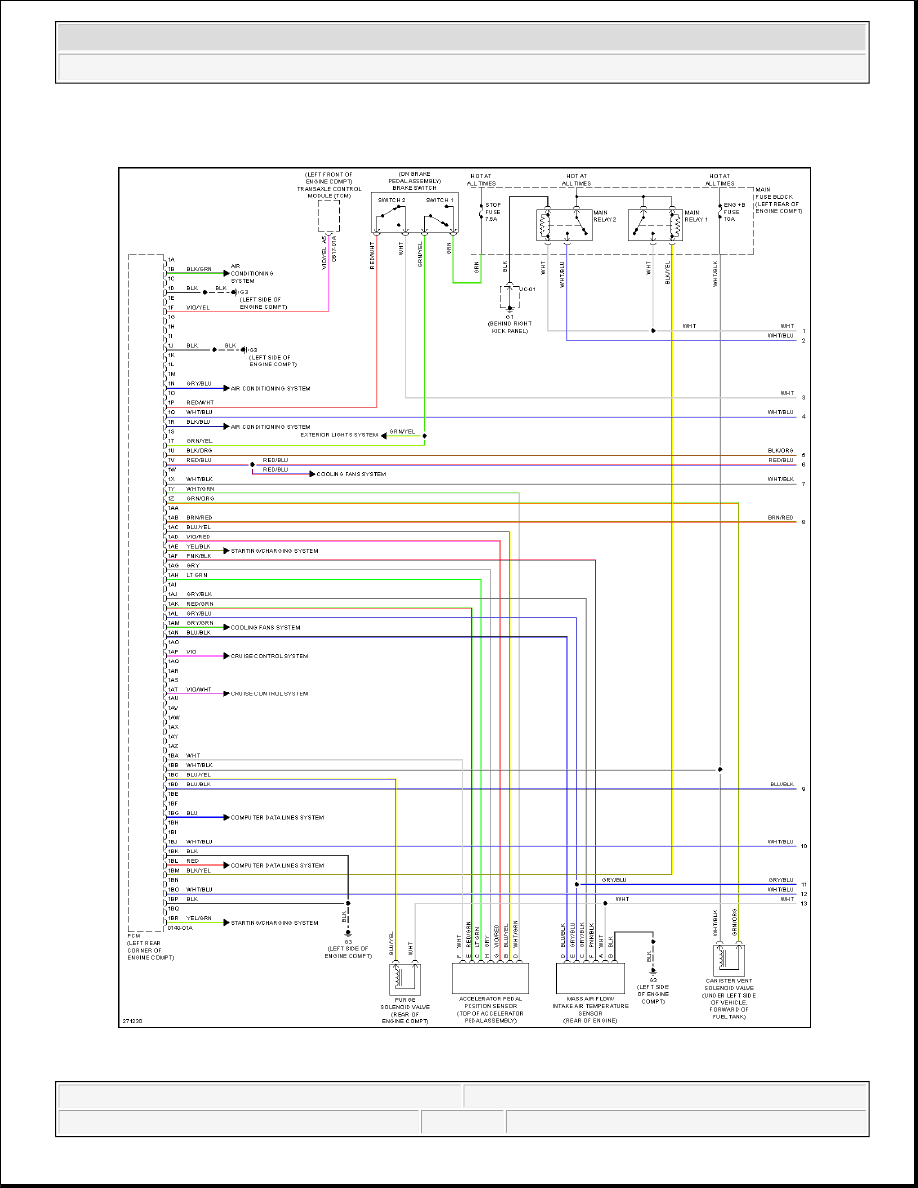

ENGINE PERFORMANCE

3.5L



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:30 AM

Page 31

© 2005 Mitchell Repair Information Company, LLC.



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:30 AM

Page 32

© 2005 Mitchell Repair Information Company, LLC.
