Mazda CX-9 Grand Touring. Manual - part 623

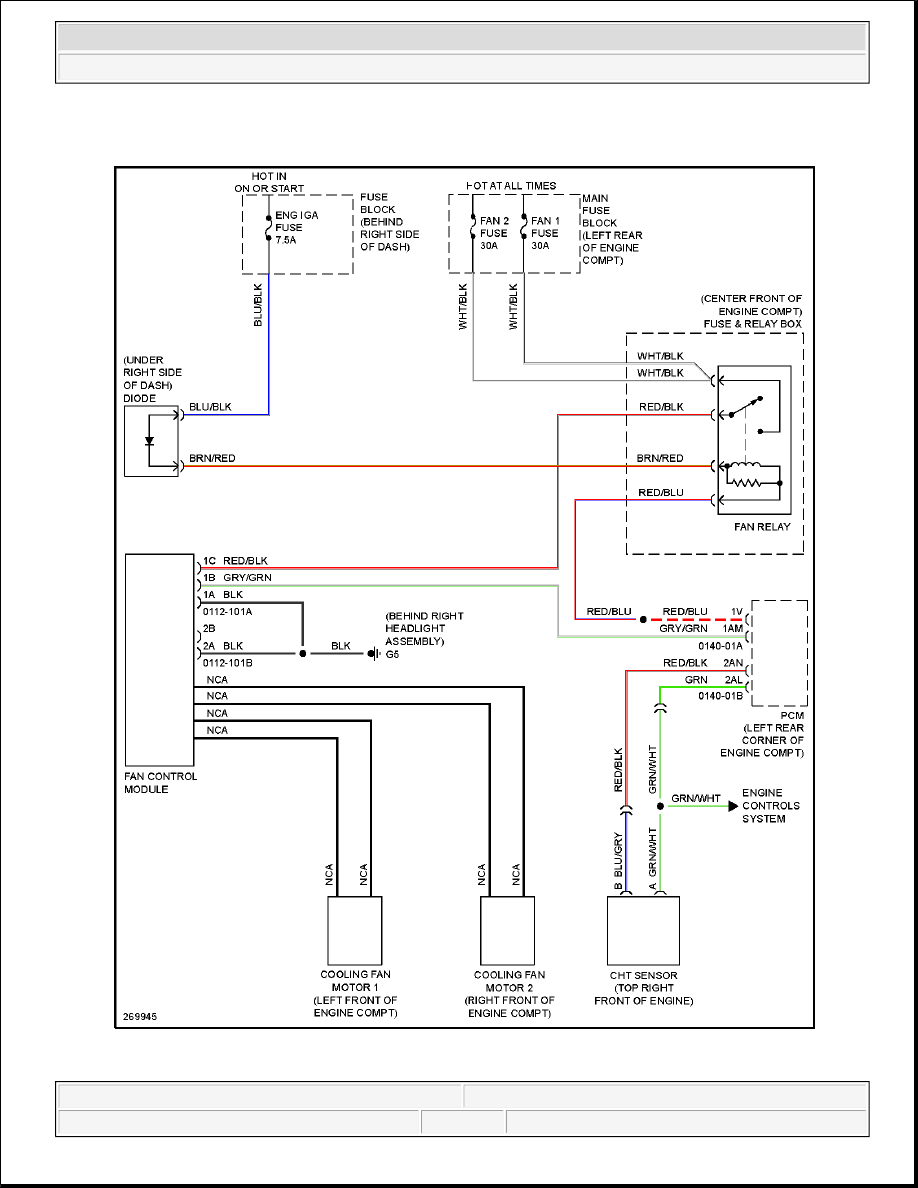

Fig. 12: Cooling Fan Circuit, Dual Fans



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:30 AM

Page 25

© 2005 Mitchell Repair Information Company, LLC.



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:30 AM

Page 26

© 2005 Mitchell Repair Information Company, LLC.

Fig. 13: Cooling Fan Circuit, Single Fan

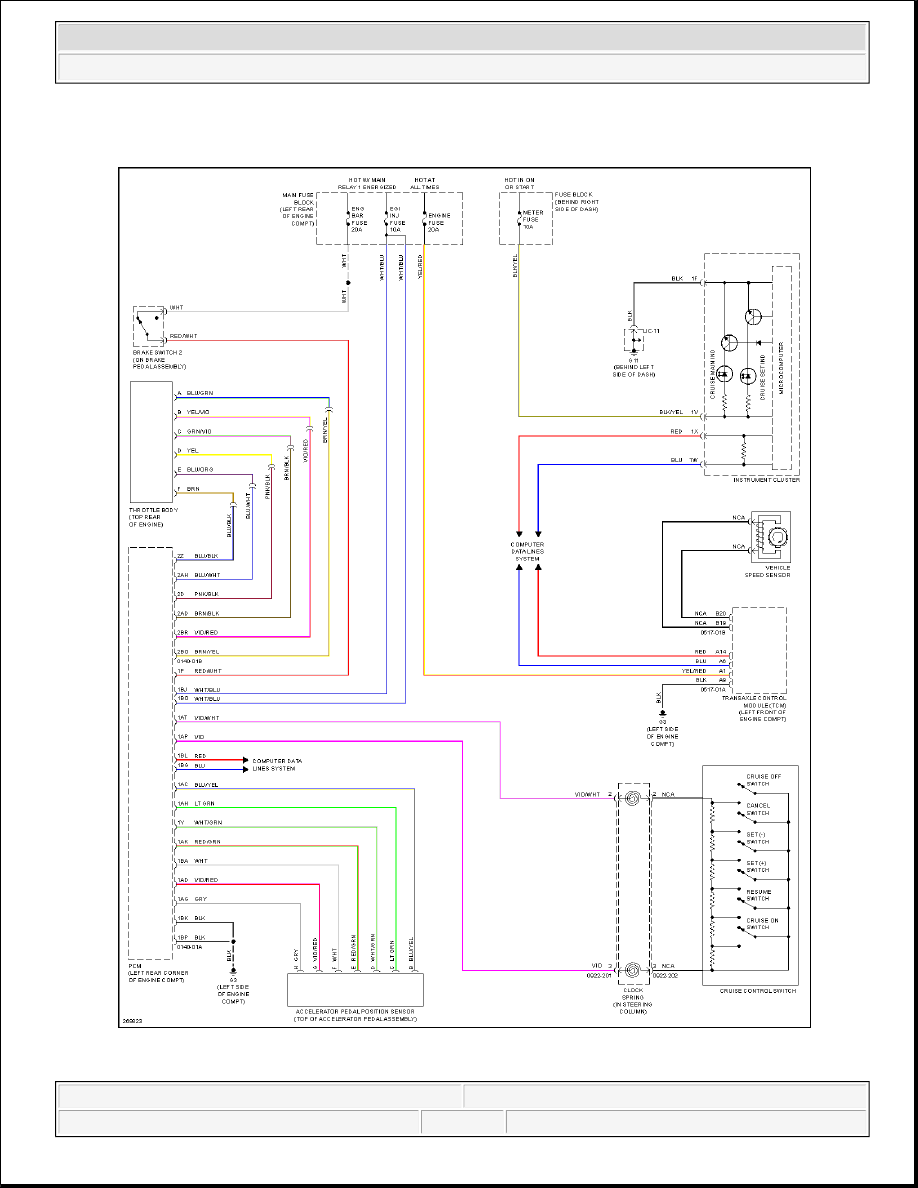

CRUISE CONTROL



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:30 AM

Page 27

© 2005 Mitchell Repair Information Company, LLC.



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:30 AM

Page 28

© 2005 Mitchell Repair Information Company, LLC.
