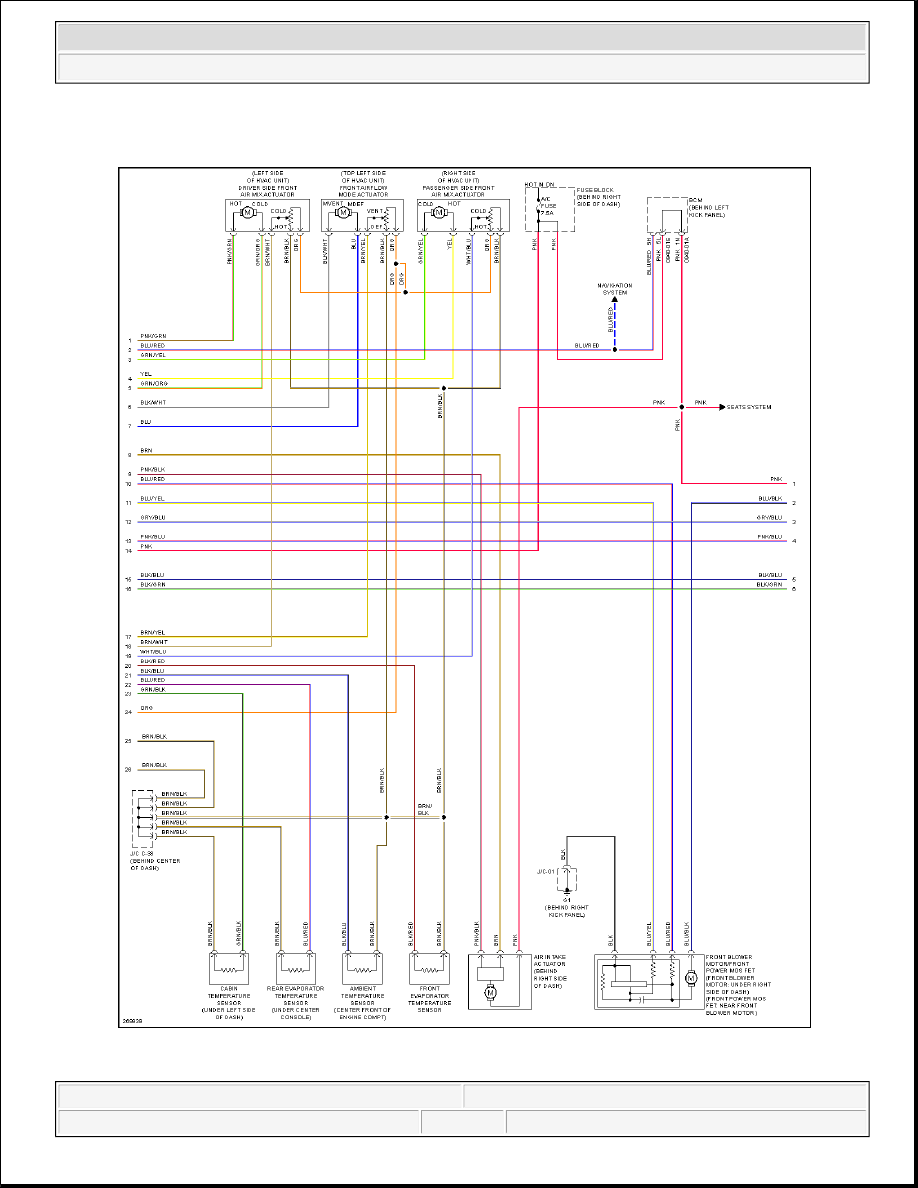

Fig. 4: Automatic A/C Circuit, Single Fan (1 of 3)



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:30 AM

Page 9

© 2005 Mitchell Repair Information Company, LLC.



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:30 AM

Page 10

© 2005 Mitchell Repair Information Company, LLC.

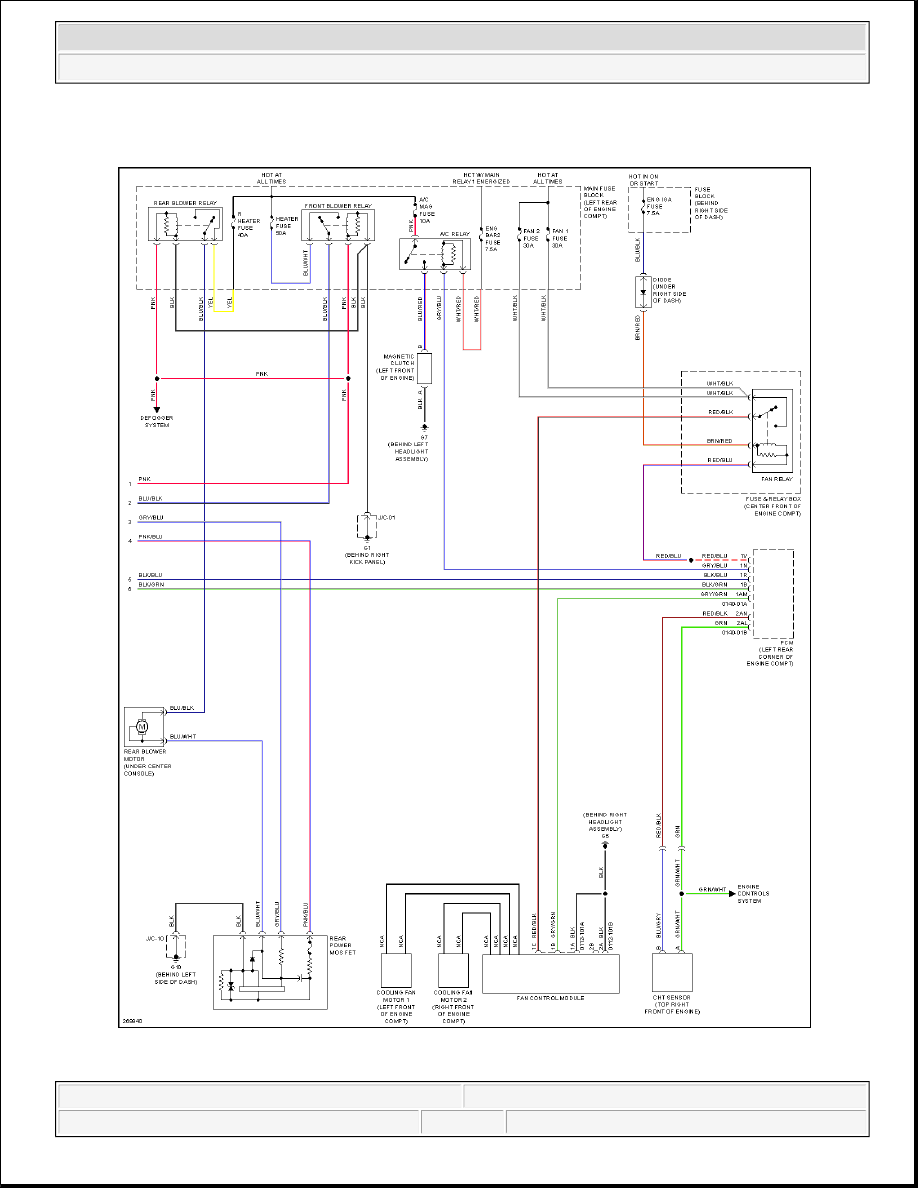

Fig. 5: Automatic A/C Circuit, Single Fan (2 of 3)



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:30 AM

Page 11

© 2005 Mitchell Repair Information Company, LLC.



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:30 AM

Page 12

© 2005 Mitchell Repair Information Company, LLC.
