15. Remove rear washer hose E from the rear washer nozzle.

16. Install in the reverse order of removal.

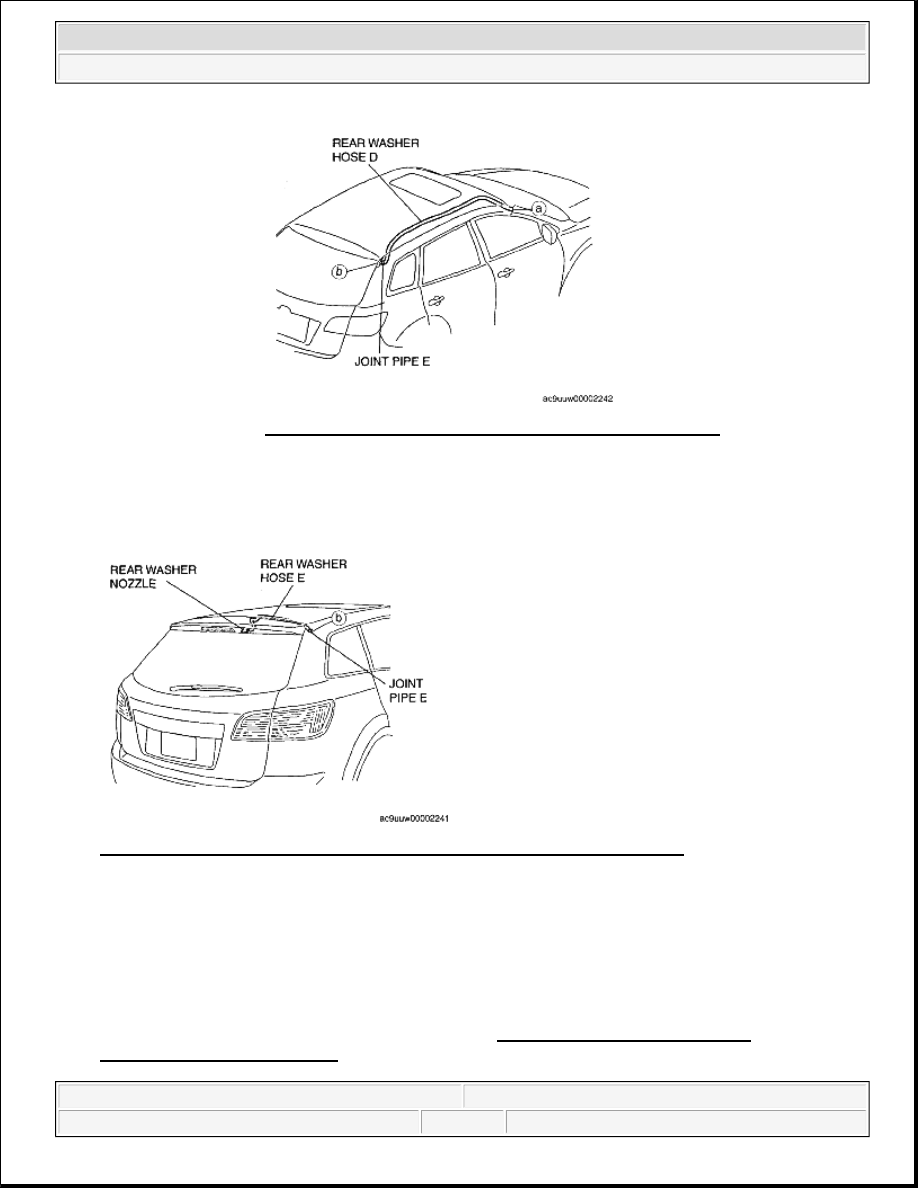

Fig. 38: Identifying Rear Washer Hose, Joint Pipe And Rear Washer Nozzle
Courtesy of MAZDA MOTORS CORP.

AUTO LIGHT/WIPER CONTROL MODULE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the dashboard under cover (Driver side). (See DASHBOARD UNDER COVER

REMOVAL/INSTALLATION .)

Fig. 37: Identifying Rear Washer Hose And Joint Pipe
Courtesy of MAZDA MOTORS CORP.

NOTE:



Auto wiper system are integrated with the auto light/wiper control module.



2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Wiper/Washer System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:35:20 AM

Page 26

© 2005 Mitchell Repair Information Company, LLC.

3. Remove the auto light/wiper control module. (See AUTO LIGHT/WIPER CONTROL MODULE

REMOVAL/INSTALLATION .)

4. Install in the reverse order of removal.

AUTO LIGHT/WIPER CONTROL MODULE INSPECTION

1. Auto light/wiper control module inspection. (See AUTO LIGHT/WIPER CONTROL MODULE

INSPECTION .)

RAIN SENSOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the rearview mirror cover, (See REARVIEW MIRROR REMOVAL [VEHICLES WITH

AUTO LIGHT/WIPER SYSTEM] .)

3. Disconnect the rain sensor connector.

4. Slide both tabs located on each side of the rain sensor in the direction of the arrow and remove the rain

sensor.

5. Install in the reverse order of removal.

NOTE:



Auto wiper system are integrated with the auto light/wiper control module.

CAUTION:



When the ignition switch is turned to the ON position after replacing
the rain sensor with a new one, the windshield condition is verified
and the initial setting is stored. Before installing a rain sensor,
always remove water and dirt from the windshield.

NOTE:



Perform the initial setting again in the following cases: (See RAIN SENSOR
REINITIALIZATION SETTING.)



The windshield is replaced and the rain sensor is reused.



The auto wiper system operates incorrectly.



The rain sensor is integrated with the auto light sensor as a single unit.



2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Wiper/Washer System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:35:20 AM

Page 27

© 2005 Mitchell Repair Information Company, LLC.

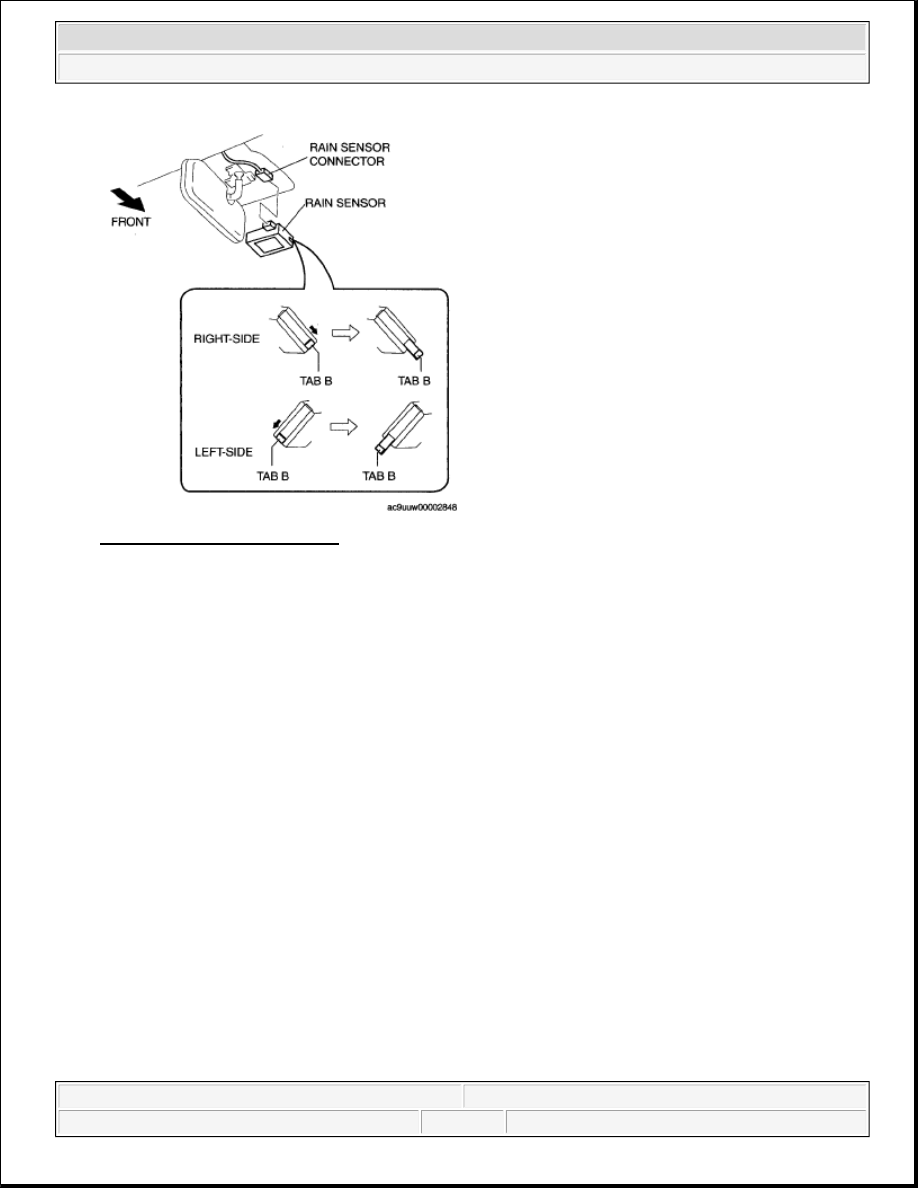

Fig. 39: Removing Rain Sensor
Courtesy of MAZDA MOTORS CORP.

RAIN SENSOR REINITIALIZATION SETTING

WITHOUT USING M-MDS

1. Remove water and dirt from the windshield surface.

2. Turn the ignition switch off.

3. Turn the windshield wiper switch to the AUTO position.

4. Within 10 s after turning the ignition switch to the ON position, turn the windshield wiper switch from

the AUTO to the OFF position for five times and return it to the AUTO position.

CAUTION:



If the initialization is performed again with water or dirt on the
windshield, the rain sensor may not operate normally. Before
performing the rain sensor initialization again, remove water and dirt
from the windshield

NOTE:



When the ignition switch is turned to the ON position after replacing the
rain sensor with a new one, the windshield condition is verified and the
initial setting is stored.



Perform the initial setting again in the following cases:



The windshield is replaced and the rain sensor is reused.



The auto wiper system operates incorrectly.



2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Wiper/Washer System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:35:20 AM

Page 28

© 2005 Mitchell Repair Information Company, LLC.

USING M-MDS

1. Connect the M-MDS to the DLC-2.

2. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.



When using the IDS (laptop PC)

1. Select "Electrical".



When using the PDS (Pocket PC)

1. Select "All Tests and Calibrations".

3. Then, select items from the screen menu in the following order.

1. Select "Rain Sensor Reset".

4. Perform the procedure as indicated on the screen.

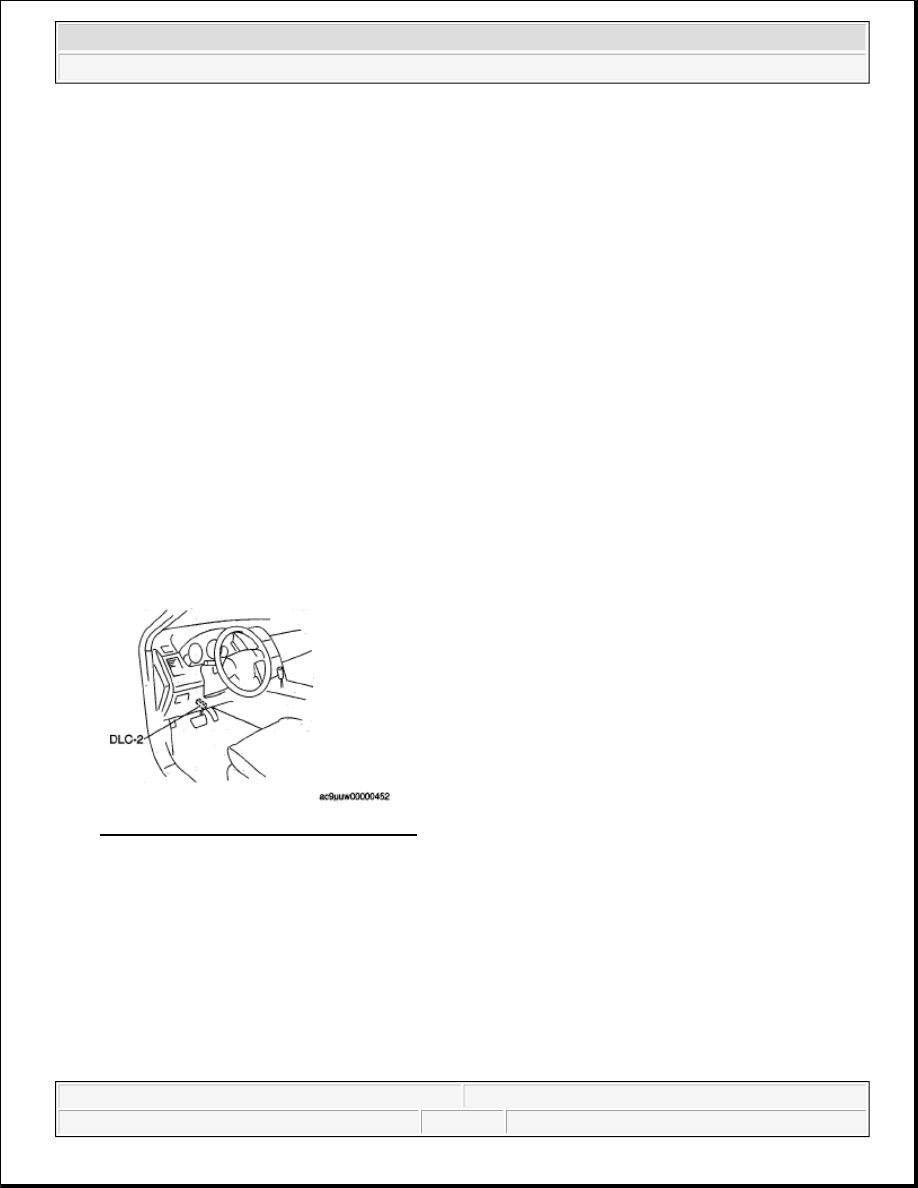

Fig. 40: Identifying Data Link Connector
Courtesy of MAZDA MOTORS CORP.

CAUTION:



If the operation is too fast, the windshield wiper switch position
cannot be detected and the initial setting may not be performed.
Operate the windshield wiper switch for one cycle (AUTO--
>OFF-->AUTO) per 1 s.

NOTE:



When the initial setting is performed correctly, the windshield wiper
operates once at low speed.
