Mazda CX-9 Grand Touring. Manual - part 602





Fig. 33: Identifying Dam Cut Point
Courtesy of MAZDA MOTORS CORP.

5. Align the marks made before removal and install the pin to the windshield referring to the figure, (when

reusing the glass, and the pin was removed)

6. Install the windshield molding.

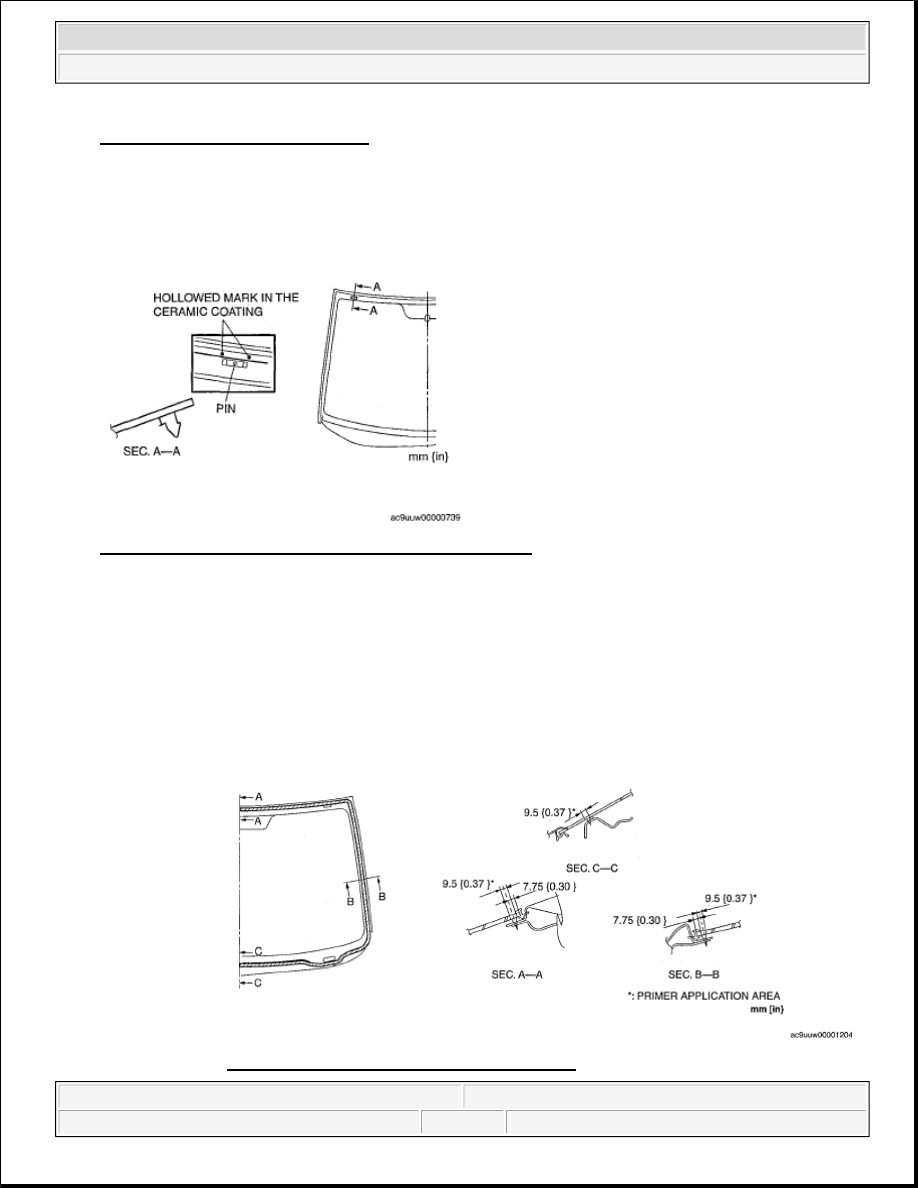

Fig. 34: Identifying Hollowed Mark In Ceramic Coating
Courtesy of MAZDA MOTORS CORP.

7. Use glass primer on the glass, then allow it to dry for approx. 30 min.

CAUTION:

To prevent weakening of the primer adhesion, keep the bonding
surface free of dirt, moisture, and grease. Do not touch the
surface with your hand.

NOTE:

Make sure to apply primer to the hollowed marks in the ceramic coating.

Fig. 35: Identifying Primer Applying Area



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Glass/Windows/Mirrors - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:36:16 AM

Page 26

© 2005 Mitchell Repair Information Company, LLC.

8. Cut away the old sealant using a razor or scraper so that 1-2 mm {0.04-0.07 in} thickness of sealant

remains along the perimeter of the frame.

9. If the sealant has come off completely in any one place, apply some primer after degreasing, and allow it

approx. 30 min to dry. Then apply 2 mm {0.08 in} thickness of new sealant.

10. Clean and degrease along the perimeter of the bonding area on the body.

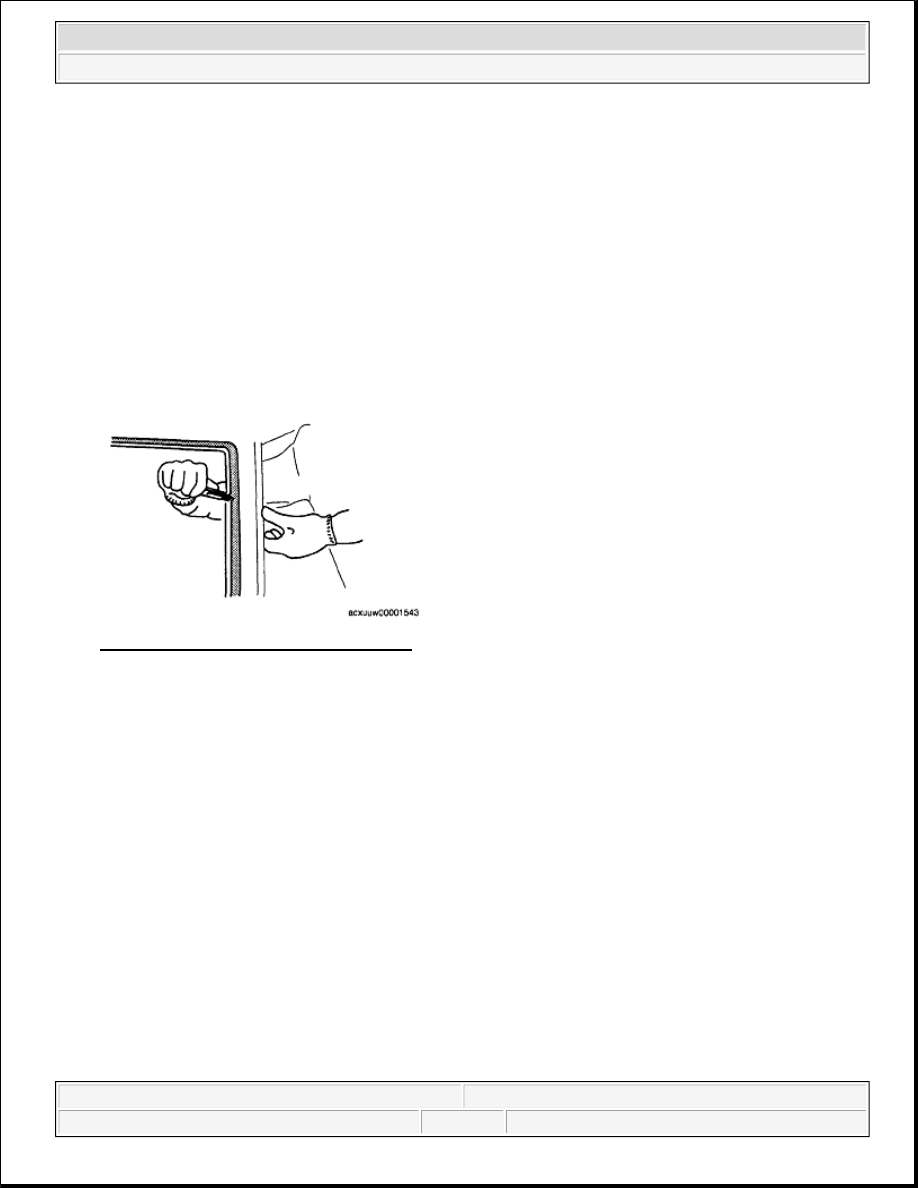

Fig. 36: Cutting Old Sealant With Razor
Courtesy of MAZDA MOTORS CORP.

11. Apply body primer on the body as shown in the figure, then allow it to dry for approx. 30 min.

Courtesy of MAZDA MOTORS CORP.

CAUTION:

To prevent weakening of the primer adhesion, keep the bonding
surface free of dirt, moisture, and grease. Do not touch the
surface with your hand.

CAUTION:

To prevent weakening of the primer adhesion, keep the bonding
surface free of dirt, moisture, and grease. Do not touch the
surface with your hand.

NOTE:

Apply primer to the hollowed marks in the ceramic coating.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Glass/Windows/Mirrors - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:36:16 AM

Page 27

© 2005 Mitchell Repair Information Company, LLC.

12. Apply sealant to the area of the glass surface as shown in the figure.

13. Insert the windshield locator pins to the body and install the windshield.

Fig. 38: Applying Sealant To Area Of Glass Surface
Courtesy of MAZDA MOTORS CORP.

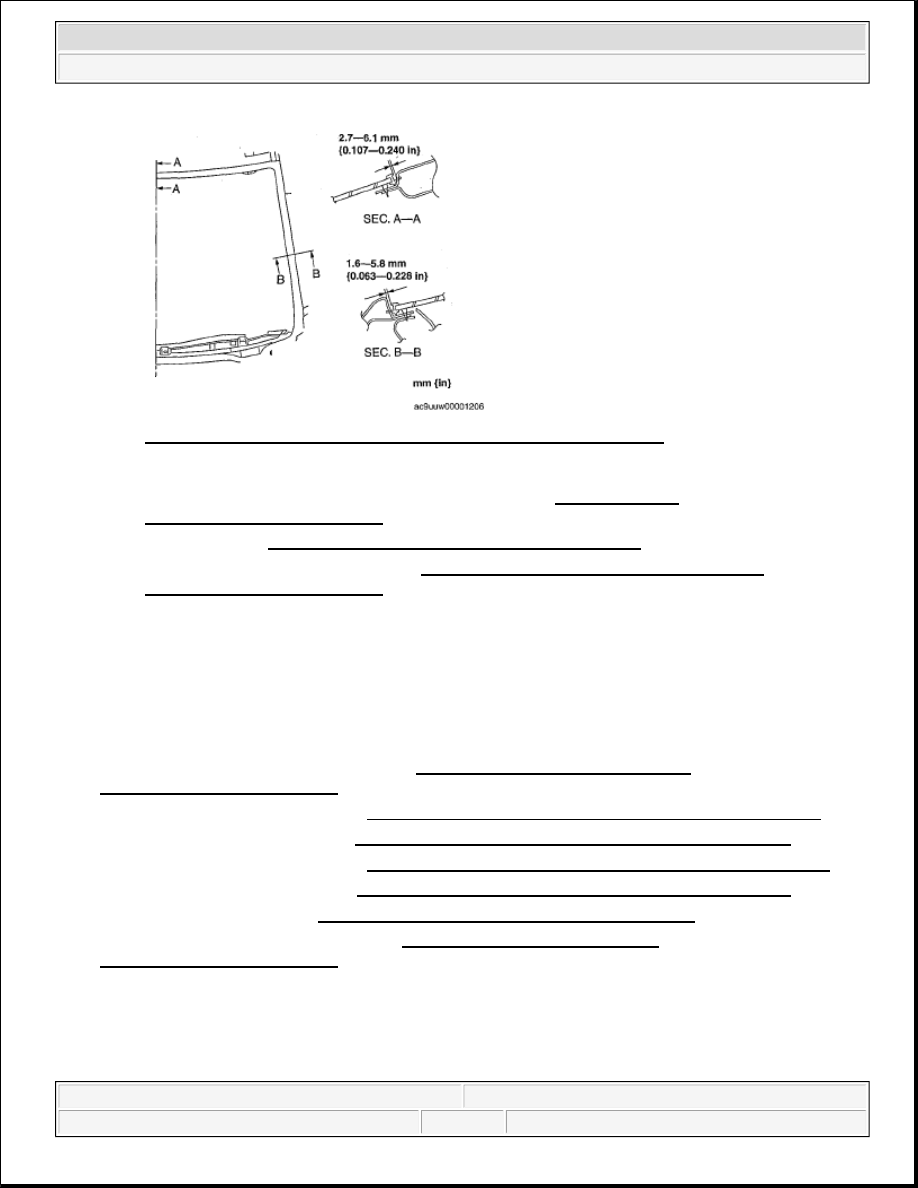

14. Verify that the clearance of the A-pillar is within the range shown in the figure, and press along the

perimeter of the glass.

15. Install the headliner.

16. Install the following parts:

1. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)

2. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)

3. Map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)

4. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)

5. Rearview mirror (See REARVIEW MIRROR INSTALLATION [VEHICLES WITH AUTO

LIGHT/WIPER SYSTEM].) (See REARVIEW MIRROR INSTALLATION [VEHICLES
WITHOUT AUTO LIGHT/WIPER SYSTEM]

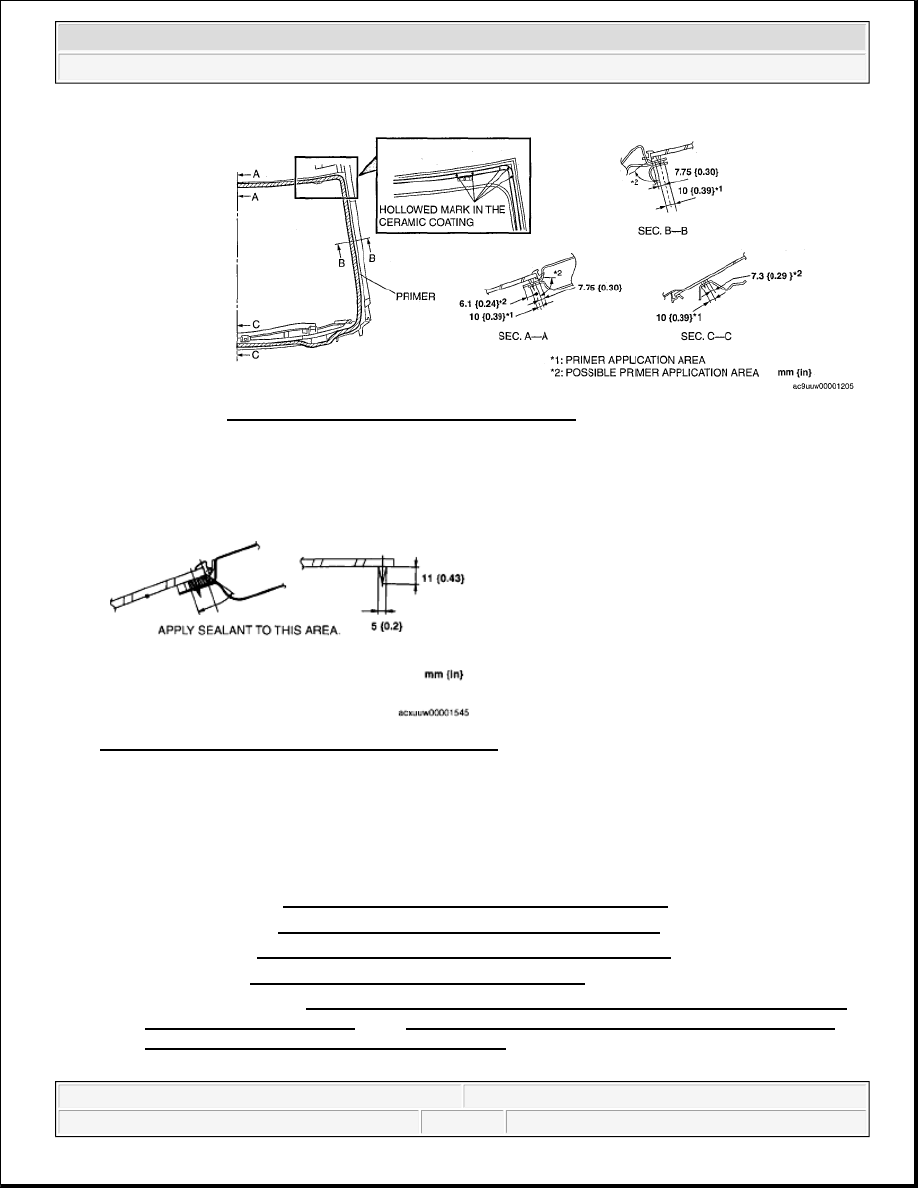

Fig. 37: Identifying Primer Applying Area
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Glass/Windows/Mirrors - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:36:16 AM

Page 28

© 2005 Mitchell Repair Information Company, LLC.

Fig. 39: Identifying Sealant Applying Area & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

6. Rain sensor (Vehicles with auto light/wiper system)(See RAIN SENSOR

REMOVAL/INSTALLATION )

7. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)

8. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE

REMOVAL/INSTALLATION .)

17. Allow the sealant to harden completely.

Sealant hardening time: 24 h

REAR WINDOW GLASS REMOVAL

1. Disconnect the negative battery cable.

2. Remove the rear wiper arm and blade. (See REAR WIPER ARM AND BLADE

REMOVAL/INSTALLATION .)

3. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)

4. Remove the liftgate side trim. (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION )

5. Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)

6. Remove the rear wiper motor. (See REAR WIPER MOTOR REMOVAL/INSTALLATION .)

7. Remove the rear spoiler. (See REAR SPOILER REMOVAL/INSTALLATION .)

8. Remove the high-mount brake light. (See HIGH-MOUNT BRAKE LIGHT

REMOVAL/INSTALLATION .)

9. Disconnect the filament connector.

10. Apply protective tape along the edge of the body.

NOTE:

Overlap and adhere the protective tape to the corners to prevent



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Glass/Windows/Mirrors - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:36:16 AM

Page 29

© 2005 Mitchell Repair Information Company, LLC.
