Mazda CX-9 Grand Touring. Manual - part 600





REAR SIDE

1. Inspect for continuity between the power window subswitch terminals.

If not as specified, replace the power window subswitch.

glass is closing

B+

Related wiring harnesses

D

Sensor ground

Power

window

motor

Under any
condition

1.0 or less

Power window motor
(See POWER
WINDOW MOTOR
INSPECTION
.)

Related wiring harnesses

E

GND

Body ground

Under any
condition

1.0 or less

Related wiring harnesses

G

Pulse 2

Power

window

motor

Door glass
moving

Alternates

between 1.0 or

less and 5.0

Power window motor
(See POWER
WINDOW MOTOR
INSPECTION
.)

Related wiring harnesses

Door glass

stopped

1.0 or less or

5.0

I

Power supply

P/W 30 A

fuse

Under any
condition

B+

P/W 30 A fuse

Related wiring harnesses

J

Pulse 1

Power

window

motor

Door glass
moving

Alternates

between 1.0

and 5.0

Power window motor
(See POWER
WINDOW MOTOR
INSPECTION
.)

Related wiring harnesses

Door glass

stopped

1.0 or less or

5.0

K

Open output

Power

window

motor

While door
glass is opening

B+

Power window motor
(See POWER
WINDOW MOTOR
INSPECTION
.)

Related wiring harnesses

While door

glass is closing

1.0 or less

L

Power-cut

signal

Power

window

main switch

Ignition switch
at ON and
power-cut
switch at
UNLOCK

B+

Power window main
switch(See POWER
WINDOW MAIN
SWITCH
INSPECTION
)

Related wiring harnesses



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Glass/Windows/Mirrors - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:36:16 AM

Page 18

© 2005 Mitchell Repair Information Company, LLC.

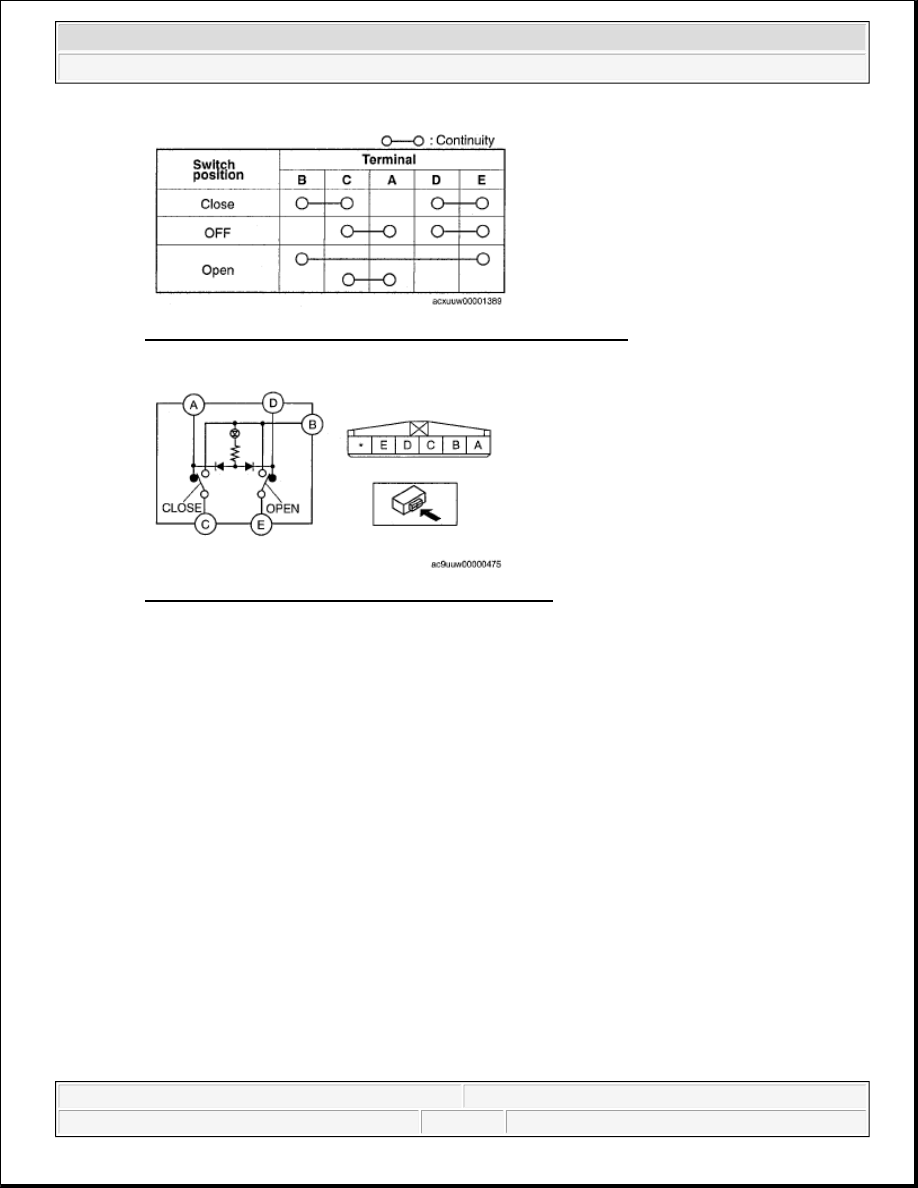

Fig. 24: Rear Side Power Window Subswitch Continuity Chart
Courtesy of MAZDA MOTORS CORP.

Fig. 25: Power Window Subswitch - Circuit Diagram
Courtesy of MAZDA MOTORS CORP.

POWER WINDOW INITIALIZATION PROCEDURE

NOTE:

If the following operations have been performed, initial setting is reset,
and auto up/down and two-step down operation are disabled. Therefore,
performing initial setting is necessary.

Negative battery cable disconnected or power window system power
supply fuse removed, (perform initial setting for the switches of all
seats.)

Power window switch connector disconnected. (Perform initial
setting for the switch connected with the connector.)

Prolonged open/close operation of the power window main or sub
switches causes the circuit breaker to activate and automatic
operation is disabled.

The driver-side power window initialization procedure can be performed
only using the power window main switch.

The passenger-side power window initialization procedure can be
performed using the power window main switch and subswitch
(Passenger side).

If the power window initialization procedure is not completed, the power



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Glass/Windows/Mirrors - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:36:16 AM

Page 19

© 2005 Mitchell Repair Information Company, LLC.

1. Turn the ignition switch to the ON position.

2. Press the switch of each window and fully open the door glass.

3. Pull the switch of each window to the manual-up position to fully close the door glass, and keep holding

the switch up at the position for approx. 2 s.

TWO-STEP DOWN FUNCTION OPERATIVE/NON-OPERATIVE SWITCHING
PROCEDURE

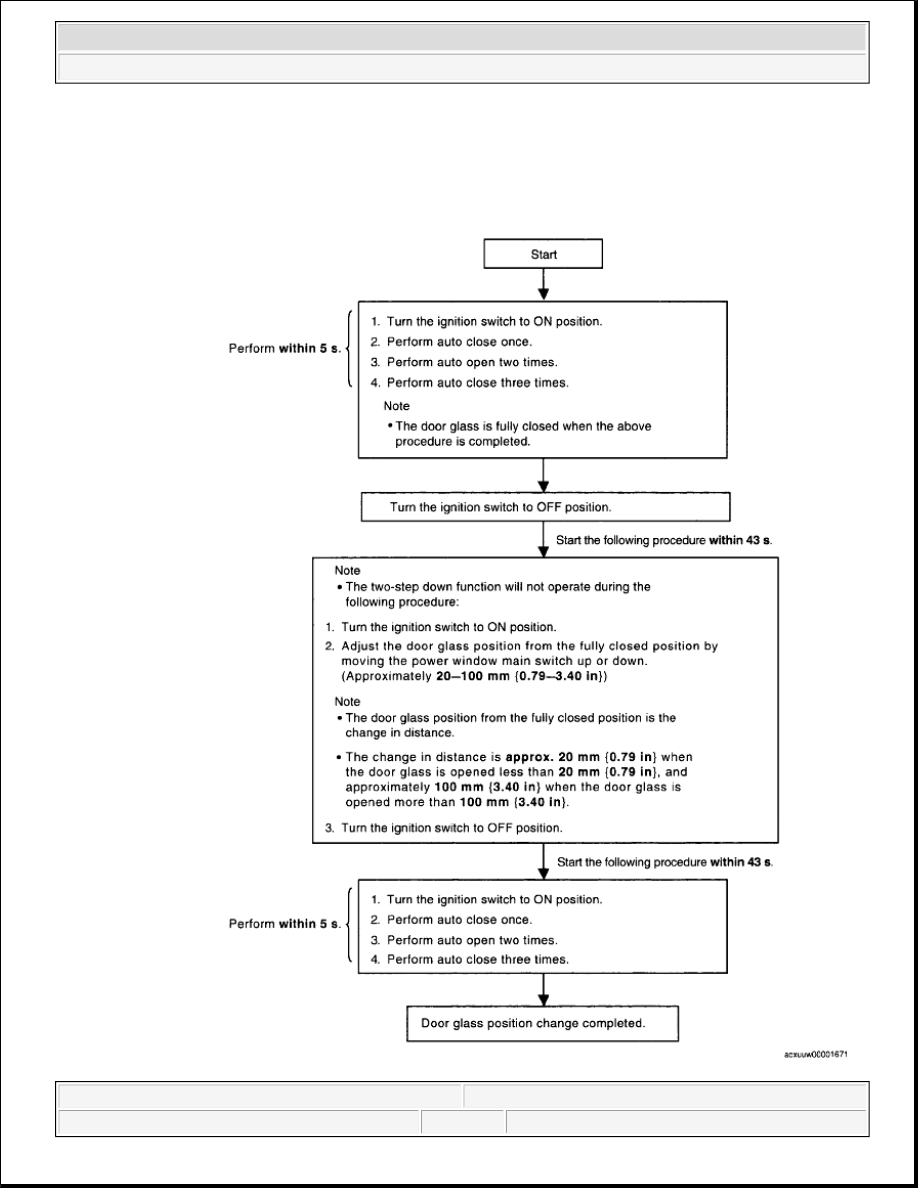

DOOR GLASS POSITION CHANGE PROCEDURE

window (Driver and passenger sides) does not operate automatically. Each
power window can be operated only in manual operation.

NOTE:

By following the procedure below, the two-step down function is switched
to non-operative when it is operative, and to operative when it is non-
operative.

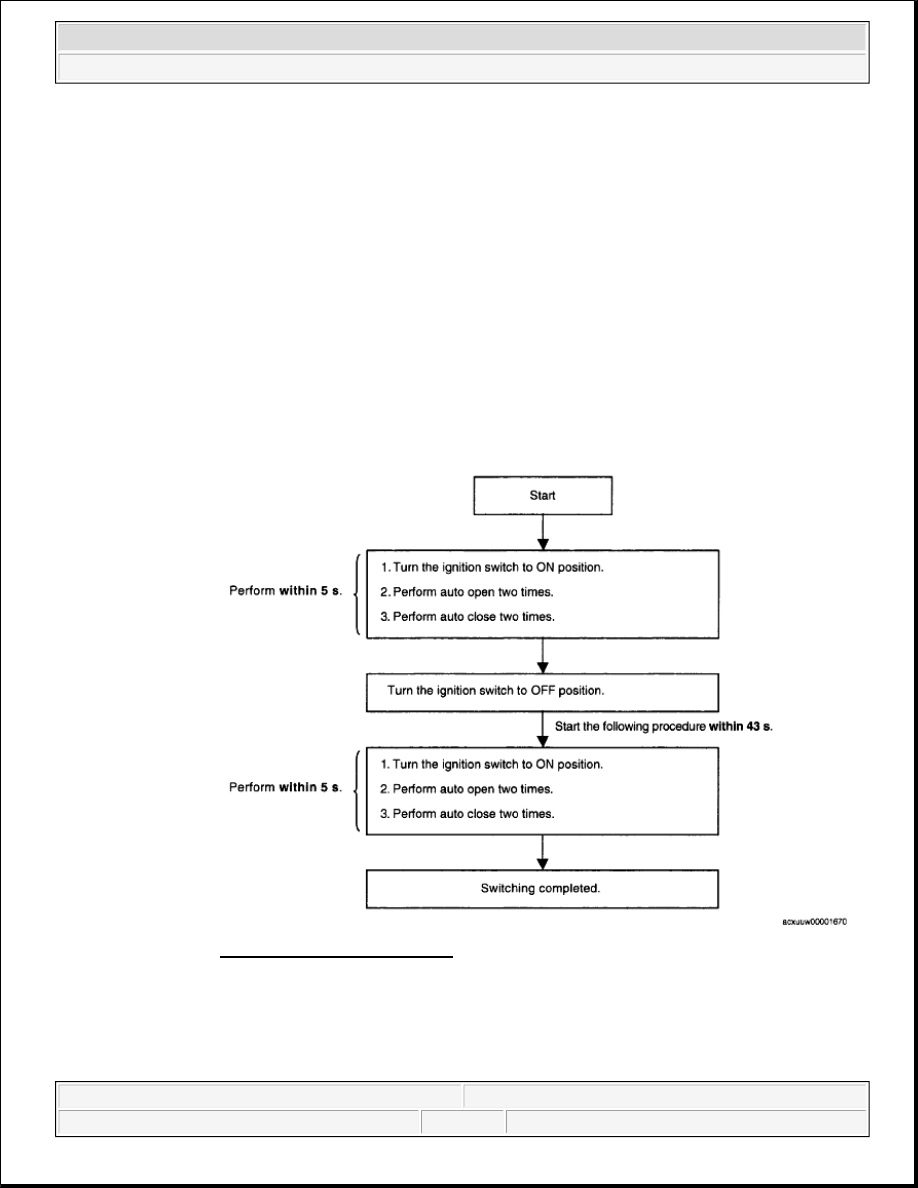

Fig. 26: View Of Flow Chart
Courtesy of MAZDA MOTORS CORP.

NOTE:

After performing the following procedure, verify that the two-step down



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Glass/Windows/Mirrors - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:36:16 AM

Page 20

© 2005 Mitchell Repair Information Company, LLC.

function operates normally and the door glass position has changed. If the
two-step down function does not operate or the door glass position has
not changed, the procedure was not performed properly. Repeat the
procedure from the beginning.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Glass/Windows/Mirrors - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:36:16 AM

Page 21

© 2005 Mitchell Repair Information Company, LLC.
