FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:

1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)

2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)

3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)

4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

5. Power window motor (See POWER WINDOW MOTOR REMOVAL/INSTALLATION.)

3. Remove the nuts.

Fig. 8: View Of Door Glass In Removal Position & Torque
Specifications
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Glass/Windows/Mirrors - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:36:16 AM

Page 6

© 2005 Mitchell Repair Information Company, LLC.

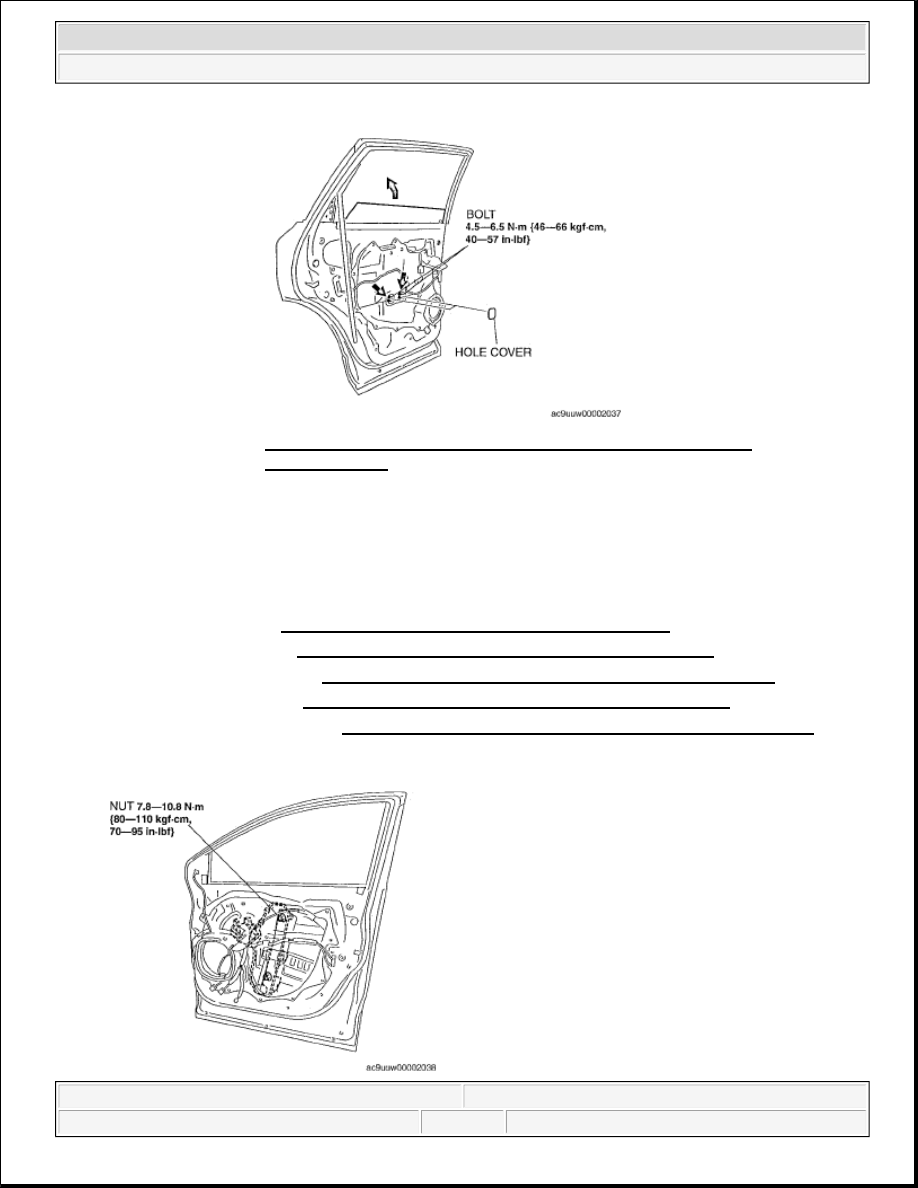

Fig. 9: Identifying Front Power Window Regulator Nuts & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

4. Insert a hand through the speaker installation hole, rotate the drum housing in the direction shown in the

figure to detach the tabs from the front door module.

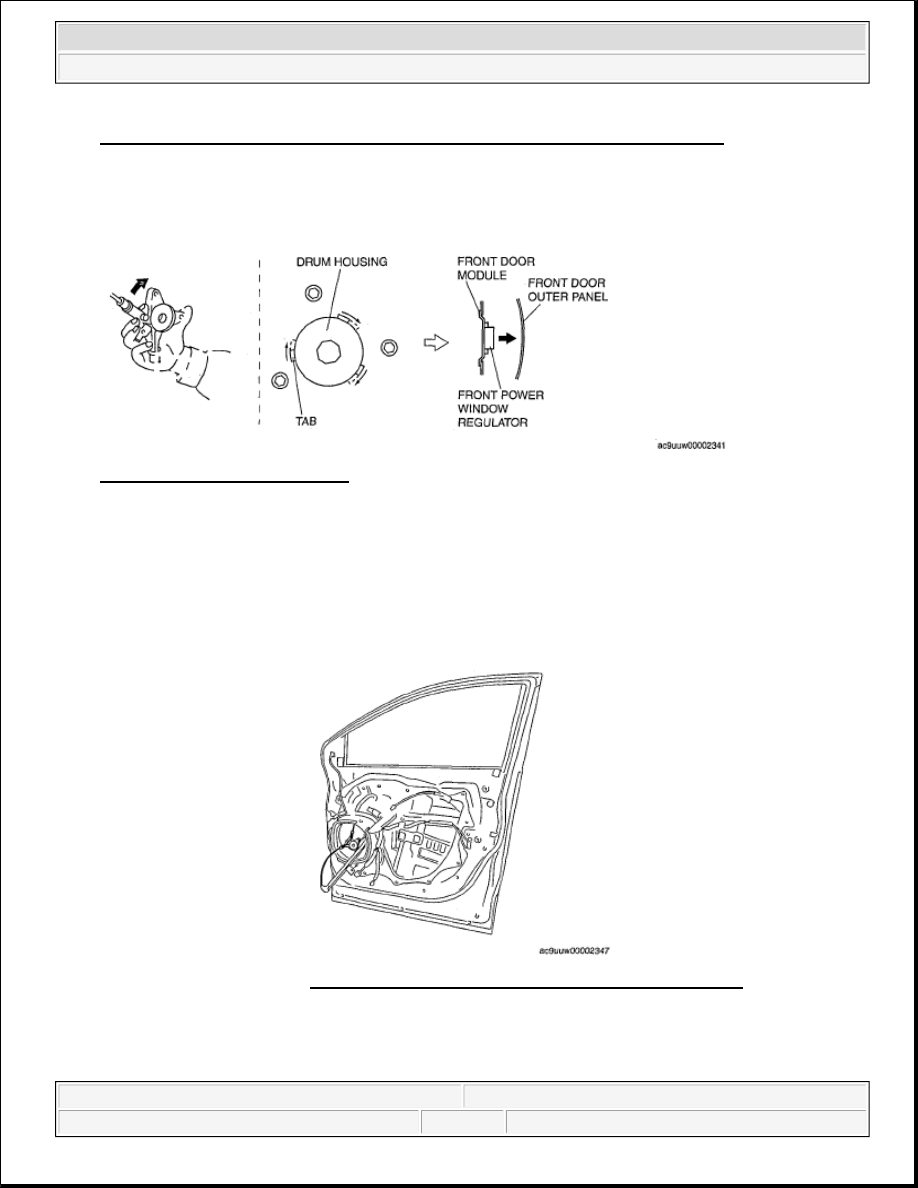

Fig. 10: Rotating Drum Housing
Courtesy of MAZDA MOTORS CORP.

5. Move the front power window regulator in the direction of the arrow and remove it.

6. Install in the reverse order of removal.

REAR POWER WINDOW REGULATOR REMOVAL/INSTALLATION

CAUTION:

Make sure the cable does not unspool from the drum housing
when installing.

Fig. 11: Identifying Front Power Window Regulator
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Glass/Windows/Mirrors - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:36:16 AM

Page 7

© 2005 Mitchell Repair Information Company, LLC.

1. Disconnect the negative battery cable.

2. Remove the following parts:

1. Inner sail garnish (See INNER SAIL GARNISH REMOVAL/INSTALLATION .)

2. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)

3. Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .)

4. Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION.)

5. Power window motor (See POWER WINDOW MOTOR REMOVAL/INSTALLATION.)

3. Remove the nuts.

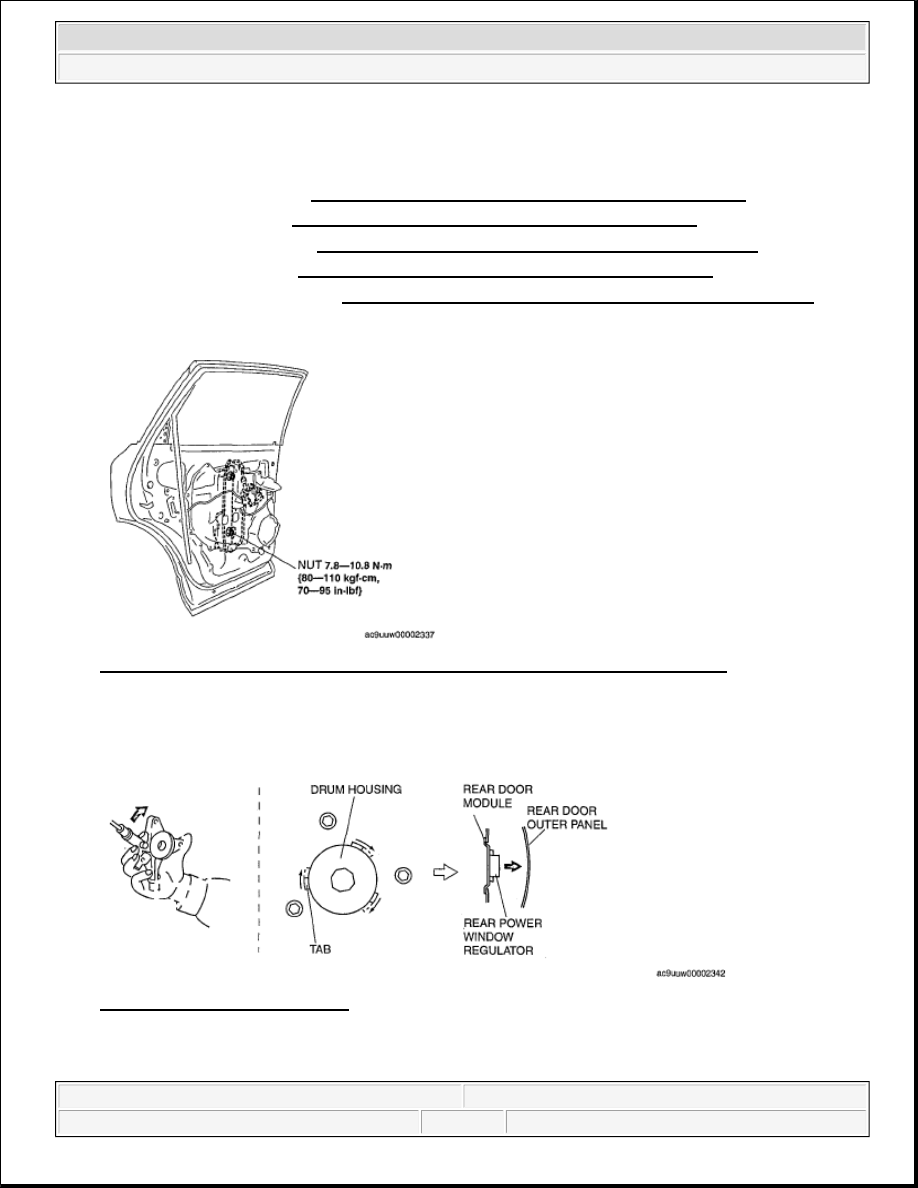

Fig. 12: Identifying Rear Power Window Regulator Nuts & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

4. Insert a hand through the speaker installation hole, rotate the drum housing in the direction shown in the

figure to detach the tabs from the rear door unit.

Fig. 13: Rotating Drum Housing
Courtesy of MAZDA MOTORS CORP.

5. Move the rear power window regulator in the direction of the arrow and remove it.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Glass/Windows/Mirrors - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:36:16 AM

Page 8

© 2005 Mitchell Repair Information Company, LLC.

6. Install in the reverse order of removal.

POWER WINDOW MOTOR REMOVAL/INSTALLATION

1. Fully lower the rear door glass.

2. Disconnect the negative battery cable.

3. Remove the following parts:

Front door

Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION )

Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION )

Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION )

Rear door

Inner sail garnish (See INNER SAIL GARNISH REMOVAL/INSTALLATION )

Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION )

Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION )

4. Remove the bolts.

5. Remove the power window motor from the power window regulator.

6. Disconnect the power window motor connector.

7. Install in the reverse order of removal.

CAUTION:

Make sure the cable does not unspool from the drum housing
when installing.

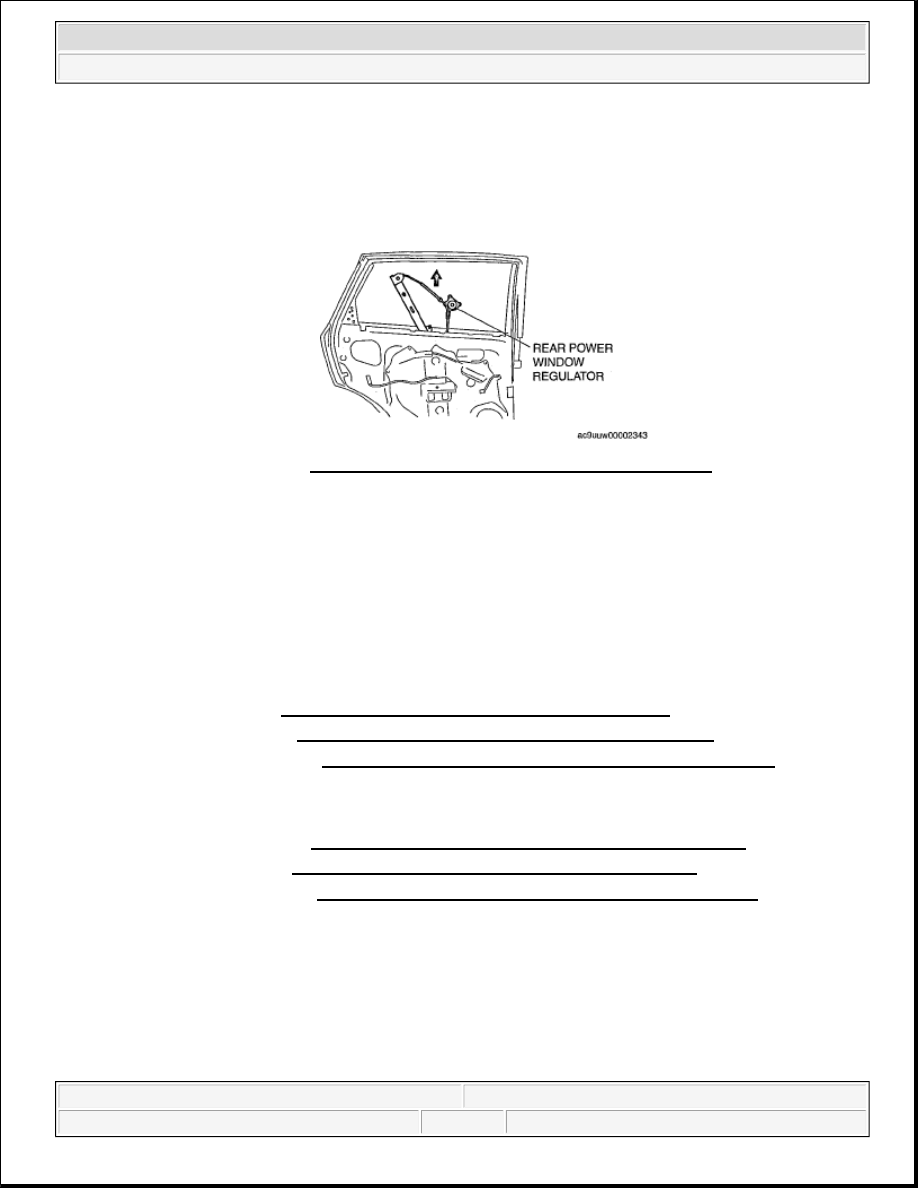

Fig. 14: View Of Rear Power Window Regulator
Courtesy of MAZDA MOTORS CORP.

NOTE:

When installing the power window motor to the power window
regulator drum, the drum housing tabs may detach from the door
