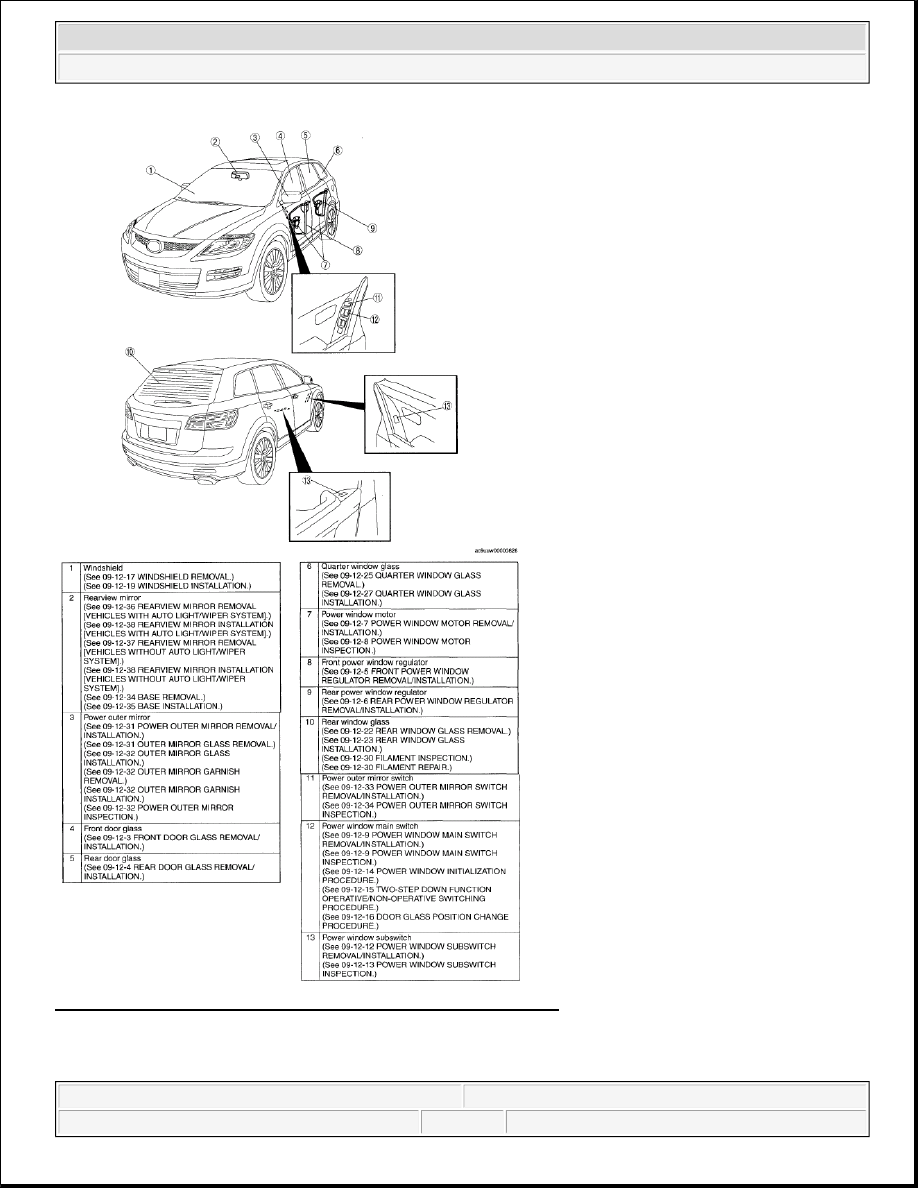

Fig. 1: Identifying Glass/Windows/Mirrors Components Location
Courtesy of MAZDA MOTORS CORP.

FRONT DOOR GLASS REMOVAL/INSTALLATION



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Glass/Windows/Mirrors - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:36:16 AM

Page 2

© 2005 Mitchell Repair Information Company, LLC.

1. Adjust the door glass position as shown in the figure.

2. Disconnect the negative battery cable.

3. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)

4. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)

5. Remove the front door speaker. (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)

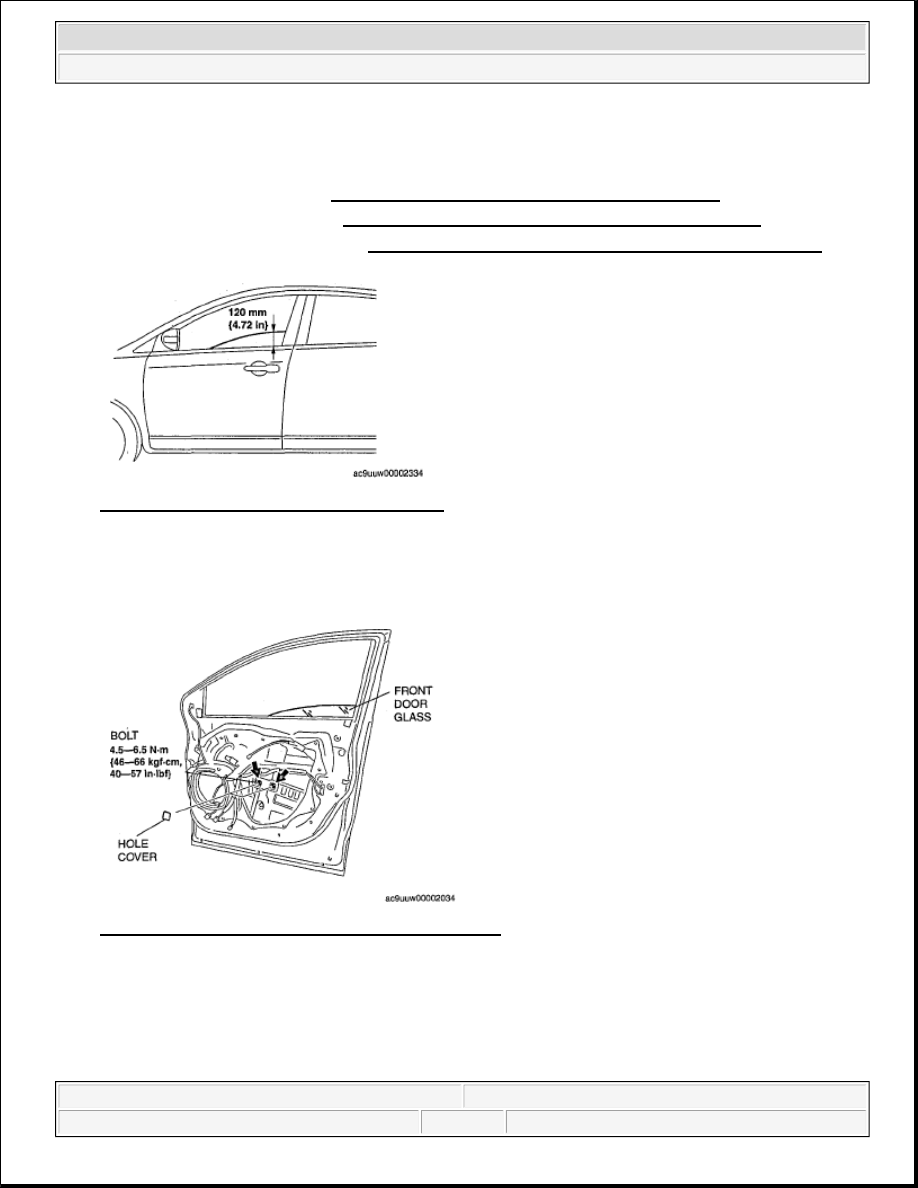

Fig. 2: Identifying Front Door Glass Position
Courtesy of MAZDA MOTORS CORP.

6. Remove the hole cover.

7. Remove the bolts.

Fig. 3: View Of Hole Cover & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

8. Lift the front door glass up and remove it in the direction of the arrow.

9. Install in the reverse order of removal.

NOTE:

When installing the front door glass, align the glass edge with the



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Glass/Windows/Mirrors - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:36:16 AM

Page 3

© 2005 Mitchell Repair Information Company, LLC.

REAR DOOR GLASS REMOVAL/INSTALLATION

1. Adjust the door glass position as shown in the figure.

2. Disconnect the negative battery cable.

3. Remove the inner sail garnish. (See INNER SAIL GARNISH REMOVAL/INSTALLATION .)

4. Remove the rear door garnish. (See REAR DOOR GARNISH REMOVAL/INSTALLATION .)

5. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)

6. Remove the rear door speaker. (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .)

7. Remove the bolts.

Fig. 5: Identifying Rear Door Glass Position
Courtesy of MAZDA MOTORS CORP.

glass run channel by hand through the speaker installation hole.

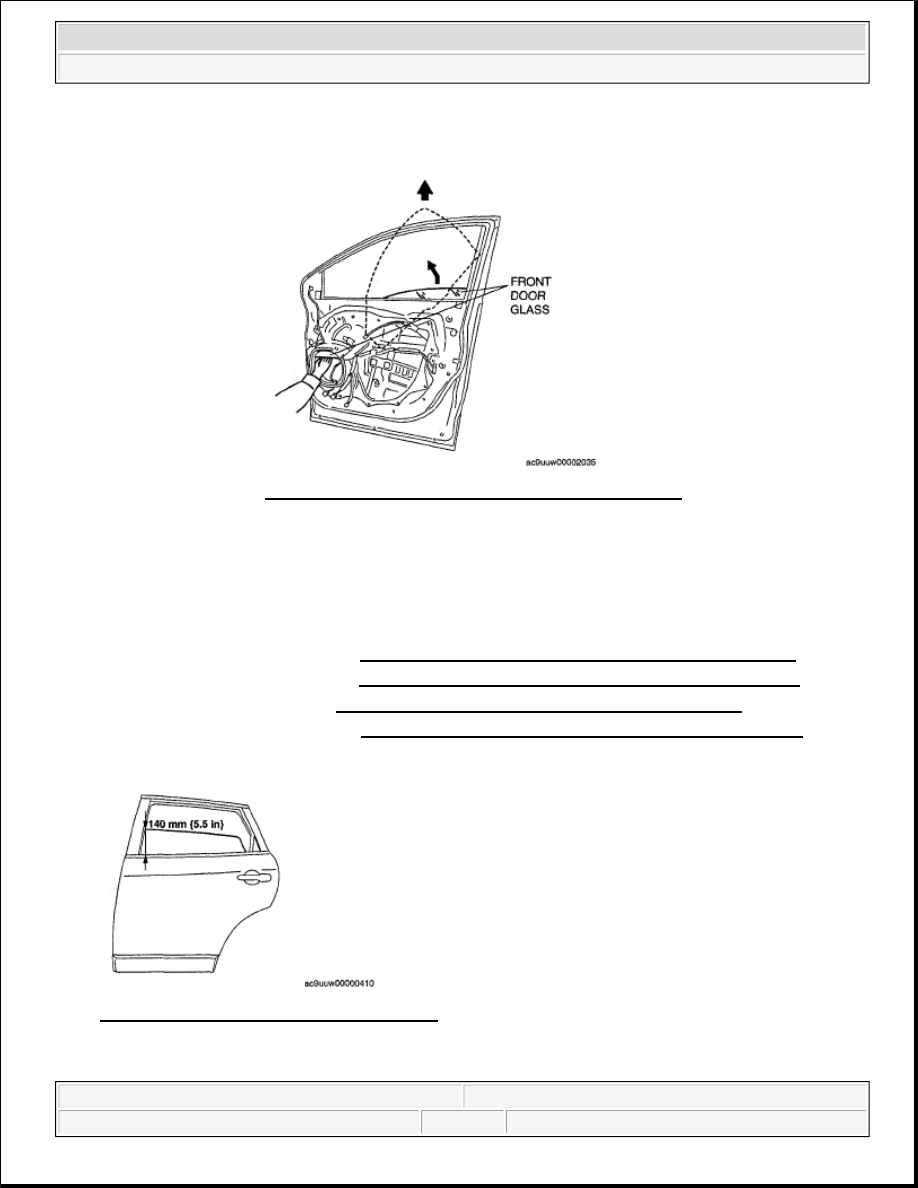

Fig. 4: Lifting Front Door Glass Remove Position
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Glass/Windows/Mirrors - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:36:16 AM

Page 4

© 2005 Mitchell Repair Information Company, LLC.

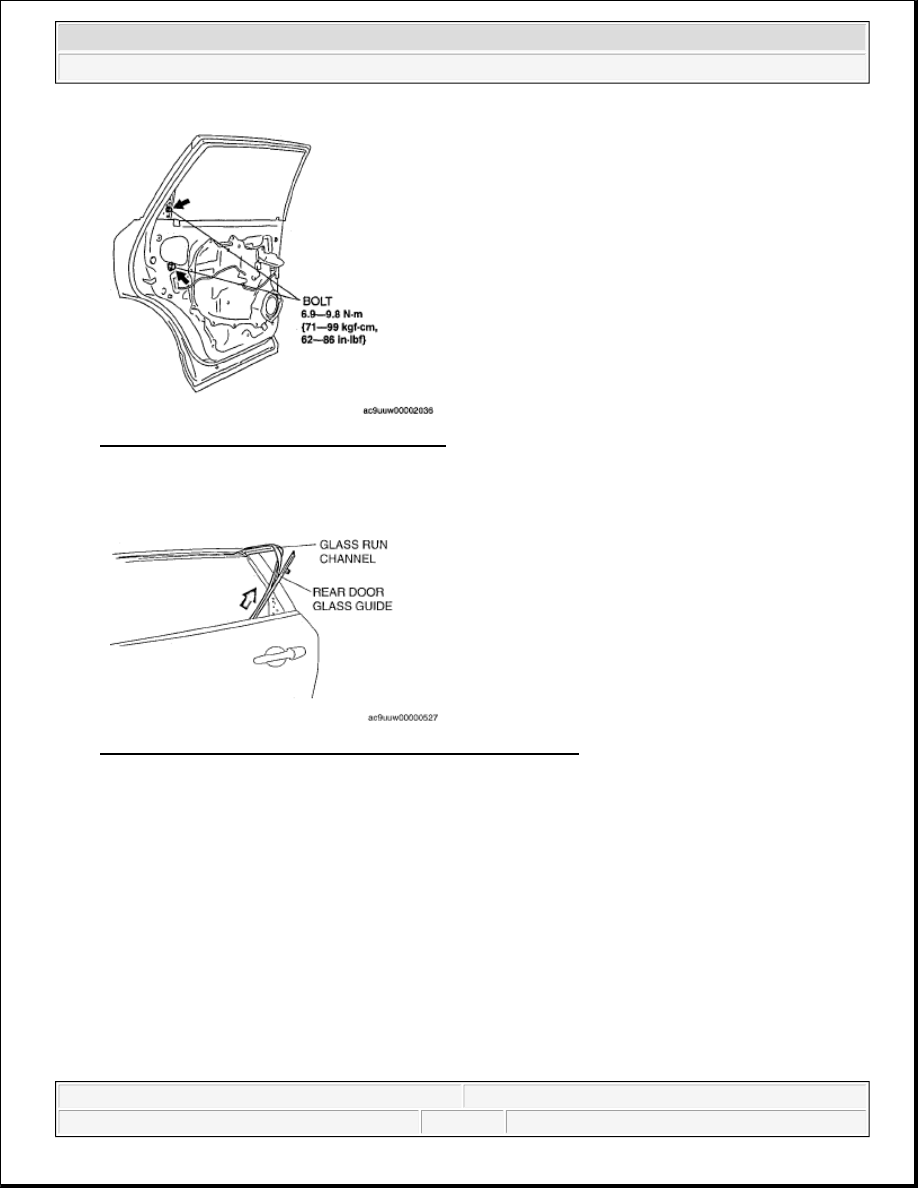

Fig. 6: View Of Bolt & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

8. Remove the rear door glass guide and glass run channel as a single unit.

Fig. 7: Locating Rear Door Glass Guide & Glass Run Channel
Courtesy of MAZDA MOTORS CORP.

9. Remove the hole cover.

10. Remove the bolt.

11. Lift the rear door glass up and remove it in the direction of the arrow.

12. Install in the reverse order of removal.

NOTE:

When installing the rear door glass, align the glass edge with the
glass run channel by hand through the speaker installation hole.
