6. D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION .)

7. Third-row seat belt upper anchor installation bolt (See THIRD-ROW SEAT BELT

REMOVAL/INSTALLATION .)

8. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)

9. Second-row seat belt upper anchor installation bolt (See SECOND-ROW SEAT BELT

REMOVAL/INSTALLATION .)

10. Roof side trim (See ROOF SIDE TRIM REMOVAL/INSTALLATION .)

11. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)

12. Third-row seat belt lower anchor installation bolt (See THIRD-ROW SEAT BELT

REMOVAL/INSTALLATION .)

13. Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)

14. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)

15. Seat side box (See SEAT SIDE BOX REMOVAL/INSTALLATION .)

16. Trunk box (See TRUNK BOX REMOVAL/INSTALLATION .)

17. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)

18. Front seat belt upper anchor installation bolt (Driver side) (See FRONT SEAT BELT

REMOVAL/INSTALLATION .)

19. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)

20. Front seat belt lower anchor installation bolt. (See FRONT SEAT BELT

REMOVAL/INSTALLATION .)

21. Rear scuff plate inner (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)

22. Front scuff plate inner (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)

23. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)

6. Install the seaming welt.

SUNROOF MOTOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:

1. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)

2. Front scuff plate inner (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)

3. Rear scuff plate inner (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)

4. Front seat belt lower anchor installation bolt (Driver side) (See FRONT SEAT BELT

REMOVAL/INSTALLATION .)

5. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)

6. Front seat belt upper anchor installation bolt (See FRONT SEAT BELT

REMOVAL/INSTALLATION .)

7. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)

8. Trunk box (See TRUNK BOX REMOVAL/INSTALLATION .)



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Sunroof - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:38:25 AM

Page 15

© 2005 Mitchell Repair Information Company, LLC.

9. Seat side box (See SEAT SIDE BOX REMOVAL/INSTALLATION .)

10. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)

11. Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)

12. Third-row seat belt lower anchor installation bolt (See THIRD-ROW SEAT BELT

REMOVAL/INSTALLATION .)

13. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)

14. Roof side trim (See ROOF SIDE TRIM REMOVAL/INSTALLATION .)

15. Second-row seat belt upper anchor installation bolt (See SECOND-ROW SEAT BELT

REMOVAL/INSTALLATION .)

16. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)

17. Third-row seat belt upper anchor installation bolt (See THIRD-ROW SEAT BELT

REMOVAL/INSTALLATION .)

18. D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION .)

19. Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)

20. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)

21. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)

22. RES unit cover (Vehicles with RES) (See RES UNIT REMOVAL/INSTALLATION .)

3. Remove the sunroof seaming welt.

4. Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION .)

5. Disconnect the sunroof motor connector.

6. Remove the screws, and then remove the sunroof motor.

7. Install in the reverse order of removal.

NOTE:



If the glass panel or the sunroof motor is moved with the sunroof
motor removed, initial position setting of the sunroof motor will be
required. Perform initial position setting referring to the SUNROOF
MOTOR ASSEMBLY NOTE. (See SUNROOF UNIT
DISASSEMBLY/ASSEMBLY.)

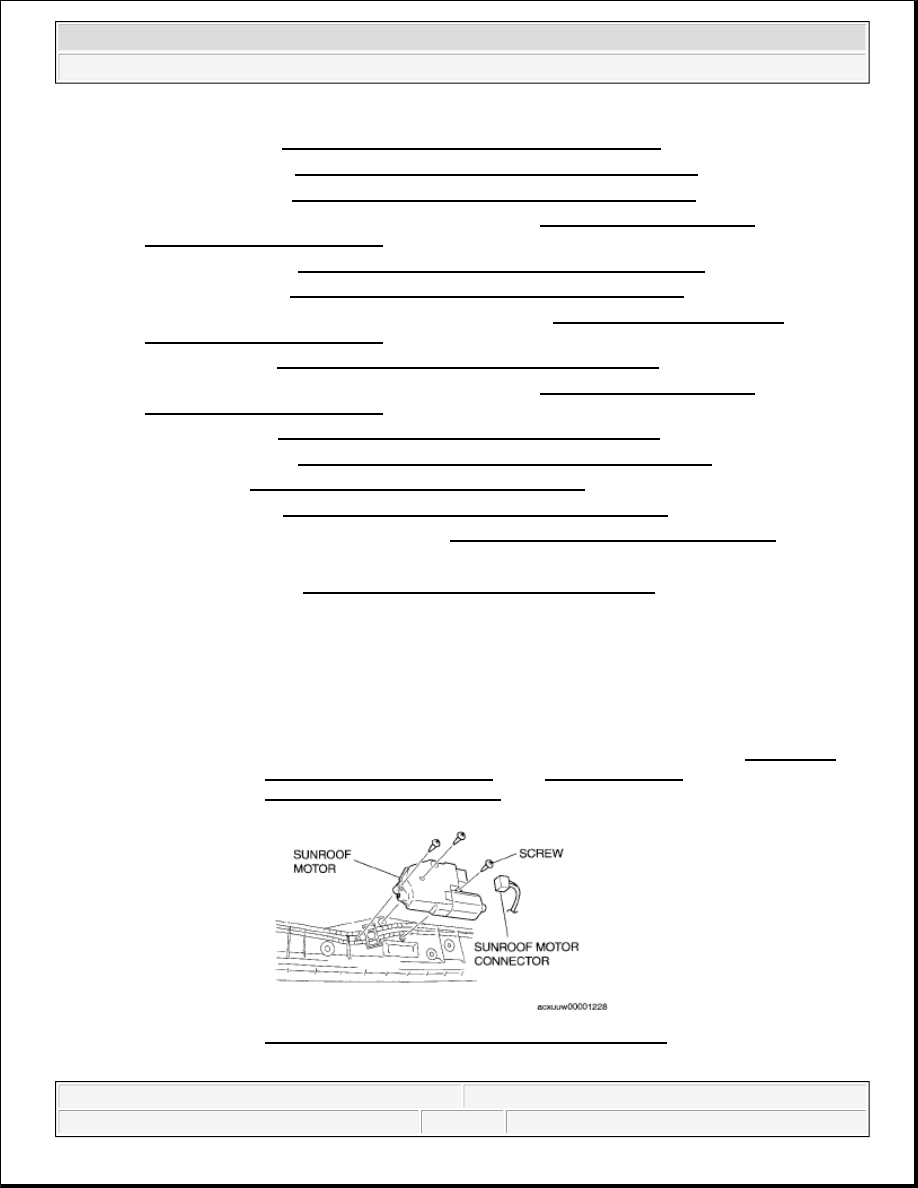

Fig. 16: Identifying Sunroof Motor & Connector



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Sunroof - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:38:25 AM

Page 16

© 2005 Mitchell Repair Information Company, LLC.

SUNROOF MOTOR INSPECTION

1. Measure the voltage at each terminal (other than terminal G).



If not as specified, inspect the parts listed under "Inspection item" and the related wiring harnesses.

2. Disconnect the negative battery cable.

3. If the parts and wiring harnesses are normal but the system still does not work properly, replace the

sunroof motor.

TERMINAL VOLTAGE TABLE (REFERENCE)

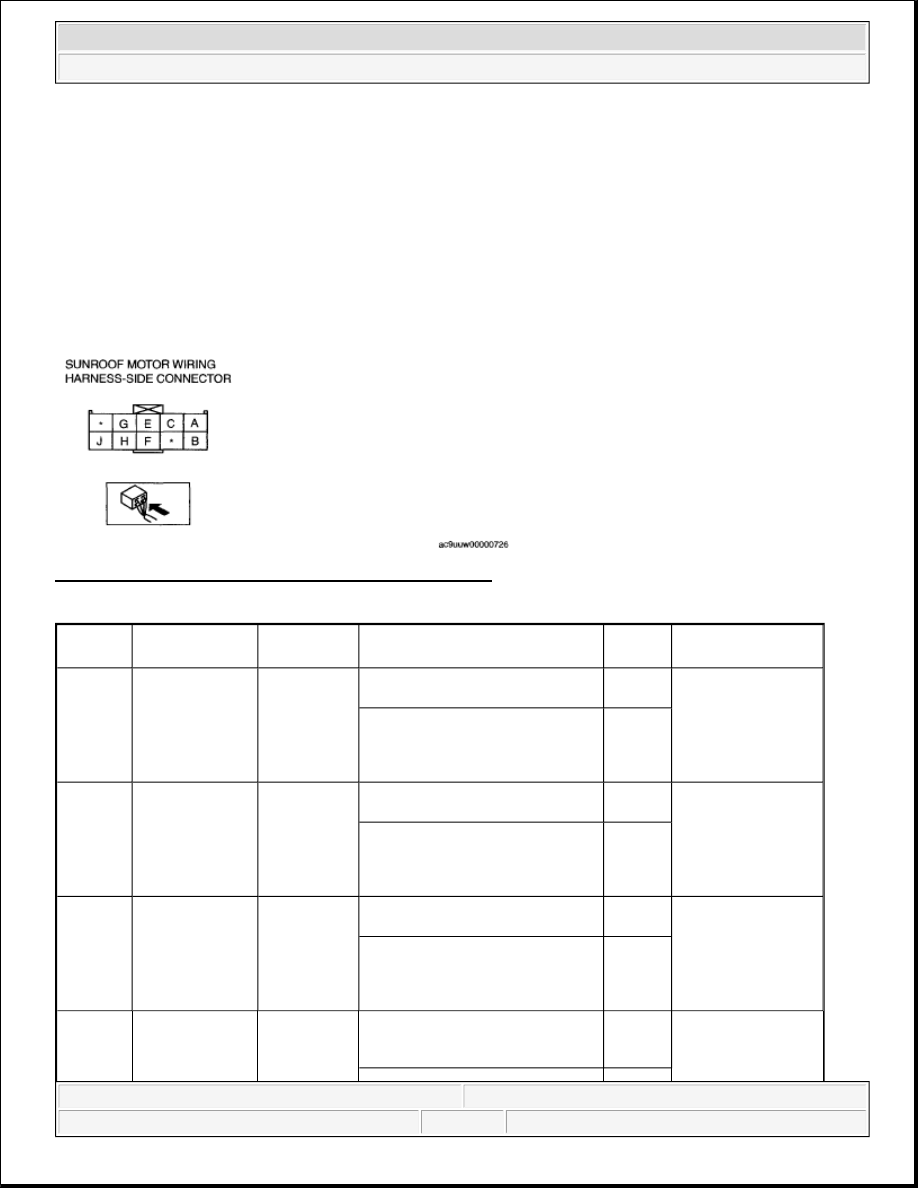

Fig. 17: Identifying Sunroof Motor Connector Terminals

CONNECTOR TERMINALS REFERENCE

Terminal

Signal

Connected

to

Test condition

Voltage

(V)

Inspection item

A

Slide open

Sunroof
switch

Sunroof is fully opening.

B+



Sunroof
switch



Related
wiring
harnesses

Other

1.0 or
less

B

Slide close/tilt
down

Sunroof
switch

Sunroof is closing/tilting down.

B+



Sunroof
switch



Related
wiring
harnesses

Other

1.0 or
less

C

Tilt up

Sunroof
switch

Sunroof is tilting up.

B+



Sunroof
switch



Related
wiring
harnesses

Other

1.0 or
less

E

IG1

METER 10A

Turn the ignition switch to the
ON position.

B+



METER 10A
fuse



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Sunroof - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:38:25 AM

Page 17

© 2005 Mitchell Repair Information Company, LLC.

SUNROOF SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the map light from the headliner. (See FRONT MAP LIGHT

REMOVAL/INSTALLATION .)

3. Install in the reverse order of removal.

SUNROOF SWITCH INSPECTION

1. Verify that the continuity between the sunroof switch terminals is as indicated in the table.



If not as specified, replace the sunroof switch.

fuse

Other

1.0 or
less



Related
wiring
harnesses

F

Vehicle speed

Instrument
cluster

Pulse signal

-



Instrument
cluster



Related
wiring
harnesses

G

GND

GND

Under any condition

1.0 or

less

Related wiring
harnesses

H

Communication BCM

Because this terminal is for
communication, good/no good
judgment by terminal voltage is
not possible.

-



BCM



Related
wiring
harnesses

J

Power supply

SUNROOF
15A fuse

Under any condition

B+



SUNROOF
15A fuse



Related
wiring
harnesses

NOTE:



The sunroof switch is together with the front map light.
