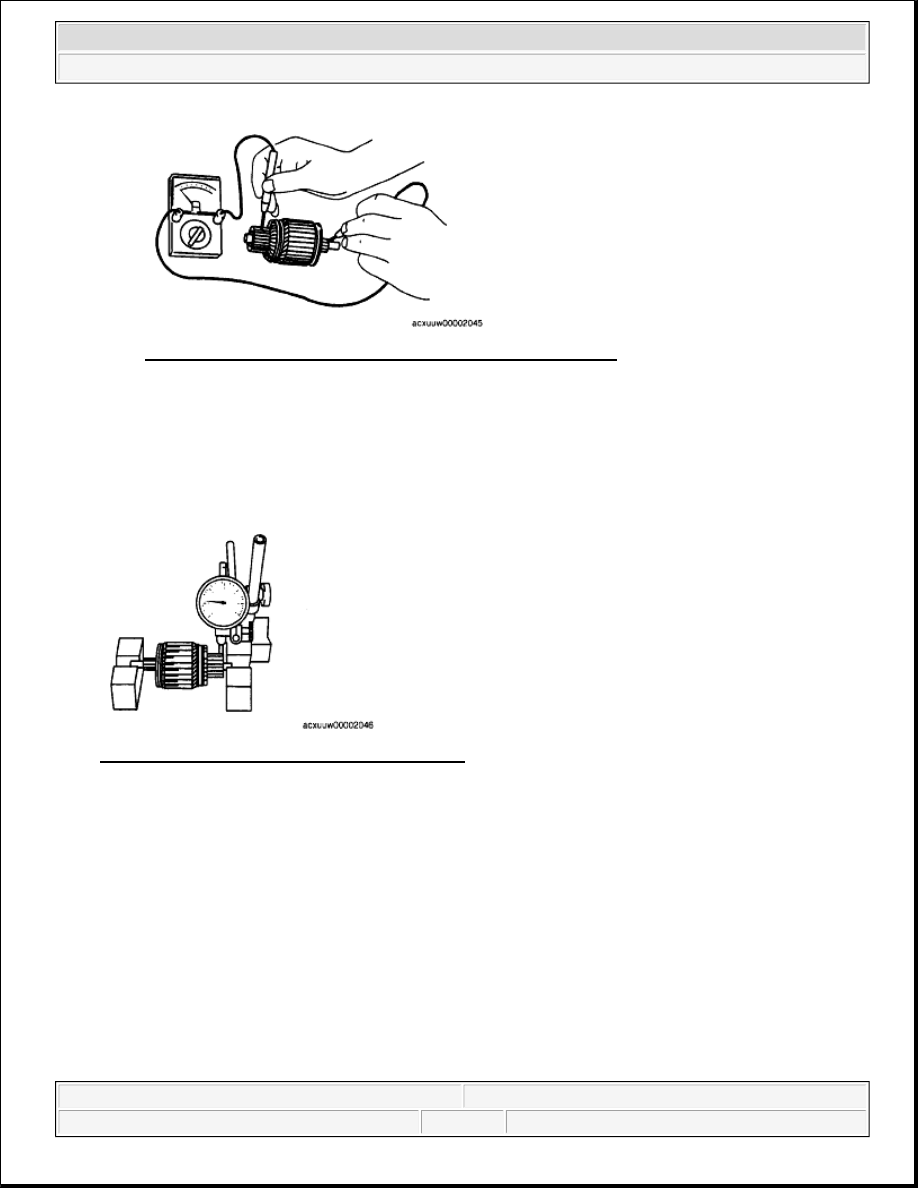

Fig. 9: Checking Continuity Between Commutator And Shaft
Courtesy of MAZDA MOTORS CORP.

3. Place the armature on V-blocks, and measure the runout using a dial indicator.

Starter armature runout

0.1 mm {0.004 in} max.

Fig. 10: Measuring Runout With Dial Indicator
Courtesy of MAZDA MOTORS CORP.

4. Measure the commutator diameter.



If not within the minimum specification, replace the armature.

Starter commutator diameter

Standard: 29.4 mm {1.16 in}

Minimum: 28.8 mm {1.13 in}



2008 Mazda CX-9 Grand Touring

2008 ENGINE Starting System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:56:47 AM

Page 6

© 2005 Mitchell Repair Information Company, LLC.

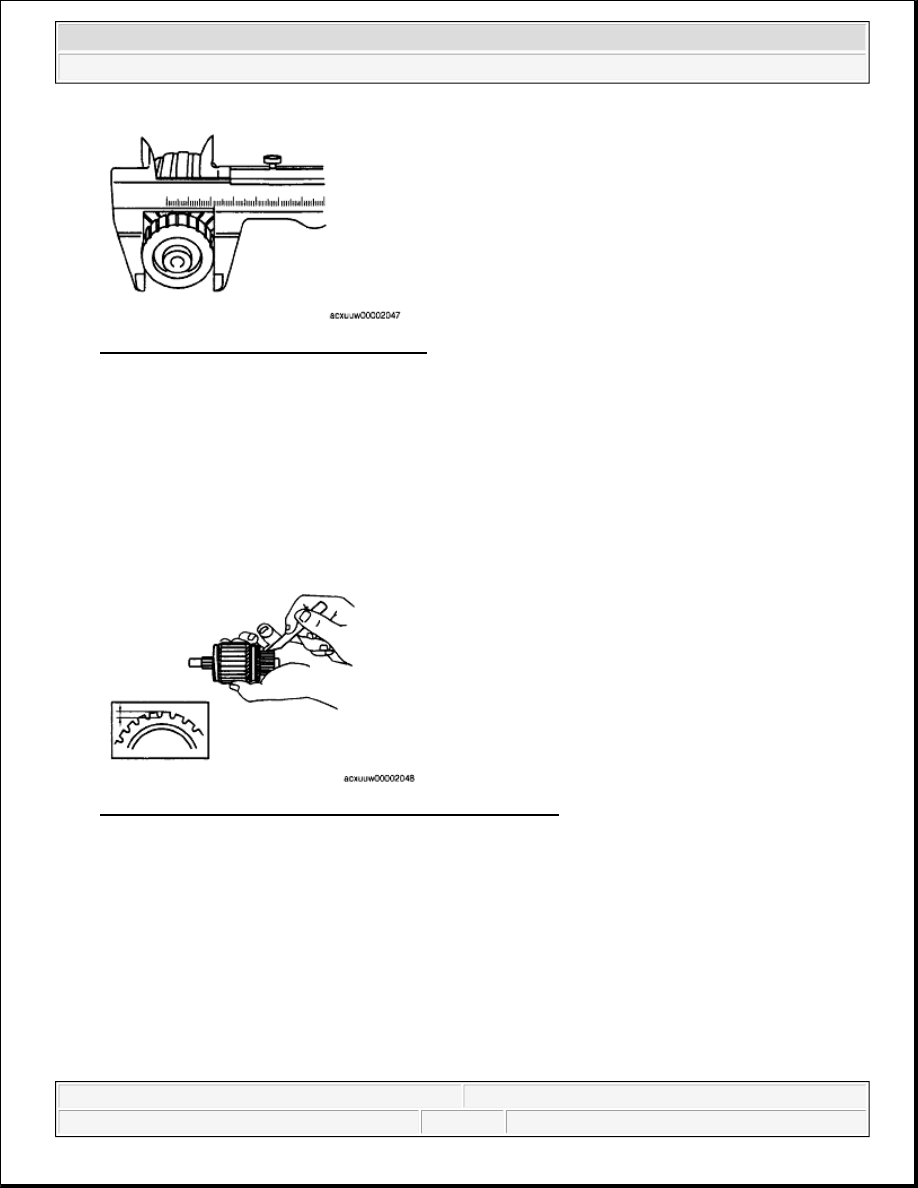

Fig. 11: Measuring Commutator Diameter
Courtesy of MAZDA MOTORS CORP.

5. Measure the segment groove depth of the commutator.



If not within the minimum specification, undercut the grooves to the standard depth.

Segment groove depth of starter commutator

Standard: 0.5 mm {0.02 in}

Minimum: 0.2 mm {0.008 in}

Fig. 12: Measuring Segment Groove Depth Of Commutator
Courtesy of MAZDA MOTORS CORP.

Magnetic switch

1. Inspect for continuity between terminals S and M using a tester.



If there is no continuity, replace the magnetic switch.



2008 Mazda CX-9 Grand Touring

2008 ENGINE Starting System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:56:47 AM

Page 7

© 2005 Mitchell Repair Information Company, LLC.

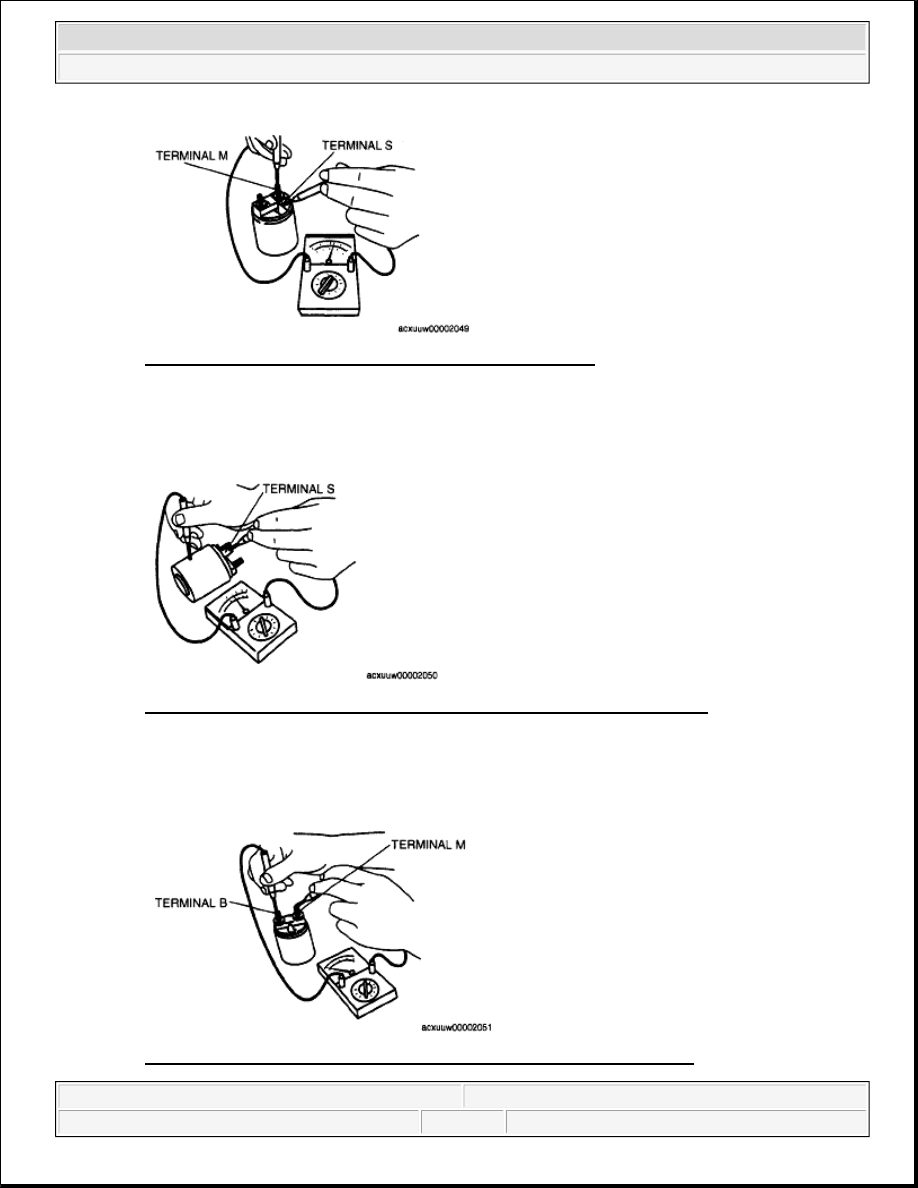

Fig. 13: Checking Continuity Between Terminals S And M
Courtesy of MAZDA MOTORS CORP.

2. Inspect for continuity between terminal S and the body using a tester.



If there is no continuity, replace the magnetic switch.

Fig. 14: Checking Continuity Between Terminal S And Body With Tester
Courtesy of MAZDA MOTORS CORP.

3. Verify that there is no continuity between terminals M and B using a tester.



If there is continuity, replace the magnetic switch.

Fig. 15: Checking Continuity Between Terminals M And B With Tester
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 ENGINE Starting System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:56:47 AM

Page 8

© 2005 Mitchell Repair Information Company, LLC.

Brush and brush holder

1. Verify that there is no continuity between each insulated brush and plate using a tester.



If there is continuity, replace the brush holder.

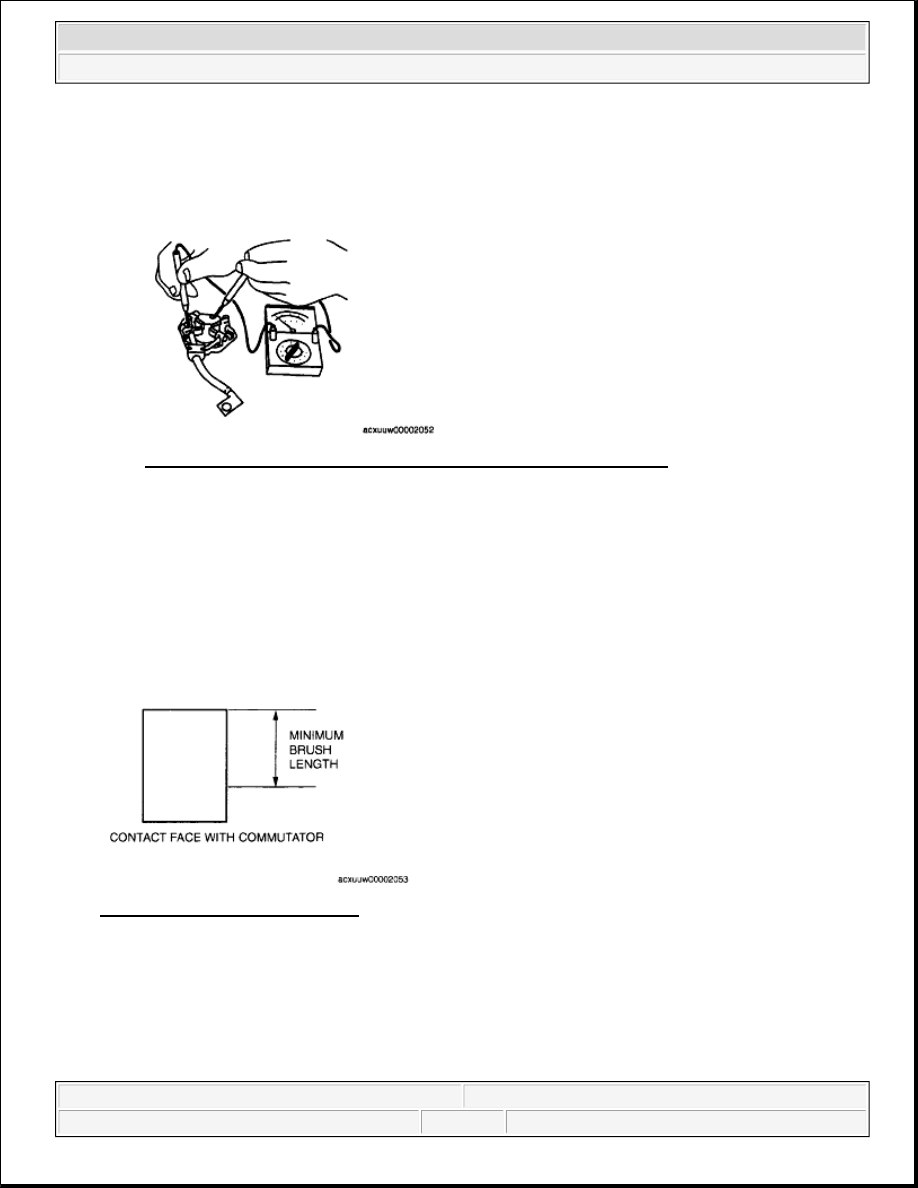

Fig. 16: Checking Continuity Between Brush And Plate With Tester
Courtesy of MAZDA MOTORS CORP.

2. Measure the brush length.



If any brush is worn almost to or beyond the minimum specification, replace all of the brushes.

Starter brush length

Standard: 12.3 mm {0.48 in}

Minimum: 5.5 mm {0.22 in}

Fig. 17: Identifying Brush Length
Courtesy of MAZDA MOTORS CORP.

3. Measure the brush spring force using a spring balance.



If not within the minimum specification, replace the brush and brush holder component.

Starter brush spring force

Standard: 15.0-20.4 N {1.53-2.08 kgf, 3.38-4.58 lbf}
