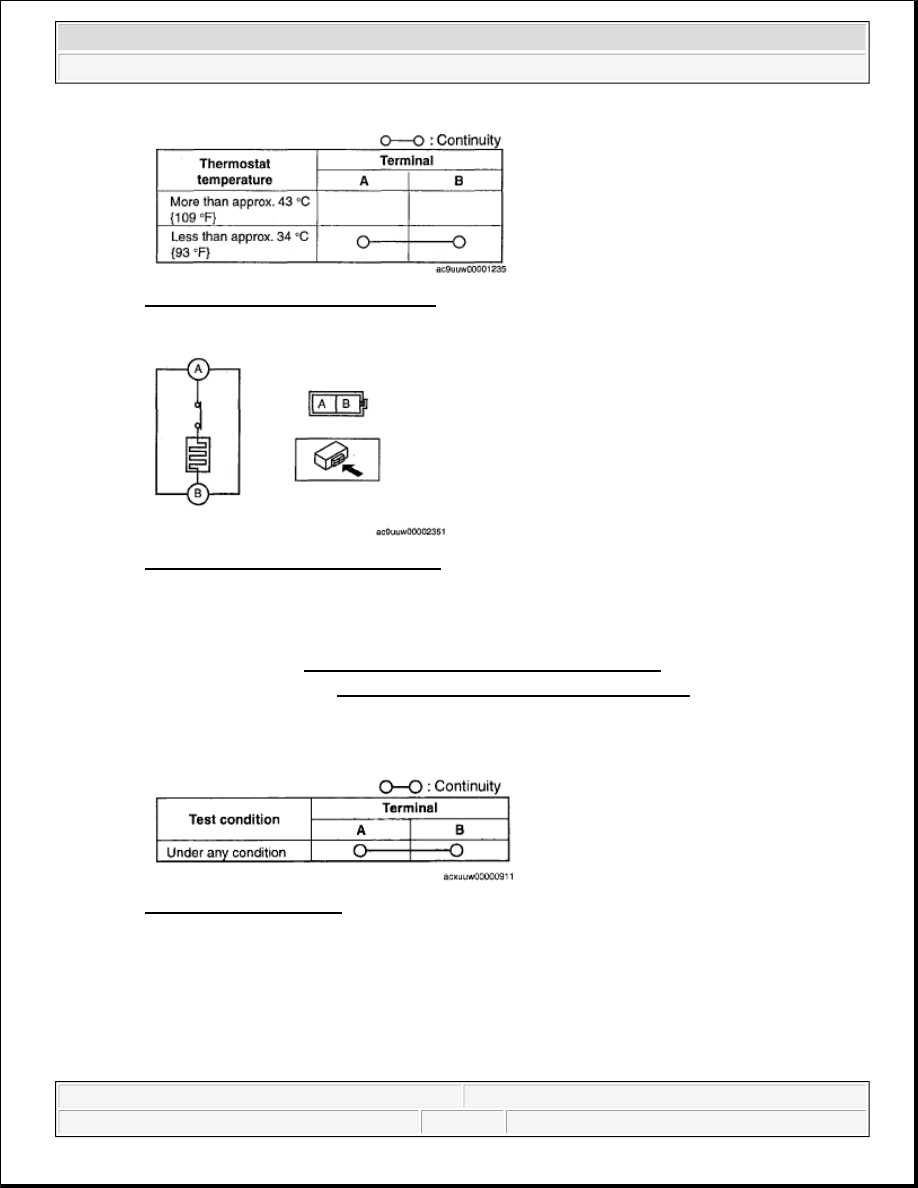

Fig. 31: Thermostat Continuity Chart
Courtesy of MAZDA MOTORS CORP.

Fig. 32: Thermostat - Circuit Diagram
Courtesy of MAZDA MOTORS CORP.

SEAT BACK

1. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

2. Remove the seat back trim. (See FRONT SEAT DISASSEMBLY/ASSEMBLY.)

3. Verify that the continuity between terminals A and B is as indicated in the table.



If not as indicated in the table, replace the seat warmer unit.

Fig. 33: Continuity Chart
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Seats - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:40:01 AM

Page 26

© 2005 Mitchell Repair Information Company, LLC.

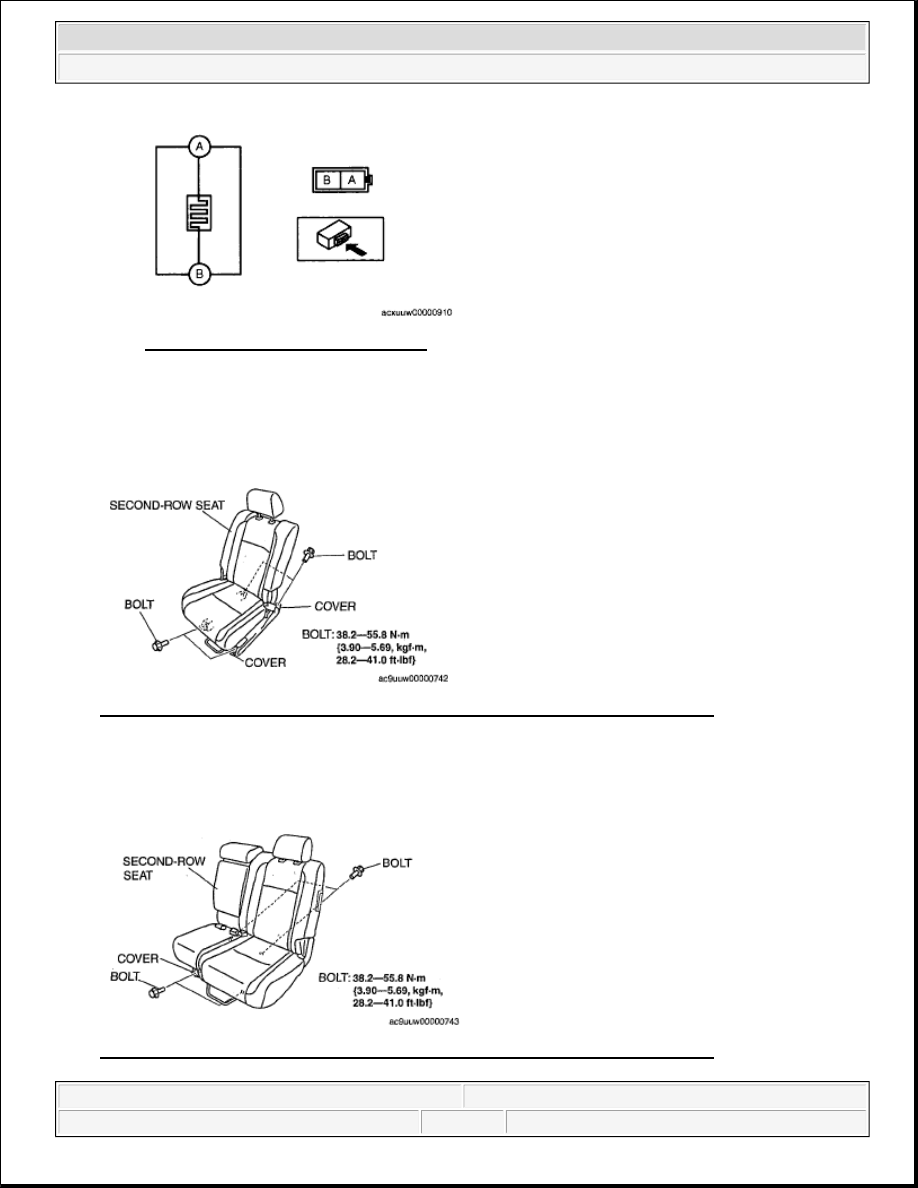

Fig. 34: Seat Back - Circuit Diagram
Courtesy of MAZDA MOTORS CORP.

SECOND-ROW SEAT REMOVAL/INSTALLATION

1. Remove the covers.

Fig. 35: Identifying Second-Row Seat, Bolt With Cover & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

2. Remove the bolts, then remove the second-row seat.

3. Install in the reverse order of removal.

Fig. 36: Identifying Second-Row Seat, Bolt With Cover & Torque Specifications
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Seats - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:40:01 AM

Page 27

© 2005 Mitchell Repair Information Company, LLC.

SECOND-ROW SEAT DISASSEMBLY/ASSEMBLY

LH

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.

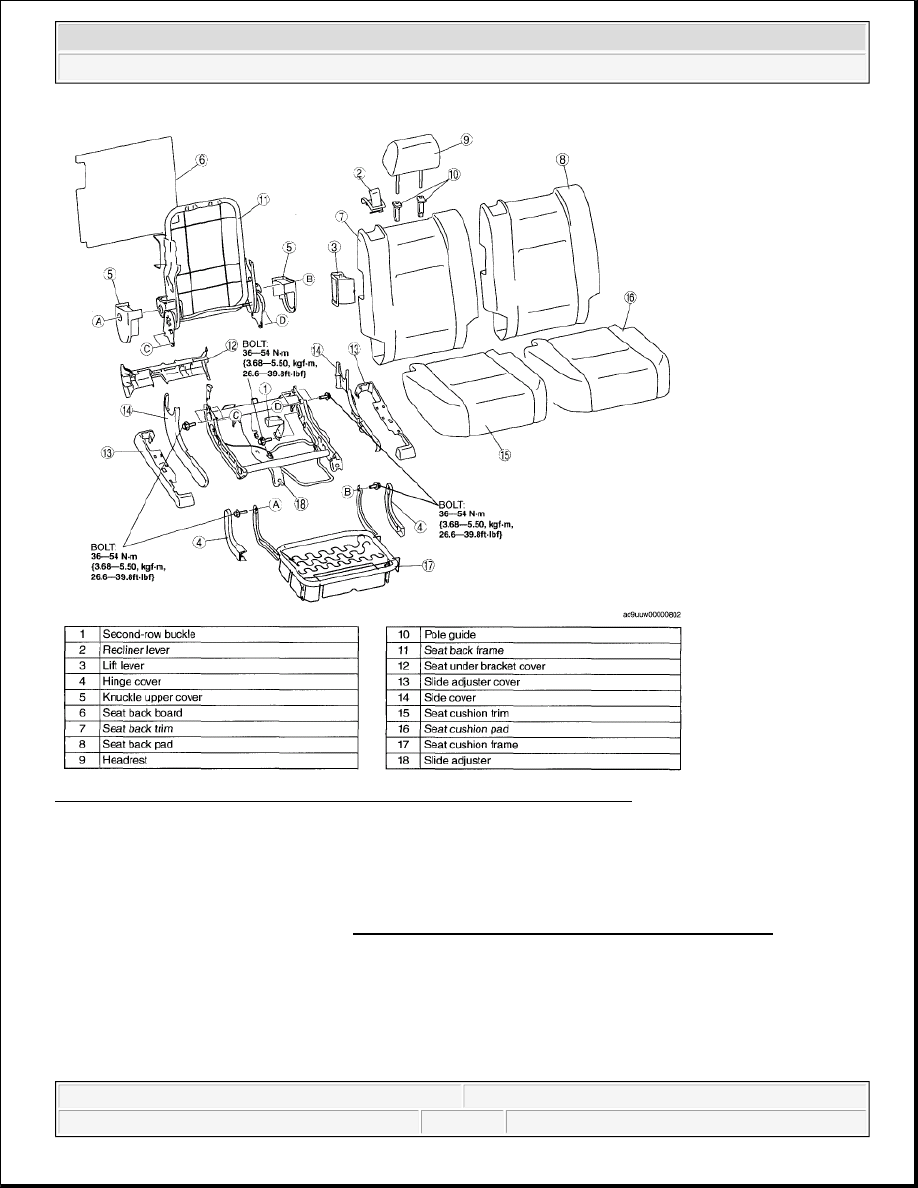

Fig. 37: Exploded View Of Second-Row Seat (LH) & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

RH



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Seats - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:40:01 AM

Page 28

© 2005 Mitchell Repair Information Company, LLC.

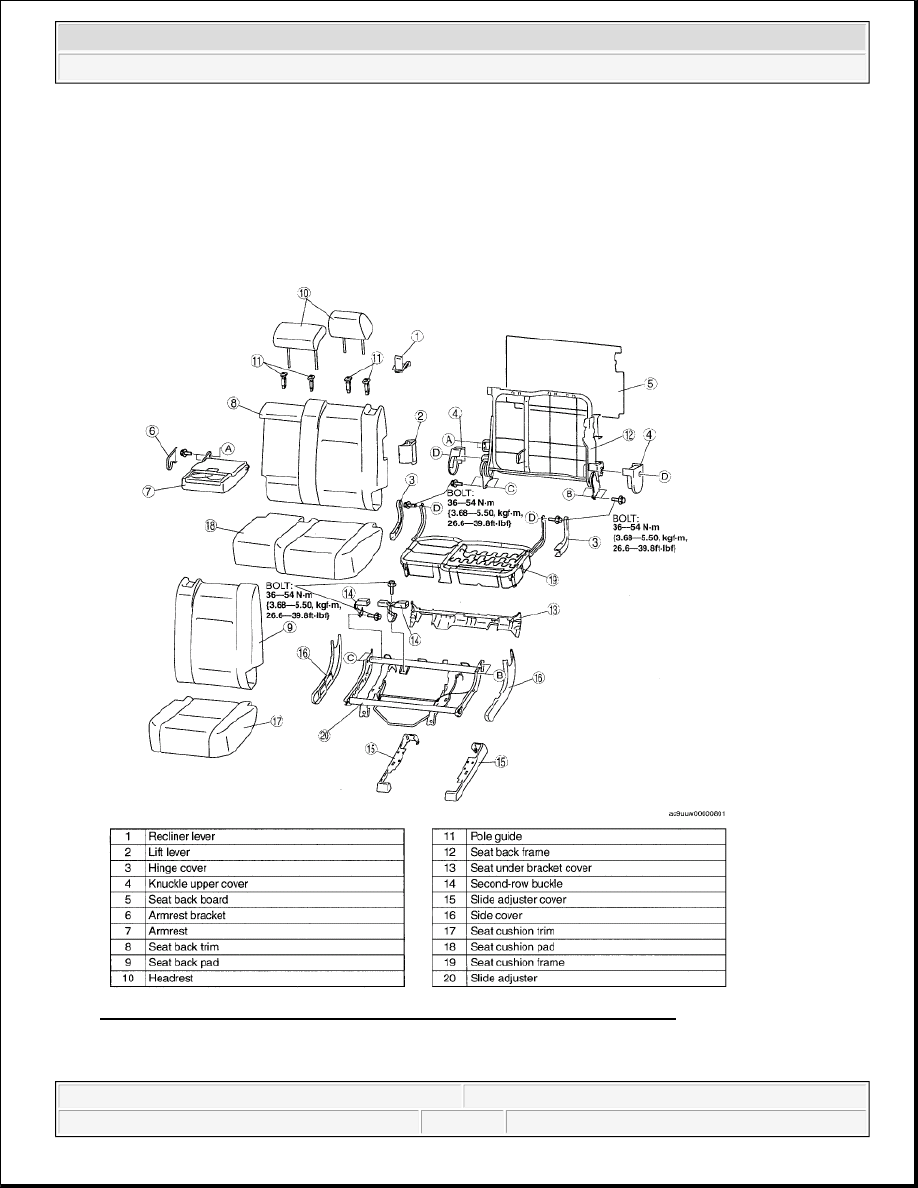

Fig. 38: Exploded View Of Second-Row Seat (RH) & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

LONG SLIDER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the second-row seat. (See SECOND-ROW SEAT REMOVAL/INSTALLATION.)

3. Remove in the order indicated in the table.
