Mazda CX-9 Grand Touring. Manual - part 569

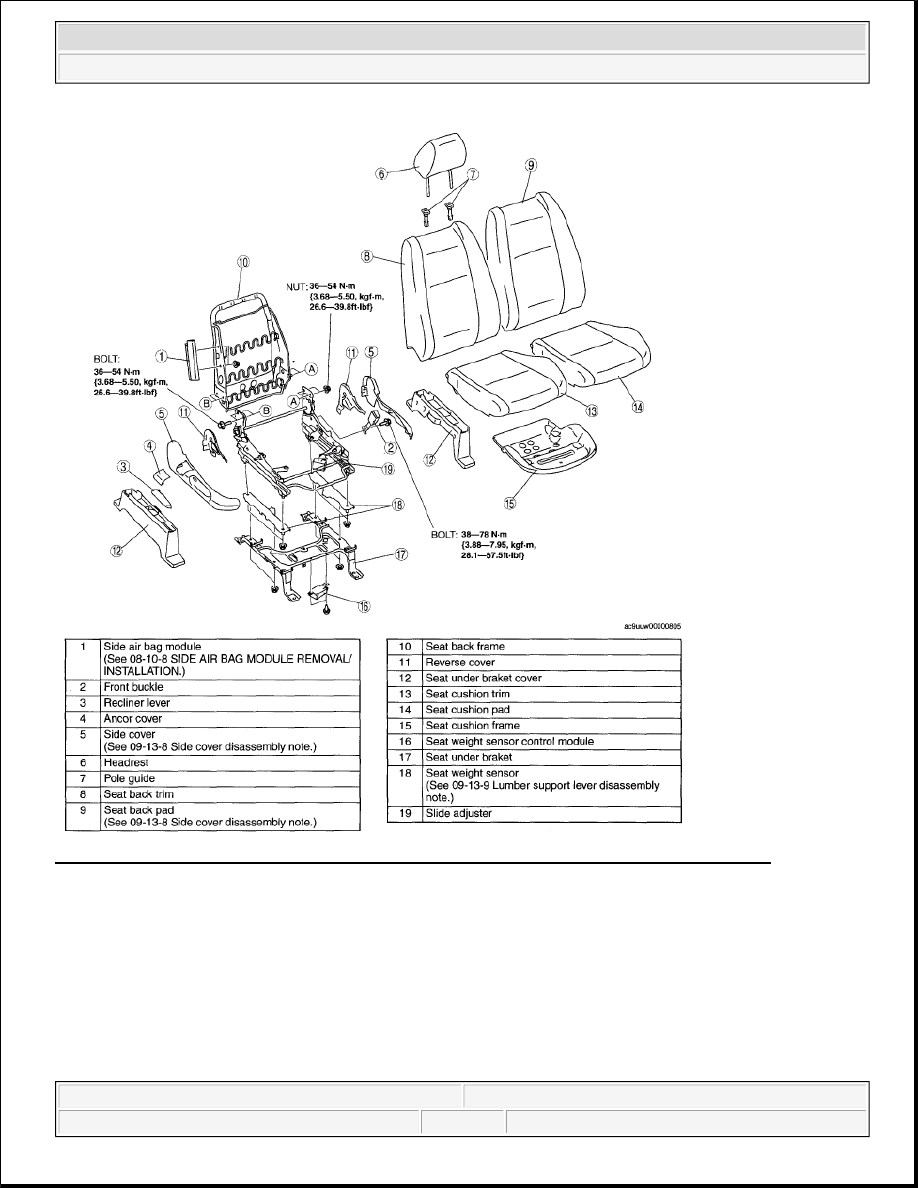

Fig. 7: Exploded View Of Front Seat - Passenger Seat (Manual Seat) & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

PASSENGER SEAT (POWER SEAT)

2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Seats - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:40:01 AM

Page 6

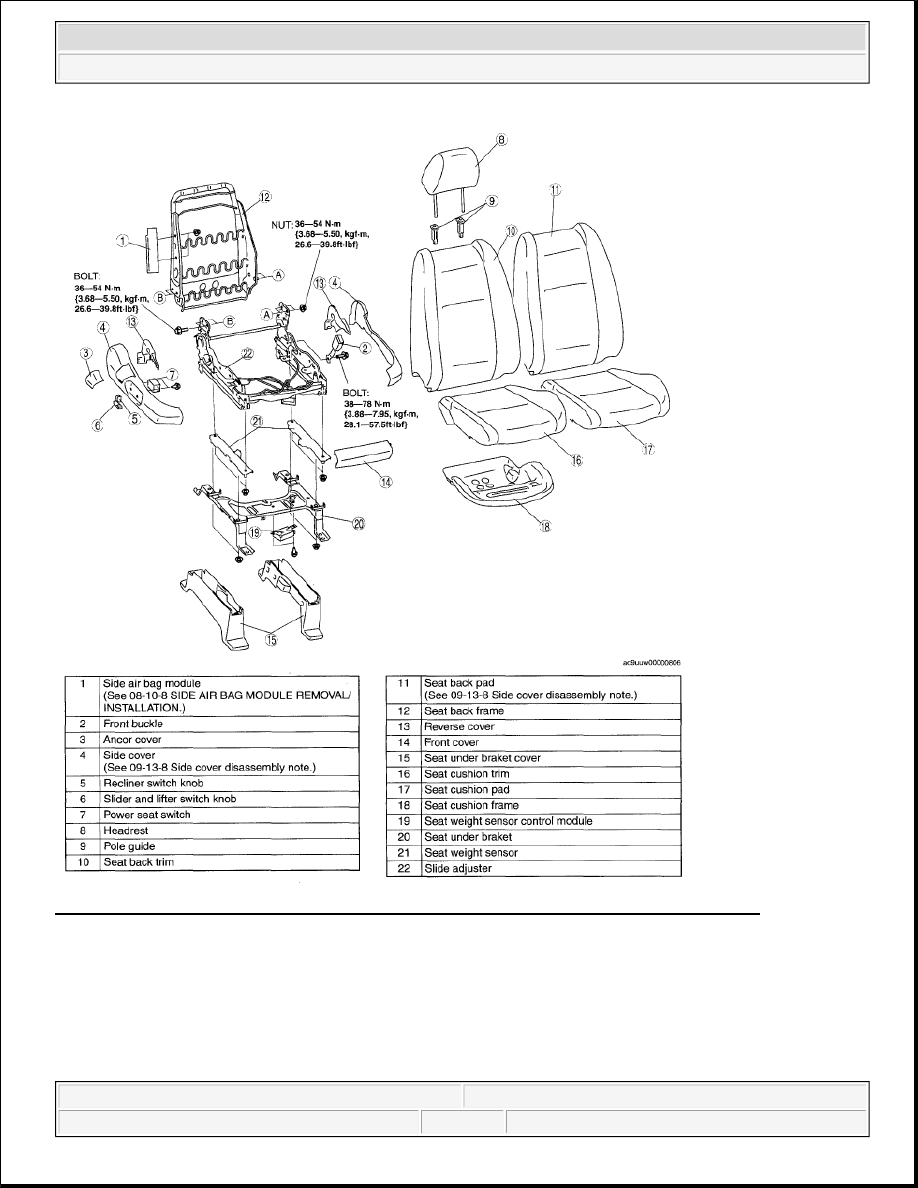

Fig. 8: Exploded View Of Front Seat - Passenger Seat (Power Seat) & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

SIDE COVER DISASSEMBLY NOTE

1. Pull the side cover outward and remove clip A.

2. Pull the side cover rearward and up at an angle, and remove tabs B and C.

2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Seats - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:40:01 AM

Page 7

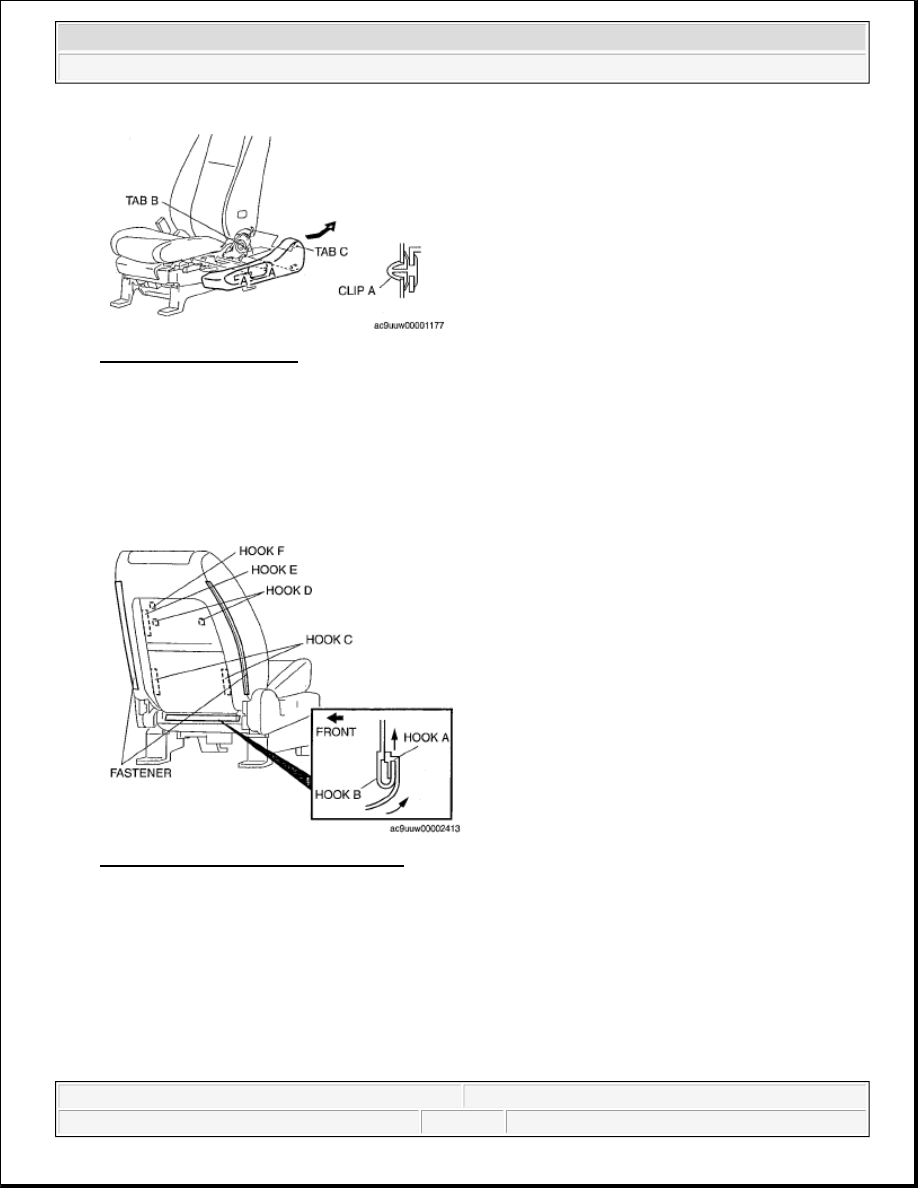

Fig. 9: Pulling Side Cover
Courtesy of MAZDA MOTORS CORP.

SEAT BACK PAD DISASSEMBLY NOTE

1. Remove the headrest.

2. Slide hook A upward and remove it from hook B.

3. Open the fastener.

Fig. 10: Identifying Fastener And Hook
Courtesy of MAZDA MOTORS CORP.

4. Insert a flathead screwdriver between hook C and the frame.

5. Pull the flathead screwdriver in the direction of the arrow as shown in the figure.

6. Remove the hook C.

7. Remove the hook D.

8. Remove the hook E.

2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Seats - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:40:01 AM

Page 8

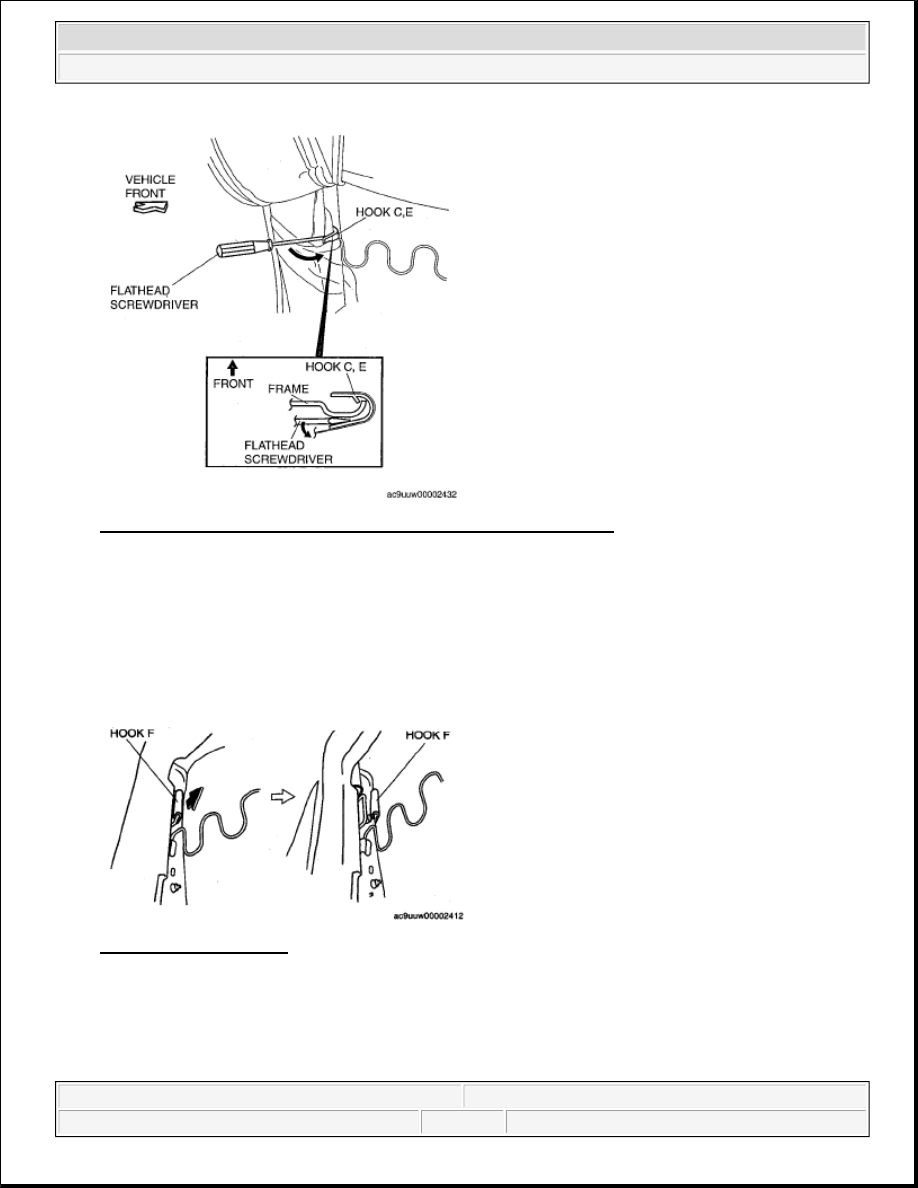

Fig. 11: Inserting Flathead Screwdriver Between Hook And Frame
Courtesy of MAZDA MOTORS CORP.

9. Remove the hook F.

10. Remove the pole guide.

11. Remove the C ring

12. Remove the seat back trim.

13. Remove the seat back pad.

Fig. 12: Removing Hook
Courtesy of MAZDA MOTORS CORP.

LUMBER SUPPORT LEVER DISASSEMBLY NOTE

1. Remove the pin from the lumber support lever installation part with rag.
