6. Jack up the rear suspension with unloaded condition.

7. Mark the rear upper arm and rear crossmember shown in the figure.

8. Remove the rear coil spring. (See REAR COIL SPRING REMOVAL/INSTALLATION.)

9. Remove in the order indicated in the table.

10. Install in the reverse order of removal.

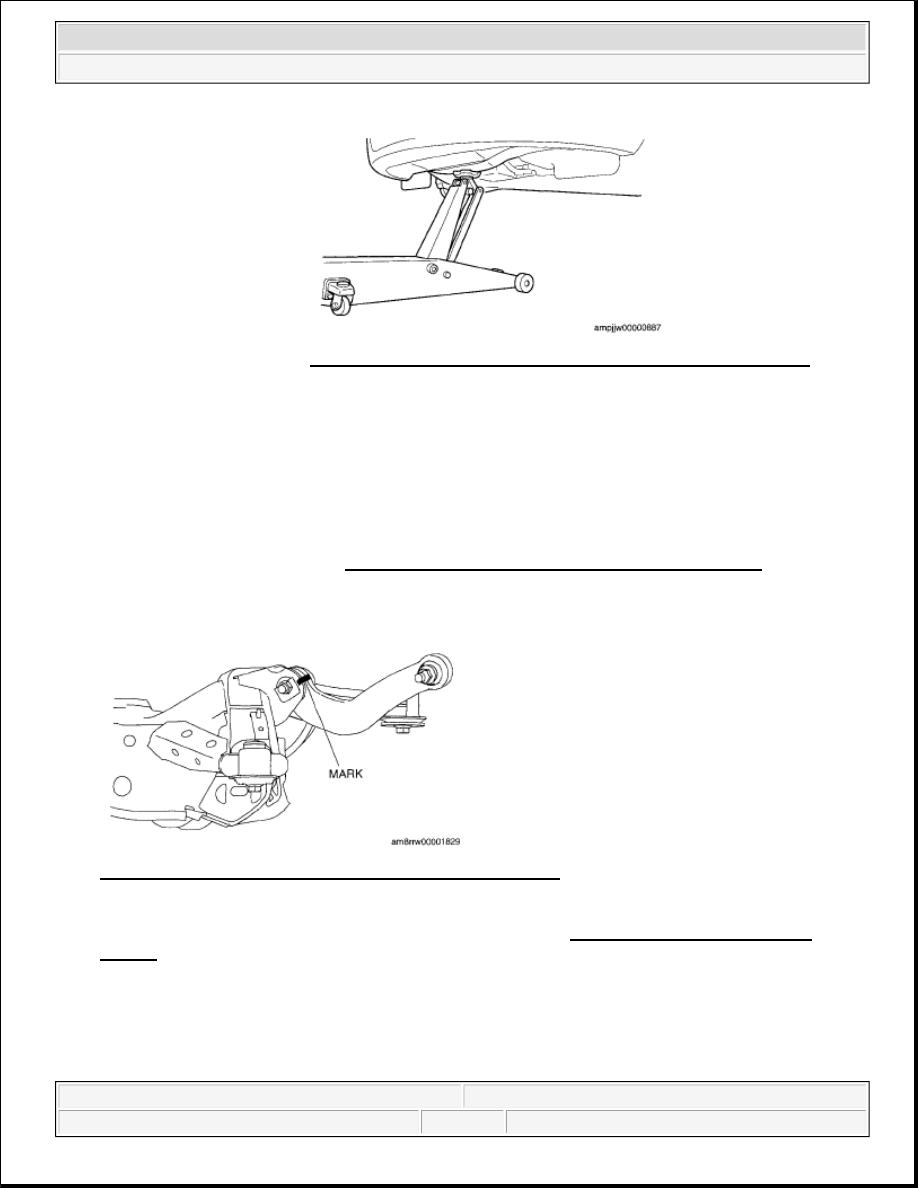

Fig. 22: Marking Rear Upper Arm And Rear Crossmember
Courtesy of MAZDA MOTORS CORP.

11. Inspect for rear wheel alignment, and adjust it as necessary. (See REAR WHEEL ALIGNMENT

[AWD] .)

Fig. 21: Supporting Jack Up Point For Front Crossmember
Courtesy of MAZDA MOTORS CORP.

NOTE:



Jacking up the rear suspension with unloaded condition will lighten
the force on the bushing and make it easier to perform the procedure.



2008 Mazda CX-9 Grand Touring

2008 SUSPENSION Rear Suspension - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:24:02 AM

Page 14

© 2005 Mitchell Repair Information Company, LLC.

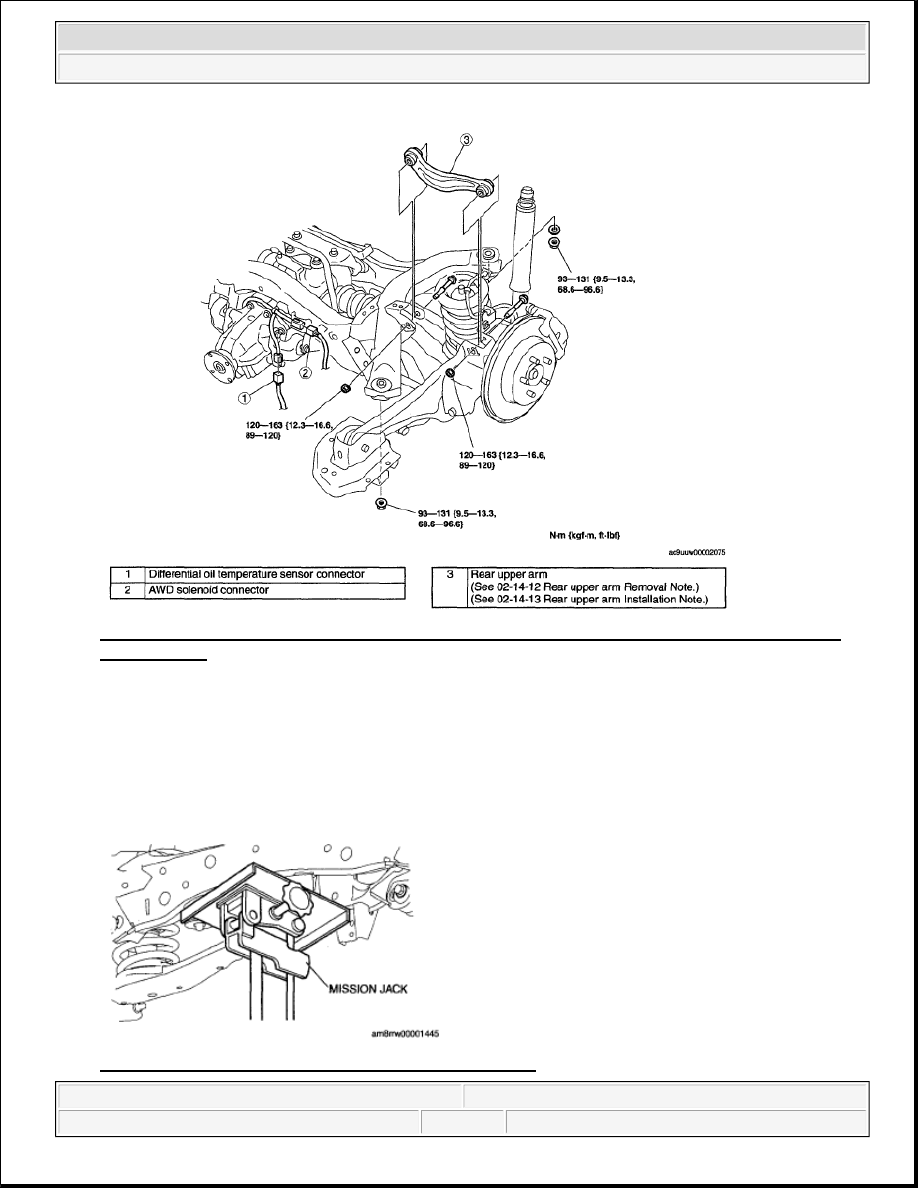

Fig. 23: Identifying Differential Oil Temperature Sensor Connector, Rear Upper Arm & Torque
Specifications
Courtesy of MAZDA MOTORS CORP.

REAR UPPER ARM REMOVAL NOTE

1. Remove the rear lateral link installation bolts.

2. Loosen the rear upper arm installation bolts.

3. Support the rear crossmember and differential component using a mission jack.

Fig. 24: Supporting Rear Crossmember And Differential



2008 Mazda CX-9 Grand Touring

2008 SUSPENSION Rear Suspension - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:24:02 AM

Page 15

© 2005 Mitchell Repair Information Company, LLC.

Courtesy of MAZDA MOTORS CORP.

4. Remove the crossmember bracket.

5. Loosen the rear crossmember installation nut, and lower the crossmember approx. 50 mm {2.0 in}.

6. Remove the rear upper arm.

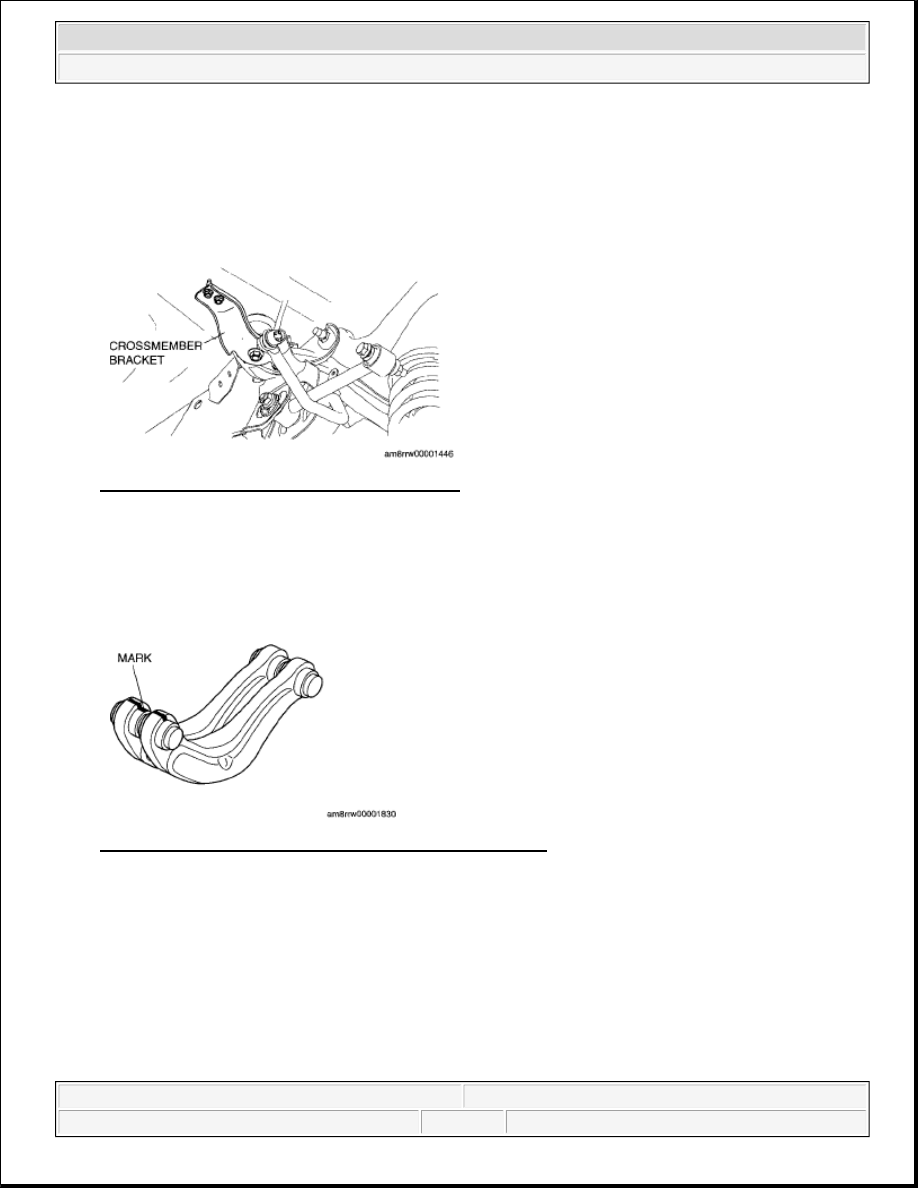

Fig. 25: Identifying Crossmember Bracket Nut
Courtesy of MAZDA MOTORS CORP.

REAR UPPER ARM INSTALLATION NOTE

1. Place the new rear upper arm together with the removed rear upper arm and place an alignment mark on

the new rear upper arm.

Fig. 26: Identifying Alignment Mark On Rear Upper Arm
Courtesy of MAZDA MOTORS CORP.

2. Point the 'IN' mark towards the inside of the vehicle, align the rear upper arm and rear crossmember

alignment marks, and install the rear upper arm.

3. Tighten the rear upper arm inner side bolt.

Tightening torque

120-163 N.m {12.3-16.6 kgf.m, 89-120 ft.lbf}



2008 Mazda CX-9 Grand Touring

2008 SUSPENSION Rear Suspension - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:24:02 AM

Page 16

© 2005 Mitchell Repair Information Company, LLC.

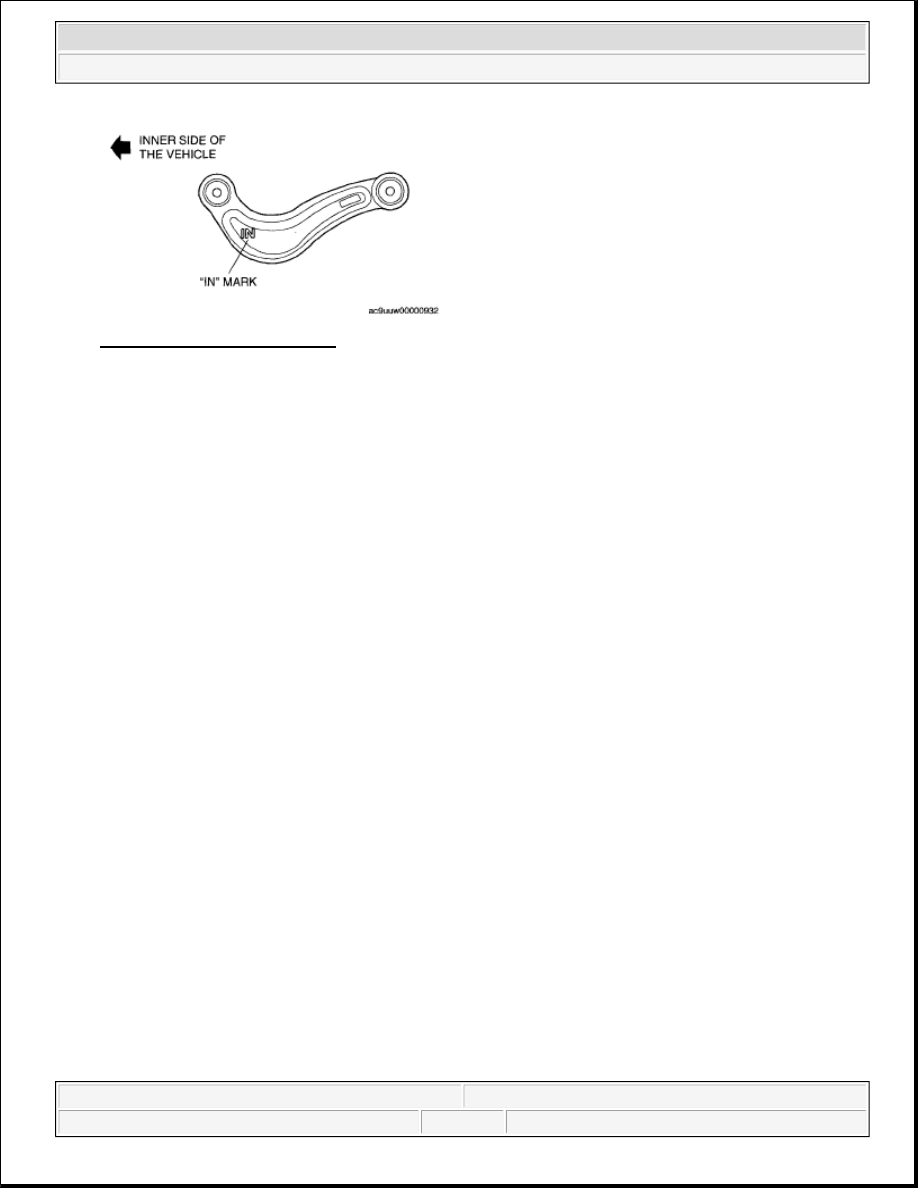

Fig. 27: Pointing Of 'IN' Mark
Courtesy of MAZDA MOTORS CORP.

4. Install the rear crossmember component.

Tightening torque

Rear crossmember installation nut: 93-131

N.m {9.5-13.3 kgf m, 68.6-96.6 ft.lbf}

Crossmember bracket installation bolt: 18.6-25.5 N.m {1.90-26.0 kgf.m, 13.8-18.8 ft.lbf}

Crossmember bracket installation nut: 18.6-25.5 N.m {1.90-26.0 kgf.m, 13.8-18.8 ft.lbf}

REAR LATERAL LINK REMOVAL/INSTALLATION

1. Mark the adjusting cam bolt and cam plate of the rear lateral link.

2. Jack up the rear suspension with unloaded condition.

3. Remove the rear lateral link.
