Mazda CX-9 Grand Touring. Manual - part 549

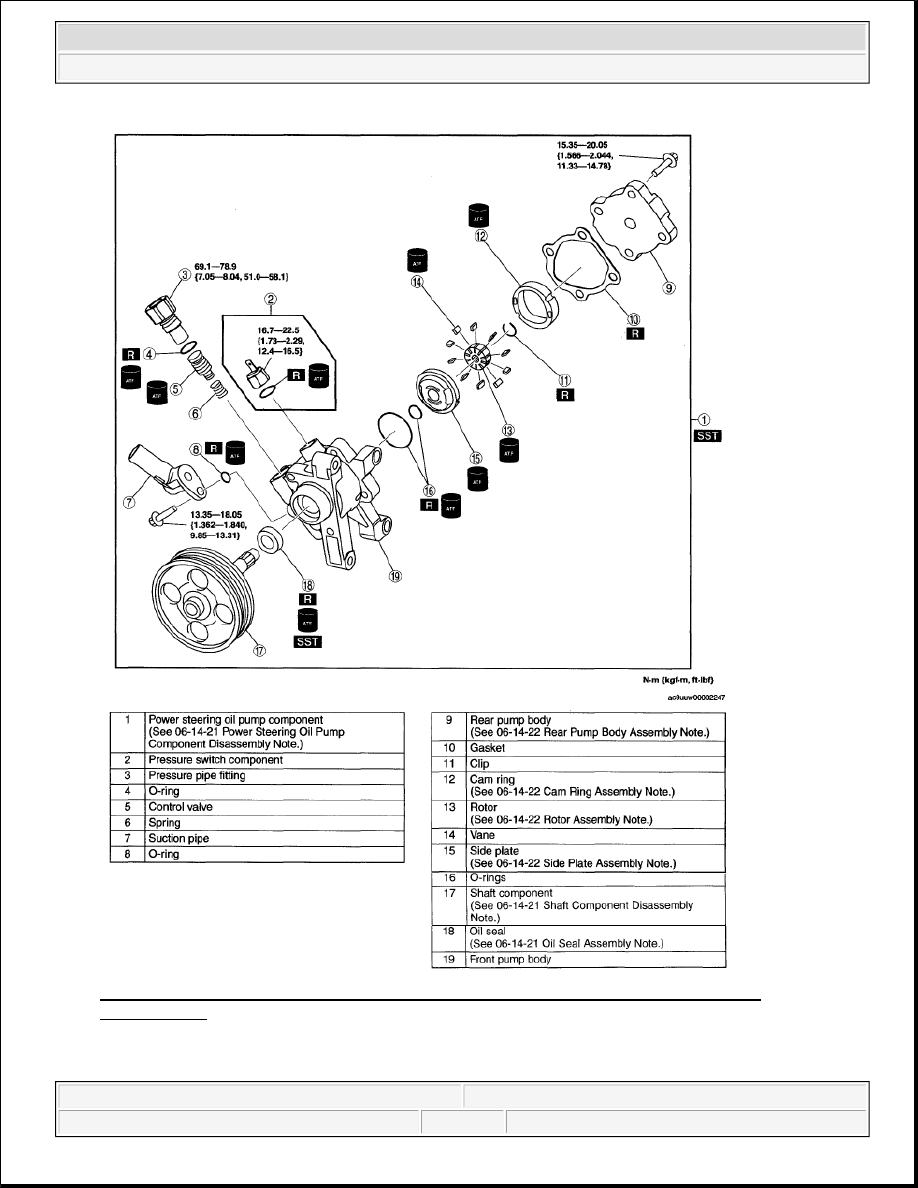

Fig. 42: Identifying Power Steering Oil Pump Disassembly/Assembly Order & Torque
Specifications

Courtesy of MAZDA MOTORS CORP.

POWER STEERING OIL PUMP COMPONENT DISASSEMBLY NOTE



2008 Mazda CX-9 Grand Touring

2008 STEERING Power Steering - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:20:35 AM

Page 30

© 2005 Mitchell Repair Information Company, LLC.

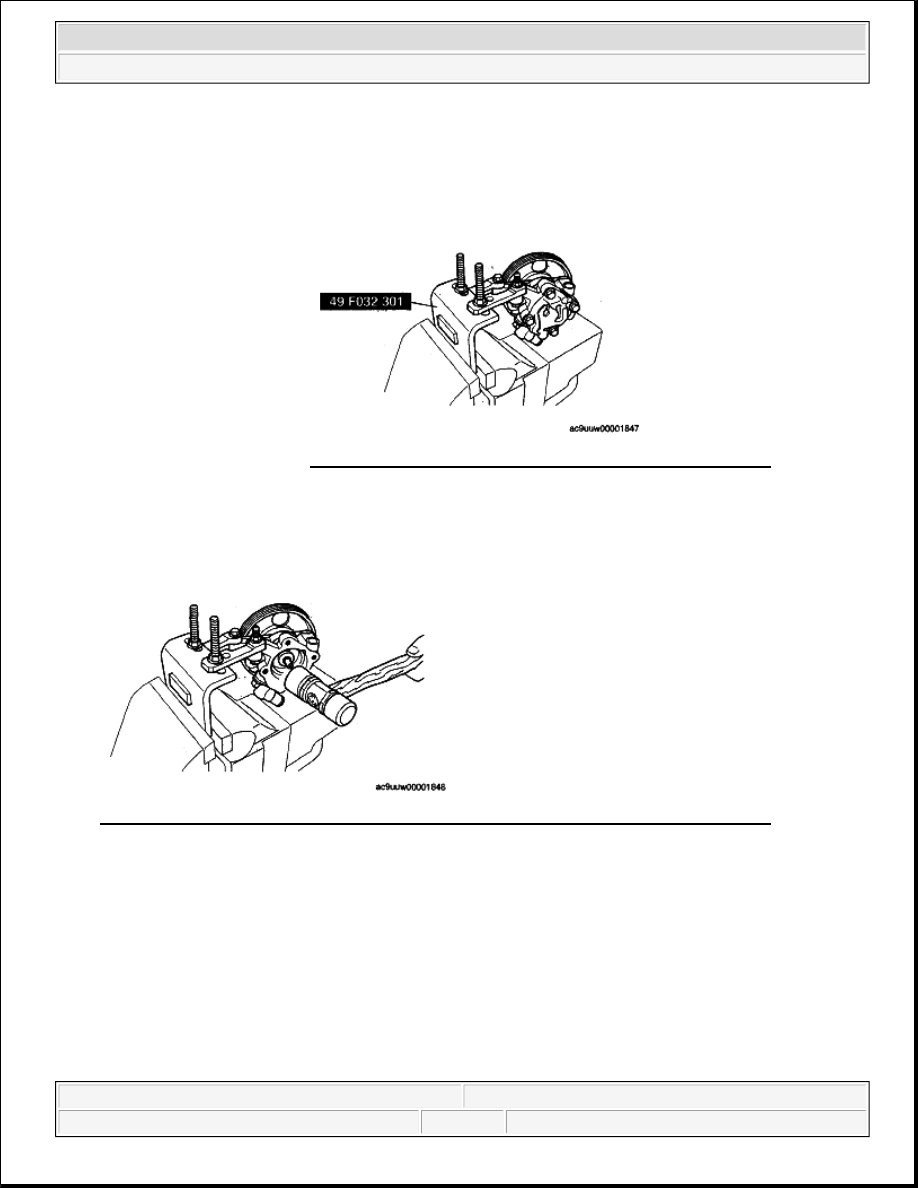

1. Secure the power steering oil pump using the SST.

SHAFT COMPONENT DISASSEMBLY NOTE

1. Tap out the shaft component from the front pump body using a plastic hammer.

Fig. 44: Tapping Out Shaft Component From Front Pump Body Using Plastic Hammer
Courtesy of MAZDA MOTORS CORP.

OIL SEAL ASSEMBLY NOTE

1. Install the oil seal in the front pump body using the SST and plastic hammer.

CAUTION:

Use the SST to prevent damage to the pump when securing it in
a vise.

Fig. 43: Securing Power Steering Oil Pump Using SST
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 STEERING Power Steering - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:20:35 AM

Page 31

© 2005 Mitchell Repair Information Company, LLC.

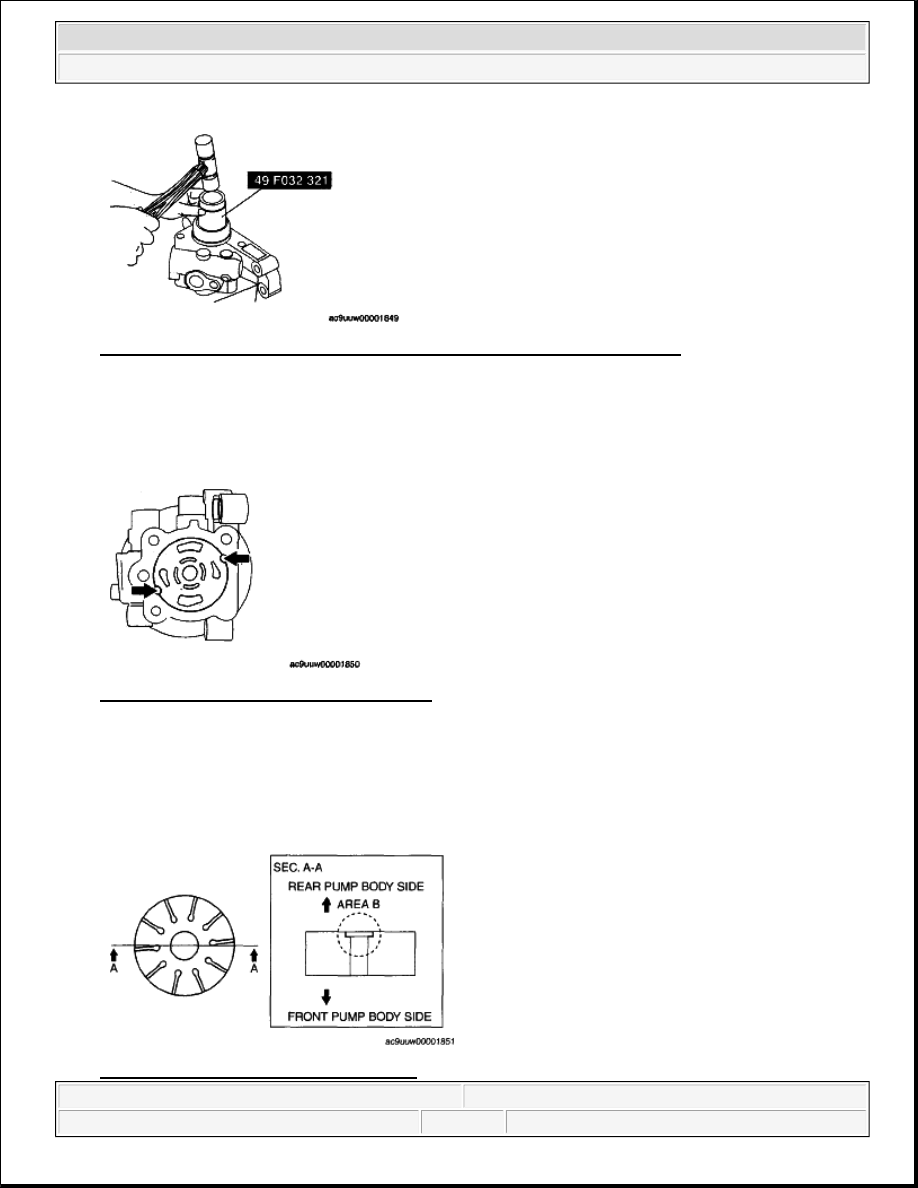

Fig. 45: Installing Oil Seal In Front Pump Body Using And Plastic Hammer
Courtesy of MAZDA MOTORS CORP.

SIDE PLATE ASSEMBLY NOTE

1. Install the side plate in the position shown in the figure.

Fig. 46: Locating Side Plate Install Position
Courtesy of MAZDA MOTORS CORP.

ROTOR ASSEMBLY NOTE

1. Install to the front pump body so that area B of the groove is on the rear pump body side as shown in the

figure.

Fig. 47: Identifying Rotor Assembly Note



2008 Mazda CX-9 Grand Touring

2008 STEERING Power Steering - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:20:35 AM

Page 32

© 2005 Mitchell Repair Information Company, LLC.

Courtesy of MAZDA MOTORS CORP.

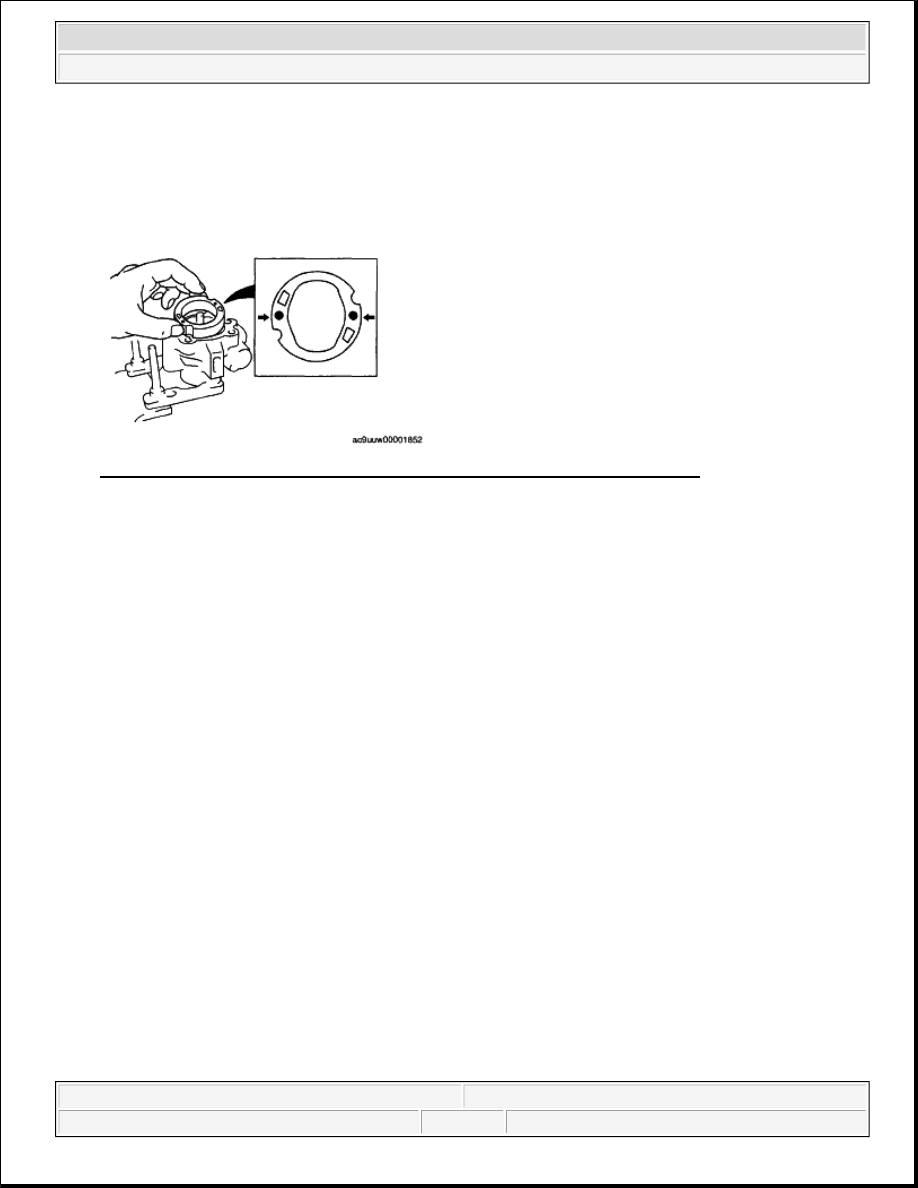

CAM RING ASSEMBLY NOTE

1. Install the cam ring in the front pump body with the mark facing upward.

Fig. 48: Installing Cam Ring In Front Pump Body With Mark Facing Upward
Courtesy of MAZDA MOTORS CORP.

REAR PUMP BODY ASSEMBLY NOTE

1. After installing the rear body, manually turn the shaft to verify that it rotates smoothly.



2008 Mazda CX-9 Grand Touring

2008 STEERING Power Steering - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:20:35 AM

Page 33

© 2005 Mitchell Repair Information Company, LLC.
