Mazda CX-9 Grand Touring. Manual - part 548

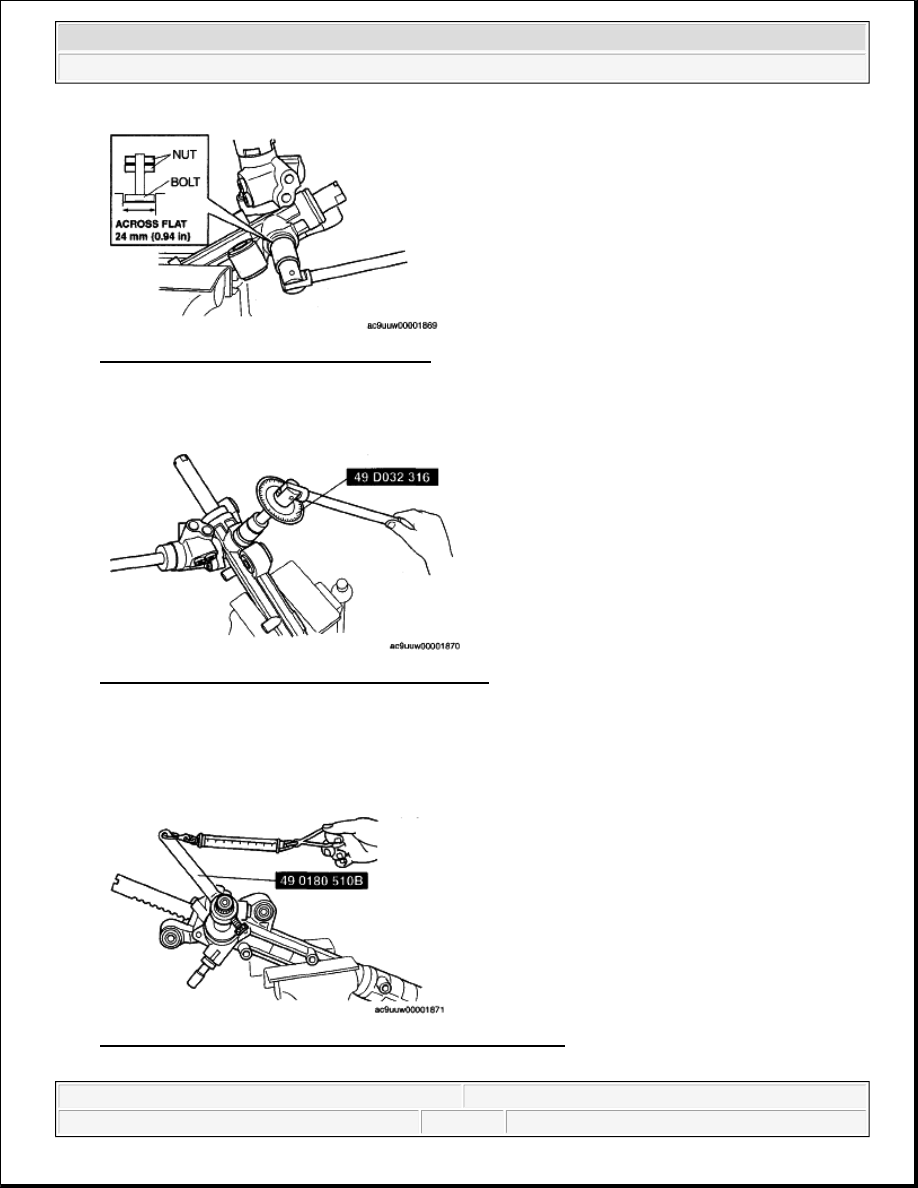

Fig. 36: Installing Nuts To Bolt Across Flat
Courtesy of MAZDA MOTORS CORP.

7. Loosen the adjusting cover 63° using the SST.

Fig. 37: Loosening Adjusting Cover 63° Using SST
Courtesy of MAZDA MOTORS CORP.

8. Hold the adjusting cover so as not to rotate and tighten the locknut.

Tightening torque 40.0-58.0 N.m {4.08-5.91 kgf.m, 29.5-42.7 ft.lbf}

Fig. 38: Measuring Pinion Torque Using SST And Pull Scale
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 STEERING Power Steering - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:20:35 AM

Page 26

© 2005 Mitchell Repair Information Company, LLC.

9. Measure the pinion torque using the SST and pull scale. (Measurement speed: 0.5-2.0 rpm)

Pinion shaft rotation torque

Center of rack ± 90°: 1.0-1.6 N.m {1-16 kgf.cm, 8.9-14 in.lbf}

[Pull scale reading: 9-13 N {1.0-1.3 kgf, 2.1-2.9 lbf}]

Except center of rack ± 90°: Less than 1.68 N.m {17.1 kgf.cm, 14.8 in.lbf}

[Pull scale reading: Less than 13.8 N {1.4 kgf, 3.1 lbf}]

10. If not within the specification, repeat Step 4 to 9.

LOCK WASHER, TIE ROD ASSEMBLY NOTE

1. Temporary assemble the lock washer and the tie rod to the steering rack.

2. Lock the steering rack end against rotation with a wrench and assemble the tie rod.

3. Clamp the lock washer.

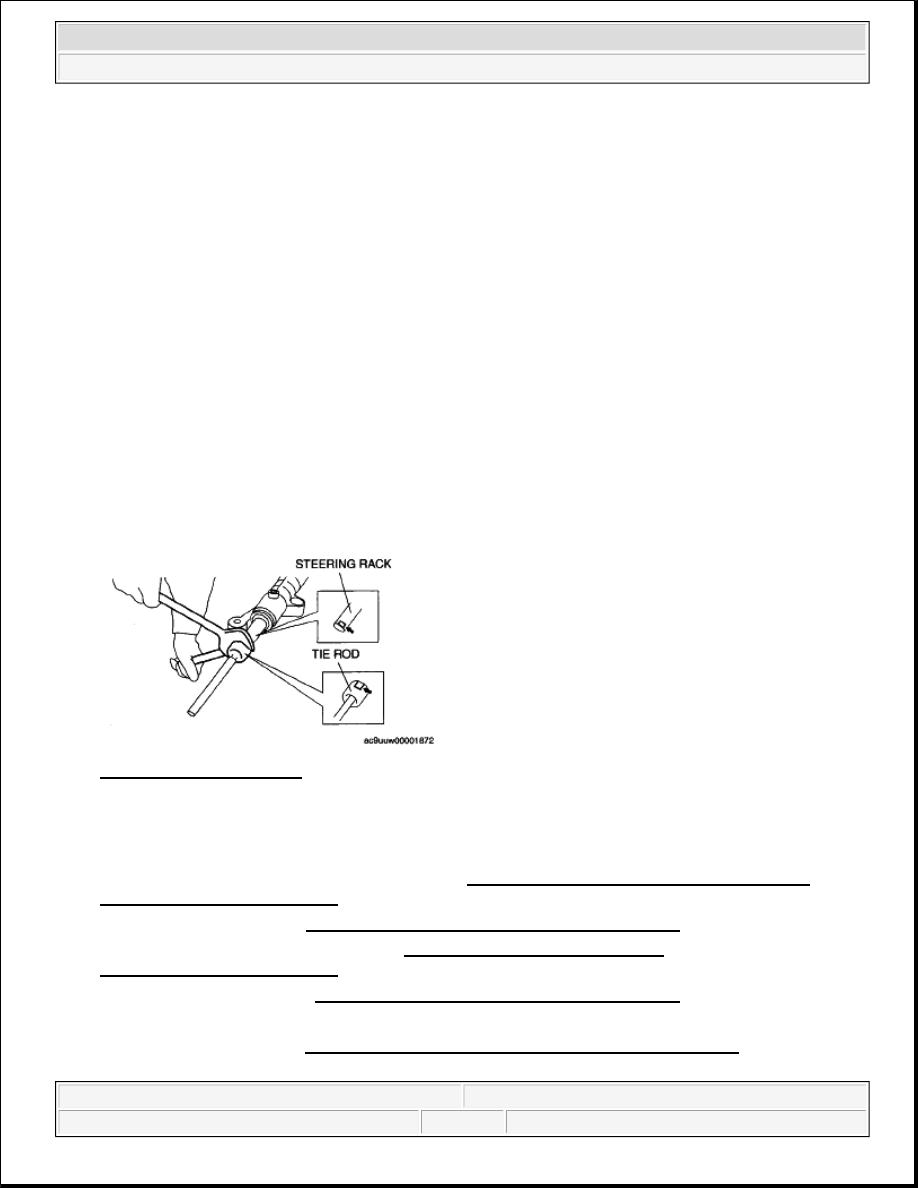

Fig. 39: Installing Tie Rod
Courtesy of MAZDA MOTORS CORP.

POWER STEERING OIL PUMP REMOVAL/INSTALLATION

1. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE

REMOVAL/INSTALLATION .)

2. Remove the cowl grill. (See COWL GRILLE REMOVAL/INSTALLATION .)

3. Remove the windshield wiper motor (See WINDSHIELD WIPER MOTOR

REMOVAL/INSTALLATION .)

4. Remove the cowl panel. (See COWL PANEL REMOVAL/INSTALLATION .)

5. Remove the right side splashing shield.

6. Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [MZI-3.7] .)

7. Remove in the order indicated in the table.



2008 Mazda CX-9 Grand Touring

2008 STEERING Power Steering - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:20:35 AM

Page 27

© 2005 Mitchell Repair Information Company, LLC.

8. Install in the reserve order of removal.

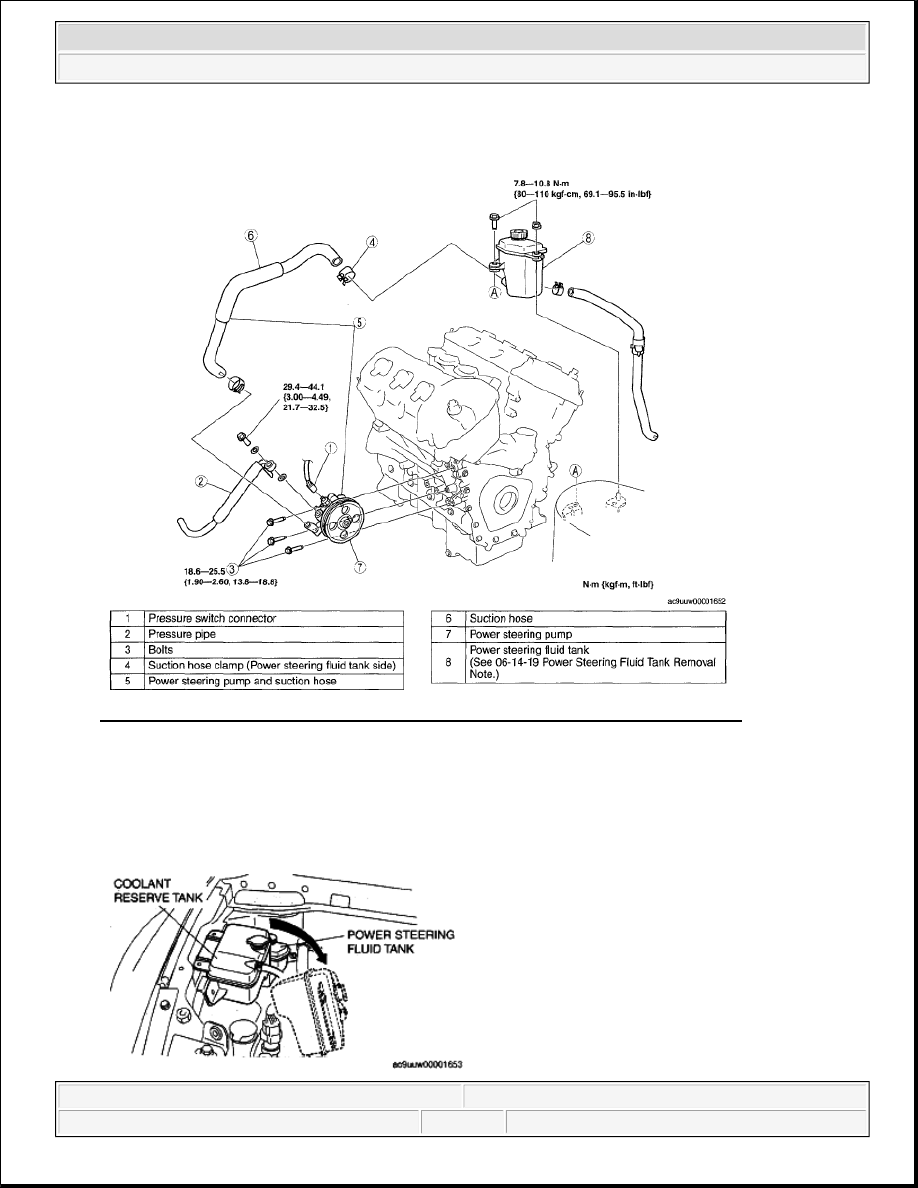

Fig. 40: Identifying Power Steering Oil Pump Components & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

POWER STEERING FLUID TANK REMOVAL NOTE

1. Remove the coolant reserve tank with the hose still connected, and position the coolant reserve tank out

of the way.



2008 Mazda CX-9 Grand Touring

2008 STEERING Power Steering - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:20:35 AM

Page 28

© 2005 Mitchell Repair Information Company, LLC.

Fig. 41: Identifying Power Steering Fluid Tank
Courtesy of MAZDA MOTORS CORP.

POWER STEERING OIL PUMP DISASSEMBLY/ASSEMBLY

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.

NOTE:



The following procedure is for replacement of the O-ring and oil seal only.
Replace the pump component if other repairs are necessary.
