Mazda CX-9 Grand Touring. Manual - part 534





DIAGNOSTIC PROCEDURE

DTC B241A - DIAGNOSTIC PROCEDURE

CONDITION

more.

POSSIBLE CAUSE

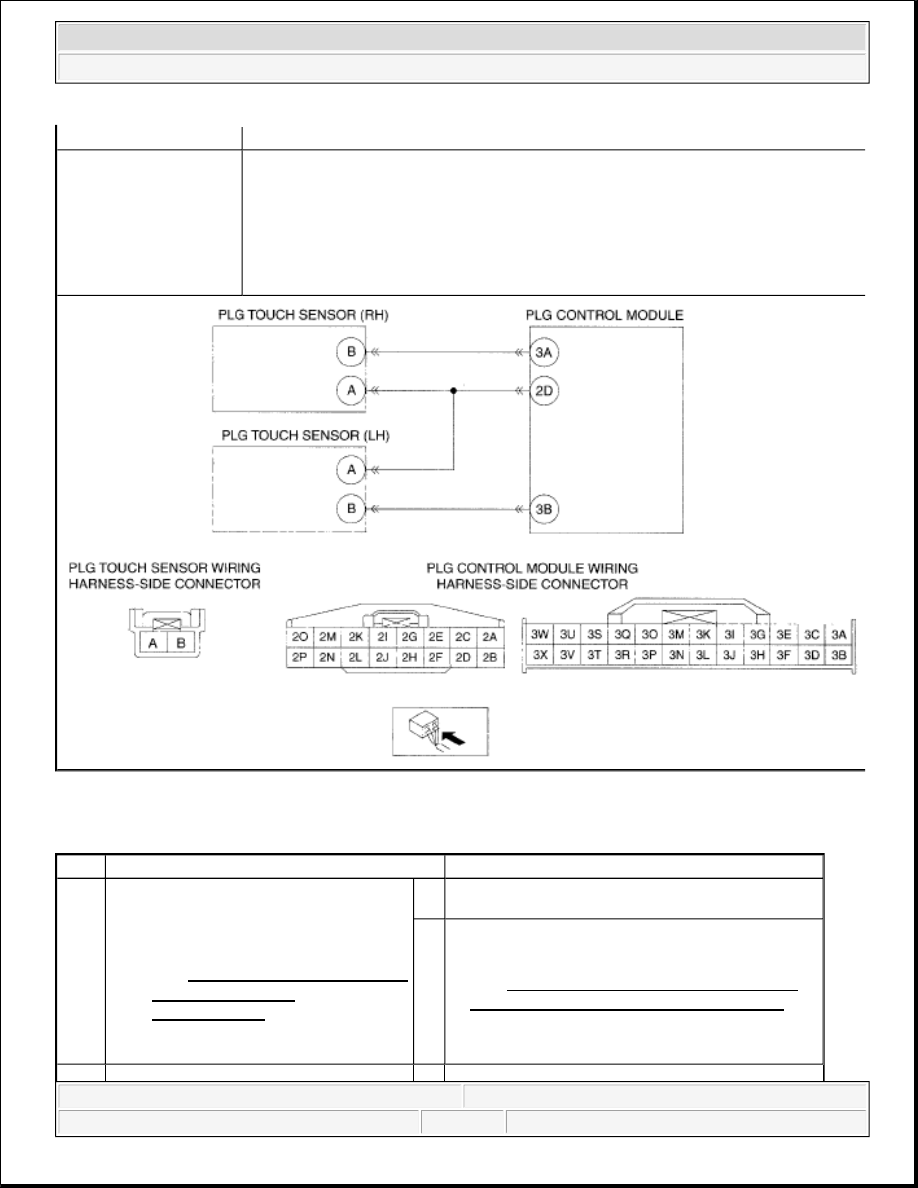

Short to GND in wiring harness between PLG control module terminal 3A and
PLG touch sensor (RH) terminal B

Short to GND in wiring harness between PLG control module terminal 3B and
PLG touch sensor (LH) terminal B

PLG touch sensor malfunction

PLG control module malfunction

STEP

INSPECTION

ACTION

1

INSPECT PLG TOUCH SENSOR

Inspect the PLG touch sensor.

(See POWER LIFTGATE (PLG)
TOUCH SENSOR
INSPECTION
 .)

Is the touch sensor normal?

Yes Go to the next step.

No

Replace the PLG touch sensor.

(See POWER LIFTGATE (PLG) TOUCH

SENSOR REMOVAL/INSTALLATION .)

Go to Step 3.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES On-Board Diagnostic (Power Liftgate (PLG) System) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:46:08 AM

Page 12

© 2005 Mitchell Repair Information Company, LLC.

DTC B266A [POWER LIFTGATE (PLG) SYSTEM]

DTC B266A - DETECTION CONDITION POSSIBLE CAUSE CHART

2

INSPECT THE FOLLOWING
WIRING HARNESSES


Disconnect the PLG control module
connector.

Disconnect the PLG touch sensor
connector.

Inspect for a short circuit to ground
system between the following
wiring harnesses:

PLG control module terminal
3A and PLG touch sensor
(RH) terminal B

PLG control module terminal
3B and PLG touch sensor
(LH) terminal B

Is the wiring harness normal?

Yes Go to the next step.

No

Repair or replace the wiring harness.

Go to the next step.

3

VERIFY CORRECTION
COMPLETED


Reconnect the disconnected
connector.

Clear the DTC.

Is DTC B241A stored after 5 min
or more
 have elapsed?

Yes

Replace the PLG control module.
(See POWER LIFTGATE (PLG) CONTROL
MODULE REMOVAL/INSTALLATION
 .)

No

DTC troubleshooting completed.

DTC B266A

Rotation sensor circuit malfunction

DETECTION

CONDITION

A short circuit to ground in the PLG drive unit (rotation sensor) continues for 5 min
or more.

POSSIBLE CAUSE

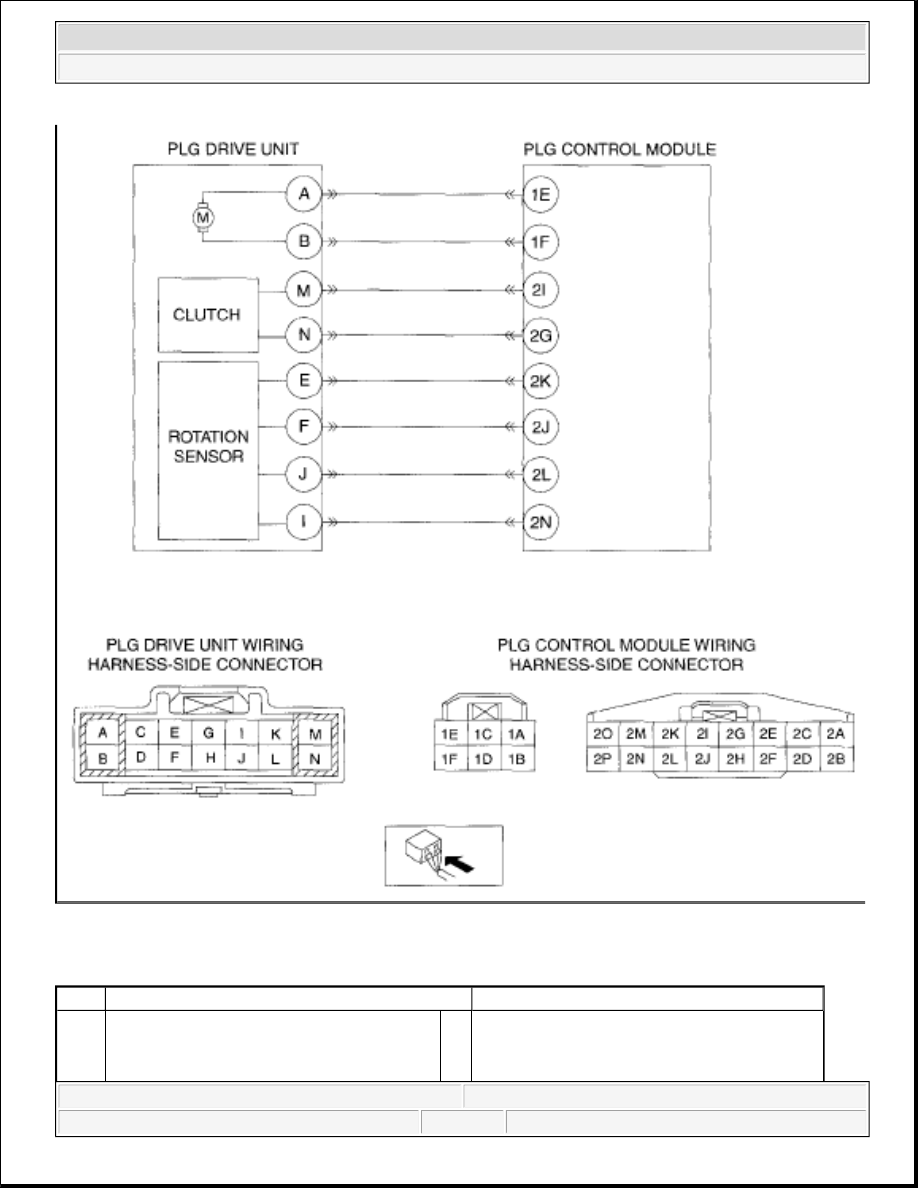

Short to GND in wiring harness between PLG control module terminal 2K and
PLG drive unit terminal E

Rotation sensor malfunction

PLG control module malfunction



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES On-Board Diagnostic (Power Liftgate (PLG) System) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:46:08 AM

Page 13

© 2005 Mitchell Repair Information Company, LLC.

DIAGNOSTIC PROCEDURE

DTC B266A - DIAGNOSTIC PROCEDURE

STEP

INSPECTION

ACTION

INSPECT WIRING HARNESS
BETWEEN PLG CONTROL UNIT AND
PLG DRIVE UNIT


Replace the PLG drive unit.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES On-Board Diagnostic (Power Liftgate (PLG) System) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:46:08 AM

Page 14

© 2005 Mitchell Repair Information Company, LLC.

DTC B266B [POWER LIFTGATE (PLG) SYSTEM]

DTC B266B - DETECTION CONDITION POSSIBLE CAUSE CHART

1

Disconnect the PLG control module
connector.

Disconnect the PLG drive unit
connector.

Inspect the wiring harness between
PLG control module terminal 2K and
PLG drive unit terminal E for a short
circuit to ground system.

Yes

(See POWER LIFTGATE (PLG) DRIVE
UNIT REMOVAL/INSTALLATION
 .)
Go to the next step.

No

Repair or replace the wiring harness.

Go to the next step.

2

VERIFY CORRECTION COMPLETED

Reconnect the disconnected connector.

Clear the DTC.

Is DTC B266A stored after 5 min or
more
 have elapsed?

Yes

Replace the PLG control module.
(See POWER LIFTGATE (PLG)
CONTROL MODULE
REMOVAL/INSTALLATION
 .)

No

DTC troubleshooting completed.

DTC B266B

Rotation sensor A circuit malfunction

DETECTION

CONDITION

Rotation sensor A signal does not change

POSSIBLE

CAUSE

Open circuit in wiring harness between PLG control module terminal 2J and PLG
drive unit terminal F Short to power supply in wiring harness between PLG control
module terminal 2J and PLG drive unit terminal F

Short to GND in wiring harness between PLG control module terminal 2J and PLG
drive unit terminal F

Rotation sensor malfunction

PLG control module malfunction



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES On-Board Diagnostic (Power Liftgate (PLG) System) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:46:08 AM

Page 15

© 2005 Mitchell Repair Information Company, LLC.
