Mazda CX-9 Grand Touring. Manual - part 529





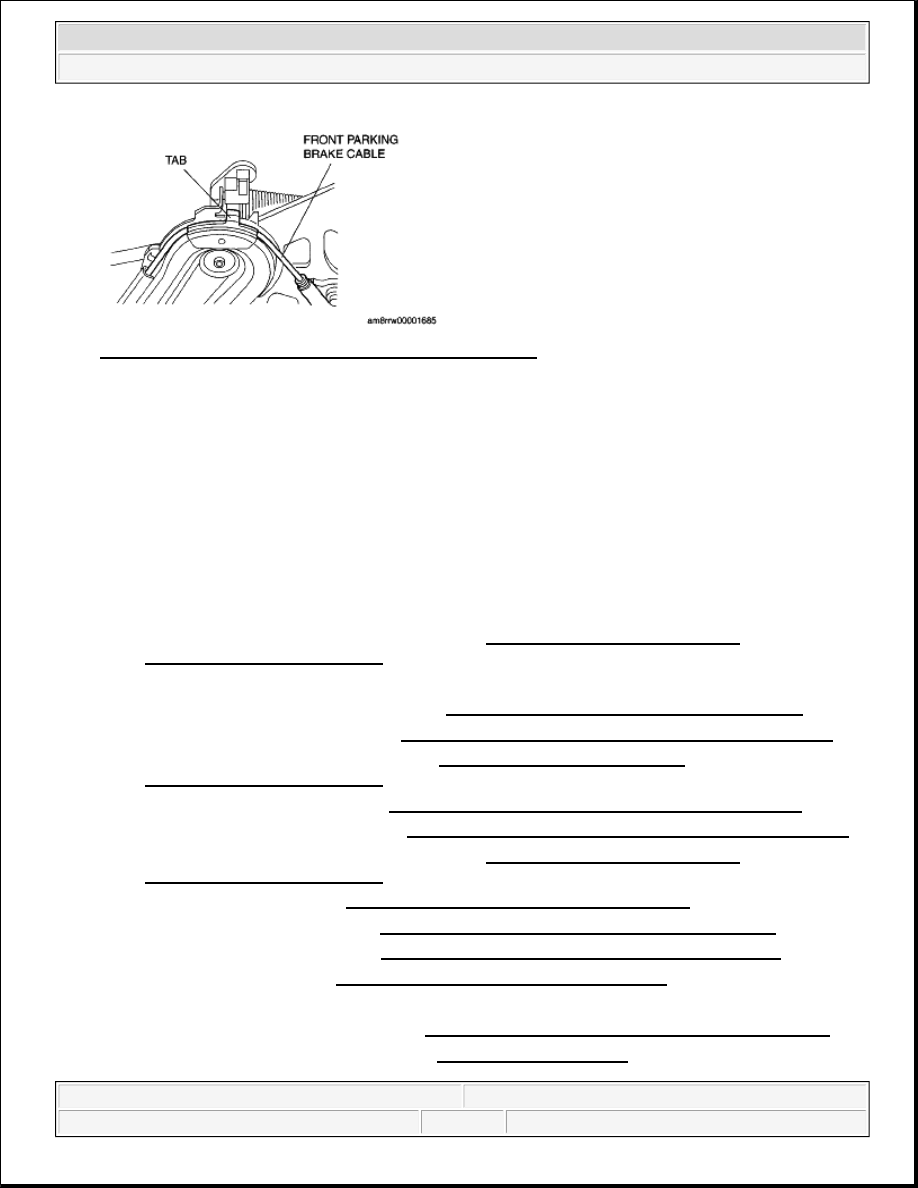

Fig. 14: Identifying Front Parking Brake Cable And Tab
Courtesy of MAZDA MOTORS CORP.

PARKING BRAKE REMOVAL/INSTALLATION [AWD]

1. Perform the following procedure and remove the parking brake pedal.

1. Remove the dashboard under cover (LH). (See DASHBOARD UNDER COVER

REMOVAL/INSTALLATION .)

2. Perform the following procedure and remove the front parking brake cable.

1. Remove the front seat (Driver side). (See FRONT SEAT REMOVAL/INSTALLATION .)

2. Remove the decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION .)

3. Remove the front console box mat. (See FRONT CONSOLE BOX MAT

REMOVAL/INSTALLATION .)

4. Remove the indicator panel. (See INDICATOR PANEL REMOVAL/INSTALLATION .)

5. Remove the front console box. (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)

6. Remove the dashboard under cover (LH). (See DASHBOARD UNDER COVER

REMOVAL/INSTALLATION .)

7. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION .)

8. Remove the console panel. (See CONSOLE PANEL REMOVAL/INSTALLATION .)

9. Remove the console cover. (See CONSOLE COVER REMOVAL/INSTALLATION .)

10. Remove the console. (See CONSOLE REMOVAL/INSTALLATION .)

11. Remove the dust cover.

12. Remove the front side trim (LH). (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)

13. Remove the front scuff plate (LH). (See FRONT SCUFF PLATE

REMOVAL/INSTALLATION .)

CAUTION:

Performing the following procedures without first removing the ABS
wheel-speed sensor may possibly cause an open circuit in the
harness if it is pulled by mistake. Before performing the following
procedures, remove the ABS wheel-speed sensor (axle side) and fix it
to an appropriate place where the sensor will not be pulled by
mistake while servicing the vehicle.



2008 Mazda CX-9 Grand Touring

2008 BRAKES Parking Brake System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:48:01 AM

Page 10

© 2005 Mitchell Repair Information Company, LLC.

14. Remove the fuel-filler lid release lever cover.

15. Turn the floor covering over until the front parking brake cable cover appears.

16. Remove the rear heat duct (LH). (See REAR HEAT DUCT COMPONENT

REMOVAL/INSTALLATION .)

17. Remove the under guard (LH). (See CHARCOAL CANISTER, CANISTER VENT (CV)

SOLENOID VALVE, AIR FILTER COMPONENT REMOVAL/INSTALLATION [MZI-
3.7]
 .)

3. Perform the following procedure and remove the rear parking brake cable.

1. Remove the under guard. (See CHARCOAL CANISTER, CANISTER VENT (CV)

SOLENOID VALVE, AIR FILTER COMPONENT REMOVAL/INSTALLATION [MZI-
3.7]
 .)

4. Perform the following procedure and remove the parking brake plate, back plate and wheel hub.

1. Remove the rear ABS wheel-speed sensor from the trailing link. (See REAR ABS WHEEL-

SPEED SENSOR REMOVAL/INSTALLATION [AWD] .)

2. Remove the rear lateral link. (See REAR LATERAL LINK REMOVAL/INSTALLATION .)

3. Remove the rear coil spring. (See REAR COIL SPRING REMOVAL/INSTALLATION .)

4. Remove the trailing link component. (See REAR TRAILING LINK

REMOVAL/INSTALLATION [AWD] .)

5. Remove in the order indicated in the table.

6. Install in the reverse order of removal.

7. Adjust the parking brake stroke. (See PARKING BRAKE ADJUSTMENT.)

8. Inspect the rear wheel alignment. (See REAR WHEEL ALIGNMENT [AWD] .)



2008 Mazda CX-9 Grand Touring

2008 BRAKES Parking Brake System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:48:01 AM

Page 11

© 2005 Mitchell Repair Information Company, LLC.

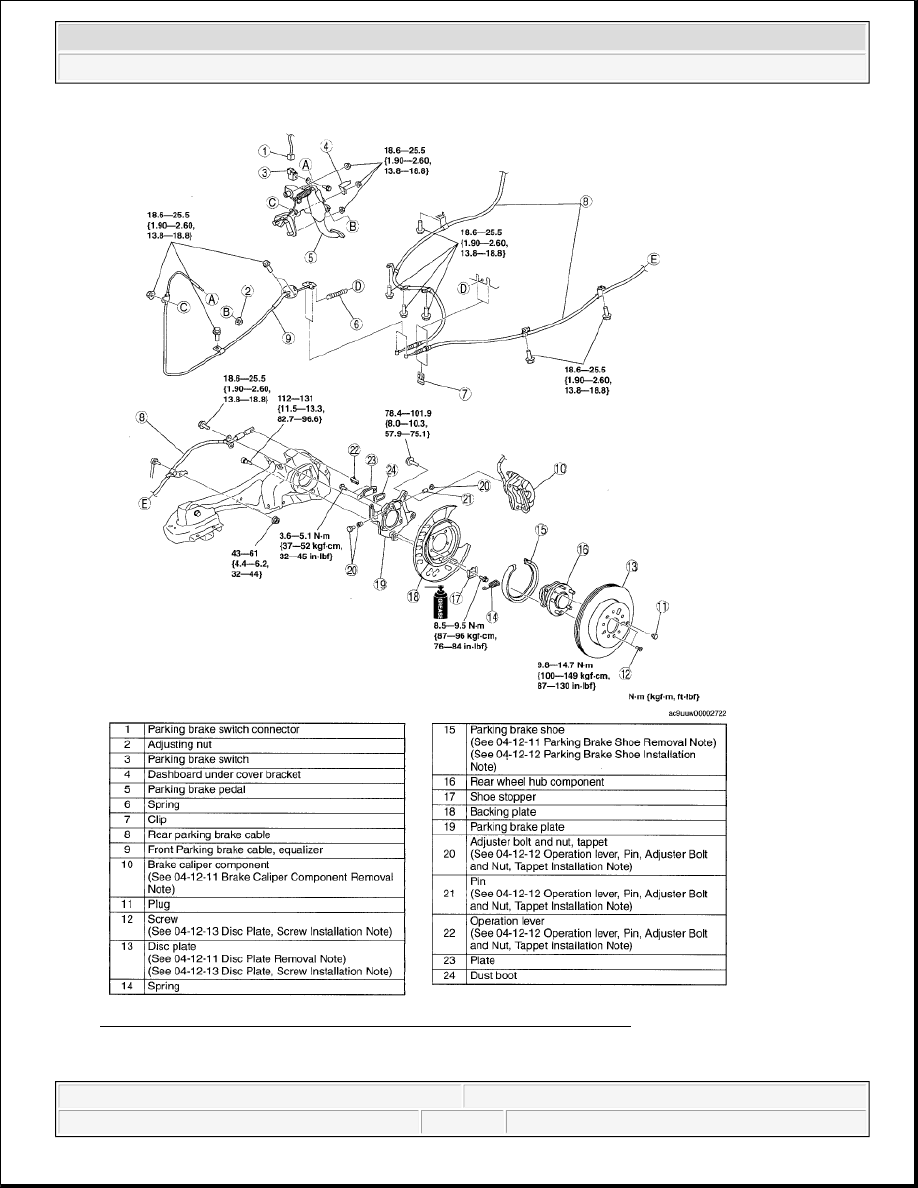

Fig. 15: Exploded View Of Parking Brake With Torque Specification
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 BRAKES Parking Brake System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:48:01 AM

Page 12

© 2005 Mitchell Repair Information Company, LLC.

BRAKE CALIPER COMPONENT REMOVAL NOTE

1. Remove the brake caliper assembly from the trailing link and suspend it with a cable so it does not

interfere.

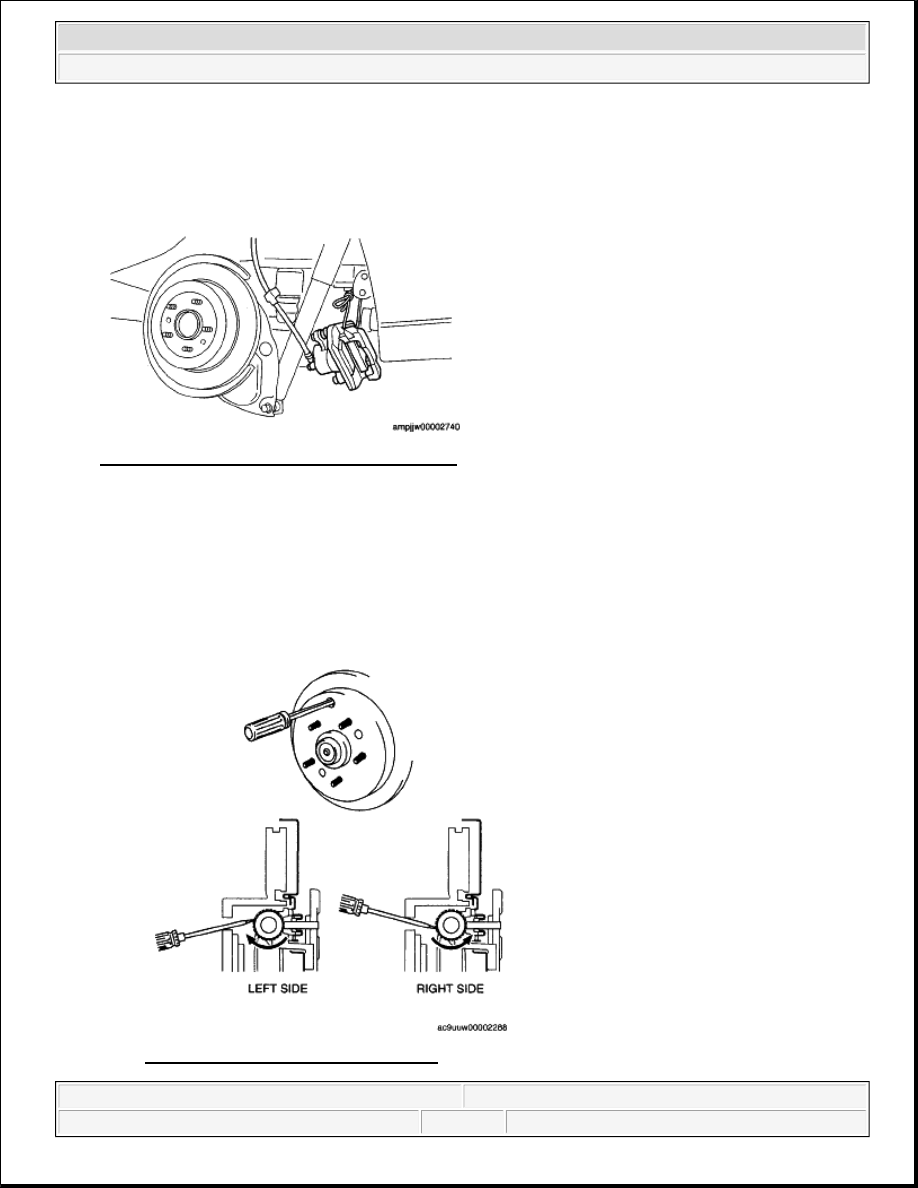

Fig. 16: Identifying Brake Caliper Component
Courtesy of MAZDA MOTORS CORP.

DISC PLATE REMOVAL NOTE

1. If any disc plate is difficult to remove, perform the following steps to remove it.

1. Insert a flathead screwdriver into the service hole and turn the adjuster in the direction of the arrow

to compress the parking brake shoe.

2. Remove the disc plate.

Fig. 17: Adjusting Disc Plate Adjuster
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 BRAKES Parking Brake System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:48:01 AM

Page 13

© 2005 Mitchell Repair Information Company, LLC.
