REFERENCE INFORMATION [CAR-NAVIGATION SYSTEM]

STARTING PROCEDURE FOR DIAGNOSTIC FUNCTION

1. Turn the ignition switch to the ON position.

2. Press the MENU button.

3. Select "Navigation Set Up".

4. Select "Calibration".

5. Select "Map Version".

6. Press the upper left part of the screen 2 times, then press the lower left part 2 times.

7. Perform the following procedures according to the purpose of the item checked.

Vehicle status signal inspection:

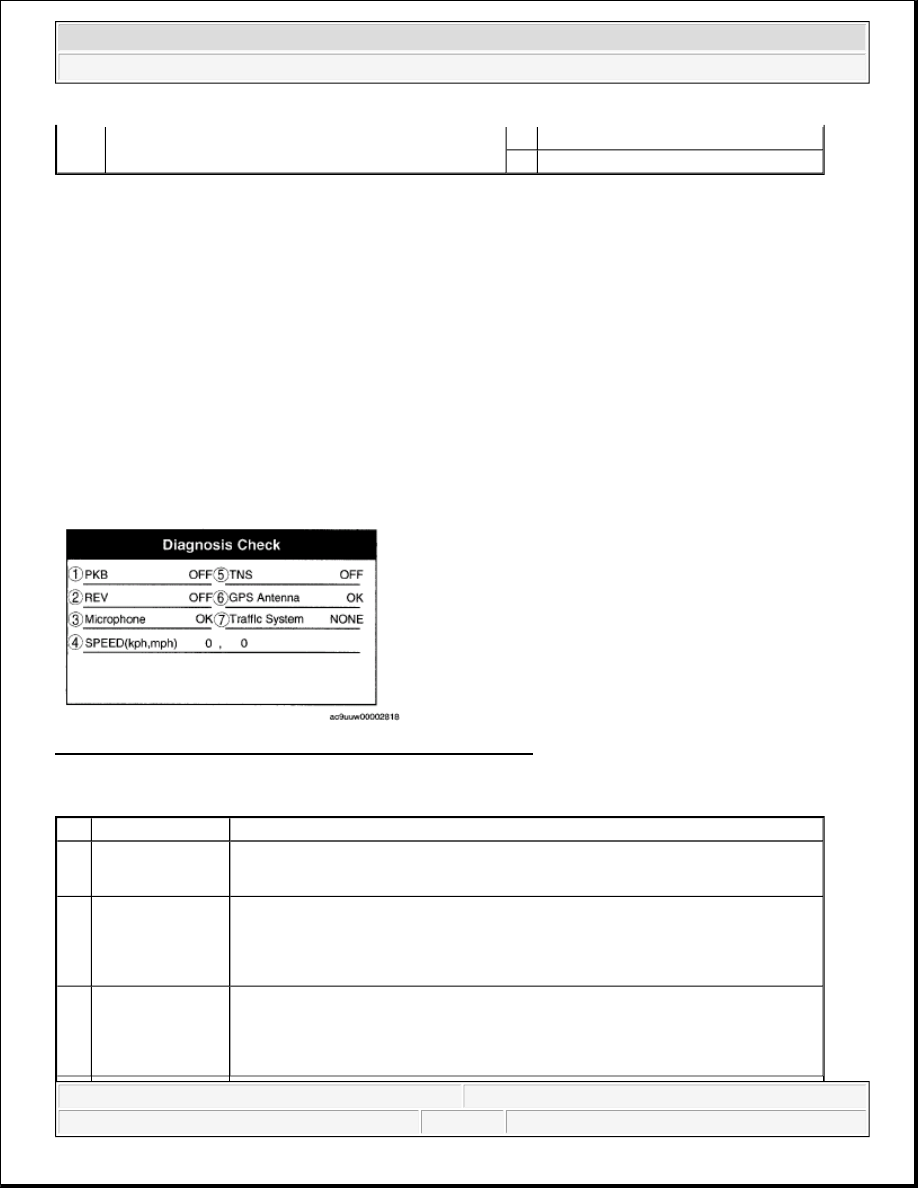

Fig. 2: Diagnosis Check Screen Display - Vehicle Status Signal
Courtesy of MAZDA MOTORS CORP.

VEHICLE STATUS SIGNAL INSPECTION CHART

12

Does the fault phenomenon improve?

Yes Troubleshooting is completed.
No

Replace the car-navigation unit.

No.

Display item

Description

1 PKB

NOTE:

Displayed but not used in the inspection.

2 REV

Indicates reverse signal status.

ON: Reverse

OFF: Others

3 Microphone

Indicates the connection status of the microphone.

OK: Connected

NCON: Disconnected



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Symptom Troubleshooting (Car Navigation System) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:40:44 AM

Page 20

© 2005 Mitchell Repair Information Company, LLC.

Microphone related signal inspection:

1. Press the "Menu" button on the "Diagnosis Check" screen.

2. Select "Navigation Check Menu".

3. Select "Microphone Check".

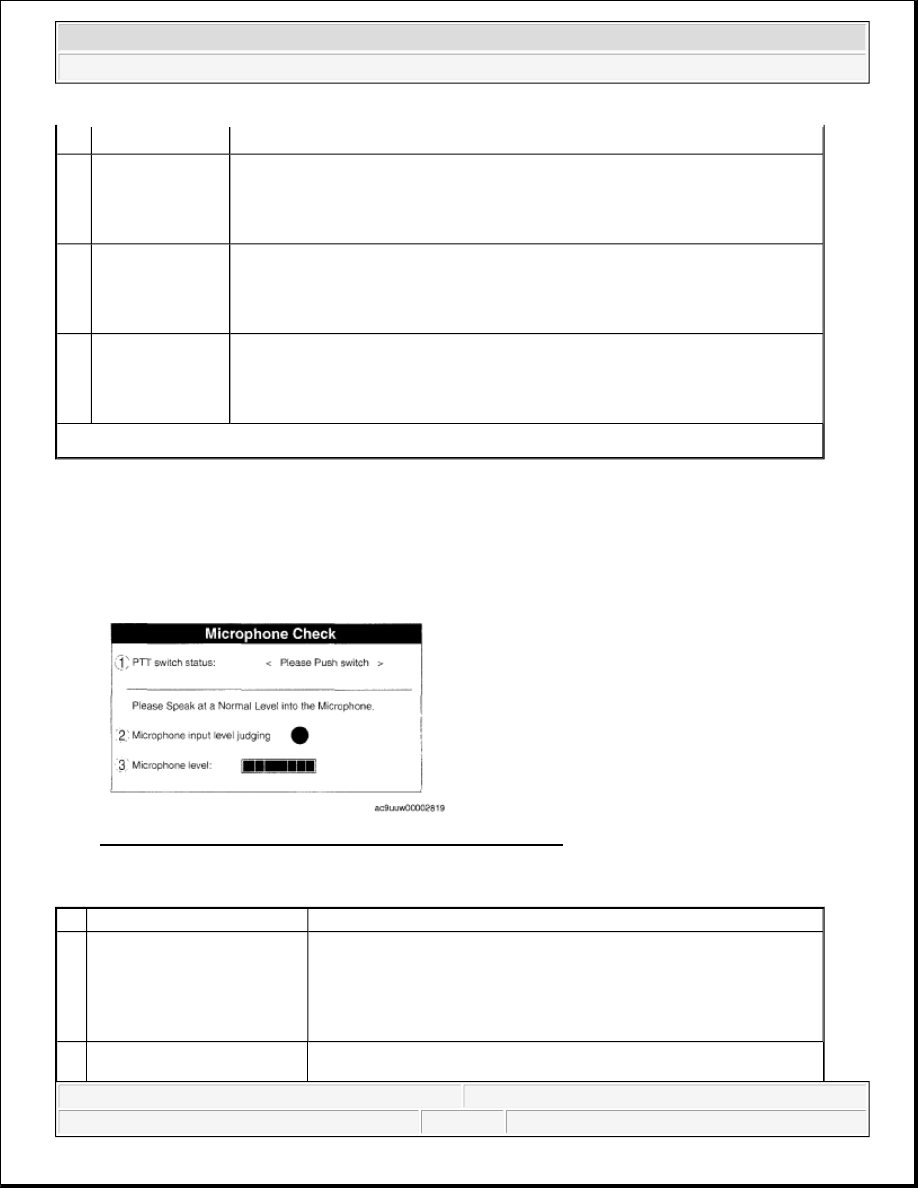

Fig. 3: Diagnosis Check Screen Display - Microphone Check
Courtesy of MAZDA MOTORS CORP.

MICROPHONE CHECK INSPECTION CHART

4 SPEED

(1)

Indicates the present vehicle speed in kph/mph (maximum of 3 digits).

5 TNS

(1)

Indicates TNS signal status.

ON: Turn TNS ON

OFF: Turn TNS OFF

6 GPS Antenna

(1)

Indicates the connection status of the GPS antenna.

OK: Connected

NCON: Disconnected

7 Traffic System

Indicates RDS-TMC system availability on the vehicle.

TMC: Equipped

NONE: Not equipped

(1)

Used for symptom troubleshooting. (Troubleshooting index No. 5 and No. 8)

No.

Display item

Description

1 PTT switch status

Indicates the status of the VOICE button.

< OK >: Press the button (Keep the state until the screen is
changed.)

< Please Push Switch >: Other than above condition.

Indicates the test results.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Symptom Troubleshooting (Car Navigation System) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:40:44 AM

Page 21

© 2005 Mitchell Repair Information Company, LLC.

FINISHING PROCEDURE FOR DIAGNOSTIC FUNCTION

1. Turn the ignition switch to the LOCK position.

2. Turn the ignition switch to the ACC or ON position.

3. Return to the normal screen.

2

Microphone input level
judging

Blue indicator: Sound is input from the microphone correctly.

Gray indicator: Sound is input from the microphone incorrectly.

3 Microphone level

Indicates the input level of the microphone using a bar graph.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Symptom Troubleshooting (Car Navigation System) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:40:44 AM

Page 22

© 2005 Mitchell Repair Information Company, LLC.

2008 BRAKES

Parking Brake System - Mazda CX-9

PARKING BRAKE SYSTEM LOCATION INDEX

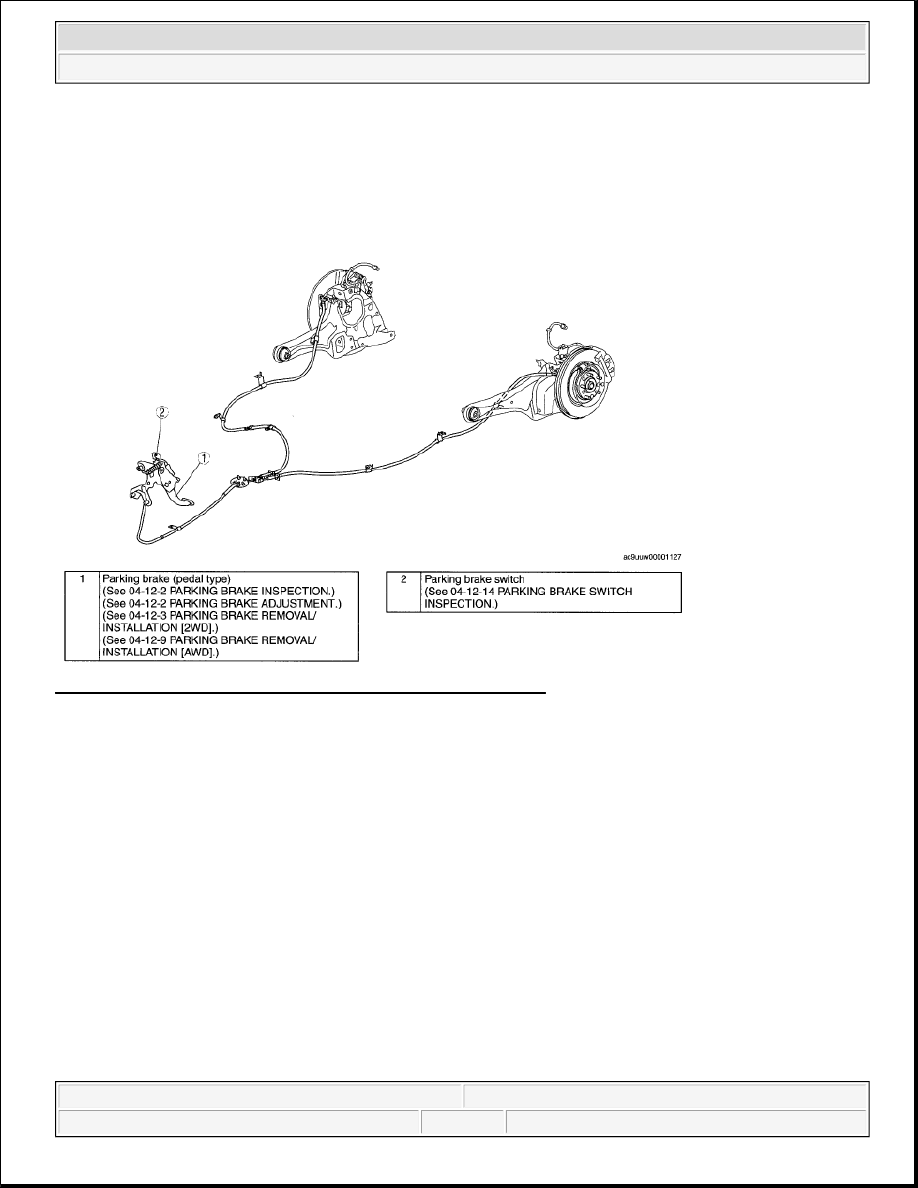

Fig. 1: Identifying Parking Brake System Components Location
Courtesy of MAZDA MOTORS CORP.

PARKING BRAKE INSPECTION

1. Depress the parking brake pedal a few times.

2. Depress the brake pedal a few times.

3. Inspect the parking brake stroke by depressing the parking brake pedal with a force of 180 N {18.4 kgf,

40.5 lbf}.

Parking brake pedal stroke when depressed at 180 N {18.4 kgf, 40.5 lbf}

1-3 notches

PARKING BRAKE ADJUSTMENT

1. Turn the adjusting nut at the front of the parking cable.

2. After adjustment, inspect the following points:



2008 Mazda CX-9 Grand Touring

2008 BRAKES Parking Brake System - Mazda CX-9





2008 Mazda CX-9 Grand Touring

2008 BRAKES Parking Brake System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:48:01 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

Microsoft



Sunday, November 15, 2009 9:48:07 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.
