9. Select "Ignition Key Code Erase" from the M-MDS screen menu and perform the procedure according to

the M-MDS screen.

10. Perform the card key programming. (See CARD KEY ID CODE REGISTRATION [ADVANCED

KEYLESS SYSTEM].)

11. Perform the steering lock unit programming. (See STEERING LOCK UNIT ID CODE

REGISTRATION [ADVANCED KEYLESS SYSTEM].)

12. After verifying that the PATS function menu is displayed again on the M-MDS screen, select "Exit (From

This Menu)" to finish the M-MDS procedure.

13. After Step 12, wait 5 s or more and then turn the ignition switch to the ON position.

14. Ignition switch to the LOCK position.

15. Disconnect the M-MDS from the DLC-2.

16. Using key 1, turn the ignition switch to the ON position.

17. After verifying that the security light and keyless warning light illuminate for 3 s or more , turn the

ignition switch to the LOCK position and remove key 1.

18. Using key 2, turn the ignition switch to the ON position.

19. Verify that the security light and keyless warning light illuminate for approx. 3 s , and then goes out.

20. After verifying that the security light goes out, turn the ignition switch to the LOCK position using key 2,

and then remove key 2.

21. If programming one more keys, repeat Steps 18 to 20 with a key to be programmed as key 3. If the

vehicle is left with the ignition switch in the ON position for 1 min or more, additional key programming
according to Steps 18 to 20 is disabled. If this occurs, refer to the "M-MDS CONNECTING
PROCEDURE" to program any additional keys. (See M-MDS MENU.)

22. Start the engine with key 1.

23. Verify that the security light and keyless warning light operate as follows:



From the point when the ignition switch is turned to the ON position, the security light illuminates
for approx. 3 s , and goes out.



The keyless warning light illuminates when the ignition switch is turned to the ON position, and the
light goes out after approx. 1 s , and then displays the number of the programmed keys.

CAUTION:



The M-MDS displays "You must now program a minimum of two
keys.", however, do not perform the key programming and
proceed to Step 9. If the procedure is not followed, the engine
may not be started. The key programming procedure is
performed at Steps 16 to 21.

NOTE:



Although the security light remains illuminated and DTC 21 is
displayed after approx. 1 min, this does not indicate an improper
procedure. Continue to perform the procedure as indicated.

2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:47:59 AM

Page 75

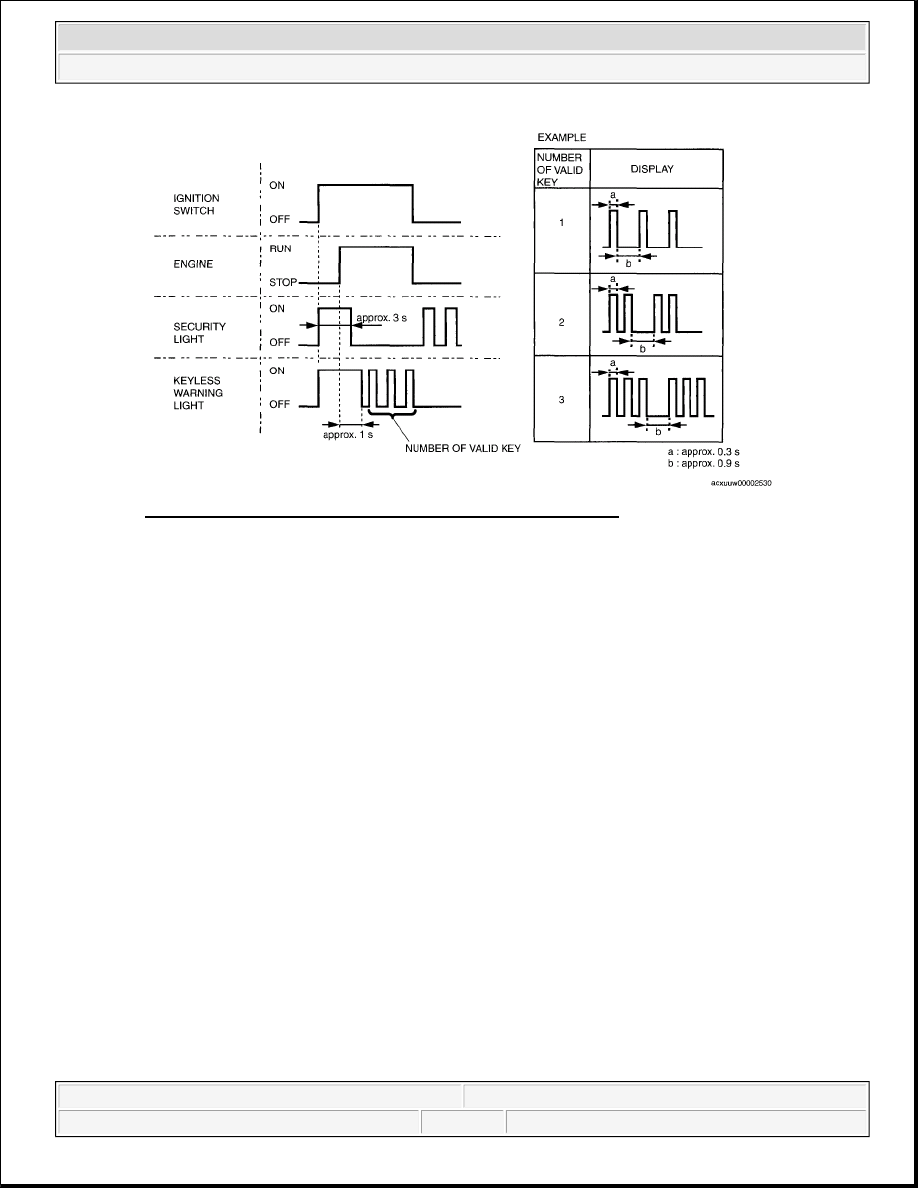

Fig. 95: Identifying Blinking Pattern - Keyless Warning Light
Courtesy of MAZDA MOTORS CORP.

24. After verifying that the keyless warning light goes out, turn the ignition switch to the LOCK position

using key 1, and then remove the key.

25. Repeat Steps 22 to 24 using key 2 instead of key 1.

26. Start the engine using the card key.

27. Verify that the security light and keyless warning light operate as follows:



From the point that ignition switch is turned to the ON position, the security light illuminates for
approx. 3 s , and goes out.



The keyless warning light illuminate when the ignition switch is turned to the ON position for
approx. 1 min , and goes out.

28. After verifying that the keyless warning light goes out, turn the ignition switch to the LOCK position.

29. Verify that the all keys can start the engine for 5 s or more after the procedure.

NO.8 THE PROCEDURE FOR WHEN SEVERAL PARTS (PCM, KEYLESS CONTROL MODULE,

NOTE:



If three or more keys have already been programmed, perform Steps
22 to 24.

CAUTION:



Remove any key from the key cylinder.



Close all doors.



Bring the card key into the vehicle.

2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:47:59 AM

Page 76

AND STEERING LOCK UNIT) ARE REPLACED AT THE SAME TIME

Condition



The menu executed on the M-MDS varies depending on the replaced parts. Verify the M-MDS menu to
be executed referring to the M-MDS EXECUTION MENU/SEQUENCE FOR THE IMMOBILIZER
SYSTEM COMPONENT PARTS REPLACEMENT.

Procedure

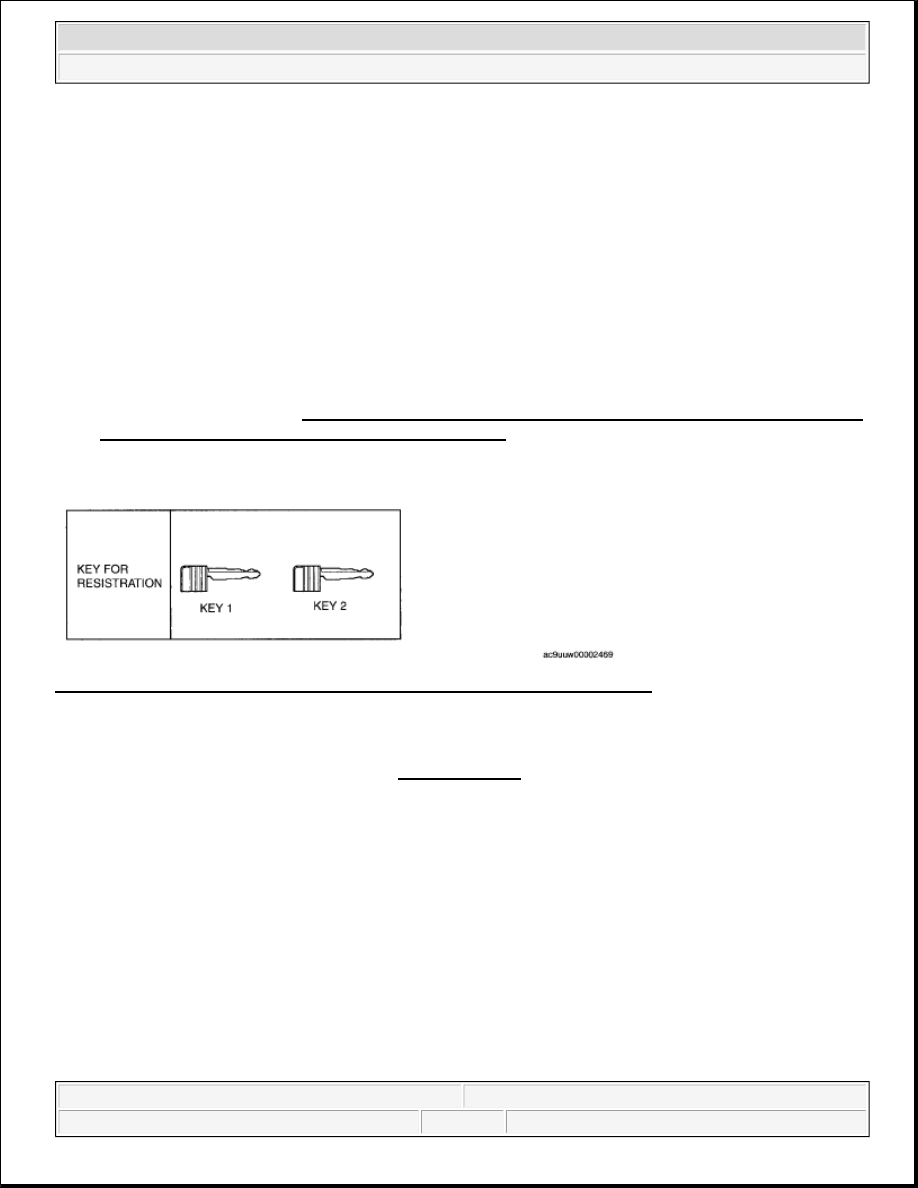

Fig. 96: Procedure For - PCM, Keyless Control Module & Steering Lock Unit
Courtesy of MAZDA MOTORS CORP.

1. Prepare two or more keys to be programmed after the key ID number is cleared.

2. Connect the M-MDS to the DLC-2. (See M-MDS MENU.)

3. Using key 1, turn the ignition switch to the ON position.

4. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.



When using the IDS (laptop PC)



Select "Body".



Select "Security".



When using the PDS (Pocket PC)



Select "Programming".

CAUTION:



Do not place the following devices in the vehicle while programming,
otherwise programming cannot be performed:



Card key



M-MDS



Personal computer



Devices that can send/receive the radio waves

NOTE:



Although the security light starts flashing and DTC 15 or DTC 23 is
displayed after approx. 1 min, this does not indicate an improper
procedure. Continue to perform the procedure as indicated.

2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:47:59 AM

Page 77

5. Then, select items from the screen menu in the following order.



Select "PATS Functions".

6. Select "Parameter Reset" from the M-MDS screen menu and perform the procedure according to the M-

MDS screen

7. Perform the security access according to the directions on the M-MDS screen. (See SECURITY

ACCESS PROCEDURE.)

8. Select the replaced parts according to the directions on the M-MDS.



If the PCM is replaced: Select "PCM".



If the keyless control module is replaced: Select "SKE".

9. Select "Ignition Key Code Erase," from the M-MDS screen menu and perform the procedure according to

the M-MDS screen.

10. Perform the card key programming. (See CARD KEY ID CODE REGISTRATION [ADVANCED

KEYLESS SYSTEM].)

11. Perform the steering lock unit programming. (See STEERING LOCK UNIT ID CODE

REGISTRATION [ADVANCED KEYLESS SYSTEM].)

12. After verifying that the PATS function menu is displayed again on the M-MDS screen, select "Exit (From

This Menu)" to finish the M-MDS procedure.

13. After Step 12, wait 5 s or more and then turn the ignition switch to the ON position.

14. Ignition switch to the LOCK position.

15. Disconnect the M-MDS from the DLC-2.

16. Using key 1, turn the ignition switch to the ON position.

17. After verifying that the security light and keyless warning light illuminate for 3 s or more , turn the

ignition switch to the LOCK position and remove key 1.

18. Using key 2, turn the ignition switch to the ON position.

19. Verify that the security light and keyless warning light illuminate for approx. 3 s , and then goes out.

20. After verifying that the security light goes out, turn the ignition switch to the LOCK position using key 2,

NOTE:



At this time, do not select the other parts from the M-MDS menu.

CAUTION:



NOTE:



Although the security light remains illuminated and DTC 21 is
displayed after approx. 1 min, this does not indicate an improper
procedure. Continue to perform the procedure as indicated.

2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:47:59 AM

Page 78
