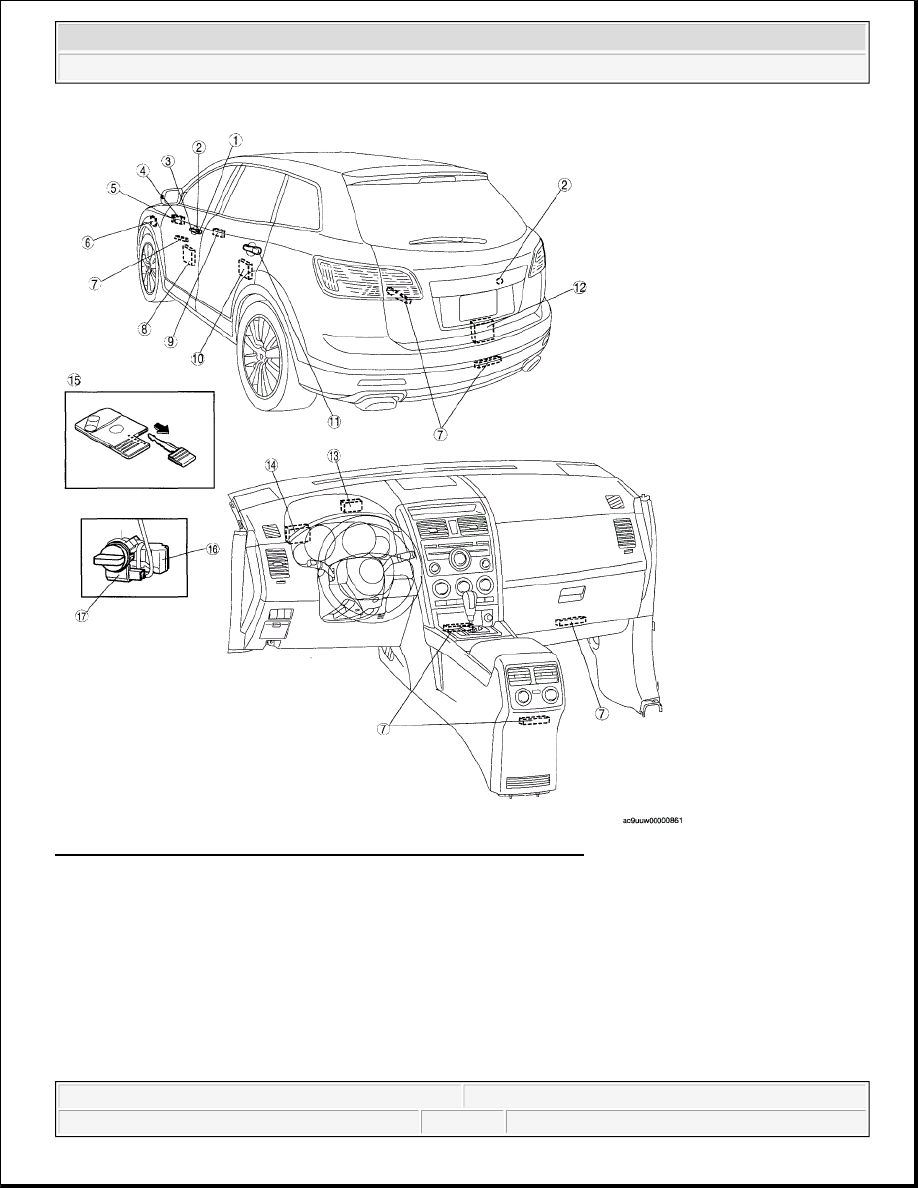

Fig. 2: Identifying Advanced Keyless System Locks Location (1 Of 2)
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:58 AM

Page 3

© 2005 Mitchell Repair Information Company, LLC.

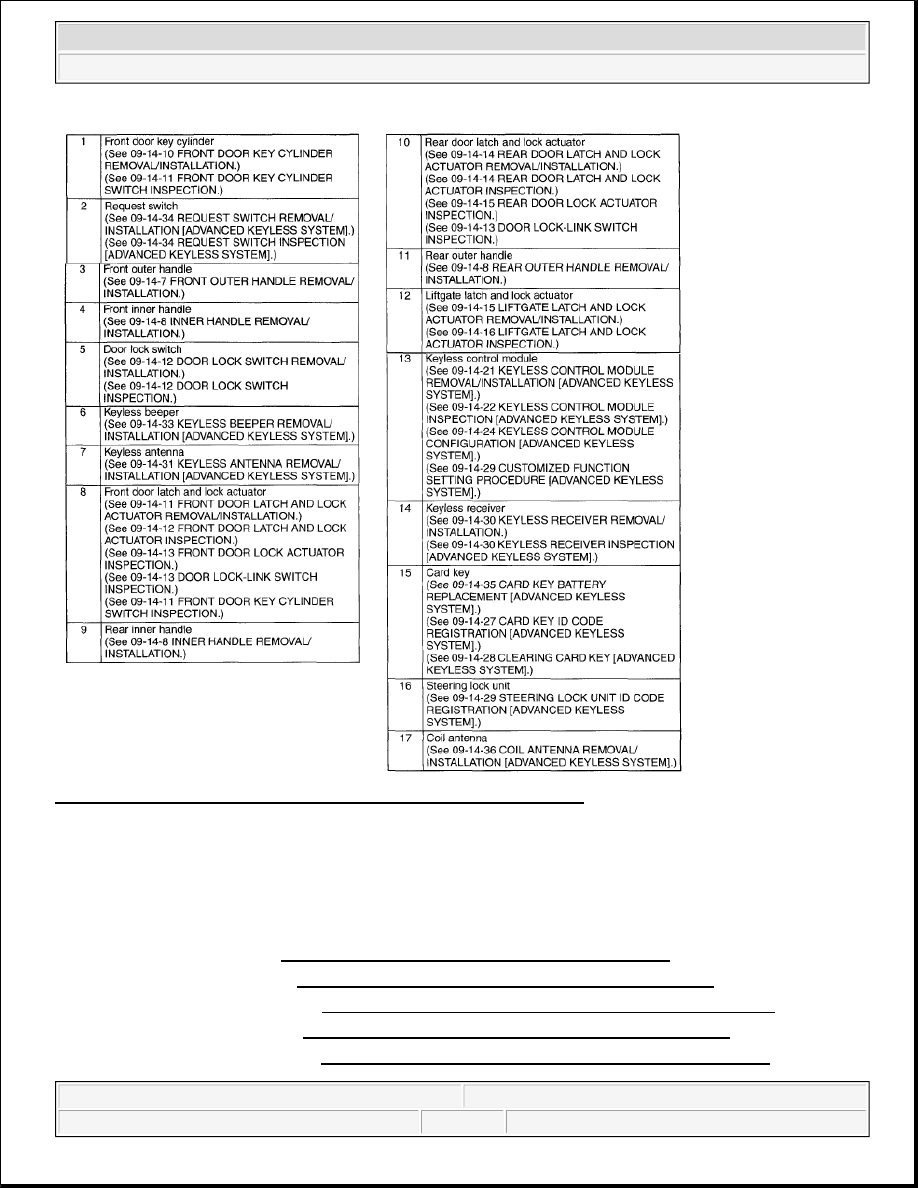

Fig. 3: Identifying Advanced Keyless System Locks Location (2 Of 2)
Courtesy of MAZDA MOTORS CORP.

FRONT OUTER HANDLE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:

1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)

2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)

3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)

4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)

5. Front door module (See FRONT DOOR MODULE REMOVAL/INSTALLATION .)



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:58 AM

Page 4

© 2005 Mitchell Repair Information Company, LLC.

3. Disconnect the rod.

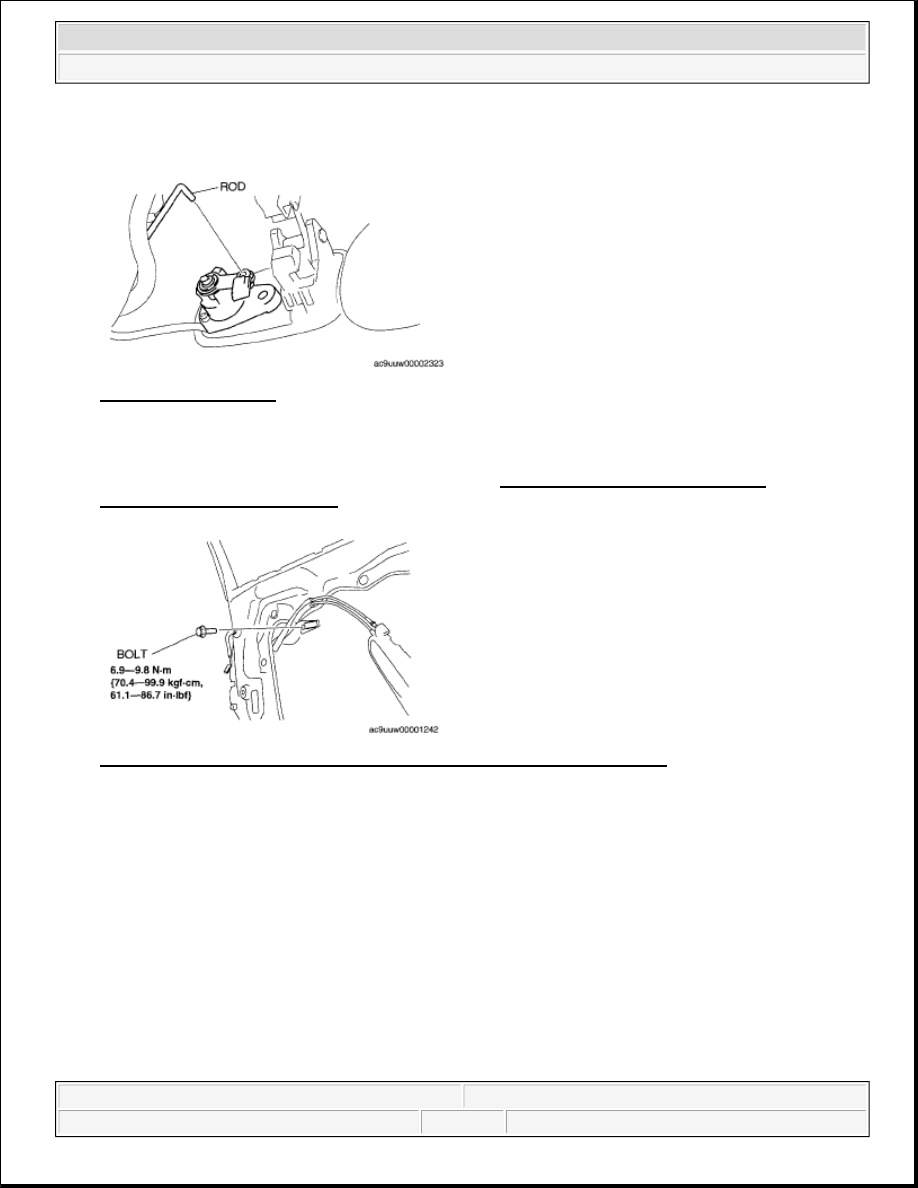

Fig. 4: Identifying Rod
Courtesy of MAZDA MOTORS CORP.

4. Remove the bolt.

5. Remove the front door key cylinder. (Driver side) (See FRONT DOOR KEY CYLINDER

REMOVAL/INSTALLATION.)

Fig. 5: Identifying Front Door Key Cylinder Bolt & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

6. Secure the rear part of the front outer handle and, with the front outer handle lever pulled outward (1),

remove the rear part of the front outer handle from the front door.

7. Pull out the front side of the front outer handle from the front door.

8. Install in the reverse order of removal.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:58 AM

Page 5

© 2005 Mitchell Repair Information Company, LLC.

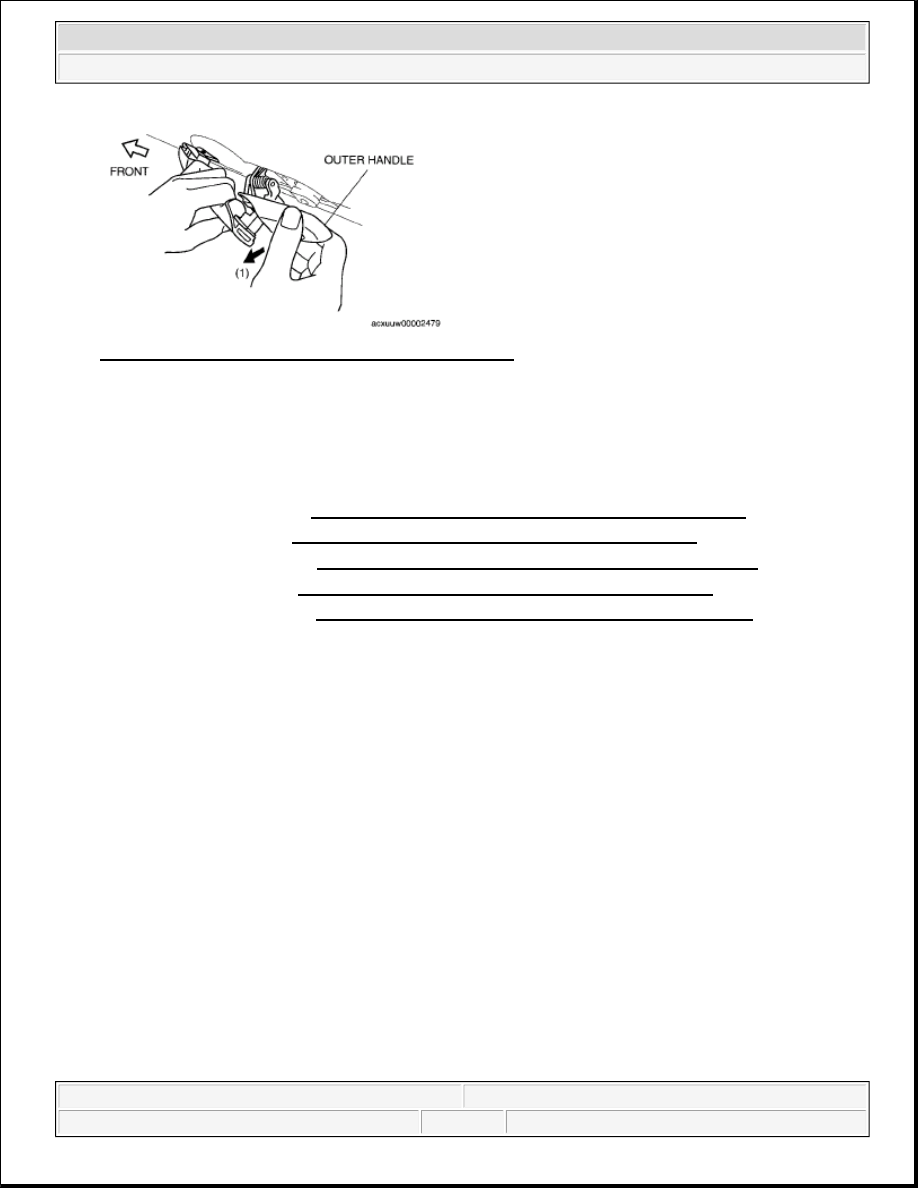

Fig. 6: Pulling Out Front Side Of Front Outer Handle
Courtesy of MAZDA MOTORS CORP.

REAR OUTER HANDLE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:

1. Inner sail garnish (See INNER SAIL GARNISH REMOVAL/INSTALLATION .)

2. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)

3. Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .)

4. Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION .)

5. Rear door module (See REAR DOOR MODULE REMOVAL/INSTALLATION .)

3. Remove the service hole cover.

4. Remove the fastener.

5. Remove the shock-absorbing pad.

6. Disconnect the rod.

7. Remove the nuts.

8. Remove the handle base.

9. Remove the bolts.
