Mazda CX-9 Grand Touring. Manual - part 490





Fig. 59: Inserting Screwdriver Into Service Hole
Courtesy of MAZDA MOTORS CORP.

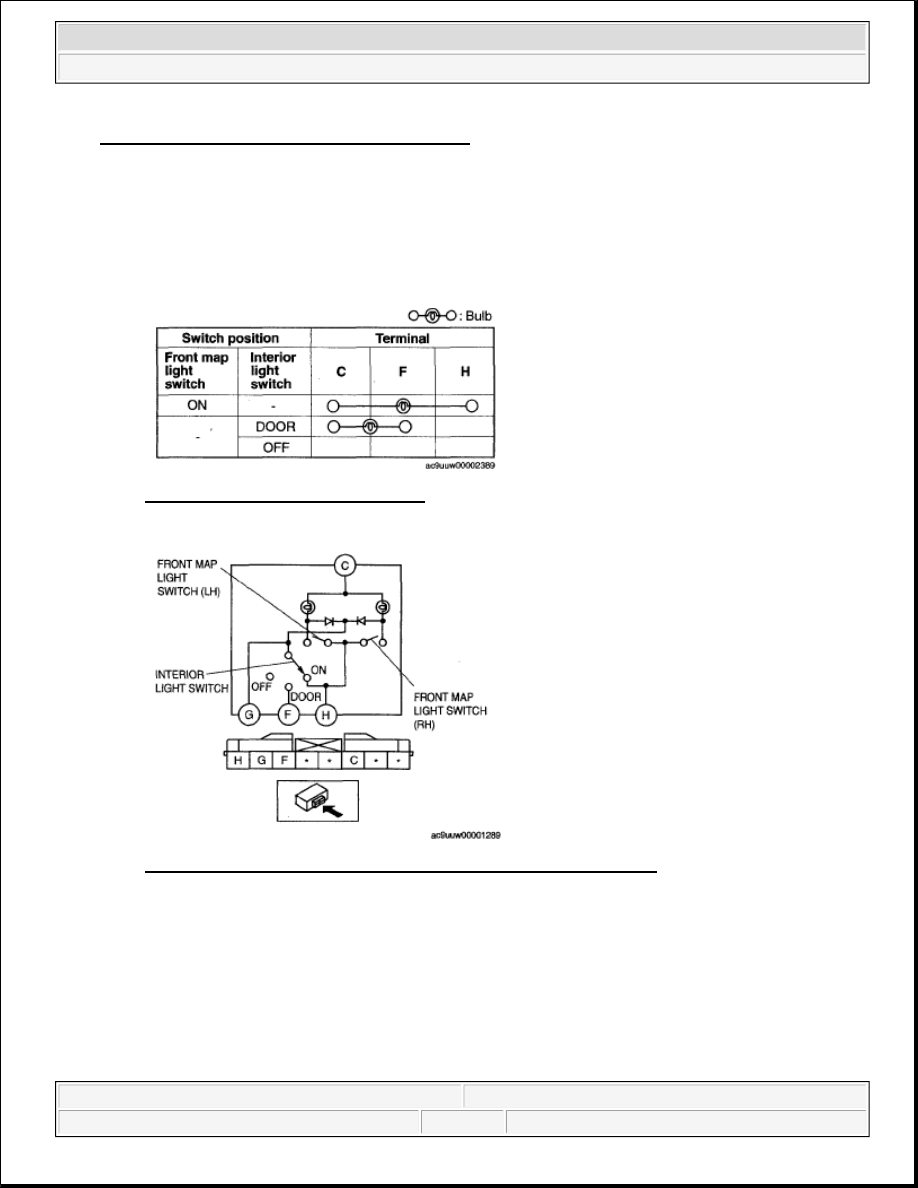

FRONT MAP LIGHT INSPECTION

1. Verify that the continuity between the front map light terminals is as indicated in the table.

If not as indicated in the table, replace the front map light.

Fig. 60: Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

Fig. 61: Checking Continuity Between Front Map Light Terminals
Courtesy of MAZDA MOTORS CORP.

INTERIOR LIGHT REMOVAL/INSTALLATION

INTERIOR LIGHT

1. Disconnect the negative battery cable.

2. Install in the reverse order of removal.

3. Remove the following parts:



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Lighting Systems - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:39:06 AM

Page 41

© 2005 Mitchell Repair Information Company, LLC.

1. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)

2. Front scuff plate inner (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)

3. Rear scuff plate inner (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)

4. Front seat belt lower anchor installation bolt (Driver side) (See FRONT SEAT BELT

REMOVAL/INSTALLATION .)

5. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)

6. Front seat belt upper anchor installation bolt (See FRONT SEAT BELT

REMOVAL/INSTALLATION .)

7. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)

8. Trunk box (See TRUNK BOX REMOVAL/INSTALLATION .)

9. Seat side box (See SEAT SIDE BOX REMOVAL/INSTALLATION .)

10. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)

11. Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)

12. Third-row seat belt lower anchor installation bolt (See THIRD-ROW SEAT BELT

REMOVAL/INSTALLATION .)

13. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)

14. Roof side trim (See ROOF SIDE TRIM REMOVAL/INSTALLATION .)

15. Second-row seat belt upper anchor installation bolt (See SECOND-ROW SEAT BELT

REMOVAL/INSTALLATION .)

16. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)

17. Third-row seat belt upper anchor installation bolt (See THIRD-ROW SEAT BELT

REMOVAL/INSTALLATION .)

18. D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION .)

19. Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

20. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)

21. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)

22. RES unit cover (Vehicles with RES) (See RES UNIT REMOVAL/INSTALLATION .)

23. Headliner (See HEADLINER REMOVAL/INSTALLATION .)

4. Detach the tab and remove the bulb housing.

NOTE:

The valve housing and the wiring harness have been integrated and
attached to the headliner. When replacing the valve housing, remove
the wiring harness which passes under the urethane by cutting the
urethane.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Lighting Systems - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:39:06 AM

Page 42

© 2005 Mitchell Repair Information Company, LLC.

5. Pull in the direction of the arrows and detach the tabs.

6. Remove the interior light.

7. Install in the reverse order of removal.

INTERIOR LIGHT BULB

1. Disconnect the negative battery cable.

2. Insert a tape-wrapped flathead screwdriver into the service hole and pry with the screwdriver in the

direction shown by the arrow to remove the lens.

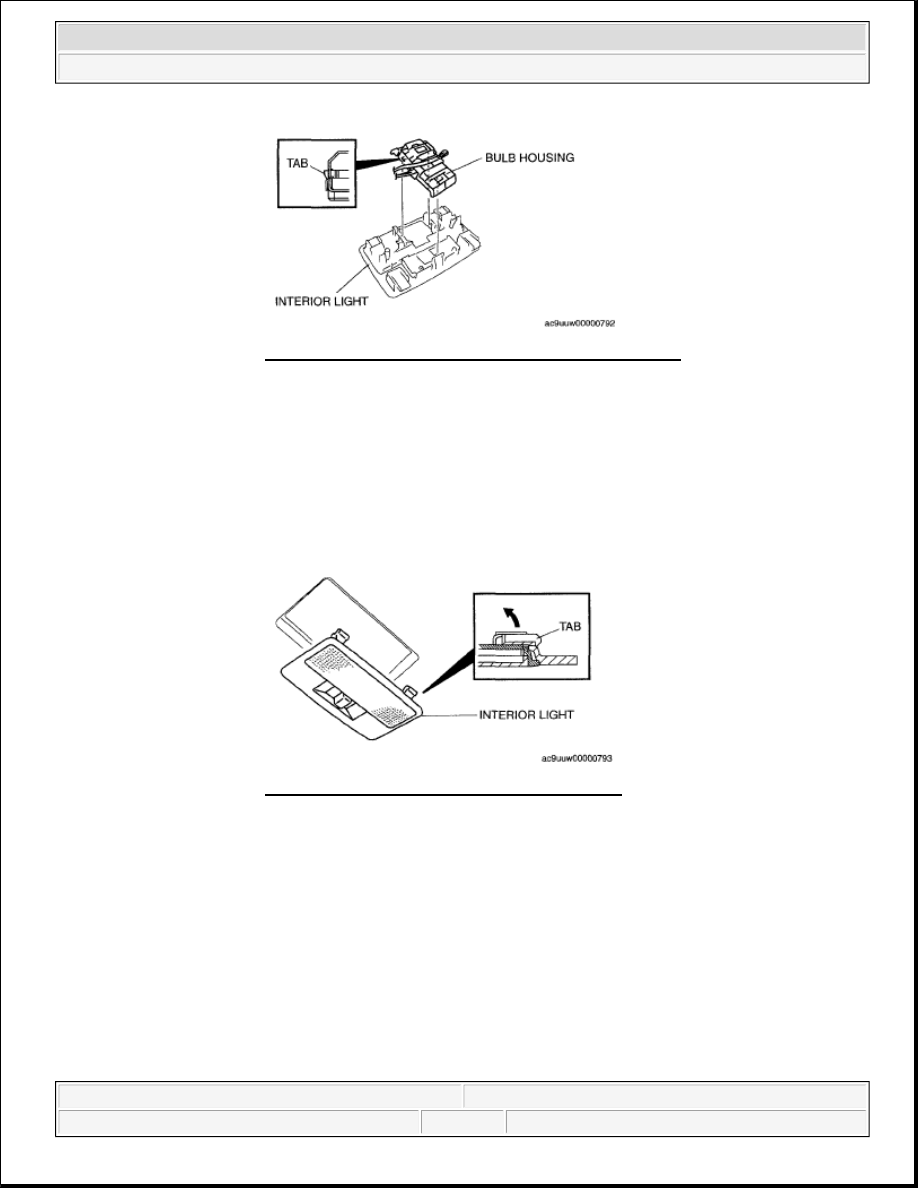

Fig. 62: Identifying Interior Light & Bulb Housing
Courtesy of MAZDA MOTORS CORP.

NOTE:

After installing the wiring harness, reinforce the urethane that was
cut when removing the valve housing with vinyl tape.

Fig. 63: Identifying Interior Light With Tab
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Lighting Systems - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:39:06 AM

Page 43

© 2005 Mitchell Repair Information Company, LLC.

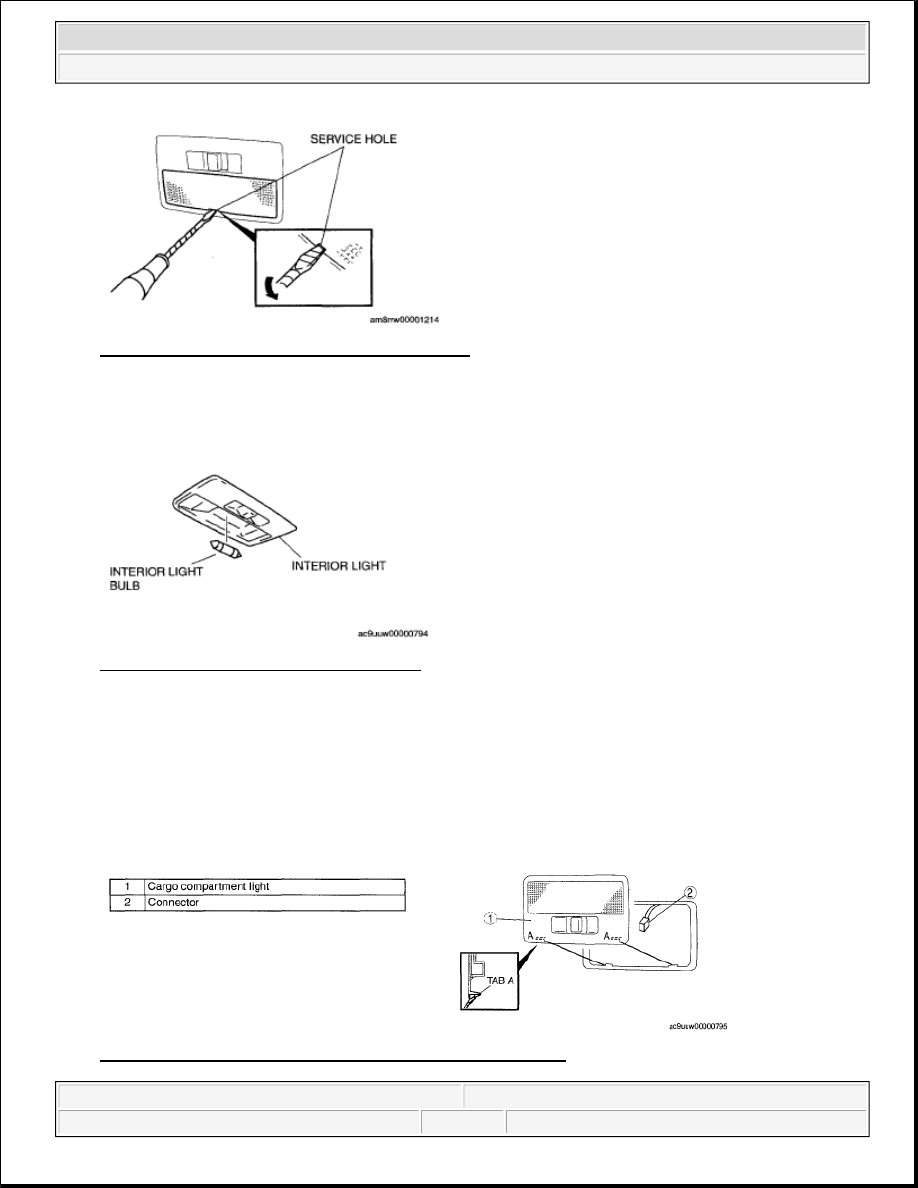

Fig. 64: Inserting Screwdriver Into Service Hole
Courtesy of MAZDA MOTORS CORP.

3. Remove the rear interior light bulb.

4. Install in the reverse order of removal.

Fig. 65: Identifying Interior Light & Bulb
Courtesy of MAZDA MOTORS CORP.

CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION

CARGO COMPARTMENT LIGHT

1. Disconnect the negative battery cable.

2. Remove in the order indicated in the table.

Fig. 66: Identifying Cargo Compartment Light & Connector
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Lighting Systems - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:39:06 AM

Page 44

© 2005 Mitchell Repair Information Company, LLC.
