Mazda CX-9 Grand Touring. Manual - part 477

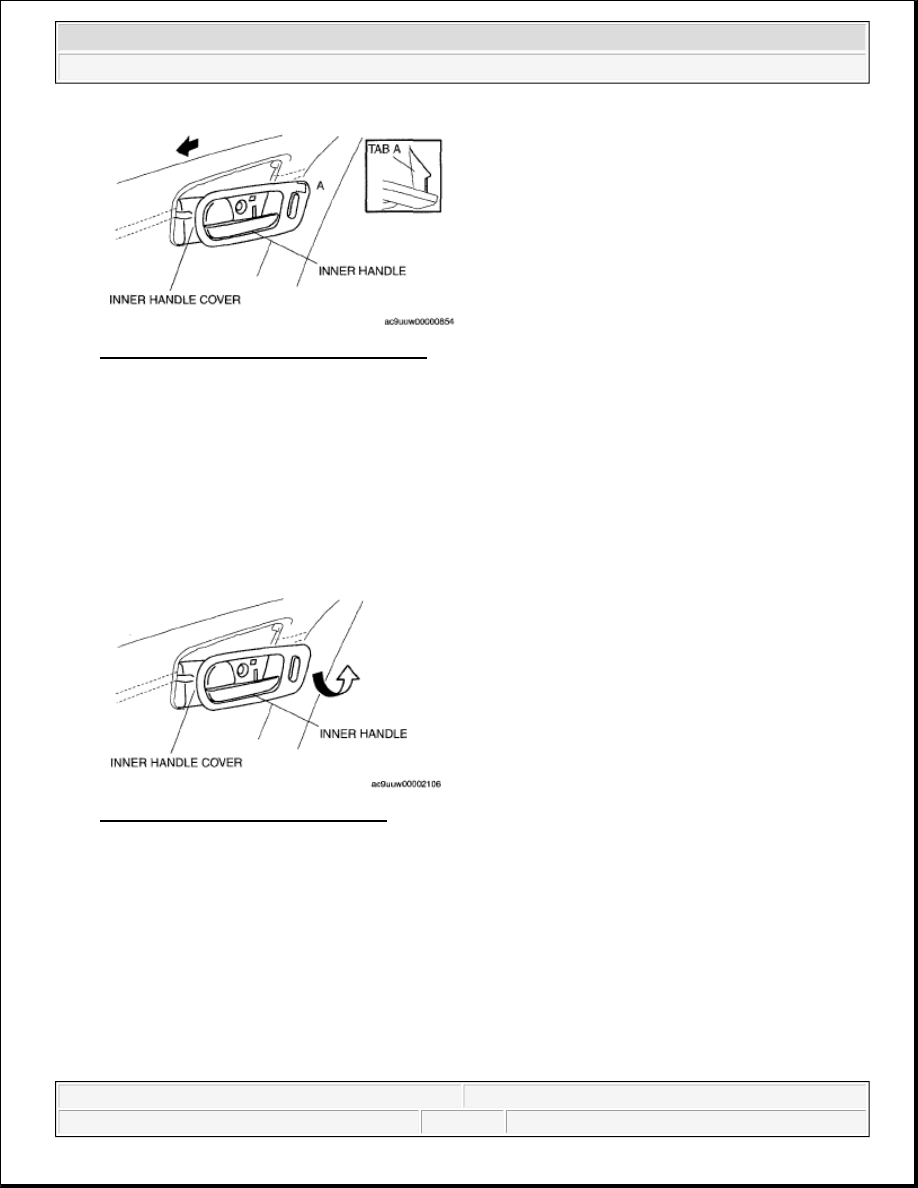

Fig. 64: Identifying Inner Handle & Cover
Courtesy of MAZDA MOTORS CORP.

9. Turn the inner handle cover in the direction of the arrow and remove it from the front door trim.

10. Disconnect the power window main switch connector and the power outer mirror switch connector and

door lock switch connector. (Driver side)

11. Disconnect the power window subswitch connector. (Passenger side)

12. Disconnect the courtesy light connector.

13. Remove the front door trim.

14. Install in the reverse order of removal.

Fig. 65: Turning Inner Handle Cover
Courtesy of MAZDA MOTORS CORP.

FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Interior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:43:26 AM

Page 41

© 2005 Mitchell Repair Information Company, LLC.

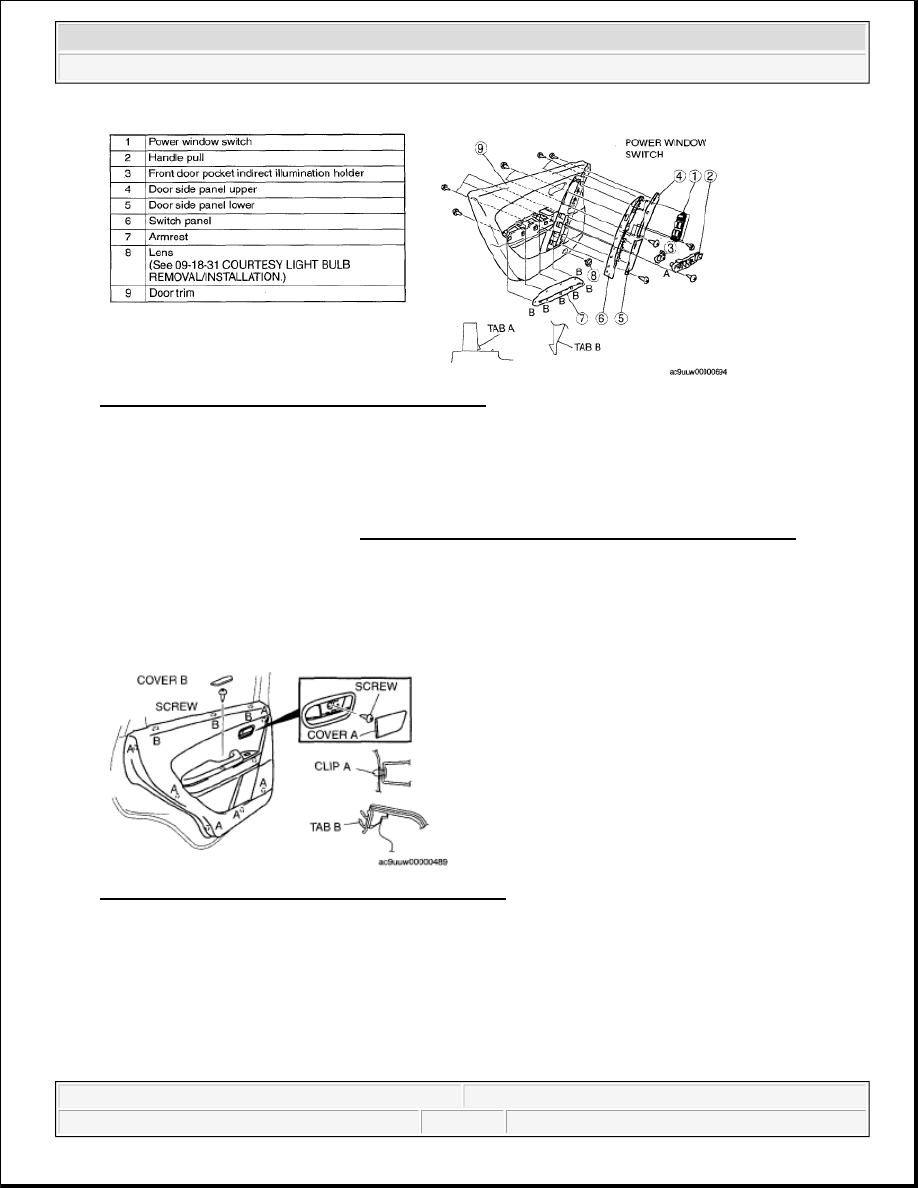

Fig. 66: Identifying Front Door Trim Components
Courtesy of MAZDA MOTORS CORP.

REAR DOOR TRIM REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the inner sail garnish. (See INNER SAIL GARNISH REMOVAL/INSTALLATION.)

3. Open the cover A using a small flathead screwdriver and remove the screw.

4. Pull up the cover B and remove the screw.

5. Detach clips A from the front door using a fastener remover.

6. Pull the front door trim upward and detach tabs B from the front door.

Fig. 67: Identifying Rear Door Trim, Cover & Screw
Courtesy of MAZDA MOTORS CORP.

7. Remove tab A, and move the rear door trim in the direction of the arrow.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Interior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:43:26 AM

Page 42

© 2005 Mitchell Repair Information Company, LLC.

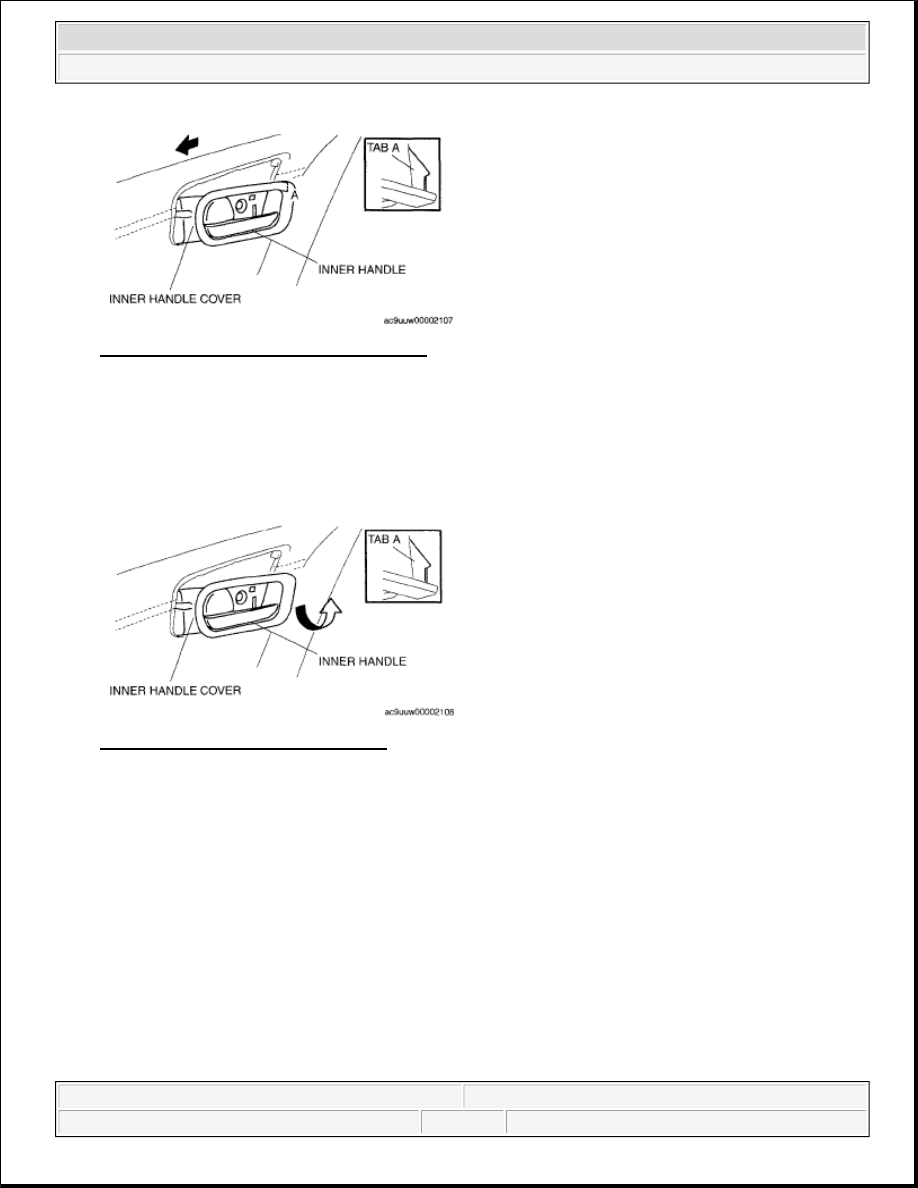

Fig. 68: Identifying Inner Handle & Cover
Courtesy of MAZDA MOTORS CORP.

8. Turn the inner handle cover in the direction of the arrow and remove it from the rear door trim.

9. Disconnect the power window subswitch connector.

10. Remove the rear door trim.

11. Install in the reverse order of removal.

Fig. 69: Turning Inner Handle Cover
Courtesy of MAZDA MOTORS CORP.

TRUNK BOX REMOVAL/INSTALLATION

1. Open the trunk board.

2. Remove the fasteners.

3. Remove the trunk box in the direction of the arrow.

4. Install in the reverse order of removal.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Interior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:43:26 AM

Page 43

© 2005 Mitchell Repair Information Company, LLC.

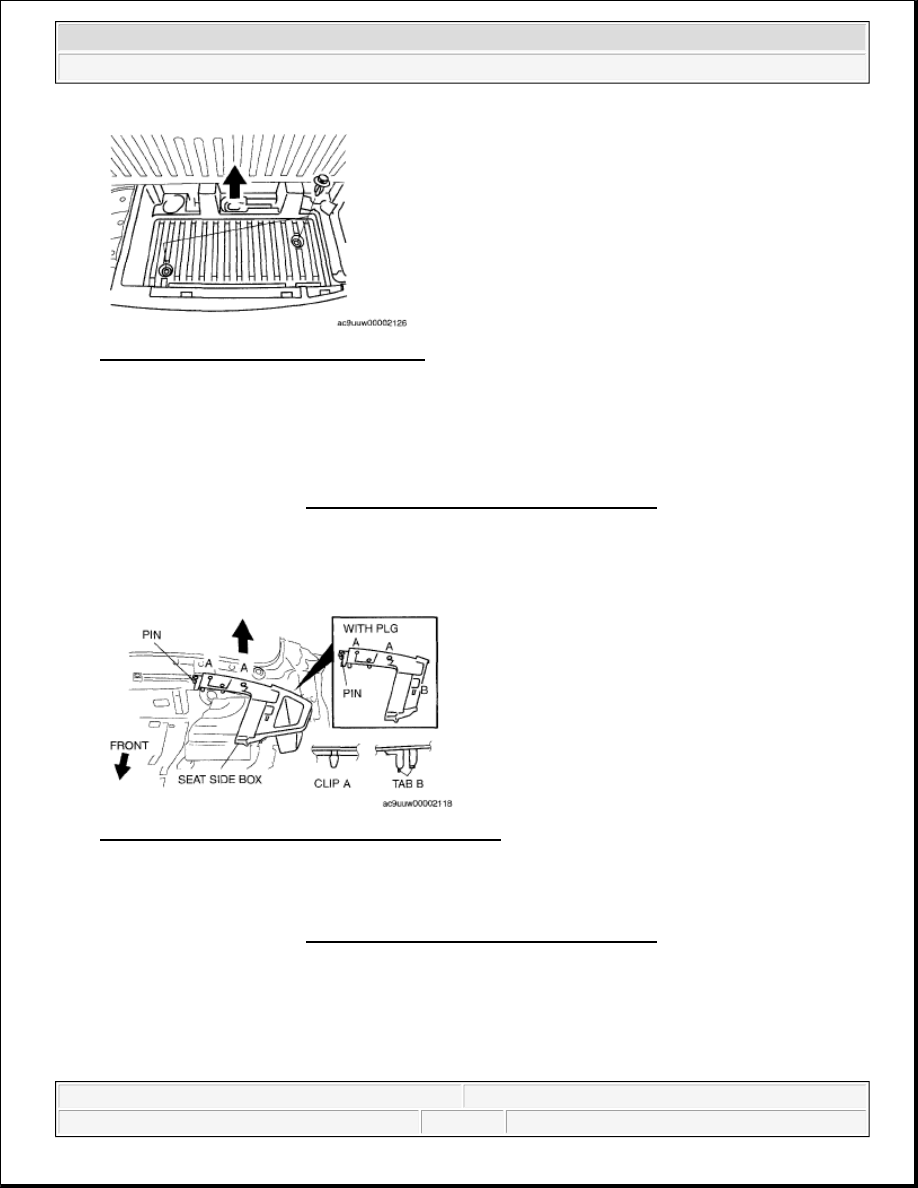

Fig. 70: Identifying Trunk Box With Clips
Courtesy of MAZDA MOTORS CORP.

SEAT SIDE BOX REMOVAL/INSTALLATION

WITH BOSE®

1. Remove the trunk box. (See TRUNK BOX REMOVAL/INSTALLATION.)

2. Detach clips A and tab B by pulling them in the direction of the arrow.

3. Remove the seat side box.

4. Install in the reverse order of removal.

Fig. 71: Identifying Seat Side Box With Clips & Tab
Courtesy of MAZDA MOTORS CORP.

WITHOUT BOSE®

1. Remove the trunk box. (See TRUNK BOX REMOVAL/INSTALLATION.)

2. Detach pins by pulling them in the direction of the arrow.

3. Remove the seat side box.

4. Install in the reverse order of removal.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Interior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:43:26 AM

Page 44

© 2005 Mitchell Repair Information Company, LLC.
