PASSENGER SIDE

1. Disconnect the negative battery cable.

2. Remove the following parts:

1. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

2. Front console box mat (See FRONT CONSOLE BOX MAT REMOVAL/INSTALLATION.)

3. Indicator panel (See INDICATOR PANEL REMOVAL/INSTALLATION.)

4. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

5. Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

6. Side panel (See SIDE PANEL REMOVAL/INSTALLATION.)

7. Dashboard garnish (See DASHBOARD GARNISH REMOVAL/INSTALLATION.)

3. Remove the screws.

4. Remove the hook.

5. Remove the ventilator grille in the direction of the arrow.

6. Install in the reverse order of removal.

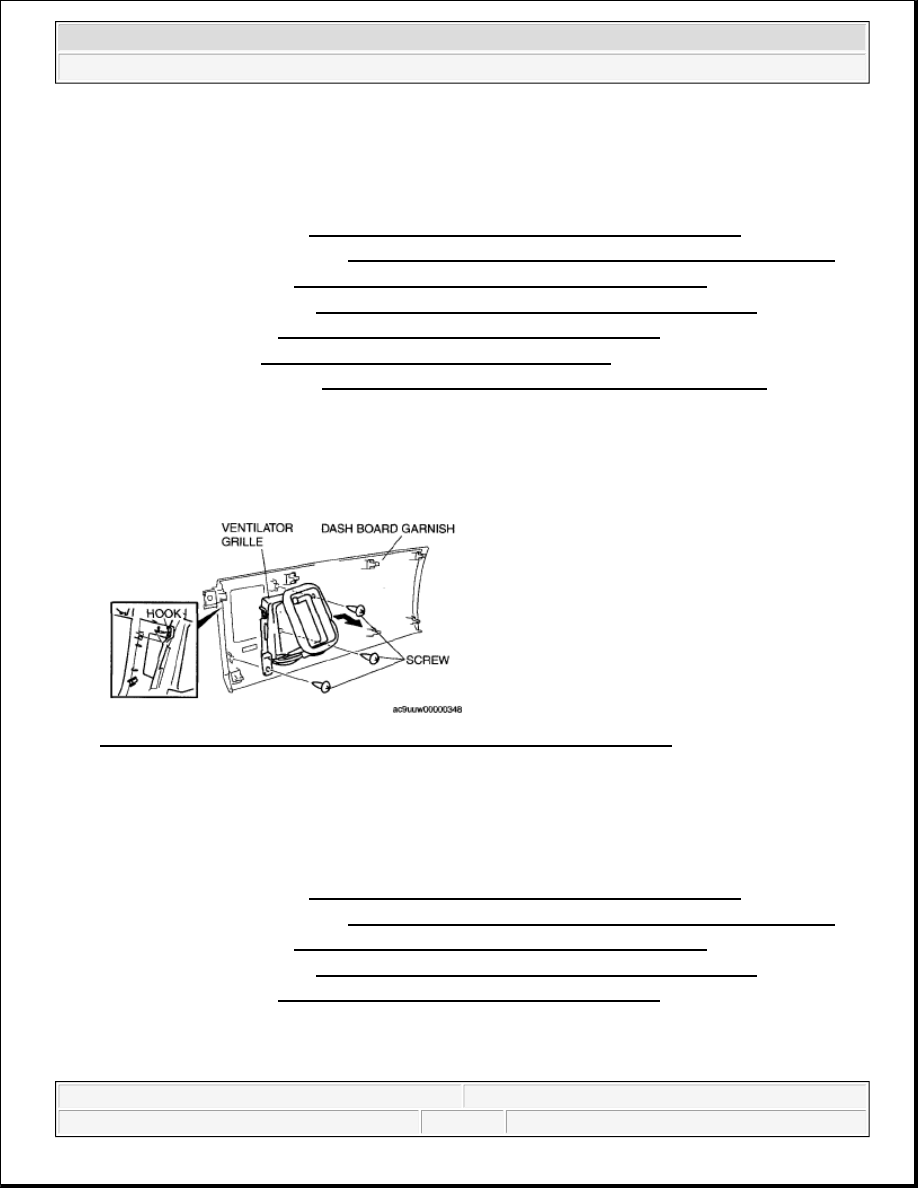

Fig. 22: Identifying Ventilator Grille With Hook & Screw - Passenger Side
Courtesy of MAZDA MOTORS CORP.

CENTER

1. Disconnect the negative battery cable.

2. Remove the following parts:

1. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

2. Front console box mat (See FRONT CONSOLE BOX MAT REMOVAL/INSTALLATION.)

3. Indicator panel (See INDICATOR PANEL REMOVAL/INSTALLATION.)

4. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

5. Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

3. Remove the screws

4. Remove the ventilator grille.

5. Install in the reverse order of removal.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Interior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:43:26 AM

Page 17

© 2005 Mitchell Repair Information Company, LLC.

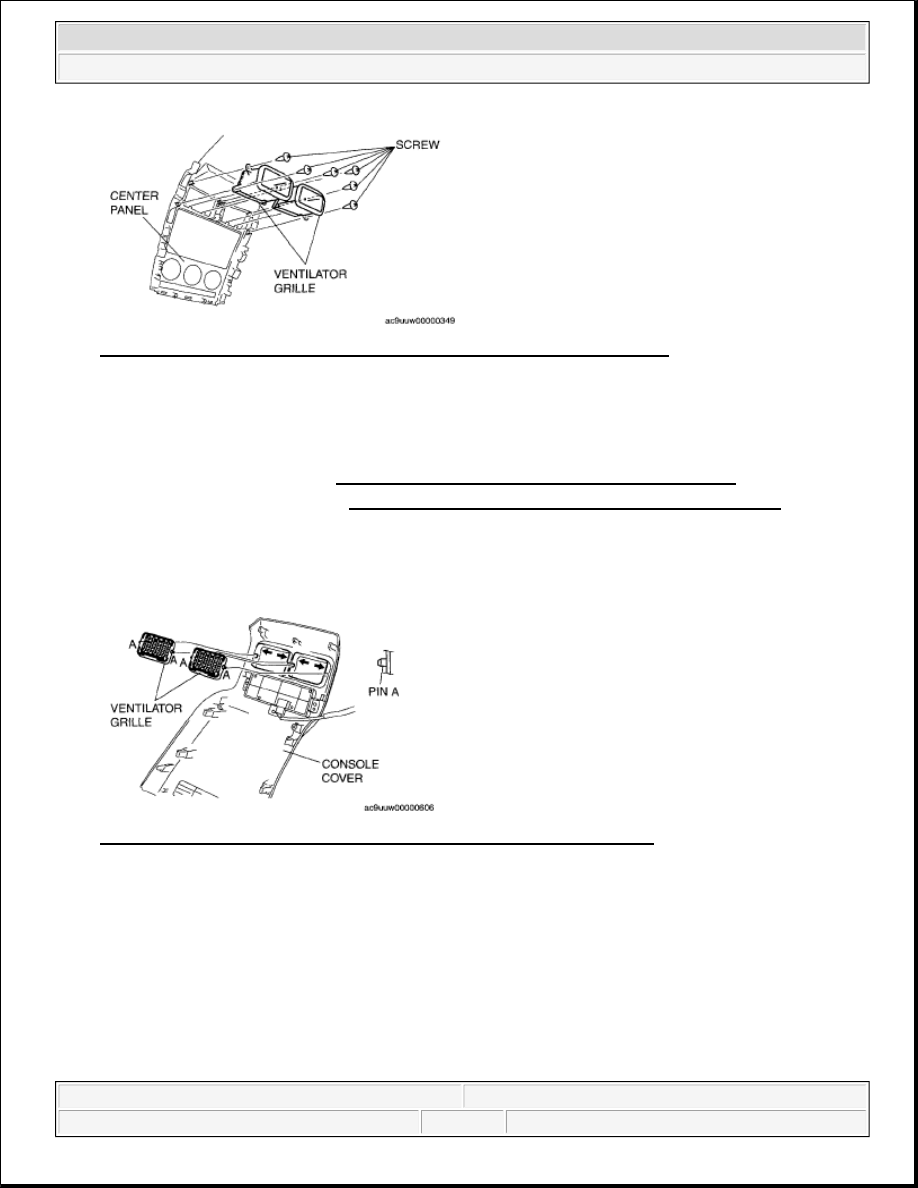

Fig. 23: Identifying Ventilator Grille & Center Panel With Screw - Center
Courtesy of MAZDA MOTORS CORP.

REAR

1. Disconnect the negative battery cable.

2. Remove the console cover. (See CONSOLE COVER REMOVAL/INSTALLATION.)

3. Remove the rear cooler duct. (See REAR COOLER DUCT REMOVAL/INSTALLATION .)

4. Detach the pins A while holding the console cover.

5. Remove the ventilator grille in the direction of the arrow.

6. Install in the reverse order of removal.

Fig. 24: Identifying Ventilator Grille & Center Panel With Screw - Rear
Courtesy of MAZDA MOTORS CORP.

INNER SAIL GARNISH REMOVAL/INSTALLATION

1. Pull the sail garnish outward, then detach clips A.

2. Remove the inner sail garnish.

3. Install in the reverse order of removal.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Interior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:43:26 AM

Page 18

© 2005 Mitchell Repair Information Company, LLC.

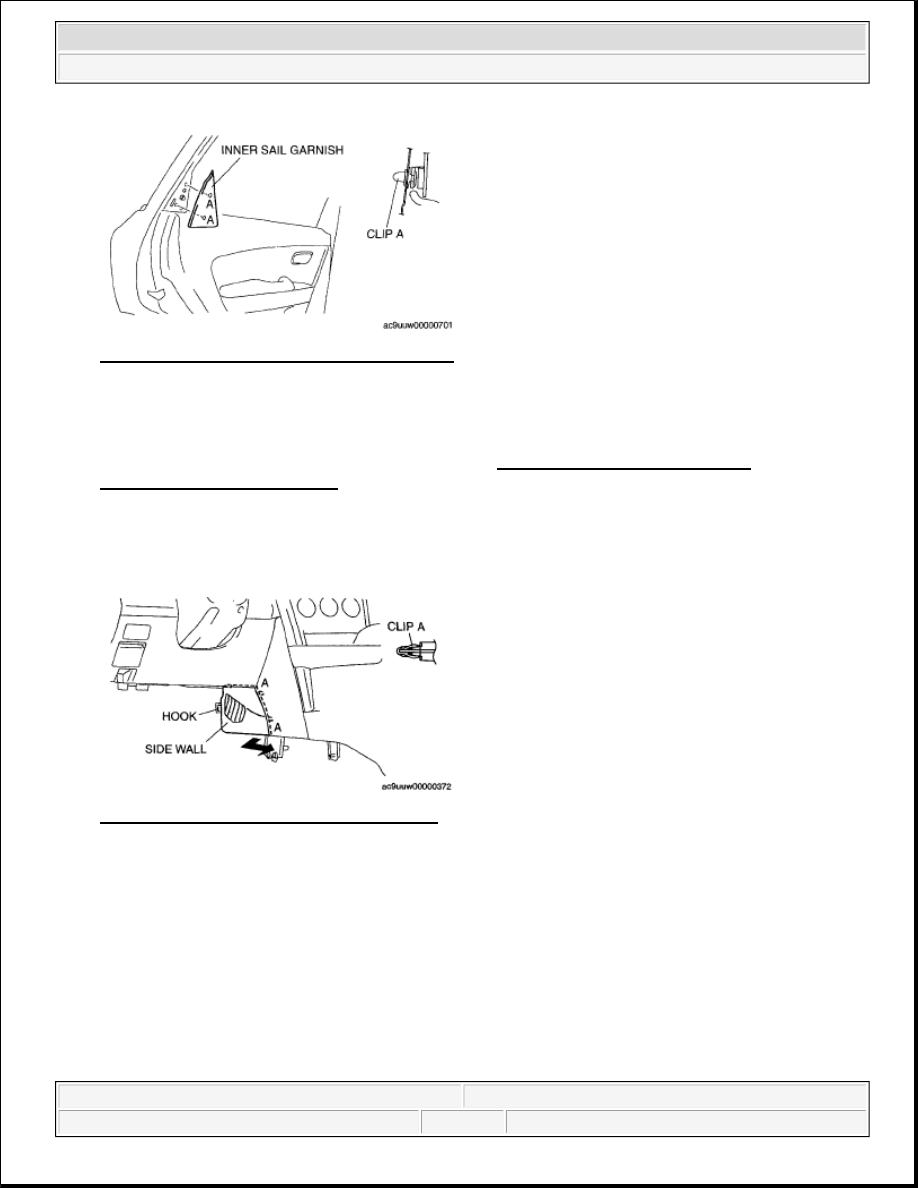

Fig. 25: Identifying Inner Sail Garnish & Clip
Courtesy of MAZDA MOTORS CORP.

SIDE WALL REMOVAL/INSTALLATION

1. Remove the dashboard under cover (Driver side). (See DASHBOARD UNDER COVER

REMOVAL/INSTALLATION.)

2. Detach clips A and hook by pulling them in the direction of the arrow.

3. Remove the side wall.

4. Install in the reverse order of removal.

Fig. 26: Identifying Side Wall Hook & Clips
Courtesy of MAZDA MOTORS CORP.

DASHBOARD UNDER COVER REMOVAL/INSTALLATION

DRIVER SIDE

1. Remove the fasteners.

2. Detach tab A and hook by pulling them in the direction of the arrow.

3. Remove the dashboard under cover.

4. Install in the reverse order of removal.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Interior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:43:26 AM

Page 19

© 2005 Mitchell Repair Information Company, LLC.

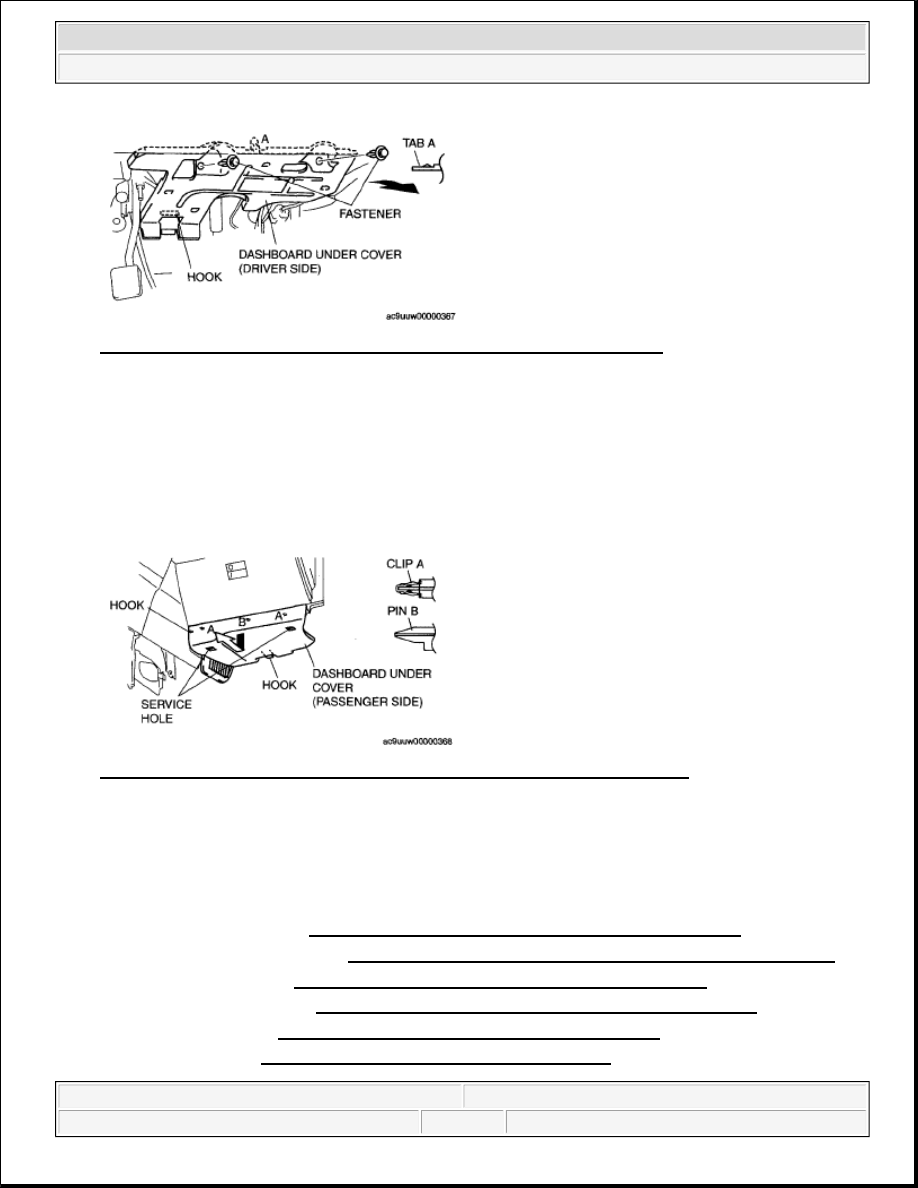

Fig. 27: Identifying Dashboard Under Cover, Hook & Clips (Driver Side)
Courtesy of MAZDA MOTORS CORP.

PASSENGER SIDE

1. Insert fingers into the service hole and detach clips A and pin B and hooks by pulling it in the direction of

the arrow.

2. Remove the dashboard under cover.

3. Install in the reverse order of removal.

Fig. 28: Identifying Dashboard Under Cover, Hook & Clips (Passenger Side)
Courtesy of MAZDA MOTORS CORP.

DASHBOARD GARNISH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:

1. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

2. Front console box mat (See FRONT CONSOLE BOX MAT REMOVAL/INSTALLATION.)

3. Indicator panel (See INDICATOR PANEL REMOVAL/INSTALLATION.)

4. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

5. Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

6. Side panel (See SIDE PANEL REMOVAL/INSTALLATION.)
