14. Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

15. Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

16. Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE

REMOVAL/INSTALLATION .)

17. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)

18. Combination switch (See COMBINATION SWITCH REMOVAL/INSTALLATION .)

19. Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

20. Meter hood (See METER HOOD REMOVAL/INSTALLATION.)

21. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)

22. Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION .)

23. Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)

24. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

25. Side panel (See SIDE PANEL REMOVAL/INSTALLATION.)

3. Disconnect the front door wiring harness connector (Driver side). (See FRONT DOOR MODULE

REMOVAL/INSTALLATION .)

4. Disconnect the dashboard harness connectors.

5. Remove the brake switch from the brake pedal with the brake switch connector connected. (See BRAKE

PEDAL REMOVAL/INSTALLATION .)

6. Remove the selector lever component. (See SELECTOR LEVER COMPONENT

REMOVAL/INSTALLATION .)

7. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE

REMOVAL/INSTALLATION .)

8. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)

9. Remove the windshield wiper motor. (See WINDSHIELD WIPER MOTOR

REMOVAL/INSTALLATION .)

10. Remove in the order indicated in the figure.

11. Install in the reverse order of removal.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Interior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:43:25 AM

Page 5

© 2005 Mitchell Repair Information Company, LLC.

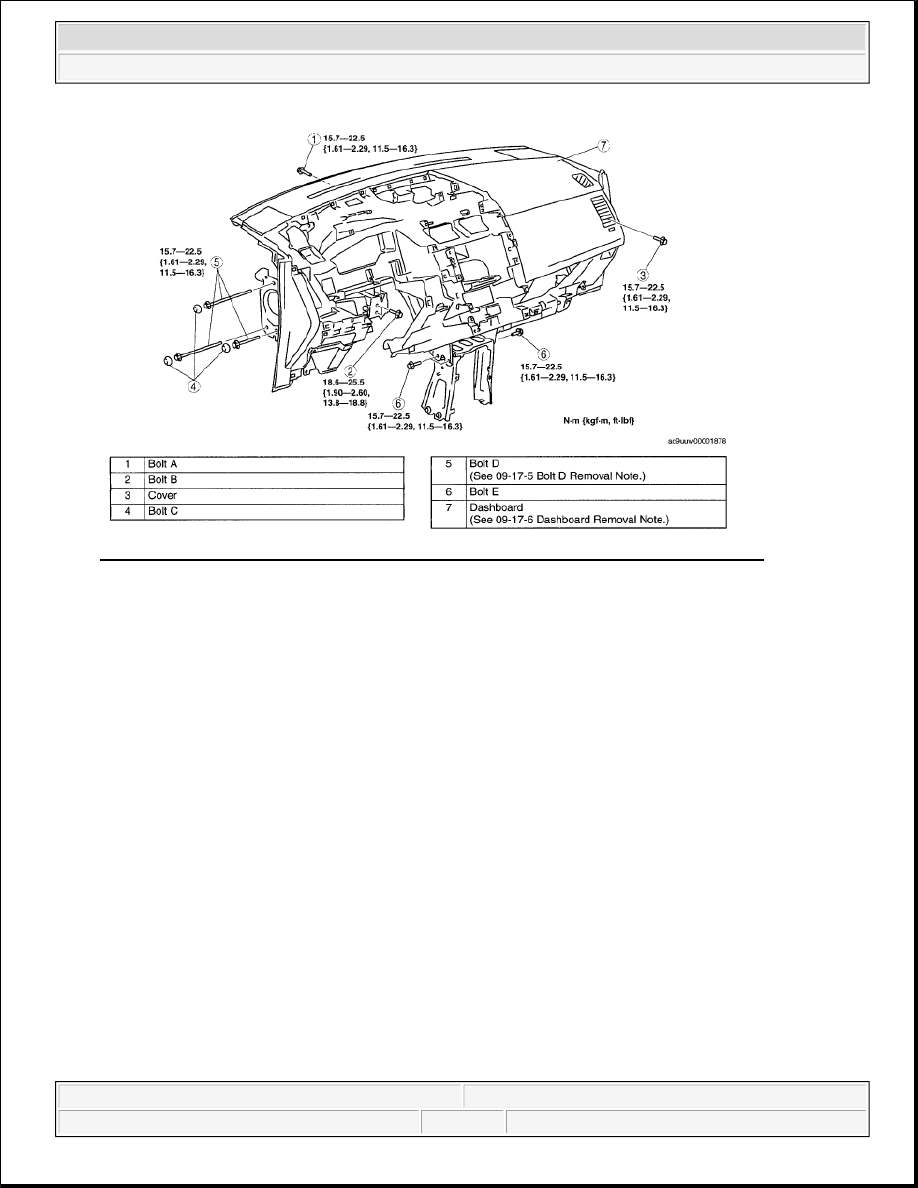

Fig. 4: Identifying Dashboard Component Removal Sequence & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

BOLT D REMOVAL NOTE

DASHBOARD REMOVAL NOTE

1. Raise the dashboard and detach the hooks from the body.

CAUTION:

Bolt D cannot be removed from the body. Due to this, bolt D could be
pinched when closing the front door, resulting in damage to the front
door. When closing the front door, verify that bolt D is completely
inserted

WARNING:

Removing the dashboard without supporting it can be dangerous.
The dashboard may fall and injure you. Always perform the following
procedure with at least another person.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Interior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:43:25 AM

Page 6

© 2005 Mitchell Repair Information Company, LLC.

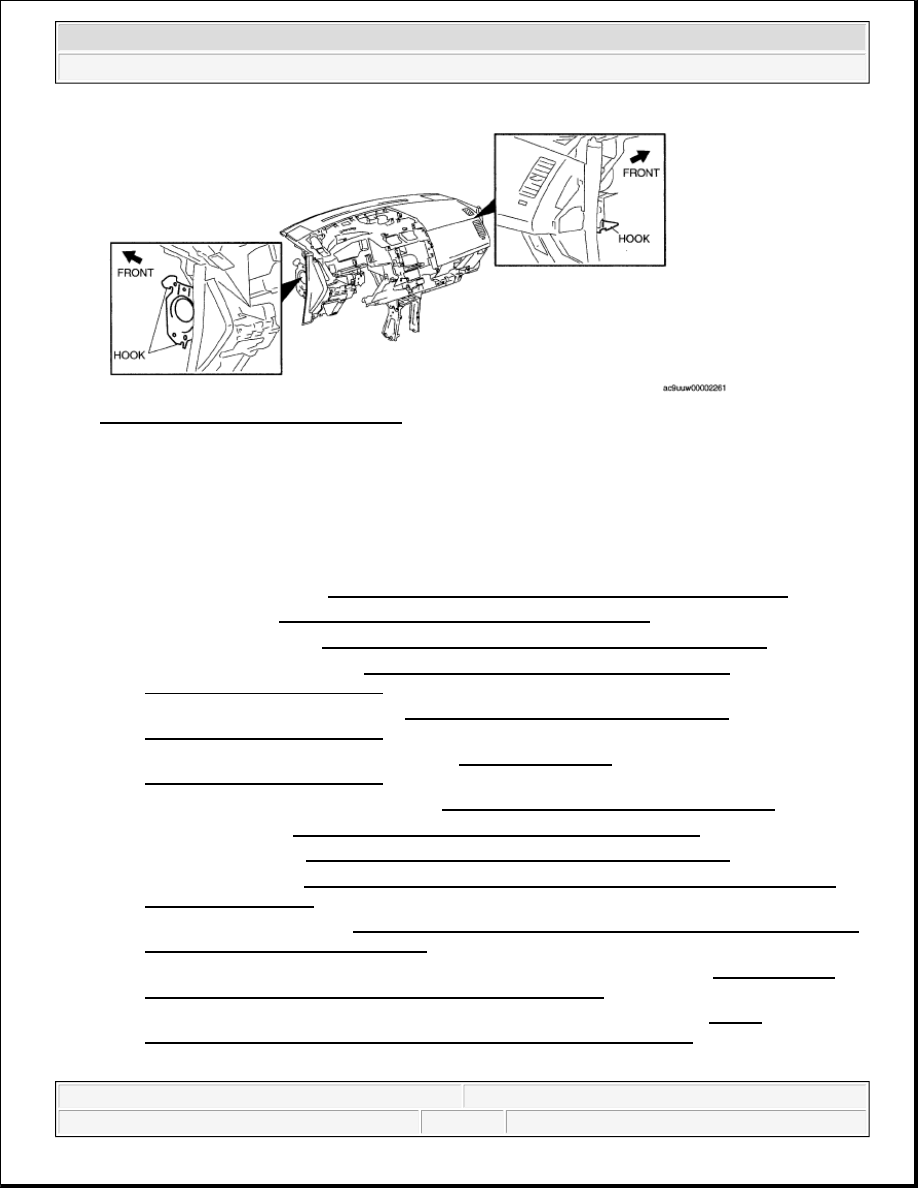

Fig. 5: Identifying Dashboard & Hooks
Courtesy of MAZDA MOTORS CORP.

2. Take the dashboard out through the opened front driver-side door.

DASHBOARD DISASSEMBLY/ASSEMBLY

1. Remove the following parts:

1. Information display (See INFORMATION DISPLAY REMOVAL/INSTALLATION .)

2. GPS antenna (See GPS ANTENNA REMOVAL/INSTALLATION .)

3. Dashboard garnish (See DASHBOARD GARNISH REMOVAL/INSTALLATION.)

4. Hans-free telephone unit (See HANDS-FREE TELEPHONE (HF/TEL) UNIT

REMOVAL/INSTALLATION .)

5. Passenger-side air bag module (See PASSENGER-SIDE AIR BAG MODULE

REMOVAL/INSTALLATION .)

6. Front speaker (Vehicles With Bose®) (See FRONT SPEAKER

REMOVAL/INSTALLATION .)

7. Tweeter (Vehicles Without Bose®) (See TWEETER REMOVAL/INSTALLATION .)

8. Center speaker (See CENTER SPEAKER REMOVAL/INSTALLATION .)

9. Keyless receiver (See KEYLESS RECEIVER REMOVAL/INSTALLATION .)

10. Keyless antenna (See KEYLESS ANTENNA REMOVAL/INSTALLATION [ADVANCED

KEYLESS SYSTEM] .)

11. keyless control module (See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION

[ADVANCED KEYLESS SYSTEM] .)

12. Auto light-off control module (Vehicles without auto light/wiper system) (See AUTO LIGHT-

OFF CONTROL MODULE REMOVAL/INSTALLATION .)

13. Auto light/wiper control module (Vehicles with auto light/wiper system) (See AUTO

LIGHT/WIPER CONTROL MODULE REMOVAL/INSTALLATION .)

2. Disassemble in the order indicated in the table.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Interior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:43:25 AM

Page 7

© 2005 Mitchell Repair Information Company, LLC.

3. Assemble in the reverse order of disassembly.

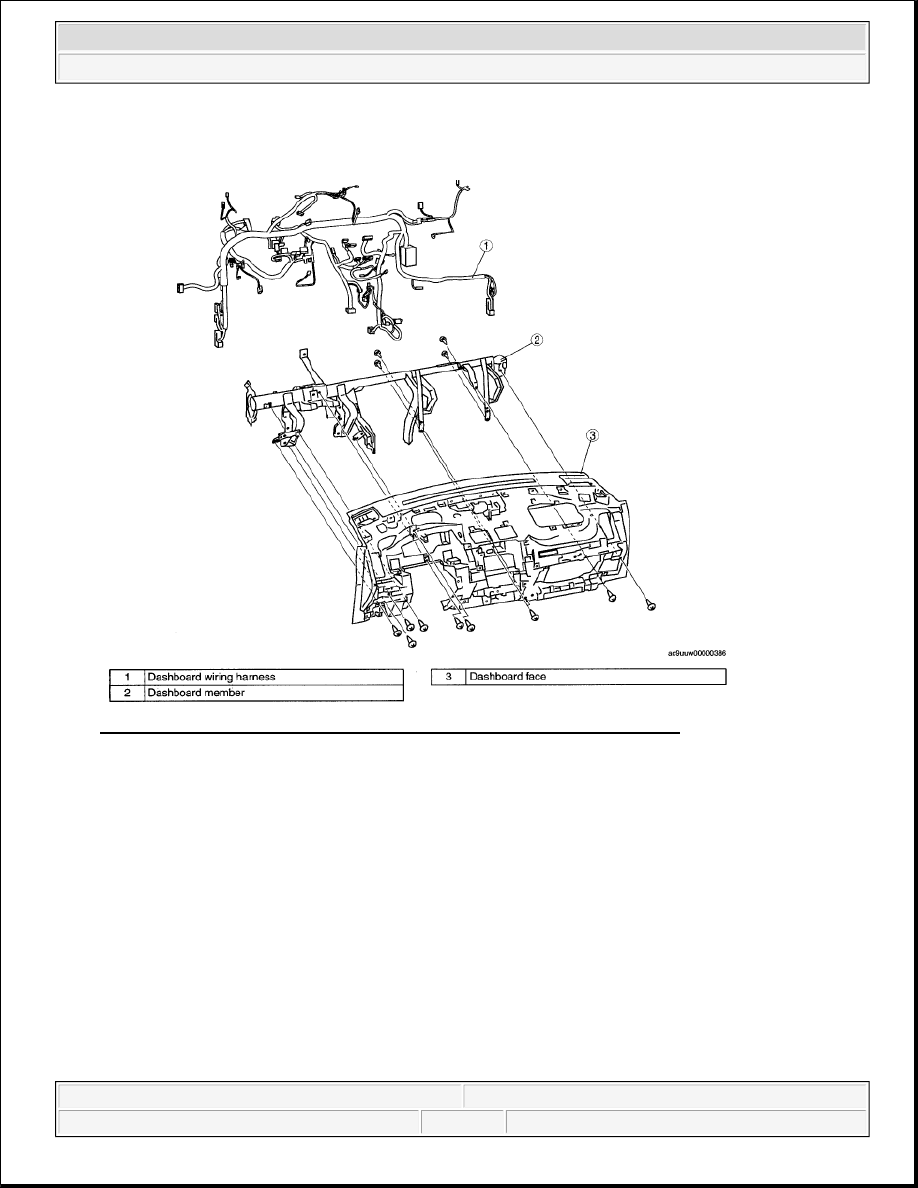

Fig. 6: Identifying Dashboard Wiring Harness, Member & Dashboard Face
Courtesy of MAZDA MOTORS CORP.

COLUMN COVER REMOVAL/INSTALLATION

LOWER COLUMN COVER

1. Remove the screws.

2. Pull down the tilt wheel release lever.

3. Remove the lower column cover in the direction of the arrow.

4. Install in the reverse order of removal.
