2008 BODY & ACCESSORIES

Interior Trim - Mazda CX-9

INTERIOR TRIM LOCATION INDEX



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Interior Trim - Mazda CX-9





2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Interior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:43:25 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

Microsoft



Sunday, November 15, 2009 10:43:29 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

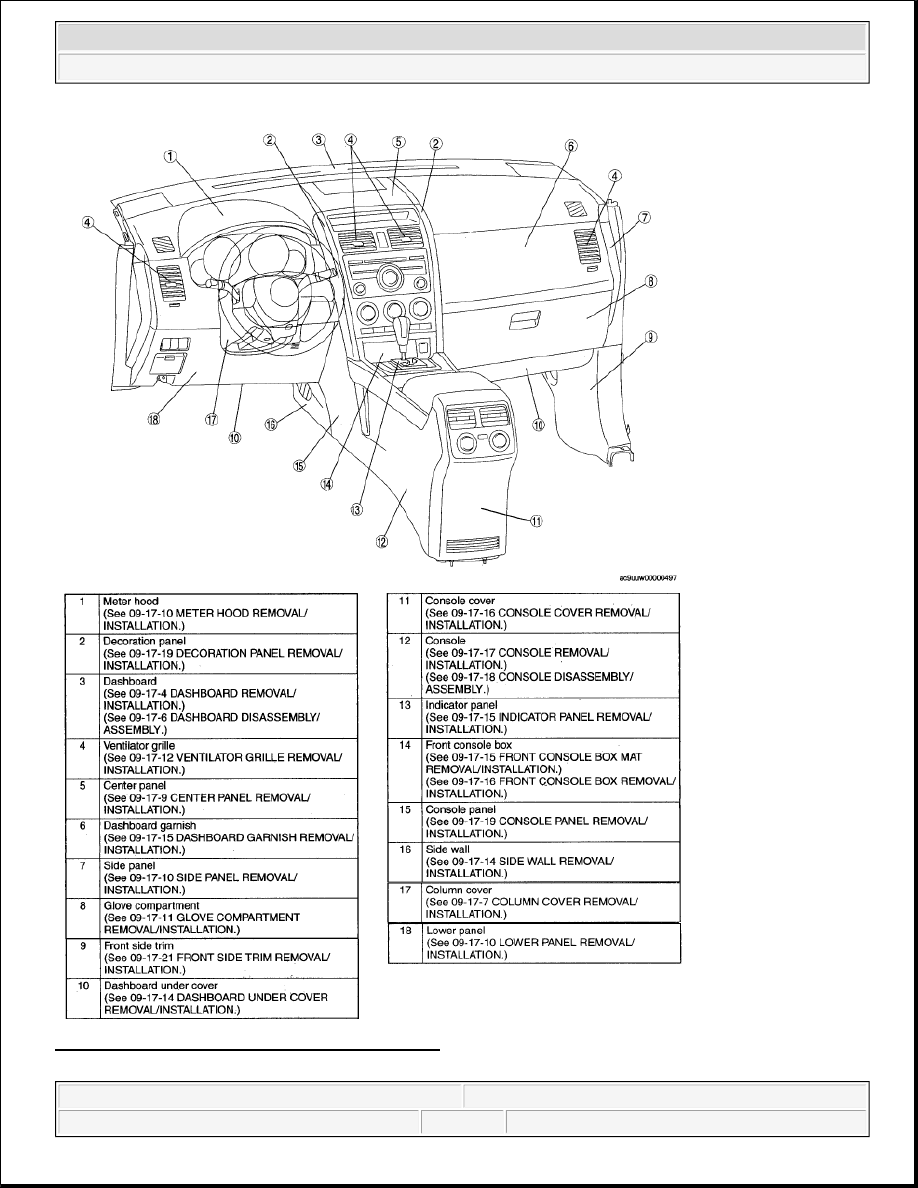

Fig. 1: Identifying Interior Trim Location (1 Of 3)
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Interior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:43:25 AM

Page 2

© 2005 Mitchell Repair Information Company, LLC.

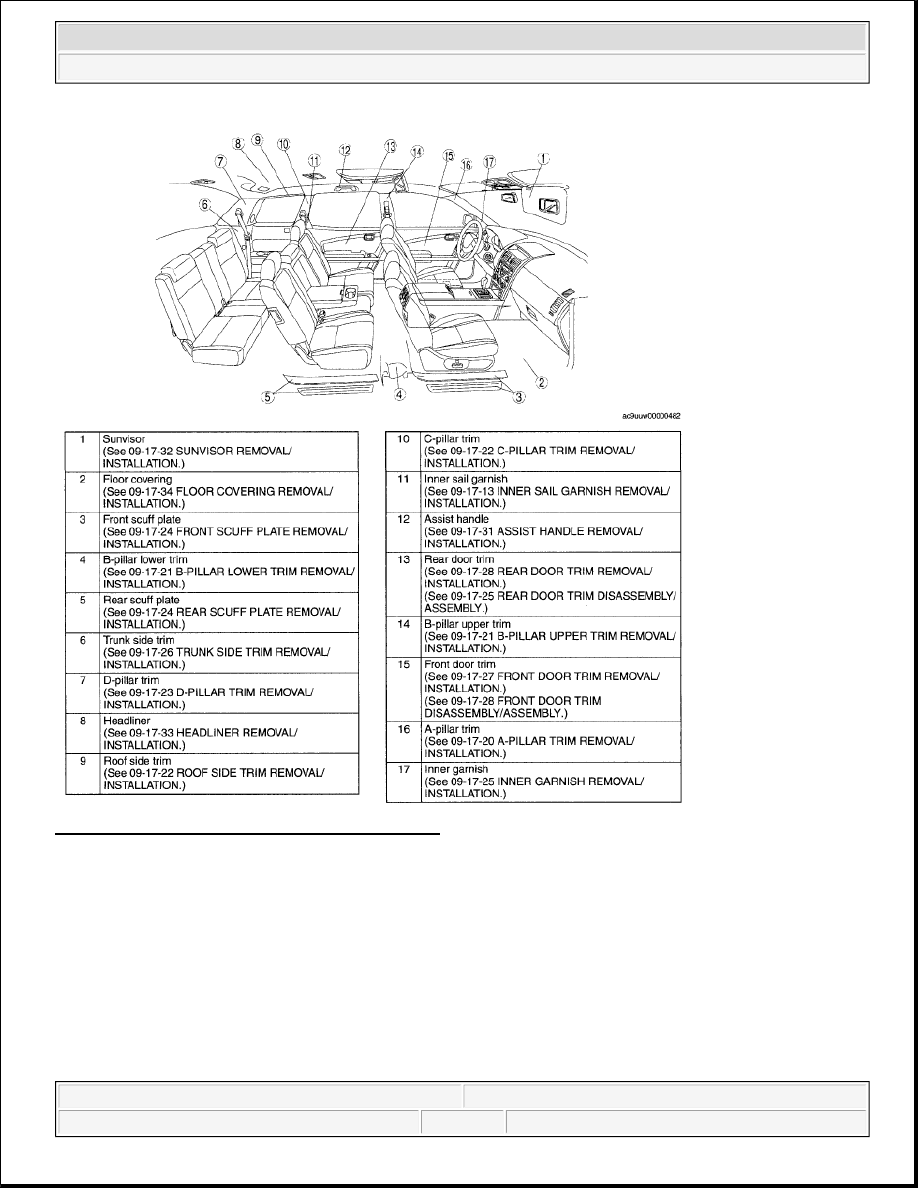

Fig. 2: Identifying Interior Trim Location (2 Of 3)
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Interior Trim - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:43:25 AM

Page 3

© 2005 Mitchell Repair Information Company, LLC.

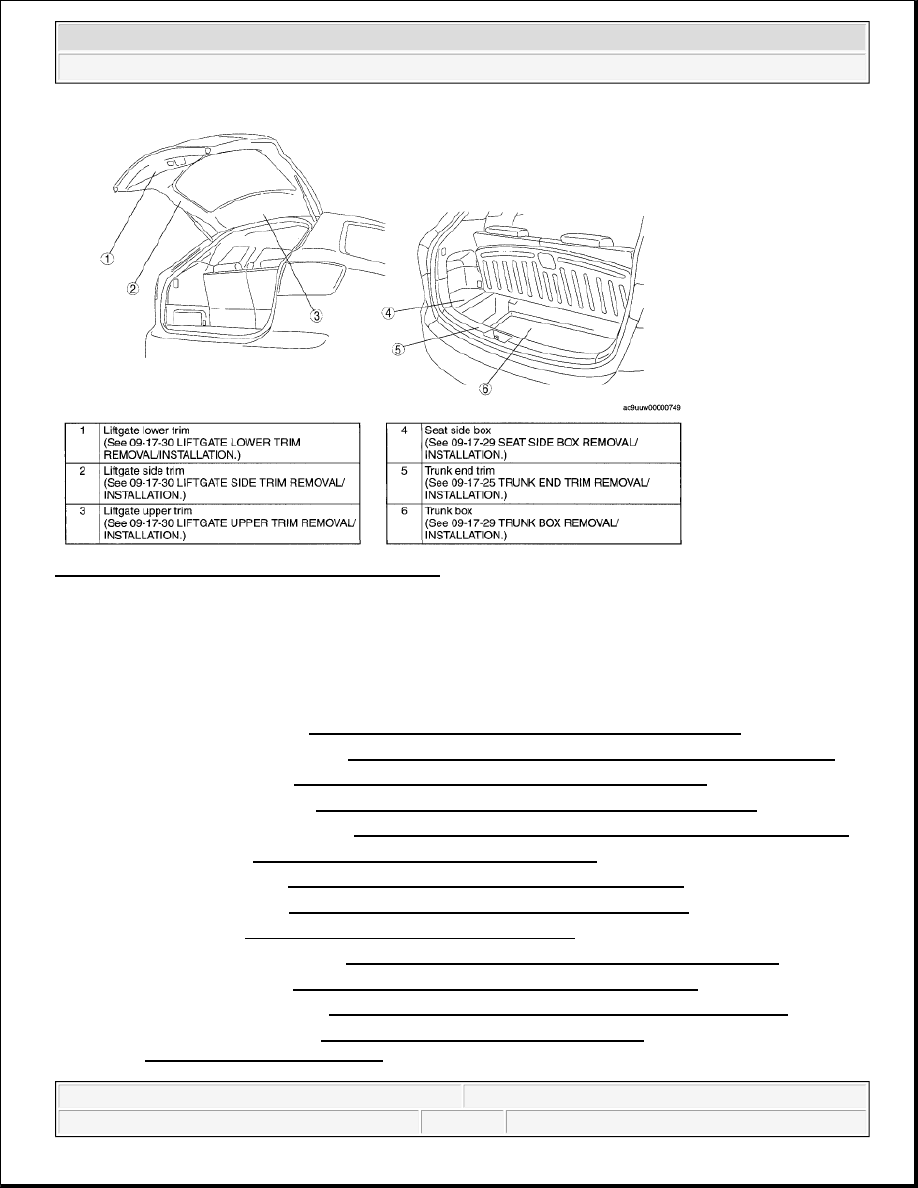

Fig. 3: Identifying Interior Trim Location (3 Of 3)
Courtesy of MAZDA MOTORS CORP.

DASHBOARD REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:

1. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

2. Front console box mat (See FRONT CONSOLE BOX MAT REMOVAL/INSTALLATION.)

3. Indicator panel (See INDICATOR PANEL REMOVAL/INSTALLATION.)

4. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

5. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

6. Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

7. Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)

8. Console cover (See CONSOLE COVER REMOVAL/INSTALLATION.)

9. Console (See CONSOLE REMOVAL/INSTALLATION.)

10. Front scuff plate inner (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

11. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

12. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

13. Hood release lever (See HOOD LATCH AND RELEASE LEVER

REMOVAL/INSTALLATION .)
