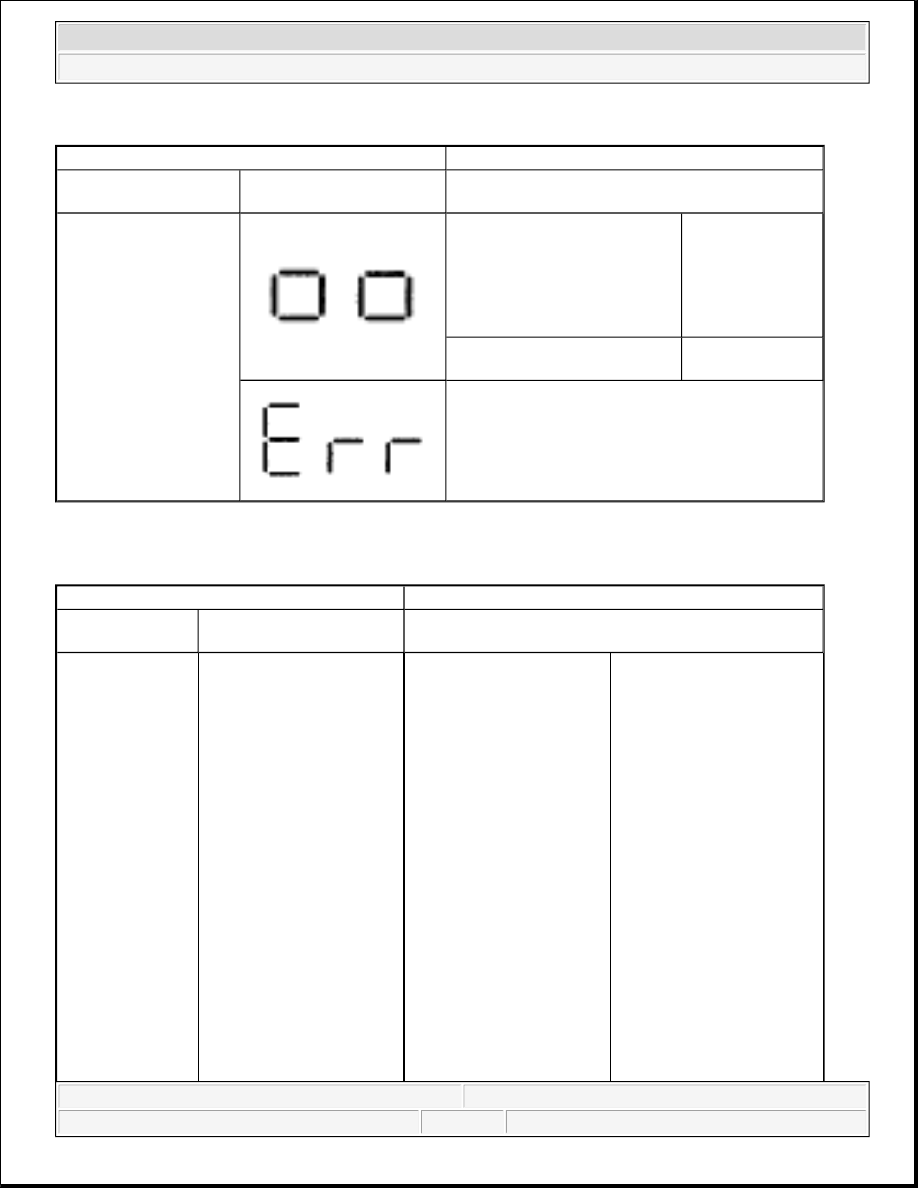

CHECK CODE INSPECTION CHART (CHECK CODE 25)

Check code 26

CHECK CODE INSPECTION CHART (CHECK CODE 26)

Check code 25

Water temperature gauge operation signal

INSPECTION

CONDITION

DISPLAY

ACTION

After selecting check
code 25, wait for
approx. 2 s.

The water temperature gauge
indicates status in the following
order approx. every 2 s.



H --> Center --> C --> H
(fixed)

The water
temperature gauge
is normal.

Except above

Replace the
instrument cluster.

Replace the instrument cluster

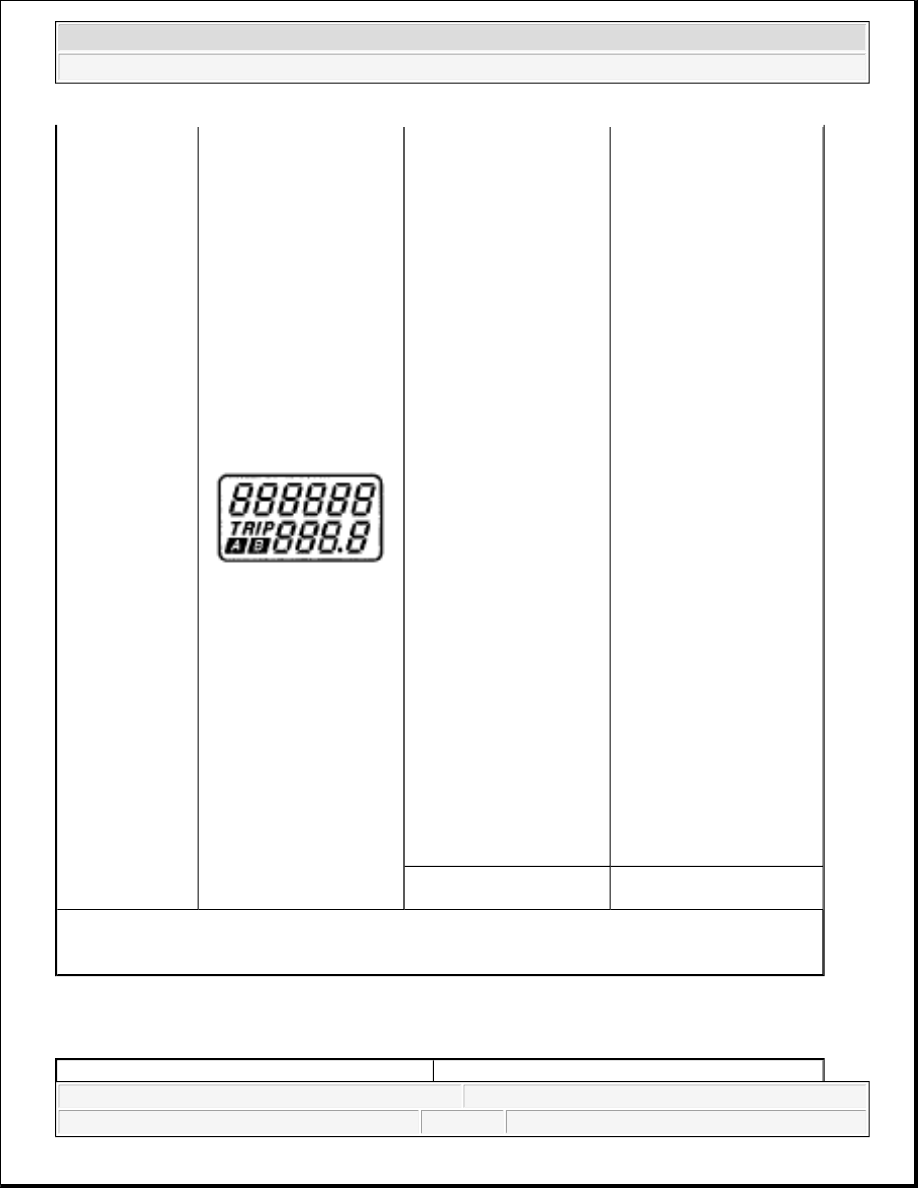

Check code 26

Odometer/tripmeter display signal

INSPECTION

CONDITION

DISPLAY

ACTION



Display is normal.



Warning and
indicator light
illuminated.



Generator
warning light



DSC indicator
light



ABS warning
light



Brake system
warning light



Cruise set
indicator light

(1)





Cruise main
indicator light

(1)





2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Instrumentation/Driver Info - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:42:27 AM

Page 15

© 2005 Mitchell Repair Information Company, LLC.

Check code 55

CHECK CODE INSPECTION CHART (CHECK CODE 55)

Select check code
26.



TCS OFF light



Selector
indicator light



Door ajar
warning light



Seat belt
warning light



Air bag system
warning light



Turn indicator
light



Oil pressure
warning light



MIL



Keyless
indicator light

(2)





Keyless
warning light

(2)





Security light



Washer fluid-
level warning
light



ETC warning
light



Fuel cap
warning light



AWD warning
light



AT warning
light



The
odometer/tripmeter is
normal.



Warning and indicator
is normal.

Except above

Replace the instrument
cluster.

(1)

Flashing alternates

(2)

Flashing alternates

Check code 55

Dimmer switch ON/OFF signal



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Instrumentation/Driver Info - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:42:27 AM

Page 16

© 2005 Mitchell Repair Information Company, LLC.

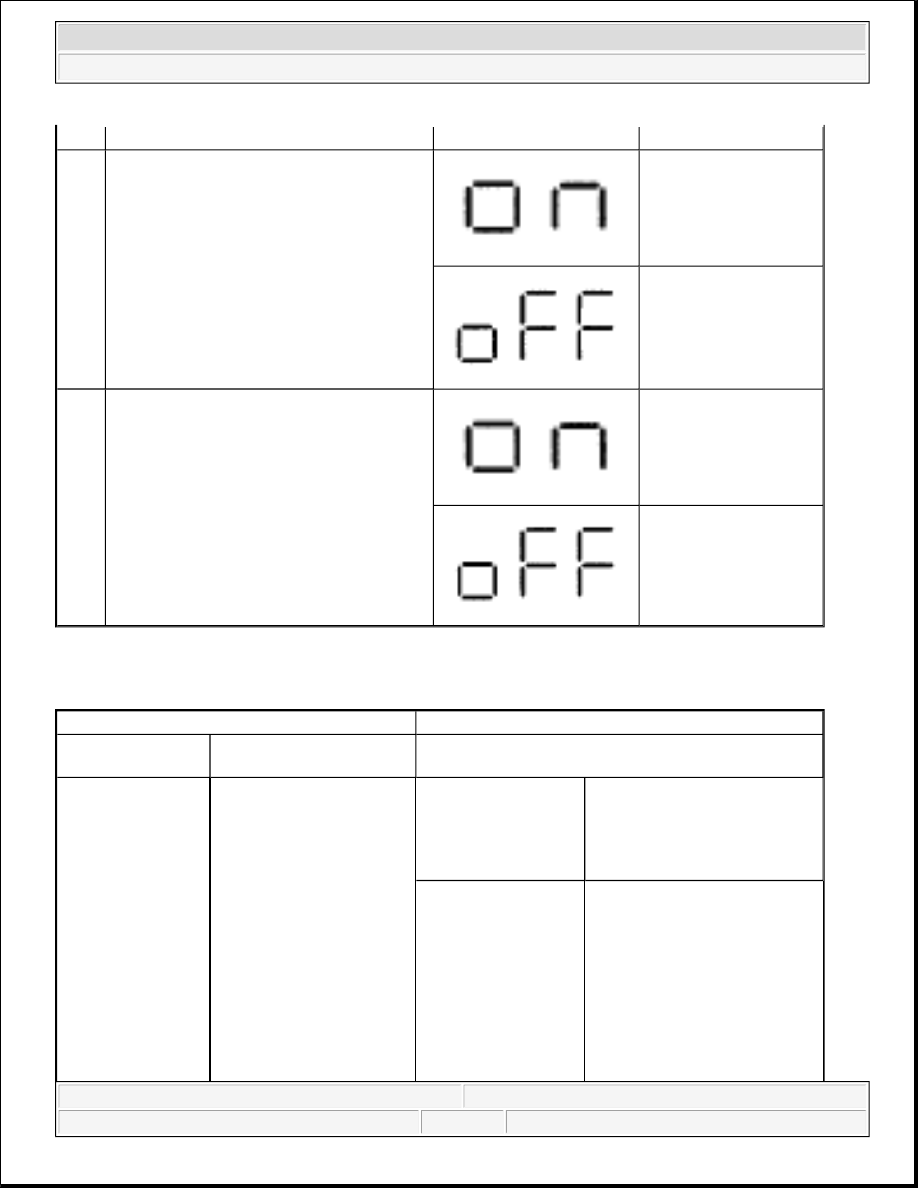

Check code 57

CHECK CODE INSPECTION CHART (CHECK CODE 57)

STEP

INSPECTION CONDITION

DISPLAY

ACTION

1

After selecting the check code 55, press and

hold the dimmer switch. (Dimmer switch

ON)

Go to the next step.

Replace the instrument
cluster.

2

Release the dimmer switch. (Dimmer switch

OFF)

Replace the instrument
cluster.

Input signal to the
instrument cluster is
normal.

Check code 57

Panel light control signal

INSPECTION

CONDITION

DISPLAY

ACTION

Turn the headlight
switch to the TNS
position.
After selecting
check code 57, wait
for approx. 2 s.

Illumination light
(hazard warning
switch, center panel
unit, etc.) flashes
three times.

The panel light control signal is
normal.

Except above

Verify that the voltage of
instrument cluster terminal 1I is
B+.



If the voltage is as
specified, replace the
instrument cluster.



If the voltage is not as
specified, inspect the



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Instrumentation/Driver Info - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:42:27 AM

Page 17

© 2005 Mitchell Repair Information Company, LLC.

FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION

FUEL GAUGE SENDER UNIT

1. Remove the fuel gauge sender unit. (See FUEL PUMP UNIT REMOVAL/INSTALLATION [MZI-

3.7] .)

2. Install in the reverse order of removal.

FUEL GAUGE SENDER SUB-UNIT

following parts:



Illumination light
(hazard warning
switch, center panel
unit, etc.)



Wiring harness
(Instrument cluster-
illumination lights-
TNS relay)

WARNING:



Fuel line spills and leakage are dangerous. Fuel can ignite and cause
serious injuries or death and damage. Fuel can also irritate skin and
eyes. To prevent this, always complete the "Fuel Line Safety
Procedure".



Fuel line spills and leakage are dangerous. Fuel can ignite and cause
serious injuries or death and damage. Fuel can also irritate skin and
eyes. To prevent this, before performing the fuel gauge sender sub-
unit removal/installation, always complete the "Fuel Leak Inspection
After Fuel Pump Unit Installation".



A person charged with static electricity could cause a fire or
explosion, resulting in death or serious injury. Before draining fuel,
make sure to discharge static electricity by touching the vehicle
body.

CAUTION:



Because the fuel tank is constructed such that the fuel level is higher
than the installation surface of the fuel pump, fuel leakage could
occur. If the fuel gauge indicates a fuel level of half or more, perform
the following Steps 1-6 to drain approx. 10-15 L {11-15 US gal, 8.8-13
lmp gal} of fuel.



Disconnecting/connecting the quick release connector without
cleaning it may possibly cause damage to the fuel pipe and quick
release connector. Always clean the quick release connector joint
area before disconnecting/connecting using a cloth or soft brush,
and make sure that it is free of foreign material.
